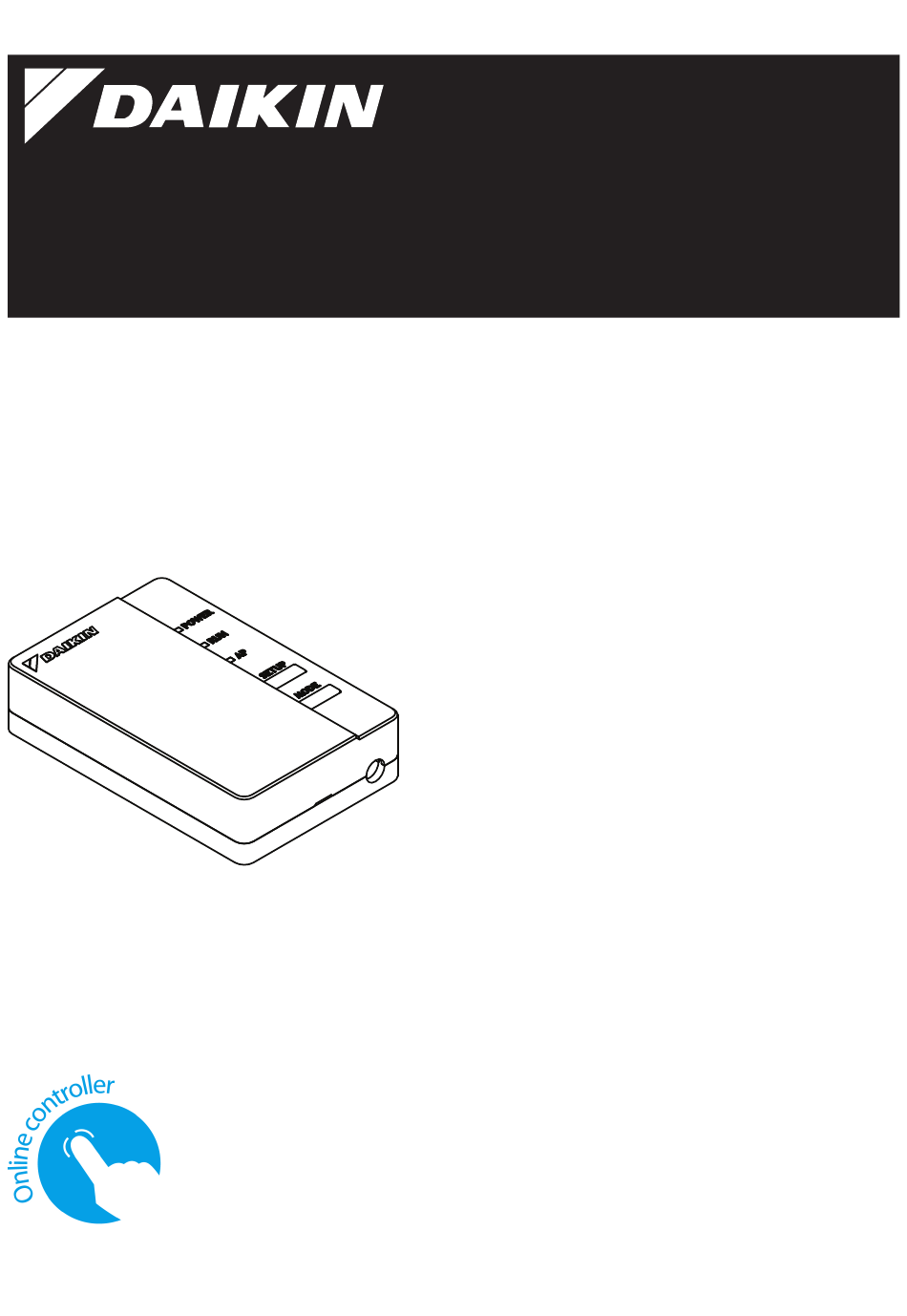

- Page 1 4P359542-1N Installation Manual Wireless LAN Connecting Adapter <BRP069A41>...
- Page 3 Hereby, Daikin Industries Czech Republic s.r.o., declares that the BRP069A41 is in compliance with the essential requirements and other relevant provisions of directive 1999/5/EC. Accessories Check if the following accessories are included in your package.
-
Page 4: Safety Precautions
Safety precautions The following describes the meanings of pictorial symbols used in this documentation. Give this installation manual to the customer when installation is completed. To conduct a test run of the air conditioner, follow the installation manual for the air conditioner unit. -
Page 5: When Using
Safety precautions Warning Situations which could result in death or serious injury. When using: Do not disassemble, modify, or repair. (Can cause fire, electric shock or injury.) Do not handle this product with wet hands. (Can cause electric shock or fire.) ... - Page 6 Safety precautions Caution Situations which could result in damage or physical injury. When installing: Do not install where flammable gas leaks can occur. (Can cause fire.) Grip the connector when disconnecting the connecting cord. (Otherwise fire or electric shock can occur.) When using: ...
-
Page 7: Disposal Requirements
Disposal requirements Your product is marked with this symbol. This symbol means that electrical and electronic products shall not be mixed with unsorted household waste. Do not try to dismantle the system yourself: the dismantling of the product and of other parts must be done by a qualified installer in accordance with relevant local and national legislation. -
Page 8: Main Components
Main components Wireless LAN connecting adapter POWER lamp (green) lights when SETUP button running. Use when connecting to a router (Wireless RUN lamp (orange) LAN access point). lights when connecting to a router (Wireless LAN access point). MODE button switches modes (RUN/AP) when AP lamp (yellow) held down. -
Page 9: Installation
Installation Installation Work Attach the Wireless LAN connection adapter to indoor unit. Danger ■ BRP069A41 Always turn off the power supply when installing. (Touching the electrical parts can cause an electric shock.) The main switch of the TYPE A installation is at the outdoor unit. ... - Page 10 Installation Installation Work TYPE B Remove the front panel from the indoor unit and remove tape, grab the connecting cord with your fingers, then remove the tie-wrap and pull the insulation tube off the connecting cord. Refer to your air conditioner‘s installation manual for details on removing the front panel.
- Page 11 Installation Installation Work Remove the adapter case (upper). ■ BRP069A41 Press a regular screwdriver into the dent between the upper and lower cases to remove. (Be careful not to damage the case.) Regular screwdriver Adapter case (upper) Wireless LAN Adapter connecting adapter case (lower) printed circuit board...
- Page 12 Installation Installation Work Attach connecting cord to the product. ■ BRP069A41 Attach the connecting cord connector (white). Fasten the connecting cord to the notch in the adapter case (lower). Connect the connector to the same color. Connector (white) Fasten the connecting cord and ensure that external force is not transmitted.
- Page 13 Installation Installation Work Return the adapter case to its original state. ■ BRP069A41 Snap the top of the upper case unto the clip at the top of the lower case and press to close the box. Adapter case Adapter case (lower) top (upper) top portion clip...
- Page 14 Installation Installation Work TYPE A CAUTION Close this door before operating the unit. When turning the power supply to the unit panels will open. If the door is not closed, panel will hit the door and damage can occur.
-
Page 15: Functionality Check
Installation Installation Work TYPE B (Class 50-71) • Place the wireless adapter into the holder (1). • Fix the adapter in the holder by pressing down on it (2). Functionality Check ■ BRP069A41 TYPE A Turn on the power supply, wait until the initialization is completed (the lower panel is in the CLOSED position). - Page 16 (Supported OS: Android 2.3.3 or later; iOS 5.0 or later.) □ Internet line and communicating device (Modem/router or similar device) □ Wireless LAN access point □ [Daikin online controller] (No cost) Installation method of Daikin online controller For Android Phones For iPhones (1) Open the [Google Play].
-
Page 17: Troubleshooting
Troubleshooting The following table provides brief descriptions of how to handle trouble or uncertainties when you install the product or make connection settings. Refer to the FAQ on the homepage for more details. When this happens Explanation and where to check None of the LEDs light →... - Page 18 Troubleshooting When this happens Explanation and where to check When trying to make → If the AP LED is not lit, press the a direct connection to "Mode" button for 2 seconds to the adapter (AP mode) switch to AP mode. the WLAN adapter is not →...
- Page 20 1383 4P359542-1N 2015.11...
