- Page 1 Installer reference guide WLAN adapter Heating BRP069A71...
-
Page 2: Table Of Contents
ON ................................... 16 9.1.2 Symptom: The adapter is NOT responding to interaction with the indoor unit........... 16 9.1.3 Symptom: Nothing happens when the adapter is in AP mode ..............16 Installer reference guide BRP069A71 WLAN adapter Heating 4P624189-1 – 2020.06... -
Page 3: About This Document
Format: Digital files on http://www.daikineurope.com/support-and-manuals/ product-information/ ▪ Declaration of conformity: INFORMATION: Declaration of conformity Hereby, Daikin Europe N.V. declares that the radio equipment type BRP069A71 is in compliance with the Directive 2014/53/EU. The original declaration of conformity is available from http://www.daikineurope.com/support-and-manuals/product- information/. -
Page 4: About The Adapter

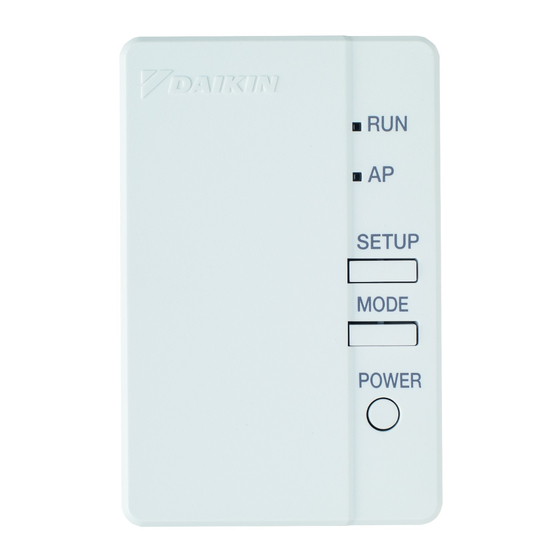

About the adapter 2 About the adapter Wireless LAN adapter to connect the heat pump system to the Daikin Cloud via the internet, allowing for control of the heat pump system with the Daikin Residential Controller app. 2.1 Components Component Description ▪... -
Page 5: Compatibility
About the adapter 2.3 Compatibility Make sure the heat pump system is compatible for use with the adapter. For more information, see the installer reference guide of the heat pump system. BRP069A71 Installer reference guide WLAN adapter Heating 4P624189-1 – 2020.06... -
Page 6: About The Box
2 Take out the adapter. 3 Separate the accessories. Adapter Adapter holder with double-sided tape Cable tie mounting Cable tie Connection cable Installation manual Tape for adapter holder Label for manual Screws BRP069A71 Installer reference guide WLAN adapter Heating 4P624189-1 – 2020.06... -
Page 7: Preparation
In places where it is exposed to a source of steam. ▪ In places where it is exposed to machine oil vapour. 4.2 Overview of electrical connections To indoor unit BRP069A71 Installer reference guide WLAN adapter Heating 4P624189-1 – 2020.06... -
Page 8: Installation
▪ Preparation DANGER: RISK OF ELECTROCUTION Do NOT turn on the power supply before you have connected the electrical wiring, closed the adapter, and mounted it to the indoor unit. BRP069A71 Installer reference guide WLAN adapter Heating 4P624189-1 – 2020.06... -
Page 9: To Connect The Adapter With The Unit
Provide strain relief at indoor unit side by using the cable tie and cable tie mounting that are included as accessory. 5.4 Closing the adapter 5.4.1 To close the adapter 1 Hook the front casing into the rear casing. BRP069A71 Installer reference guide WLAN adapter Heating 4P624189-1 – 2020.06... -
Page 10: Mounting The Adapter
Make sure to mount the holder to the indoor unit firmly, so that it can bear the weight of the adapter. 5.5.2 To mount the adapter to the unit 1 Attach the double-sided tape to the adapter holder. BRP069A71 Installer reference guide WLAN adapter Heating 4P624189-1 – 2020.06... -
Page 11: Opening The Adapter
Before opening the adapter, turn OFF the power to the indoor unit. 5.6.2 To open the adapter 1 Remove the screws with a screwdriver. 2× 2 Unhook the front casing from the rear casing. BRP069A71 Installer reference guide WLAN adapter Heating 4P624189-1 – 2020.06... - Page 12 Installation BRP069A71 Installer reference guide WLAN adapter Heating 4P624189-1 – 2020.06...
-
Page 13: Starting Up The System
Depending on the system layout, it can take up to 1 minute before the adapter is operational. INFORMATION Before starting up the system, make sure that the adapter is closed and properly mounted to the indoor unit. BRP069A71 Installer reference guide WLAN adapter Heating 4P624189-1 – 2020.06... -
Page 14: Configuration
Configuration 7 Configuration To configure the adapter, open the Daikin Residential Controller application on your mobile device and follow the in-app instructions. The Daikin Residential Controller application is available on Google Play and the App Store: http://www.onlinecontroller.daikineurope.com/ BRP069A71 Installer reference guide WLAN adapter Heating 4P624189-1 –... -
Page 15: Hand-Over To The User
Otherwise, this can lead to fire or malfunction. If this happens, consult your dealer. NOTICE Do not use the adapter near microwave ovens. This can affect wireless LAN communications. BRP069A71 Installer reference guide WLAN adapter Heating 4P624189-1 – 2020.06... -
Page 16: Troubleshooting
9.1.3 Symptom: Nothing happens when the adapter is in AP mode Possible causes Corrective action The firmware is corrupted. Contact your dealer to report the firmware issue. BRP069A71 Installer reference guide WLAN adapter Heating 4P624189-1 – 2020.06... - Page 20 4P624189-1 2020.06 Verantwortung für Energie und Umwelt...
