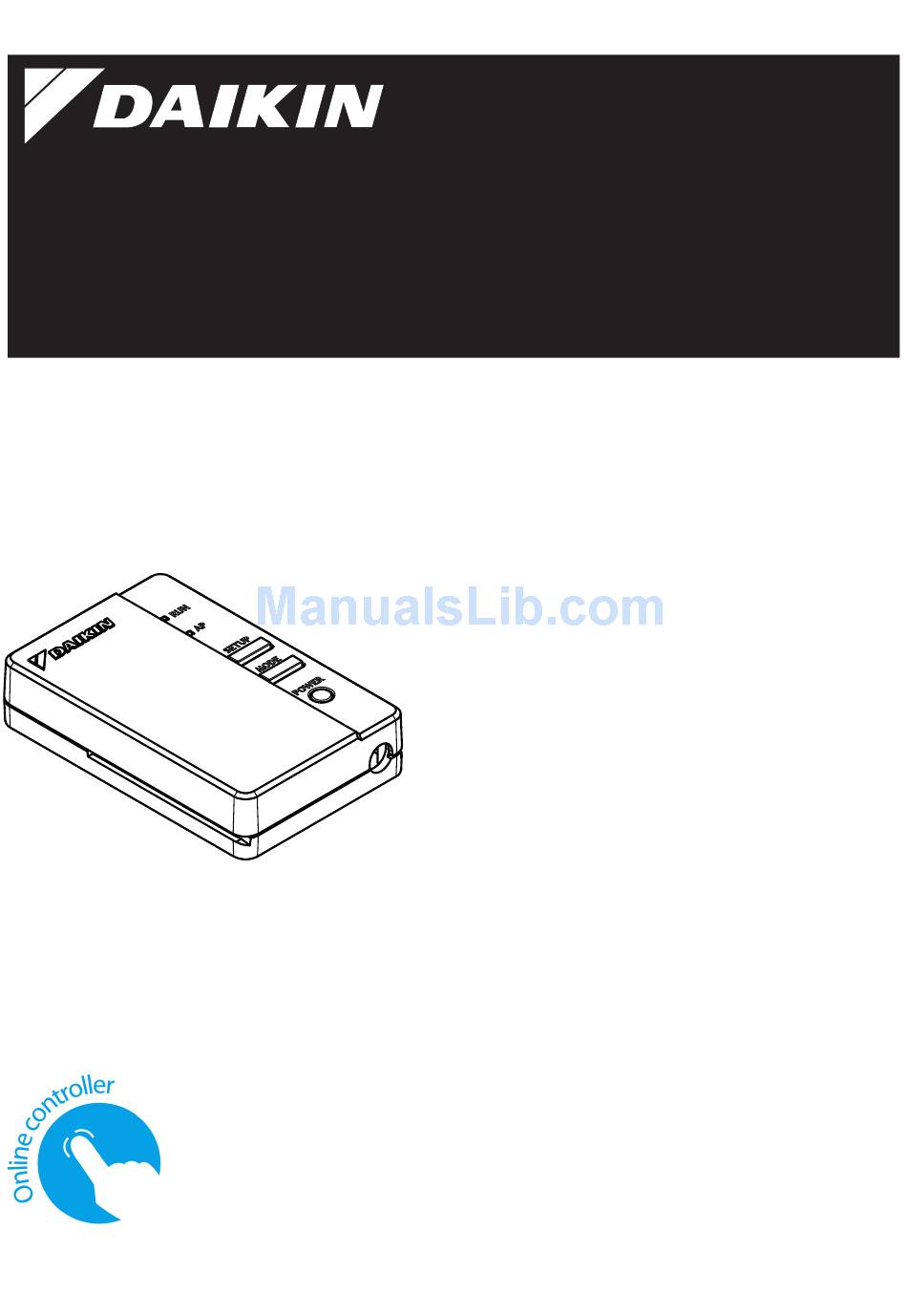

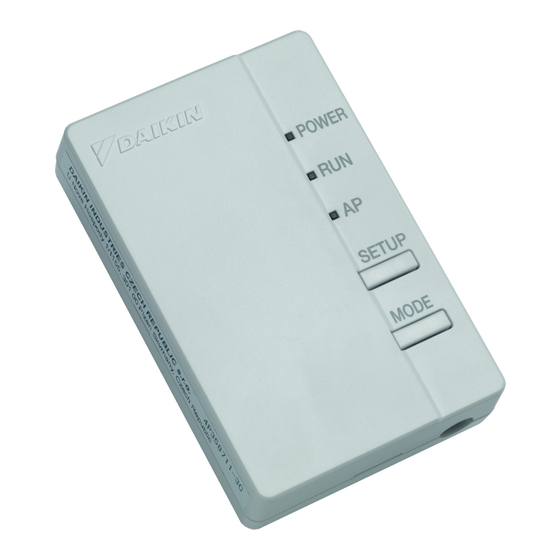

- Page 1 4P481234-1 Installation Manual Wireless LAN Connecting Adapter <BRP069B41> <BRP069B42> <BRP069B43> <BRP069B44> <BRP069B45>...
- Page 3 Hereby, Daikin Industries Czech Republic s.r.o. declares that the radio equipment type BRP069B41 is in compliance with Directive 2014/53/EU. Accessories Check if the following accessories are included in your package.
- Page 4 Accessories BRP069B43 (A) Wireless (B) Installation (C) Holder (D) Wire harness (E) Cable tie with LAN connecting manual base adapter (F) Switch box (G) PCB BRP069B44 (A) Wireless (B) Installation (C) Holder (D) Wire harness (E) Cable tie with LAN connecting manual base adapter...
-
Page 5: Safety Precautions
Safety precautions The English text is the original instruction. Other languages are translations of the original instructions. The following describes the meanings of pictorial symbols used in this documentation. Give this installation manual to the customer when installation is completed. - Page 6 Safety precautions Warning Situations which could result in death or serious injury. When using: Do not disassemble, modify, or repair. (Can cause fire, electric shock or injury.) Do not handle this product with wet hands. (Can cause electric shock or fire.) ...
- Page 7 Safety precautions Caution Situations which could result in damage or physical injury. When installing: Do not install where flammable gas leaks can occur. (Can cause fire.) Grip the connector when disconnecting the connecting cord. (Otherwise fire or electric shock can occur.) When using: ...
- Page 8 Disposal requirements Your product is marked with this symbol. This symbol means that electrical and electronic products shall not be mixed with unsorted household waste. Do not try to dismantle the system yourself: the dismantling of the product and of other parts must be done by a qualified installer in accordance with relevant local and national legislation.
- Page 9 Main components Basic parameters: Frequency range: 2400 MHz–2483.5 MHz Radio protocol: IEEE 802.11b/g/n RF channel: 1–11 Output power: 0 dBm~18 dBm ERP: 17 dBm (11b) / 13 dBm (11g) / 12 dBm (11n) Power supply: DC 14 V / 100 mA RF channel: Radio frequency channel ERP: Effective radiated power Applicable indoor units...
- Page 10 Installation Installation Work Always turn off the power supply when installing. (Touching the Warning electrical parts can cause an elec- tric shock.) The main switch of the installation is at the outdoor unit. Choosing and installation site The WLAN adapter should be sited in a place where: ...
- Page 11 Installation Installation Work Attach connecting cord to the product. Attach the connecting cord connector (white). Fasten the connecting cord to the notch in the adapter case (lower). Connect the connector to the same color. Connector (white) Fasten the connecting cord and ensure that external force is not transmitted.
- Page 12 Installation Installation Work Return the adapter case to its original state. Snap the top of the upper case unto the clip at the top of the lower case and press to close the box. Adapter case Adapter case (lower) top (upper) top portion clip portion clip...
- Page 13 Installation Installation Work Installation of Wireless LAN adapter BRP069B41/B45 Install WLAN adapter inside the indoor unit. For more details about installation of WLAN adapter to your model please visit http://www. onlinecontroller.daikineurope.com. BRP069B42/B43/B44 Install the WLAN adapter outside the indoor unit. There are two ways of installation A and B.
- Page 14 Installation Installation Work TYPE B Position of the WLAN adapter on the wall/surface is fixed by double face tapes. In this case screws located in accessory set are not neccesary to fix the holder. 1. Attach two double face tapes located in accessory set to the back side of holder as shown below.
- Page 15 Installation Installation Work Functionality Check Turn on the power supply and check that the [RUN] lamp of the product blinks. When turning on the power, always attach the adapter case (top). English 13...
- Page 16 (Supported OS: Android 2.3.3 or later; iOS 5.0 or later.) □ Internet line and communicating device (Modem/router or similar device) □ Wireless LAN access point □ [Daikin online controller] (No cost) Installation method of Daikin online controller For Android Phones For iPhones (1) Open the [Google Play].
-
Page 17: Troubleshooting
Troubleshooting The following table provides brief descriptions of how to handle trouble or uncertainties when you install the product or make connection settings. Refer to the FAQ on the homepage for more details. When this happens Explanation and where to check None of the LEDs light →... - Page 18 Troubleshooting When this happens Explanation and where to check When trying to make → If the AP LED is not lit, press the a direct connection to "Mode" button for 2 seconds to the adapter (AP mode) switch to AP mode. the WLAN adapter is not →...
- Page 20 4P481234-1 2017.05...
