Summary of Contents for Daikin BRP069A41

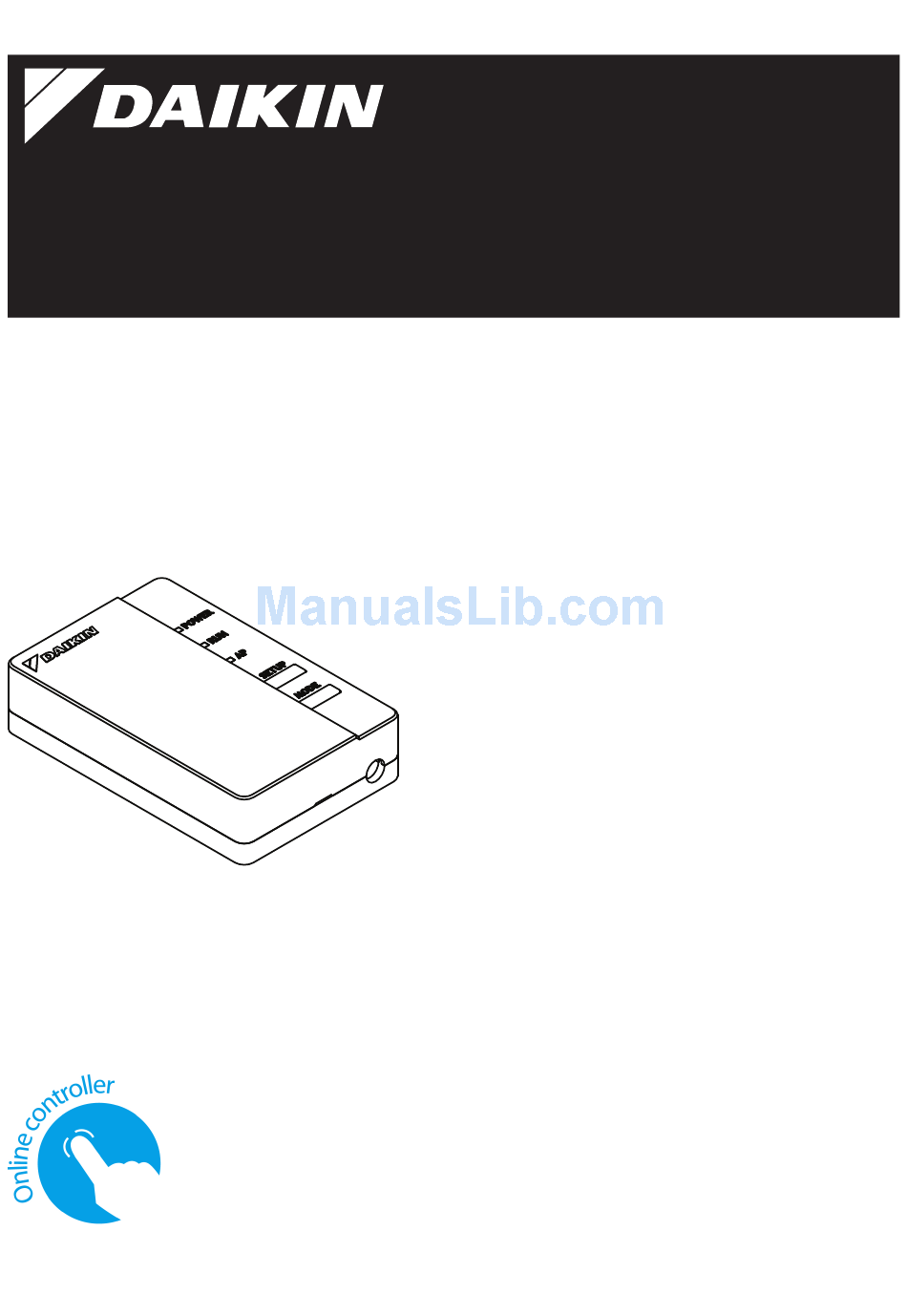

- Page 1 4P359542-1H Installation Manual Wireless LAN Connecting Adapter <BRP069A41>...
- Page 3 Hereby, Daikin Industries Czech Republic s.r.o., declares that the BRP069A41 is in compliance with the essential requirements and other relevant provisions of directive 1999/5/EC. Accessories Check if the following accessories are included in your package.
-
Page 4: Safety Precautions
Safety precautions The following describes the meanings of pictorial symbols used in this documentation. Give this installation manual to the customer when installation is completed. To conduct a test run of the air conditioner, follow the installation manual for the air conditioner unit. - Page 5 Safety precautions Warning Situations which could result in death or serious injury. When using: Do not disassemble, modify, or repair. (Can cause fire, electric shock or injury.) Do not handle this product with wet hands. (Can cause electric shock or fire.) ...
- Page 6 Safety precautions Caution Situations which could result in damage or physical injury. When installing: Do not install where flammable gas leaks can occur. (Can cause fire.) Grip the connector when disconnecting the connecting cord. (Otherwise fire or electric shock can occur.) When using: ...
- Page 7 Disposal requirements Your product is marked with this symbol. This symbol means that electrical and electronic products shall not be mixed with unsorted household waste. Do not try to dismantle the system yourself: the dismantling of the product and of other parts must be done by a qualified installer in accordance with relevant local and national legislation.
- Page 8 (Wireless LAN access point). MODE button switches modes (RUN/AP) when AP lamp (yellow) held down. lights when connected directly to a smart phone. BRP069A41 Wireless LAN connection adapter (the product is inside the indoor unit) English 6...
- Page 9 The main switch of the installation is at the outdoor unit. ■ BRP069A41 Remove the upper front panel from the indoor unit and open the door, grab the connecting cord with your fingers and pull it out, then remove the tie-wrap and pull the insulation tube off the connecting cord.
- Page 10 Installation Installation Work Remove the adapter case (upper). ■ BRP069A41 Press a regular screwdriver into the dent between the upper and lower cases to remove. (Be careful not to damage the case.) Regular screwdriver Adapter case (upper) Wireless LAN Adapter...
- Page 11 Installation Installation Work Attach connecting cord to the product. ■ BRP069A41 Attach the connecting cord connector (white). Fasten the connecting cord to the notch in the adapter case (lower). Connect the connector to the same color. Connector (white) Fasten the connecting cord and ensure that external force is not transmitted.
- Page 12 Installation Installation Work Return the adapter case to its original state. ■ BRP069A41 Snap the top of the upper case unto the clip at the top of the lower case and press to close the box. Adapter case Adapter case...
- Page 13 Adapter case Close Functionality Check ■ BRP069A41 Turn on the power supply, wait until the initialization is completed (the lower panel is in the CLOSED position). Open the door, remove the WLAN adapter and check that the [POWER] lamp for the product lights.
- Page 14 (Supported OS: Android 2.3.3 or later; iOS 5.0 or later.) □ Internet line and communicating device (Modem/router or similar device) □ Wireless LAN access point □ [Daikin online controller] (No cost) Installation method of Daikin online controller For Android Phones For iPhones (1) Open the [Google Play].
- Page 15 Configuration Connection Settings Section Hold down the [WPS] button WPS button on the router (Wireless LAN access point). See the accessory operations manual for the router (Wireless LAN access point) for details. Hold down the [SETUP] button on the product for approximately two seconds.
- Page 16 Configuration Connection Settings Section The SSID and KEY The [SSID] and [KEY] listed on the (B) serial number seal in the accessory parts are necessary when connecting the air conditioner and the smart phone using Wireless LAN. Affix the (B) serial number seal for the accessory parts here, and store in a safe place.
- Page 17 Configuration Connection Settings Section Make the wireless connection settings. (1) On the Login screen, (2) On the Devices screen, (3) On the Living Room tap on [Devices]. tap on [Living Room]. screen, tap on [More]. (4) On the Settings (5) On WLAN connection (6) On the WLAN screen, tap on screen, fill in Network...
- Page 18 Configuration Connection Settings Section (7) After implementing the setting above and the product and router (Wireless LAN access point) are connected, the [RUN] lamp will light. If this blinks for one minute or longer, check the power to the router (Wireless LAN access point), network name and the password and again from the first procedure.
-
Page 19: Troubleshooting
Troubleshooting The following table provides brief descriptions of how to handle trouble or uncertainties when you install the product or make connection settings. Refer to the FAQ on the homepage for more details. When this happens Explanation and where to check None of the lamps light. - Page 20 1383 4P359542-1H 2014.07...
