- Page 1 Installation and Operating instructions for CP78xx Control Panel Version: 1.7 Date: 2007-10-29...
-
Page 2: Table Of Contents
Replacing the fluorescent lamps in the display Lamp sets Emergency procedures Shutting down Disposal Troubleshooting Fault correction Service and Support Beckhoff's branch offices and representatives Beckhoff headquarters Beckhoff Support Beckhoff Service Appendix Technical data Approvals FCC: Federal Communications Commission Radio Frequency Interference... -
Page 3: General Notes
© This documentation is protected by copyright. Any reproduction or third party use of this publication, whether in whole or in part, without the written permission of Beckhoff Automation GmbH, is forbidden. Description of safety symbols The following safety symbols are used in this operating manual. They are intended to alert the reader to the associated safety instructions. -
Page 4: Basic Safety Measures
General Notes Basic safety measures Before opening the control panel housing, and whenever the control panel is not being used for control purposes (such as during Warning functional checks after a repair), all parts of the equipment must first be switched off, after which the control panel is to be disconnected from the equipment. -
Page 5: Operator's Obligation To Exercise Diligence
Every user must be familiar with any of the functions of the software installed on the PC that he can reach. UL-Certificate of Compilance We herewith confirm that the Control Panel CP78xx of Beckhoff Automation GmbH meets the requirements of the Underwriters ®... -
Page 6: Product Description

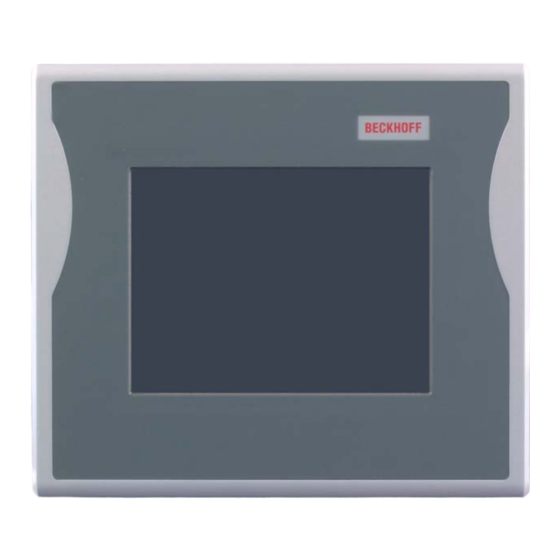

Product Description Product Description Appropriate Use The CP78xx Control Panel is designed for industrial application in machine and plant engineering. An aluminium housing contains a TFT display, touch-screen/pad (optional), and a PC keyboard (optional). The panel is installed via the 4 mounting holes in the backplane or the mounting arm system adapter (optional). -
Page 7: Connector Description
Product Description Connector description DVI (Digital Visual Interface) DVI-D The DVI connection (X101) is used for transferring the video signal from the Industrial PC to the Control Panel. The purely digital part (DVI-D) is supported. Power supply Power supply The power supply for the Control Panel is established via the 4-pole M12 socket (X102). -
Page 8: Installation Instructions
4. Please keep the associated paperwork. It contains important information for handling the unit. 5. Check the contents for visible shipping damage. 6. If you notice any shipping damage or inconsistencies between the contents and your order, you should notify Beckhoff Service. CP78xx... -
Page 9: Assembly
Installation Instructions Assembly Assembly dimensions All dimensions are in mm. CP78xx Control Panel screw thread interface Dimensions without keys function keys numerical alphanumerical CP78xx... -
Page 10: Connecting The Control Panel
Installation Instructions Connecting the Control Panel The Control Panel must never be connected or disconnected in an area that is subject to explosion hazard! Risk of explosion! Danger The mains plug of the Industrial PCs must be disconnected! Warning Please read the documentation for the external devices prior to connecting them. -
Page 11: Operating Instructions
Operating Instructions Operating Instructions Please also refer to chapter General Notes. Functional description Switch on The Control Panel does not have its own mains power switch. As soon as the power supply is switched on the control panel is activated. Switching off Control software, as typically applied in Control Panels, enables the assignment of different rights to all users. - Page 12 Operating Instructions The Ins key causes characters to the right of the cursor to be overwritten. The overwrite mode is cancelled by pressing the key again. Print-Screen prints a hard copy of a text screen on the printer. Print The Pause key stops the computer until another key is pressed (only under Pause MS-DOS).
-
Page 13: Servicing And Maintenance
Operating Instructions Servicing and maintenance Please also refer to the section General Notes. Cleaning the Control Panel First switch the Industrial Switch off the Industrial PC and all connected devices in order to prevent inadvertent operation of keys. PC off The front of the Control Panel can be cleaned with a soft, damp cleaning cloth. -
Page 14: Lamp Sets
Operating Instructions Replacement for the First release the two screws 15 inch display (1) and (2) with a small Philips screwdriver, then carefully pull out the fluorescent lamps in direction of the arrows. After the exchange of the fluorescent lamps the installation takes place in reverse order. -
Page 15: Troubleshooting
Check power supply cable function when the Industrial PC has been started Cable not connected 1. Correctly connect cable 2. Call Beckhoff Service The Industrial PC does not boot Floppy disk in drive Remove floppy disk and fully press any key Hard disk damaged (e.g. -
Page 16: Service And Support
Fax: +49(0)5246/963-198 e-mail: info@beckhoff.com Beckhoff Support Support offers you comprehensive technical assistance, helping you no only with the application of individual Beckhoff products, but also with other, wide-ranging services: • world-wide support • design, programming and commissioning of complex automation systems •... -
Page 17: Appendix
Appendix Appendix Technical data Dimensions Dimensions (W x H x D): see section Assembly dimensions Operation in areas that are The Control Panel must not be used where there is a risk of subject to explosion hazard explosion. The following conditions must be observed during operation: Environmental conditions Ambient temperature: 0 to 55°C...
