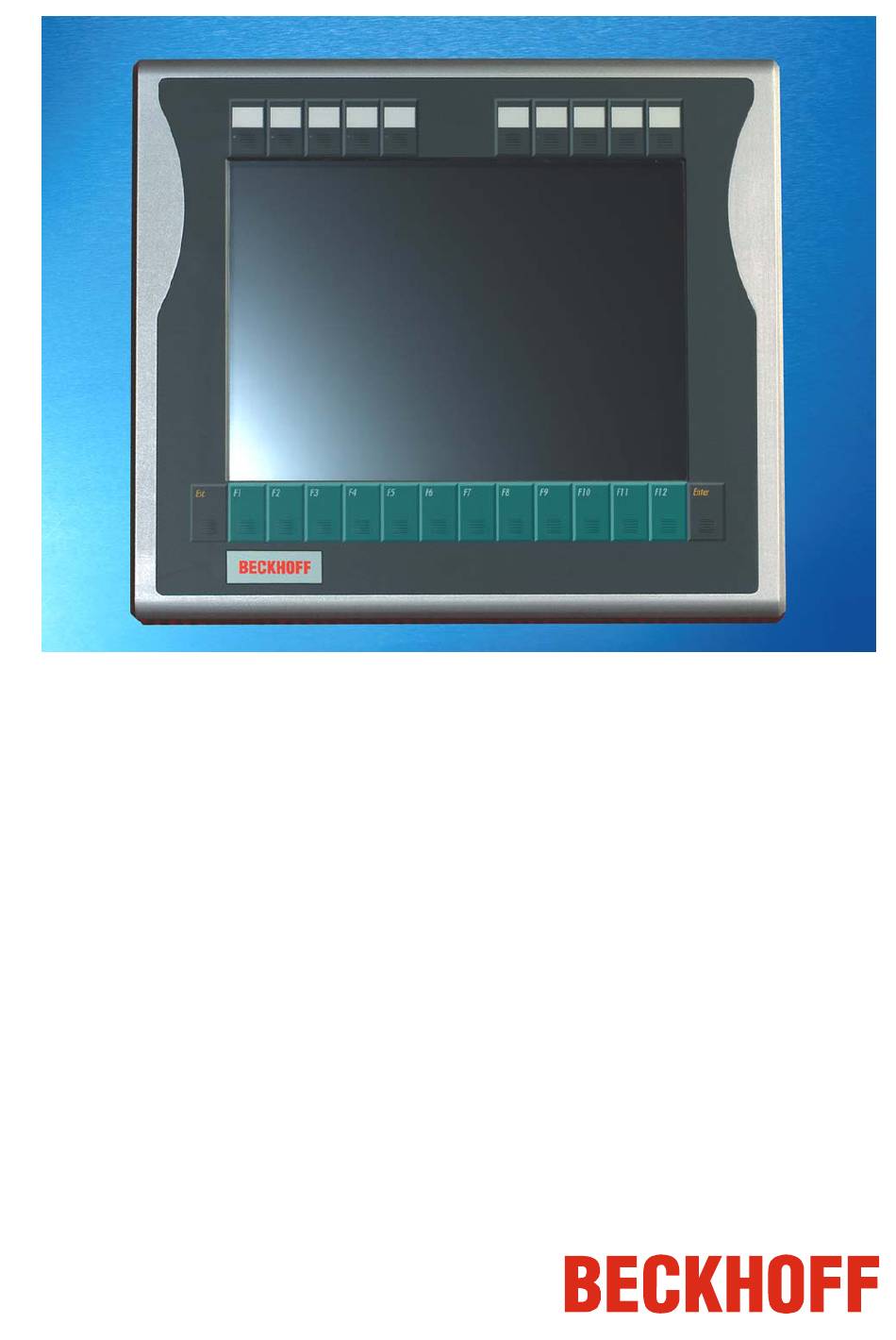

- Page 1 Installation and Operating instructions for Control Panel CP77xx Version: 1.6 Date: 2007-10-29...
-
Page 3: Table Of Contents
Replacing the fluorescent lamps in the display Lamp sets Emergency procedures Shutting down Disposal Troubleshooting Fault correction Service and Support Beckhoff's branch offices and representatives Beckhoff headquarters Beckhoff Support Beckhoff Service Appendix Technical data Approvals FCC: Federal Communications Commission Radio Frequency Interference... -
Page 4: General Notes
© This documentation is protected by copyright. Any reproduction or third party use of this publication, whether in whole or in part, without the written permission of Beckhoff Automation GmbH, is forbidden. Description of safety symbols The following safety symbols are used in this operating manual. They are intended to alert the reader to the associated safety instructions. -
Page 5: Basic Safety Measures
General Notes Basic safety measures Before opening the control panel housing, and whenever the control panel is not being used for control purposes (such as during Warning functional checks after a repair), all parts of the equipment must first be switched off, after which the control panel is to be disconnected from the equipment. -
Page 6: Operator's Obligation To Exercise Diligence
Every user must be familiar with all the functions of the software installed on the Control Panel to which he has access. UL-Certificate of Compilance We herewith confirm that the Control Panel CP77xx of Beckhoff Automation GmbH meets the requirements of the Underwriters ®... -
Page 7: Product Description

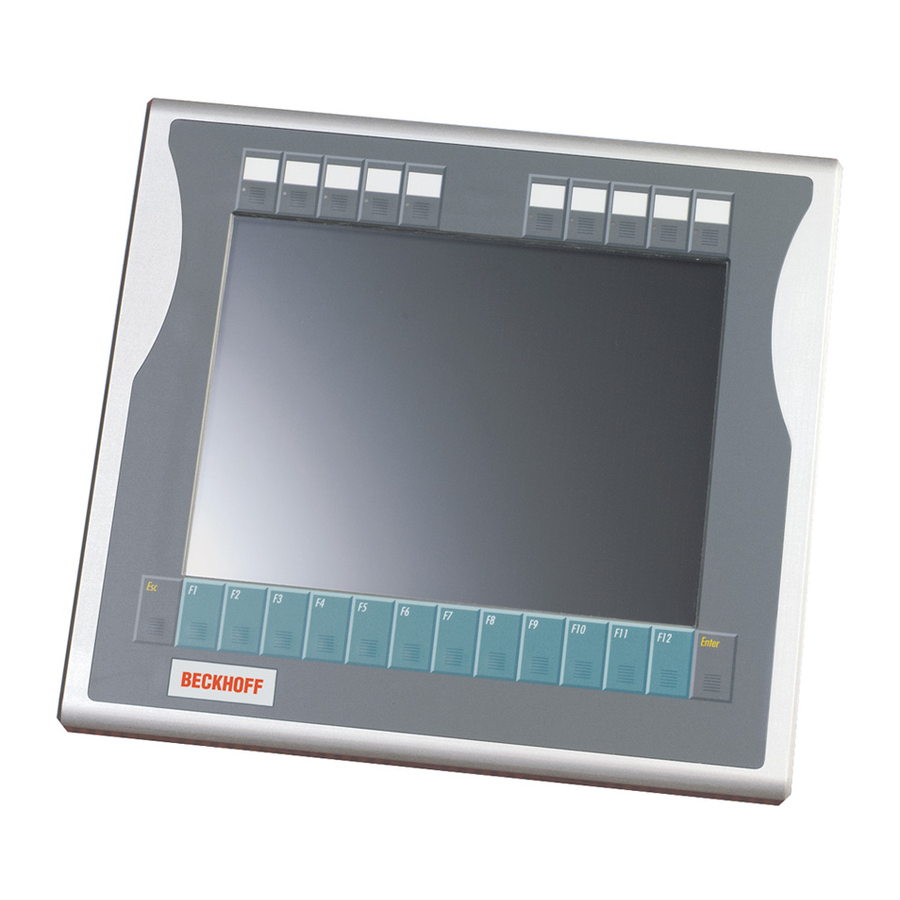

Product Description Product Description Appropriate Use The CP77xx Control Panel is designed for industrial application in machine and plant engineering. In addition to the integrated PC, a TFT display, touch screen/pad (optional) and a PC keyboard (optional) are accommodated in an aluminium housing. The Control Panel is installed via the 4 mounting holes in the backplane or the pivot arm adapter (optional). -
Page 8: Connector Description
Product Description Connector description Serial interface Serial interface The Control Panel is equipped with a COM1 (X 100) serial interface (Type COM1 RS232) for the connection of serial peripheral devices. The protection class of the circular plug-in connector accords to the IP67- standard. -
Page 9: Installation Instructions
4. Please keep the associated paperwork. It contains important information for handling the unit. 5. Check the contents for visible shipping damage. 6. If you notice any shipping damage or inconsistencies between the contents and your order, you should notify Beckhoff Service. CP77xx... -
Page 10: Assembly
Installation Instructions Assembly Assembly dimensions All dimensions are in mm. Control Panel CP77xx M6 screw thread Dimensions CP7709 6,5“ Display 267,9 241,9 CP7700 10“ Display 353,8 308,3 27,5 327,6 280,7 CP7701 12“ Display 353,8 326,3 27,5 327,6 303,7 CP7702 15“ Display... -
Page 11: Connecting The Control Panel
Installation Instructions Connecting the Control Panel The Control Panel must never be connected or disconnected in an area that is subject to explosion hazard! Risk of explosion! Danger The mains plug of the Control Panel must be disconnected! Warning Please read the documentation for the external devices prior to connecting them. -
Page 12: Operating Instructions
Operating Instructions Operating Instructions Please also refer to chapter General Notes. Functional description Switch on The Control Panel does not have its own mains power switch. As soon as the power supply is switched on the control panel is activated. Switching off Control software, as typically applied in Control Panels, enables the assignment of different rights to all users. - Page 13 Operating Instructions Print-Screen prints a hard copy of a text screen on the printer. Print The Pause key stops the computer until another key is pressed (only under Pause MS-DOS). Your input is confirmed with the Enter key. Enter Backspace deletes the character to the left of the cursor. If the Shift key is pressed at the same time as another key, then instead of Shift the numbers you obtain the character printed above the number, and you...
-
Page 14: Compact Flash Memory Card
Operating Instructions Compact Flash memory card Compact Flash card A Compact Flash memory card (CF card) is located behind a cover at the rear of the Control Panel. It is provided to save the operating system. Only use memory cards with extended temperature ranges according to industrial standards! Removing the cover To change the CF card, first of all unscrew the four screws (see above... -
Page 15: Servicing And Maintenance
The Control Panel is maintenance-free. A battery is installed on the motherboard to buffer data. This battery is maintenance-free and may only be replaced by Beckhoff Service! Replacing the fluorescent lamps in the display Since fluorescent lamps represent a consumable item in a display, they must be replaced after a few years, depending on the number of operating hours. -
Page 16: Lamp Sets
Operating Instructions Replacement for the First release the two screws 15 inch display (1) and (2) with a small Philips screwdriver, then carefully pull out the fluorescent lamps in direction of the arrows. After the exchange of the fluorescent lamps the installation takes place in reverse order. -
Page 17: Troubleshooting
No power supply to Control Panel Check power supply cable Cable not connected 1. Correctly connect cable 2. Call Beckhoff Service Control Panel boots, software The cause of the error is in the Call the manufacturer of the starts, but control does not operate... -
Page 18: Service And Support
Fax: +49(0)5246/963-198 e-mail: info@beckhoff.com Beckhoff Support Support offers you comprehensive technical assistance, helping you no only with the application of individual Beckhoff products, but also with other, wide-ranging services: • world-wide support • design, programming and commissioning of complex automation systems •... -
Page 19: Appendix
Appendix Appendix Technical data Dimensions Dimensions (W x H x D): see section Assembly dimensions Operation in areas that are The Control Panel must not be used where there is a risk of subject to explosion hazard explosion. The following conditions must be observed during operation: Environmental conditions Ambient temperature: 0 to 55°C...
