Summary of Contents for Aquatic BLUECUBE6 BC6 MINI

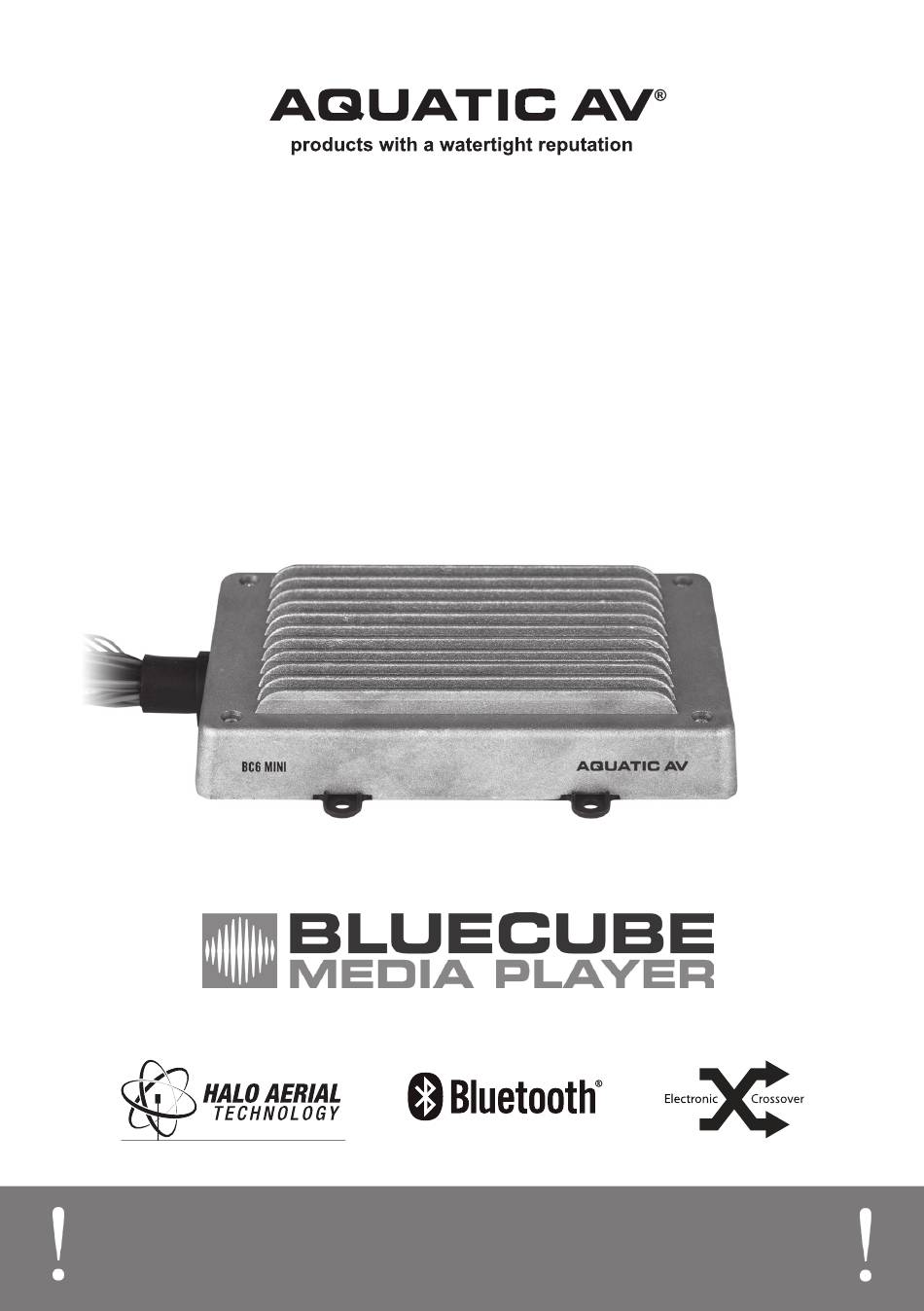

- Page 1 BC6 MINI BLUECUBE ‘HIDE-AWAY’ MEDIA PLAYER for Bluetooth Audio & MP3 devices USER / INSTALLATION MANUAL PLEASE READ THIS INSTRUCTION MANUAL BEFORE INSTALLATION AND OPERATION...
-
Page 2: Table Of Contents
Table of Contents BlueCube Media Player BC6 MINI 1 Getting Started........................1.1 Contents........................1.2 Connections........................1.3 12-pin Harness Connection................... 1.4 Mounting the BC6 MINI....................1.5 Bluetooth Antenna Installation..................1.6 Power Attenuation Wires....................1.7 Electronic Crossover Mode..................... 1.8 Power On........................1.9 Handheld Remote Control Charging................1.10 Handheld Remote Control Synchronizing.............. -
Page 3: Getting Started
Allows the output level to be adjusted from a factory preset of -3dB to either -6dB, 0dB or +6dB. See section 1.6 for further details. Aquatic AV does not recommend the wired Remote Control for use in spa applications. www.aquaticav.com... -
Page 4: 12-Pin Harness Connection
If your BC6 MINI was purchased from an Aquatic AV dealer and/or supplied with retail packaging it is supplied with the Aquatic AV universal harness AQ-UNH-2 in order to connect the BC6 MINI to power and speakers. Please proceed to section 1.3.1. -
Page 5: Mounting The Bc6 Mini
Getting Started BlueCube Media Player BC6 MINI 1.4. Mounting the BC6 MINI 1. Make sure the outside surface is clean and clear of debris. 2. The BC6 MINI has four (4) front screws. Drive the screws using a screw driver. Make sure screws are snug and do not over tighten. -
Page 6: Electronic Crossover Mode
Mode. You will now be able to use the left and right rear channels in Mono mode to power a dual- voicecoil passive subwoofer, such as the Aquatic AV AQ-SWP8-2. These modifications should only be carried out by an experienced audio installer. -
Page 7: Power On
For detailed instructions you can check out our online video: ‘How to wire your Aquatic AV stereo system’ http://www.aquaticav.com/support/videos 1.9 Handheld Remote Control Charging The optional remote RF6 REMOTE KIT (sold separately) has a built-in Polymer Lithium re- chargeable battery and comes with a charging cable. -
Page 8: Location Of Controls
Location of Controls BlueCube Media Player BC6 MINI 2.1 Wireless Handheld Remote Control RF6 REMOTE KIT (sold separately) www.aquaticav.com... -
Page 9: Listening To Devices
3.2.1 Pair with Bluetooth Audio Device 1. Switch on your Bluetooth Audio device. 2. Select ‘AQUATIC AV’ from the list of available devices to pair (no password is needed). 3.2.2 Listening via Bluetooth Audio Device 1. Bluetooth Audio mode will be activated once a Bluetooth Audio device is paired in any mode. -
Page 10: Listening Via Auxiliary Input Using Remote Control
Listening to Devices BlueCube Media Player BC6 MINI 3.3 Listening via Auxiliary Input Using Remote Control (sold separately) 1. Connect your MP3 device to the RCA inputs. 2. Press MODE on the remote control to select ‘AUX’ mode. Only one Auxiliary input (RCA) can be used at any one time. 3.4 Adjust Volume Level without Using Remote Control Use either your Bluetooth Audio or Auxiliary device’s volume control to adjust volume up or down. -
Page 11: Additional Features
If using two external trigger wires you can also activate the second external trigger by pressing and holding the 12V TRIGGER button to activate. Press and hold again to deactivate. Aquatic AV strongly recommend you speak to our technical service staff or your local Aquatic AV dealer if you are considering using this feature. -
Page 12: Specifications & Dimensions
Specifications & Dimensions BlueCube Media Player BC6 MINI 5.1 Specifications Media Supported media........Bluetooth Audio / MP3 / AUX Device Control........via Handheld RF Remote Control or Wired Remote Control (both sold separately) Inputs Auxiliary..........1x stereo pair RCA Outputs Pre-Out (Rear)........ -
Page 13: Warranty Information
Some states do not allow limitations on the length of an implied warranty, so this limitation may not apply. No person is authorized to assume for Aquatic AV any other liability in connection with the sale of the product. How to obtain service You must obtain a return material authorization number (RMA) to return any product to Aquatic AV. - Page 14 FCC Statement BlueCube Media Player BC6 MINI FCC ID: MADE IN CHINA This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
- Page 15 Aquatic AV 282 Kinney Drive San Jose, CA 95112, USA E-mail: info@aquaticav.com US & Canada: 1 877 579 2782 International: +1 408 559 1668 Fax: +1 408 559 0125 www.aquaticav.com...
