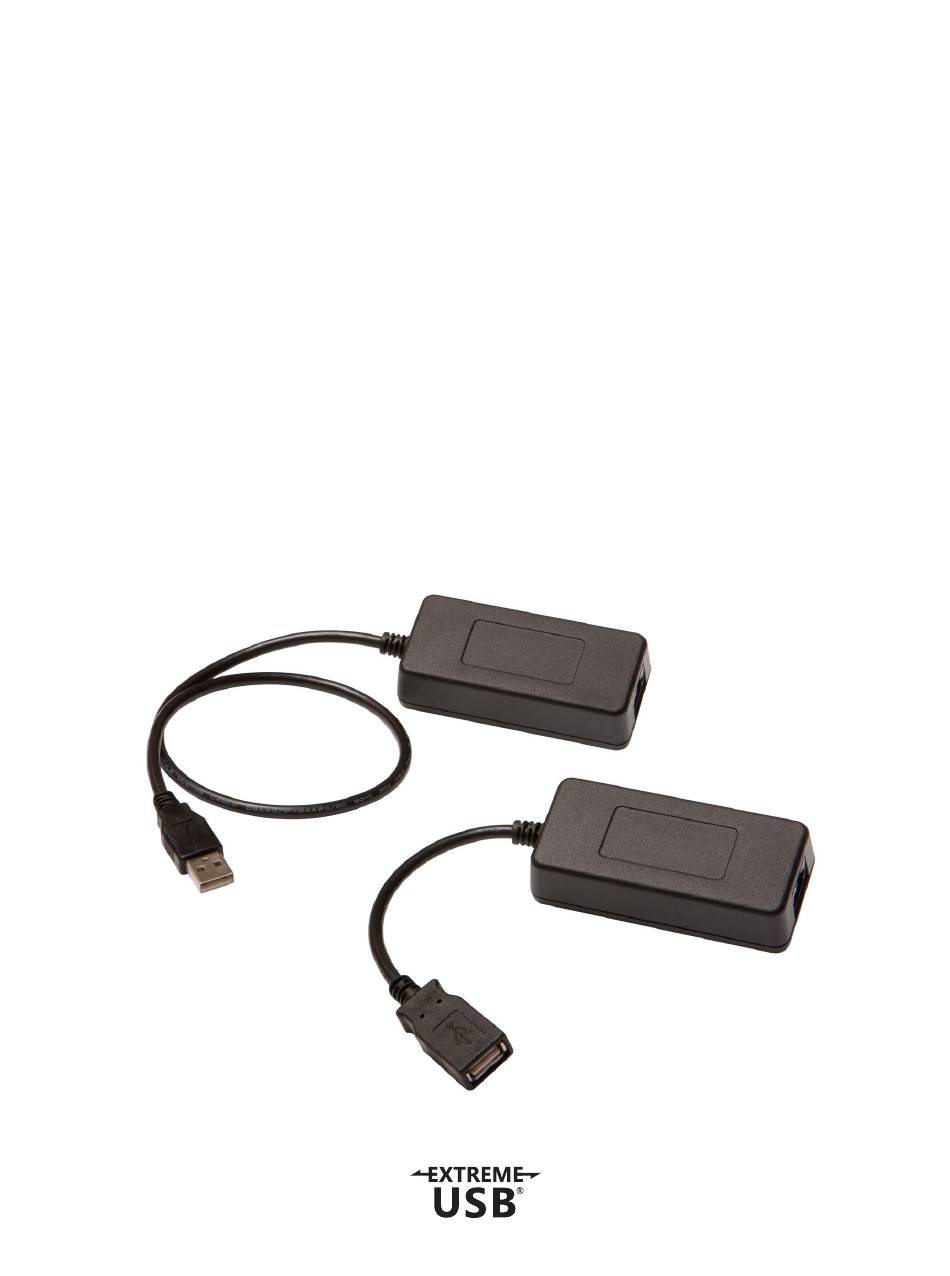

- Page 1 USB 1.1 RV1850 1-port USB 1.1 85m* Cat 5e Extender System User Guide * Up to 40m for all USB devices; 85m is achievable for most low-speed HID USB devices...
- Page 2 Thank you for purchasing the USB 1.1 RV1850 Extender. Please read this guide thoroughly. This document applies to Part Number: 01-00366. FCC Radio Frequency Interference Statement Warning This device complies with FCC Part 15 Subpart B. CE Statement The product meets European Standard EMC EN 55022 Class A and EN 55024.
-
Page 3: Table Of Contents
Contents Introduction ........................4 USB 1.1 RV1850 Product Contents ............................4 Requirements ....................................4 About the USB 1.1 RV1850 ................................4 Local Extender and Remote Extender Descriptions ......................5 Installation Guide ......................6 Installing the Local Extender ..............................6 Connecting the Local Extender to the Remote Extender ....................6 Installing the Remote Extender..............................7... -
Page 4: Introduction
About the USB 1.1 RV1850 The USB 1.1 RV1850 enables users to extend USB devices up to 40 meters or 131 feet. Extension note distances up to 85 meters may be achievable with low-speed HID devices such as keyboards and mice. -
Page 5: Local Extender And Remote Extender Descriptions
Local Extender Description The local extender connects to the computer using the upstream USB Type A connector. ITEM TYPE DESCRIPTION Link Port (RJ45) Accepts RJ45 connector for Cat 5e cable (or better). Device Port (USB Type A) Used to connect the local extender to the host computer. Remote Extender Description The remote extender provides one downstream USB Type A port for a standard USB device. -
Page 6: Installation Guide
Installation Guide Before you can install the product, you need to prepare your site: USB 1.1 up to 85m (Cat 5e) Local Remote Extender Extender Determine where the computer is to be located and set it up. Determine where you want to locate the remote USB device(s). If you are using surface cabling, the product supports a maximum distance of 85m. -
Page 7: Installing The Remote Extender
With Premise Cabling Plug one end of a Cat 5e patch cord (not included) into the Link port (RJ45) on the local extender. Plug the other end of the patch cord into the Cat 5e information outlet near the host computer. Plug one end of the second Cat 5e patch cord (not included) into the Link port (RJ45) on the remote extender. -
Page 8: Troubleshooting
Troubleshooting The following table provides troubleshooting tips. The topics are arranged in the order in which they should be executed, in most situations. If you are unable to resolve the problem after following these instructions, please contact Technical Support for further assistance. PROBLEM CAUSE SOLUTION... -
Page 9: Specifications
Specifications 131 feet (40 meters) over solid core Cat 5e (or better) cable. Range Up to 85m may be achieved with low-speed HID devices such as a keyboard or mouse. High-speed devices (USB 2.0): 12Mbps USB Device Support and Throughputs Full-speed devices: 12Mbps Low-speed devices 1.5Mbps Any single chain can include up to 3 USB hubs depending on... -
Page 10: Technical Glossary
Technical Glossary Category 5e (Cat 5e) Network Cabling Category 5e cable is commonly also referred to as Cat 5e. This cabling is available in either solid or stranded twisted pair copper wire variants and as UTP (Unshielded Twisted Pair) or STP (Shielded Twisted Pair). UTP cables are not surrounded by any shielding making them more susceptible to electromagnetic interference (EMI).
