Unitronics Vision V130-TR6 Installation Manual page 7

Vision™PLC+HMI

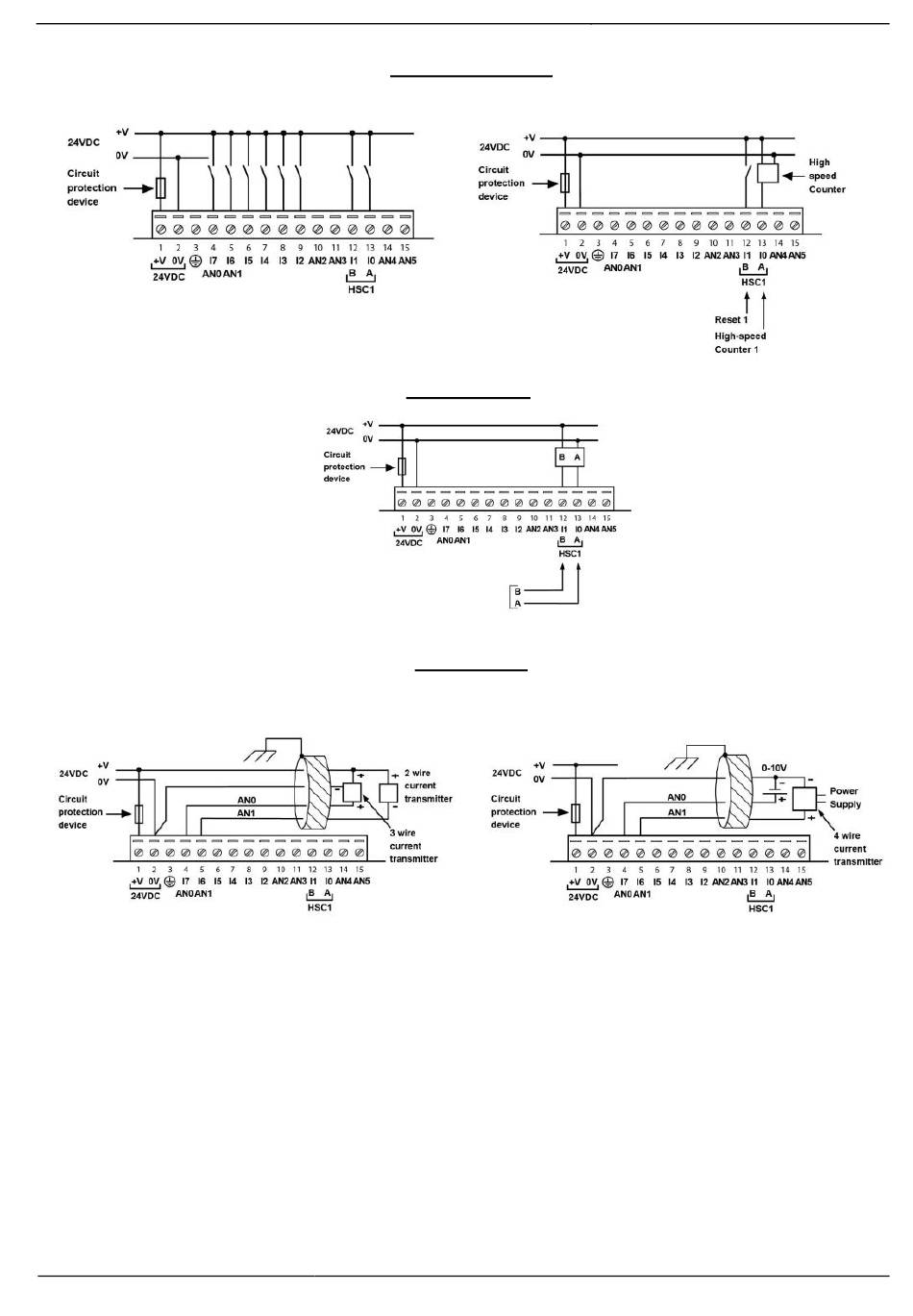

pnp (source) Input
Input wiring HSC input wiring
Shaft-encoder
Analog Input
Current connections (2/3-wire) Analog input wiring, current (4-wire), voltage
Shields should be connected at the signal's source.
The 0V signal of the analog input must be connected to the controller's 0V.
Please notice that AN2 to AN5 may be used as analog current inputs only.
Unitronics 7
