- Page 1 Instructions for use, installation, and connection Electric built-in cooking hob...
-
Page 2: Table Of Contents
Electric built-in cooking hob Dear customer! Electric built-in hob is intended for use in households. Our products are packed in environment-friendly materials which can be recycled, disposed of, or destroyed without imposing any burden on the environment. Instructions for use Instructions for use are intended for the user. - Page 3 Important - Read before using the appliance Safety percautions • This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or metal capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
- Page 4 The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of thisproduct.
-
Page 5: Appliance Description

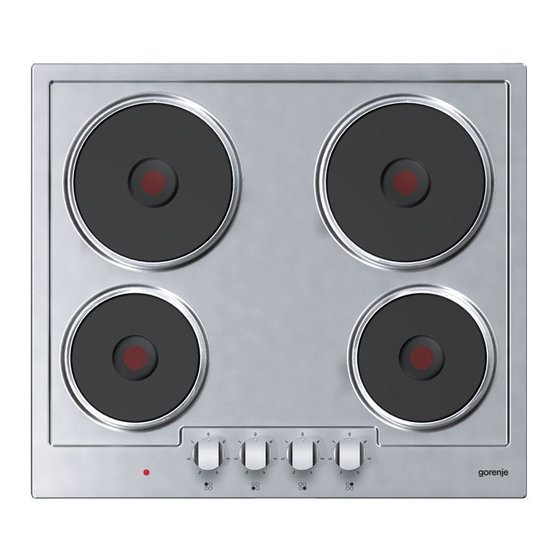

Appliance description The following fi gure shows the surface of the hob with electric hotplates. Type EVK4... Type EVK6... 1. Cooking zone rear left 2. Cooking zone front left 3. Control knobs 4. Cooking zone front right 5. Cooking zone rear right Control knob Electric 1- 6... -
Page 6: Cooking Zones
Cooking zones After you receive your appliance, please wipe the entire cooking hob, including the cooking zones, with a damp cloth. Before using the Turn on the cooking zones for 3 to 5 minutes and select the appliance for the fi rst maximum power level;... -
Page 7: Operating The Cooking Zones
Energy saving • Pan bottom diameters should match the diameter of the cooking zone. If the pan is too small, some heat is wasted; furthermore, using a too small pan can damage the cooking zone. • Whenever possible given the cooking process, use a lid. •... -
Page 8: Cleaning And Maintenance
Cleaning and maintenance • Clean the appliance using warm water, liquid detergent, and a soft cloth. • Do not use any abrasive or sharp utensils or other objects. Burnt or dried food residues should be moistened using a damp cloth and softened with appropriate detergent. •... -
Page 9: Special Warnings And Fault Reporting
Special warnings and fault reporting During the warranty period, only a service center authorized by the manufacturer may carry out any repairs. Before making any repairs, make sure the appliance is disconnected from the power mains either by removing the fuse or by disconnecting the power plug from the wall outlet. Unauthorized tampering with and repairs of the kitchen range (cooking hob) can result in electric shock or short circuit;... -
Page 10: Installation
Installation Important warnings • Installation of the appliance into a kitchen worktop and its connection to the power mains may only be performed by an adequately qualifi ed technician. • Veneer or other fi nish of the piece of kitchen furniture into which the hob is to be built in should be treated with heat resistant glue (100°C);... - Page 11 Type EVK6.. min 20 min 40 488-490 min 600 min 50 558-560 • Only type EVP4, EVP2... ovens fi tted with a cooling fan may be installed underneath this cooking hob. • Before installing an oven, the rear wall of the kitchen furniture element should be removed in the area of the cooking hob cutout.
-
Page 12: Connecting The Appliance To The Power Mains
Installation procedure • The worktop should be installed completely horizontally. • The cutoff surfaces should be appropriately protected. • Attach the fastening elements (4) with the supplied screws (4) to the front and rear wall of the cooking hob and the worktop cutoff... - Page 13 WARNING! • Before any intervention, disconnect the appliance from the power mains. Connect the appliance in compliance with the electric connections diagram supplied; make sure the relevant network voltage is observed! The ground wire (PE) should be connected to the clip indicated by the earthing symbol. •...
-
Page 14: Technical Characteristics
G Compliance indications / symbols WE RESERVE THE RIGHT TO MAKE ANY CHANGES THAT DO NOT AFFECT THE FUNCTIONALITY OF THE APPLIANCE. Instructions for use of the appliance can also be found on our website at www.gorenje.com / < http://www.gorenje.com />... - Page 16 EVK6,4K en (04-19)
