- Page 1 INSTRUCTIONS FOR USE GLASS CERAMIC COOKING...
- Page 2 Instructions for installation and connection are supplied on a separate sheet. Instructions for use, installation and connection are also available at our website: http://www.gorenje.com The following symbols are used throughout the manual and they have the following meanings: INFORMATION!
-
Page 3: Table Of Contents
Contents Safety precautions ........................Carfully read the instructions and save them for future reference ..........Important notes and precautions ..................Before connecting the appliance ....................Appliance description ......................Technical data ........................... Before first use .......................... Glass ceramic cooking surface ....................Tips regarding your cookware .................... -
Page 4: Safety Precautions
Safety precautions Carfully read the instructions and save them for future reference This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. - Page 5 If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or. similarly qualified persons in order to avoid a hazard (only for appliances supplied with connection cord). WARNING: If the surface is cracked, switch off the appliance to avoid the possibility of electric shock.
- Page 6 Appliance must be connected to fixed wiring which has incorporated means of disconnection. Fixed wiring must be made in accordance with the wiring rules.
-
Page 7: Important Notes And Precautions
Important notes and precautions The appliance is intended for household use. Do not use it for any other purpose, such as room heating, drying of pets or other animals, paper, fabrics, herbs etc. As this may lead to injury or fire hazard. Appliance must be connected to fixed wiring which has incorporated means of disconnection. -
Page 8: Appliance Description

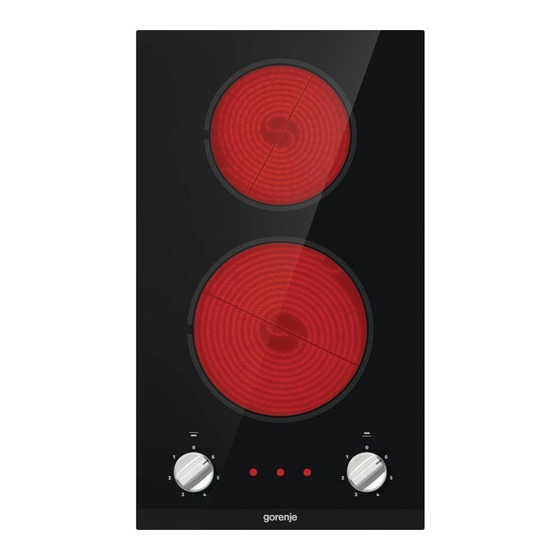

Appliance description INFORMATION! Appliance functions and equipment depend on the model. 1. Cooking zone rear (left) 2. Cooking zone front (left) 3. Cooking zone rear right 4. Cooking zone front right 5. Operating the cooking hob Technical data (depending on the model) A. -
Page 9: Glass Ceramic Cooking Surface
Glass ceramic cooking surface • The hob is resistant to temperature changes. • Do not use the glass ceramic hob if it is cracked or broken. If a sharp object falls on the hob, the hob may break. The consequences of such occurrence may be visible immediately or only after a while. -
Page 10: Operating The Cooking Hob
Operating the cooking hob Turn on the cooking zone using the knobs installed on the control panel. The symbol next to each knob indicates which cooking zone is operated by it. Cooking zone power level can be set continuously (1-9) or stepwise (1-6). The step knobs can be rotated in both directions. -
Page 11: Double-Ring Cooking Zone Switch
Double-ring cooking zone switch When the double-ring cooking zone control switch is rotated normally, the basic cooking zone (internal) is activated. If you wish to activate the entire cooking zone, rotate the knob to the symbol that follows the number signs, to hear a ‘click’ sound; then, rotate it back to the desired position. -
Page 12: Cleaning And Maintenance
Cleaning and maintenance After each use, wait for the glass ceramic surface to cool down and clean it. Otherwise, all remaining impurities will burn onto the hot surface the next time you use the hob. For regular maintenance of the glass ceramic hob, use special care products that create a protective film on the surface to prevent the dirt from sticking onto it. -
Page 13: Troubleshooting Table
Troubleshooting table During the warranty period, only a service center authorized by the manufacturer may carry out any repairs. Before making any repairs, make sure the appliance is disconnected from the power mains either by removing the fuse or by disconnecting the power plug from the wall outlet. Any unauthorized repairs of the appliance may result in electric shock and short circuit hazard;... -
Page 14: Installing A Built-In Hob
Installing a built-in hob Installation procedure • The worktop has to be completely level. • Suitably protect the edges of the cut aperture. • Connect the cooking hob to the mains power supply (see instructions for the connection of the cooking hob to mains power supply). - Page 15 30 cm 60 cm 80 cm...
-
Page 16: Air Vents In The Lower Kitchen Cabinet
Air vents in the lower kitchen cabinet INFORMATION! Normal operation of the induction cooking hob electronic components requires sufficient air circulation. Lower cabinet with a drawer • There must be an opening with a height of no less than 140 mm along the entire width of the cabinet in the cabinet rear wall. -
Page 17: Flush-Mount Installation Into The Worktop
Flush-mount installation into the worktop Appliances without faceted edges or decorative frames, are suitable for flush mounting. - Page 18 Installing the appliance The appliance may only be installed into a temperature- and water-resistant countertop, such as a countertop made of (natural) stone (marble, granite), or solid wood (the edges along the cut-out have to be sealed). When installing into a countertop made of ceramics, wood, or glass, a wooden sub-frame should be used.
- Page 19 Stone countertop 1. Countertop 2. Appliance 3. Slot Given the margin of error (tolerance) for the glass ceramic plate of the appliance, and the cutout in the countertop, the slot is adjustable (min.2 mm). Ceramic, wooden, or glass countertop 1. Countertop 2.
- Page 20 30 cm 60 cm 80 cm WARNING! If the oven is installed under a flush-mounted cooking hob, then the worktop thickness should be at least 40 mm.
-
Page 21: Fitting The Foam Gasket
Fitting the foam gasket INFORMATION! Some appliances come with the gasket already fitted! Before installing the appliance into a kitchen worktop, attach the foam gasket supplied with the appliance to the bottom side of the glass ceramic hob. Remove the protective film from the gasket. Attach the gasket to the bottom side of the glass (2 3 mm away from the edge). -
Page 22: Connecting The Cooking Hob To The Power Mains
Connecting the cooking hob to the power mains • Power mains protection must conform to the relevant regulations. • Before connecting the appliance, make sure the voltage specified on the rating plate conforms to the voltage of the power mains. •... - Page 23 Single phase connection (32 A) • Single-phase connection (1 1N, 220 240 V~ /50 60 Hz): Voltage between line and neutral conductor is 220 240 V~. Install a jumper between terminals 1 and 2, and between terminals 4 and 5. The circuit should be fitted with a fuse of at least 32 A.
- Page 24 Connecting the power cord (appliance with a power cord) • The appliance has to be hard-wired directly to the power mains. • Devices for disconnecting from the power mains have to comply with the relevant regulations. • Do not extend the power cord and do not lead it over sharp edges. •...
-
Page 25: Disposal
Disposal Our product packaging is made of environmentally friendly materials that can be recycled, disposed of, or destroyed without any hazard to the environment. To this end, packaging materials are labelled appropriately. The symbol on the product or its packaging indicates that the product should not be treated as normal household waste. - Page 26 709705-a8...
