Summary of Contents for Jet JAT-630

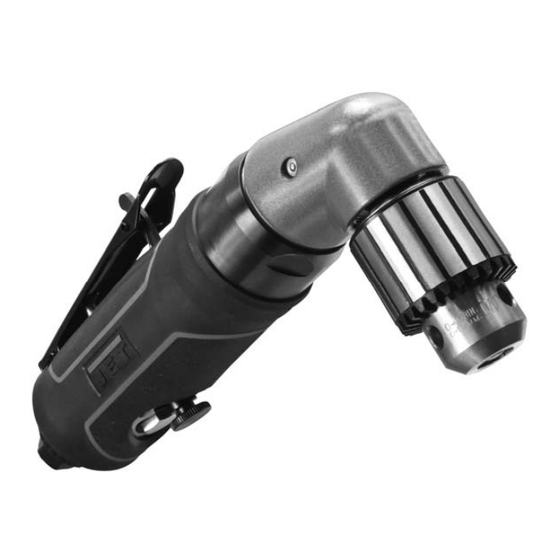

- Page 1 Pneumatic Angle Drill #505630, JAT-630 Operation & Parts Manual M-505630 Edition 2 06/2015 427 New Sanford Road LaVergne, TN 37086 Ph.: 800-274-6848 www.jettools.com Copyright © 2015 JET...
-
Page 2: Warranty And Service
Shop Tools; Warehouse & Dock products; Hand Tools; Air Tools NOTE: JET is a division of JPW Industries, Inc. References in this document to JET also apply to JPW Industries, Inc., or any of its successors in interest to the JET brand. -
Page 3: Safety Warnings
10. The air tool must be properly lubricated before operating. Do not use this tool for other than its intended use. If used for other purposes, JET disclaims 11. Never start a percussion type air tool (chipper, any real or implied warranty and holds itself breaker, buster, etc.) without securing the... - Page 4 22. Shut off air supply and discharge any residual 33. Do not lubricate the tool with combustible pressure from tool before removing hose, liquids, such as kerosene, diesel or jet fuel. making adjustments, changing accessories, 34. Do not dispose of this tool with normal or storing tool.
-
Page 5: About This Manual
As with any tool operation, safety of operator and bystanders should be first priority. If there are questions or comments, please contact your local supplier or JET. JET can also be reached at our web site: www.jettools.com. -
Page 6: Tool Specifications
Specifications were current at time of publication, but because of our policy of continuous improvement, JET reserves the right to change specifications at any time and without prior notice, without incurring obligations. -
Page 7: Setup And Assembly
Rotate counterclockwise to open chuck jaws. Any missing parts or damage should be reported ® immediately to your JET distributor. Do not use a Insert bit (not provided) into chuck, and damaged tool. Read this instruction manual center it between the jaws. - Page 8 Tool Pressure enough to serve the working area. Excessive hose length will cause pressure drop. JET Air Tools operate on 70-to-100 psi (pounds per square inch) air pressure measured at the tool Make sure air compressor supplies clean, when the tool is operating. Set tool to 90 psi dry air at correct CFM for the tool.
- Page 9 Lubrication Use a light oil containing rust inhibitors, such as SAE #10. Many JET air tools have integral oil reservoirs, which should be kept filled when in-line oilers are not used. If greasing is required, use a grease that is highly water resistant for front case components on air impact wrenches, grinders and sanders.
- Page 10 Troubleshooting JAT-630 Angle Drill Any disassembly of the tool should be done by qualified service personnel. For problems not addressed below, contact JET technical service at 800-274-6846. Problem Possible cause Remedy Tool will not start. Air valve closed or obstructed.
-
Page 11: Replacement Parts
Replacement parts Service parts are listed on the following pages. To order parts or reach our service department, call 1-800- 274-6848 Monday through Friday, 8:00 a.m. to 5:00 p.m. CST. Please have the stock number and serial number of your tool available when you call, so that we may serve you quickly and accurately. ... - Page 12 #505630, JAT-630, 3/8-inch Angle Drill – exploded view JAT-630 Pneumatic Angle Drill ...
- Page 13 #505630, JAT-630, 3/8-inch Angle Drill – parts list Index Part No. Description Index Part No. Description JAT630-01 Motor housing JAT630-31 Angle housing SM-30102 Spring pin 3x24L JAT630-32 Spindle JSM5130-03 Air inlet JAT450-31 Wave washer WW-10 JAT630-04 Throttle lever assembly JAT630-34...
- Page 14 This page intentionally left blank. JAT-630 Pneumatic Angle Drill ...
- Page 15 This page intentionally left blank. ...
- Page 16 427 New Sanford Road LaVergne, Tennessee 37086 Phone: 800-274-6848 www.jettools.com JAT-630 Pneumatic Angle Drill ...
