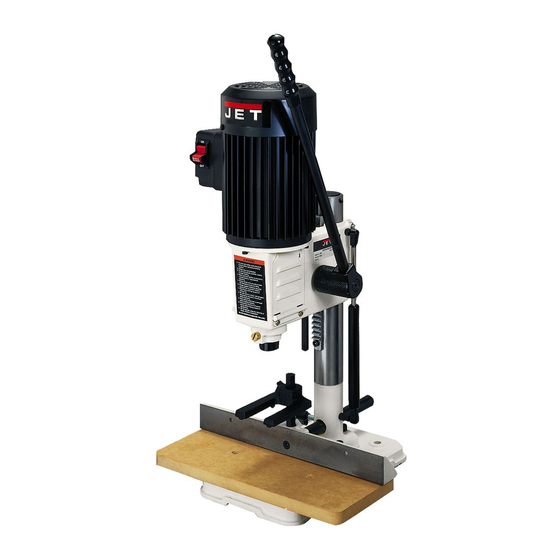

Jet JBM-5 Operating Instructions Manual

EN - ENGLISH
Operating Instructions
Dear Customer,
Many thanks for the confidence you have shown in us with the purchase of your new JET-machine. This manual has been
prepared for the owner and operators of a JET JBM-5 mortiser to promote safety during installation, operation and
maintenance procedures. Please read and understand the information contained in these operating instructions and the
accompanying documents. To obtain maximum life and efficiency from your machine, and to use the machine safely, read
this manual thoroughly and follow instructions carefully.

...Table of Contents

1. Declaration of conformity
2. Warranty
3. Safety
Authorized use
General safety notes
Remaining hazards
4. Machine specifications
Technical data
Noise emission
Contents of delivery
5. Transport and start up
Transport and installation
Assembly
Mains connection
Dust collection
Starting operation
6. Machine operation
7. Setup and adjustments
Installing chisel and bit
180° Head rotation
Sharpening chisel and bit
8. Maintenance and inspection
9. Trouble shooting
10. Environmental protection
11. Available accessories
1. Declaration of conformity
On our own responsibility we hereby declare that this
product complies with the regulations* listed on page2.
Designed in consideration with the standards**.
2. Warranty
The JPW (Tool) AG guarantees that the supplied product is
free from material defects and manufacturing faults.
This warranty does not cover any defects which are caused,
either directly or indirectly, by incorrect use, carelessness,
accidental damage, repair, inadequate maintenance or
cleaning and normal wear and tear.
Any warranty details (i.e. warranty period) can be found in
the General Terms and Conditions (GTC) that are
integral part of the contract. These GTC can be viewed at
the website of your dealer or sent to you upon request.
JPW (Tool) AG reserves the right to make changes to the
product and accessories at any time.
3. Safety
3.1 Authorized use
This mortiser is designed for mortising wood and similar
materials only. Machining of other materials is not permitted
and may be carried out in specific cases only after
consulting with the manufacturer.
The workpiece must allow to safely be loaded and clamped
for machining.
The proper use also includes compliance with the operating
and maintenance instructions given in this manual.
The machine must be operated only by persons familiar
with its operation and maintenance and who are familiar
with its hazards.
The required minimum age must be observed.
The machine must only be used in a technically perfect
condition.
When working on the machine, all safety mechanisms and
covers must be mounted.
In addition to the safety requirements contained in these
operating instructions and your country's applicable
regulations, you should observe the generally recognized
technical rules concerning the operation of woodworking
machines.
Any other use exceeds authorization.
In the event of unauthorized use of the machine, the
manufacturer renounces all liability and the responsibility is
transferred exclusively to the operator.
3.2 General safety notes
Woodworking machines can be dangerous if not used
properly. Therefore the appropriate general technical rules
as well as the following notes must be observed.
Read and understand the entire instruction manual before
attempting assembly or operation.
Keep this operating instruction close by the machine,
protected from dirt and humidity, and pass it over to the new
owner if you part with the tool.
No changes to the machine may be made.
