Summary of Contents for Jet JAT-620

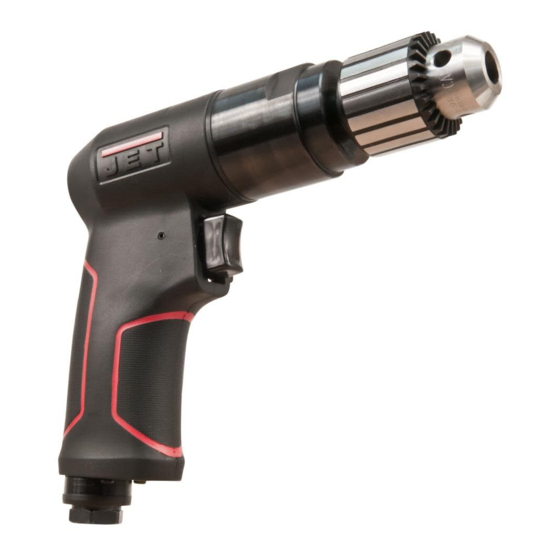

- Page 1 Pneumatic Reversible Drill #505620, JAT-620 #505621, JAT-621 JAT-621 shown Operation & Parts Manual M-505620 Edition 2 06/2015 427 New Sanford Road LaVergne, TN 37086 Ph.: 800-274-6848 www.jettools.com Copyright © 2015 JET...
-
Page 2: Warranty And Service
Shop Tools; Warehouse & Dock products; Hand Tools; Air Tools NOTE: JET is a division of JPW Industries, Inc. References in this document to JET also apply to JPW Industries, Inc., or any of its successors in interest to the JET brand. -
Page 3: Safety Warnings
10. The air tool must be properly lubricated before operating. Do not use this tool for other than its intended use. If used for other purposes, JET disclaims 11. Never start a percussion type air tool (chipper, any real or implied warranty and holds itself breaker, buster, etc.) without securing the... - Page 4 22. Shut off air supply and discharge any residual 33. Do not lubricate the tool with combustible pressure from tool before removing hose, liquids, such as kerosene, diesel or jet fuel. making adjustments, changing accessories, 34. Do not dispose of this tool with normal or storing tool.
-
Page 5: About This Manual
As with any tool operation, safety of operator and bystanders should be first priority. If there are questions or comments, please contact your local supplier or JET. JET can also be reached at our web site: www.jettools.com. -
Page 6: Tool Specifications
Specifications were current at time of publication, but because of our policy of continuous improvement, JET reserves the right to change specifications at any time and without prior notice, without incurring obligations. -
Page 7: Setup And Assembly
5 drops of air tool oil (not included) into the Any missing parts or damage should be reported air inlet. ® immediately to your JET distributor. Do not use a damaged tool. Read this instruction manual Blow out air line to remove any dirt or... - Page 8 Lubrication Information Use a light oil containing rust inhibitors, such as SAE #10. Many JET air tools have integral oil If the air tool is not performing according to reservoirs, which should be kept filled when in-line specifications, the following are among the most oilers are not used.
- Page 9 Recycling Protect the environment. Your tool contains materials which can be recovered or recycled. When its useful life has expired, please leave tool at a specialized facility. Figure 2 Recommended arrangement of air piping and air line system ...
- Page 10 Troubleshooting JAT-620/621 Drill Any disassembly of the tool should be done by qualified service personnel. For problems not addressed below, contact JET technical service at 800-274-6846. Problem Possible cause Remedy Tool will not start. Air valve closed or obstructed. Open valve; clear any obstructions.
-
Page 11: Replacement Parts
Replacement parts Service parts are listed on the following pages. To order parts or reach our service department, call 1-800- 274-6848 Monday through Friday, 8:00 a.m. to 5:00 p.m. CST. Please have the stock number and serial number of your tool available when you call, so that we may serve you quickly and accurately. ... - Page 12 #505620, JAT-620, 3/8-inch Pneumatic Drill – exploded view JAT-620,621 Pneumatic Drill ...
- Page 13 #505620, JAT-620, 3/8-inch Pneumatic Drill – parts list Index Part No. Description Index Part No. Description JAT620-01 Motor housing 40309 Screw TS2.9 80202 Spring pin 2.5x24L JAT620-21 Ring JAT620-03 Air inlet 80222 Internal gear JAT620-04 Trigger JAT620-23 Planet gear JAT620-05...
- Page 14 #505621, JAT-621, 1/2-inch Pneumatic Drill – exploded view JAT-620,621 Pneumatic Drill ...
- Page 15 #505621, JAT-621, 1/2-inch Pneumatic Drill – parts list Index Part No. Description Index Part No. Description JAT620-01 Motor housing 80211 Motor gasket 80202 Spring pin 2.5x24L 80222 Internal gear JAT620-03 Air inlet SM-70423 Planet gear JAT620-04 Trigger 30124 Pin 4x13.8L JAT620-05 Valve stem 70425...
- Page 16 427 New Sanford Road LaVergne, Tennessee 37086 Phone: 800-274-6848 www.jettools.com JAT-620,621 Pneumatic Drill ...
