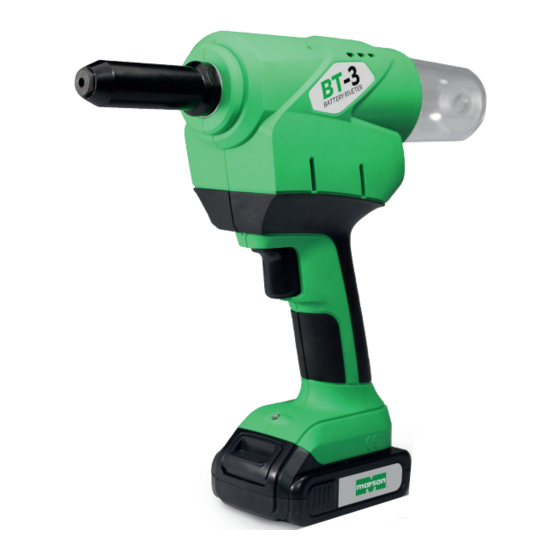

- Page 1 BT-3 BATTERY POWERED INSTALLATION TOOL INSTRUCTION MANUAL FOR U.S. OPERATIONS...
- Page 2 M38980 M96340...
- Page 3 M38985 M38983 2.0 Ah - 20.0V M96310 - 5/32” M96311 - 3/16” M96322 - 1/4”...
- Page 5 ...
-
Page 6: Security Advice
Security advice General security advice for electric riveting machines. Please read all security advice and instructions. Failure to comply with the security advice and the instructions can lead to electric shock, fire and/or serious injuries. Please preserve all security advice and instructions for future reference. The term “electric riveting machine”... - Page 7 4. Operation and handling of the electric riveting machine a) Do not overload the machine. Use the electric riveting machine that is suitable for your work. The suitable electric riveting machine allows you to work better and safer in the specified range of performance. b) Do not use an electric riveting machine that has a defective power switch.
-
Page 8: Technical Specifications
Technical specifications Charging device Battery-powered MARSON BT-3 electric riveting machine • Input voltage: 100-240 V / 50-60 Hz For processing blind rivets with pole cross-sections of 5/64” - 3/16” • Output voltage: 9-21V in all materials • Output current: max. 4 A •... - Page 9 Switching the device into stand-by mode Press the trigger (E) for a short time. The white LED for the illumination of the riveting area lights up. The device is thereby switched to stand-by for 15 seconds. Pressing the power switch again will reset the stand-by counter to 15 seconds. Changing nosepieces The nosepieces (A) are marked with numbers corresponding to the rivet cross-section.
-
Page 10: Parts List
BT-3 Parts List Part No. Description Diagram M96301 COMPRESSION SLEEVE M96302 COMPRESSION SLEEVE ADAPTER M96305 GUIDE SLEEVE KIT 3, 4, 5 M96306 JAWS SET M96307 JAW CASE M96310 5/32" NOSEPIECE M96311 3/16" NOSEPIECE M96322 1/4" NOSEPIECE M96312 FRAME HEAD M96313 GEAR BOX COMPLETE M96214 MAGNET HOLDER (WITH MAGNET) - Page 12 Arconic Fastening Systems and Rings, formerly Alcoa Fastening Systems & Rings, is a global leader in fastening technology. Offering the greatest breadth and depth of fastening system solutions in the industry, Arconic continues to reflect the same commitment to product quality and support that customers have come to expect. To serve its growing market, Arconic Fastening Systems and Rings maintains corporate offices worldwide.
