Instruction Manual
254 and 254OS
Pneudraulic Installation Tools
Patent Pending

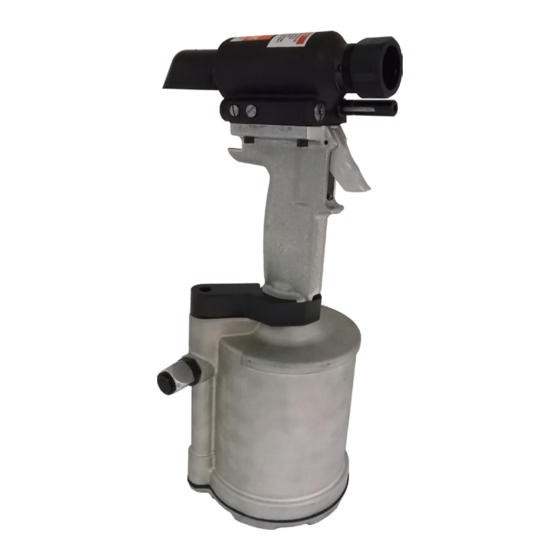

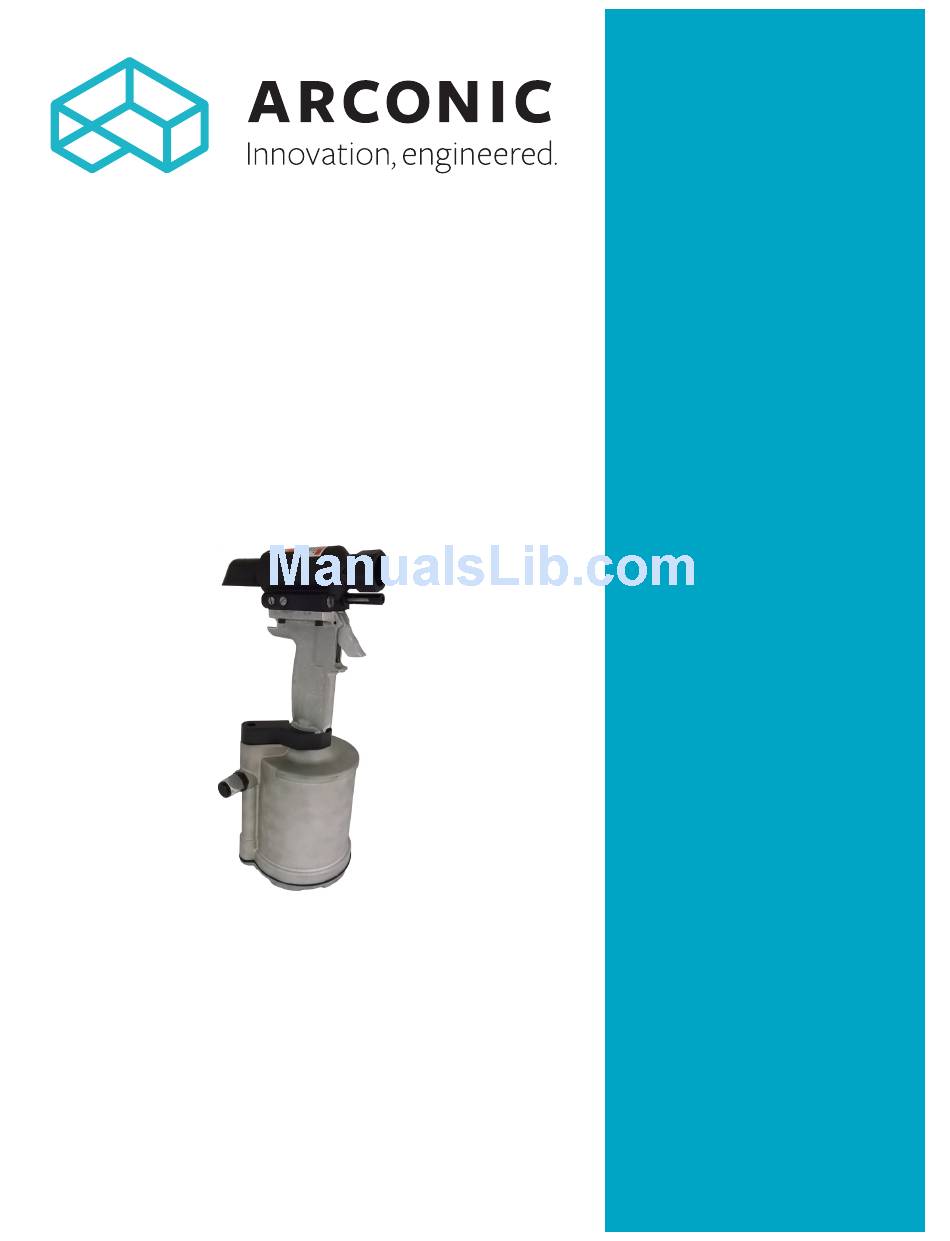

Model 254 shown without boot.
Makers of Huck
July 31, 2018
Brand Fasteners, Tools & Accessories
HK1172
Assembly Procedure
12-15
, Marson
, Recoil
®
®
®
2
3
4
4
5
5
6
7
8-9
10
11
16
Advertisement
Table of Contents
Related Manuals for Arconic 254
Summary of Contents for Arconic 254
-
Page 1: Table Of Contents
Patent Pending Principle of Operation Preparation for Use Kits and Accessories Operating Instructions Maintenance Disassembly Procedure Assembly Procedure Model 254 shown without boot. Fill and Bleed Procedure Components Drawings 12-15 Troubleshooting Makers of Huck , Marson , Recoil July 31, 2018 ®... -
Page 2: Declaration Of Conformity
254 and 254OS Pneudraulic Installation Tools (HK1172) -
Page 3: Safety Instructions
254 and 254OS Pneudraulic Installation Tools (HK1172) Safety Instructions 8. There is possibility of forcible ejection of pintails or spent mandrels from GLOSSARY OF TERMS AND SYMBOLS: front of tool. III. OPERATING HAZARDS: - Product complies with requirements set forth by 1. Use of tool can expose the operator’s hands to hazards including: crushing, impacts, cuts, abrasions and heat. Wear suitable gloves to the relevant European directives. protect hands. 2. Operators and maintenance personnel shall be physically able to handle - Read manual prior to using this equipment. the bulk, weight and power of the tool. 3. Hold the tool correctly and be ready to counteract normal or sudden movements with both hands available. -
Page 4: Specifications
254 and 254OS Pneudraulic Installation Tools (HK1172) Specifications 2.25 STROKE: 0.565 in (1.43 cm) (5.7) WEIGHT: 8.67 lbs (3.9 kg) 1.92 MAX AIR PRESSURE: 90 psi (6.2 bar) (4.9) MAX FLOW RATE: 3.5 scfm (382.28 l/min) POWER SOURCE: 90 psi (6.2 bar) maximum shop air 4° MAX OPERATING TEMP: 125° F (51.7° C) PULL CAPACITY: 8,620 lbs @ 90 psi (38.34 kN @ 6.2 bar) SPEED / CYCLES: 30 per minute HOSE KITS: Use only genuine Huck Hose Kits rated @ 10,000 psi (689.5 bar) working pressure. 14.92 (37.9) HYDRAULIC FLUID: Hydraulic fluid shall meet DEXRON® III, DEXRON VI, MERCON®, Allison C-4 or equivalent Automatic Transmission Fluid (ATF) specifications. Fire- resistant fluid may be used if it is an ester-based fluid such as Quintolubric® HFD or equivalent. Water-based 6.05 (15.4) fluid shall NOT be used as serious damage to equipment will occur. -
Page 5: Preparation For Use
NOTE: On older nose Troubleshooting to investigate possible causes. assemblies with lock collars, use Loctite® 243™ on collet threads, because the 254 pull piston does not have staking holes. Refer to the nose assembly drawings that shipped with nose assemblies. -
Page 6: Operating Instructions
254 and 254OS Pneudraulic Installation Tools (HK1172) Operating Instructions FOR SAFE OPERATION, THIS SECTION MUST BE READ AND UNDERSTOOD. Bead UP Flange DOWN Do NOT pull a CORRECT CORRECT Do NOT install a fastener without a workpiece (structure to be fastened), a fastener with the pin, and a properly oriented collar in place. -
Page 7: Maintenance
254 and 254OS Pneudraulic Installation Tools (HK1172) Maintenance GENERAL DAILY The operating efficiency of a tool is directly related to the If a Filter-Regulator-Lubricator unit is not being used, performance of the entire system. Regular inspection and uncouple the air disconnects and add a few drops of immediate correction of minor problems will keep a tool hydraulic fluid or a light-weight oil to the air inlet of the operating efficiently, and prevent downtime. A schedule tool. NOTE: If the tool is in continuous use, add a few of preventive maintenance of the tool, nose assembly, drops of oil in every 2–3 hours. - Page 8 254 and 254OS Pneudraulic Installation Tools (HK1172) Disassembly This procedure is for complete disassembly of the tool. 7. Unscrew the reservoir housing. Then remove the two Disassemble only those components necessary to replace springs, and slide reservoir plunger out of the head. damaged O-rings, Quad-rings, Back-up rings, and worn Remove the spacer and use a “pick” to remove the and damaged components. For component identification, Quad-ring. see Figures 1–4 & 9–11. 8. Unscrew the check valve plug from the side of the head. Then remove the spring, guide, and ball. (Figure WARNING: Disconnect the air hose from the tool before performing any maintenance. If check valve seat is damaged, contact your Huck Serious personal injury could result if the air hose is connected.
-
Page 9: Disassembly Procedure
254 and 254OS Pneudraulic Installation Tools (HK1172) Disassembly (continued) 11. Remove the screw from the throttle arm, and then Figure 2 remove the throttle arm. Remove the throttle valve assembly and spring from the cylinder. (Figure 11) Note orientation Front Gland of polyseal Assembly 12. With a small punch and hammer, drive out the roll close-up pin to remove the trigger from the handle. (Figure 9) 123111-1 Remove the trigger pin. Remove ball end of the cable Assembly Bullet from the throttle arm, and pull cable out of handle. 13. Remove the bleed plug from the handle. CAUTION: Always use a soft-jaw vise to avoid 123112-1 HUCK damaging the tool. - Page 10 254 and 254OS Pneudraulic Installation Tools (HK1172) Assembly Clean components with mineral spirits or similar solvent. Figure 5 Trigger Pin Inspect for wear/damage and replace as necessary. Cable Pin Replace all seals of disassembled components using Service Parts Kit, P/N 256KIT. Smear LUBRIPLATE 130AA or PARKER-O-LUBE on rings and mating parts to ease Throttle Arm Cable Assembly assembly. Carefully assemble tool without damaging Bushing and Screw O-rings, Quad rings, or Back-up rings. Throttle Arm Throttle Arm Guard Guard Screw 1. ( Figure 4) Install O-ring inside handle; then push sleeve...
-
Page 11: Fill And Bleed Procedure
254 and 254OS Pneudraulic Installation Tools (HK1172) Fill and Bleed and locked with nut (and, optionally, with stall nut). WARNING: Avoid contact with hydraulic fluid. Hydraulic fluid must be disposed of in 4. Connect the tool to the air source to seat the air piston accordance with local regulations. See MSDS at the bottom of the air cylinder;... -
Page 12: Components Drawings
254 and 254OS Pneudraulic Installation Tools (HK1172) 254 Tool Head 254_revG Figure 9 113251* 129944* Polyseal 126088* Back-up Ring (Note orientation) 126079 Cylinder / Head Back-up Ring 500851* 505887* O-Ring O-Ring 500823* 130652 Hydraulic 123138 O-Ring 113253* Back-up Ring 113251*... - Page 13 254 and 254OS Pneudraulic Installation Tools (HK1172) 254OS Tool Head 254OS_revA Figure 10 113251* Back-up Ring 500851* O-Ring 500823* O-Ring 113251* Back-up Ring 126088* Back-up Ring 129944* Polyseal (Note orientation) 123138 Wiper Housing 505887* O-Ring 505894* Wiper 113253* Back-up Ring...
- Page 14 254 and 254OS Pneudraulic Installation Tools (HK1172) Tool Base - 254 and 254OS Figure 11...
- Page 15 254 and 254OS Pneudraulic Installation Tools (HK1172) Sticker Location and Throttle Valve Figure 12 The 254 series tools come labeled with important stickers on the outside of the cylinder which contain safety information. It is necessary that these stickers remain on the tool and are easily read.
-
Page 16: Troubleshooting
254 and 254OS Pneudraulic Installation Tools (HK1172) Troubleshooting Always check the simplest possible cause (such as a loose or disconnected trigger line) of a malfunction first. Then proceed logically, eliminating other possible causes until the cause is discovered. Where possible, substitute known good parts for suspected defective parts. Use this Troubleshooting information to aid in locating and correcting trouble. NOTE: “Piston drift” is when the air piston is in the down position, but the hydraulic pull piston is not in the full-forward position. This causes an out-of-sequence condition. - Page 17 254 and 254OS Pneudraulic Installation Tools (HK1172) Limited Warranties Limited Lifetime Warranty on BobTail® Tools: Tooling, Part(s) and Other Items not manufactured by Huck: Huck International, Inc. warrants to the original purchaser that its BobTail® installation tools manufactured after HUCK makes no warranty with respect to the tooling, 12/1/2016 shall be free from defects in materials and part(s), or other items manufactured by third parties. HUCK...
- Page 18 Arconic Inc. (NYSE: ARNC) creates breakthrough products that shape industries. Working in close partnership with our customers, we solve complex engineering challenges to transform the way we fly, drive, build and power. Through the ingenuity of our people and cutting-edge advanced manufacturing, we deliver these products at a quality and efficiency that ensures customer success and shareholder value. Arconic Fastening Systems Tooling Support Locations INDUSTRIAL NORTH AMERICA Kingston Operations...
