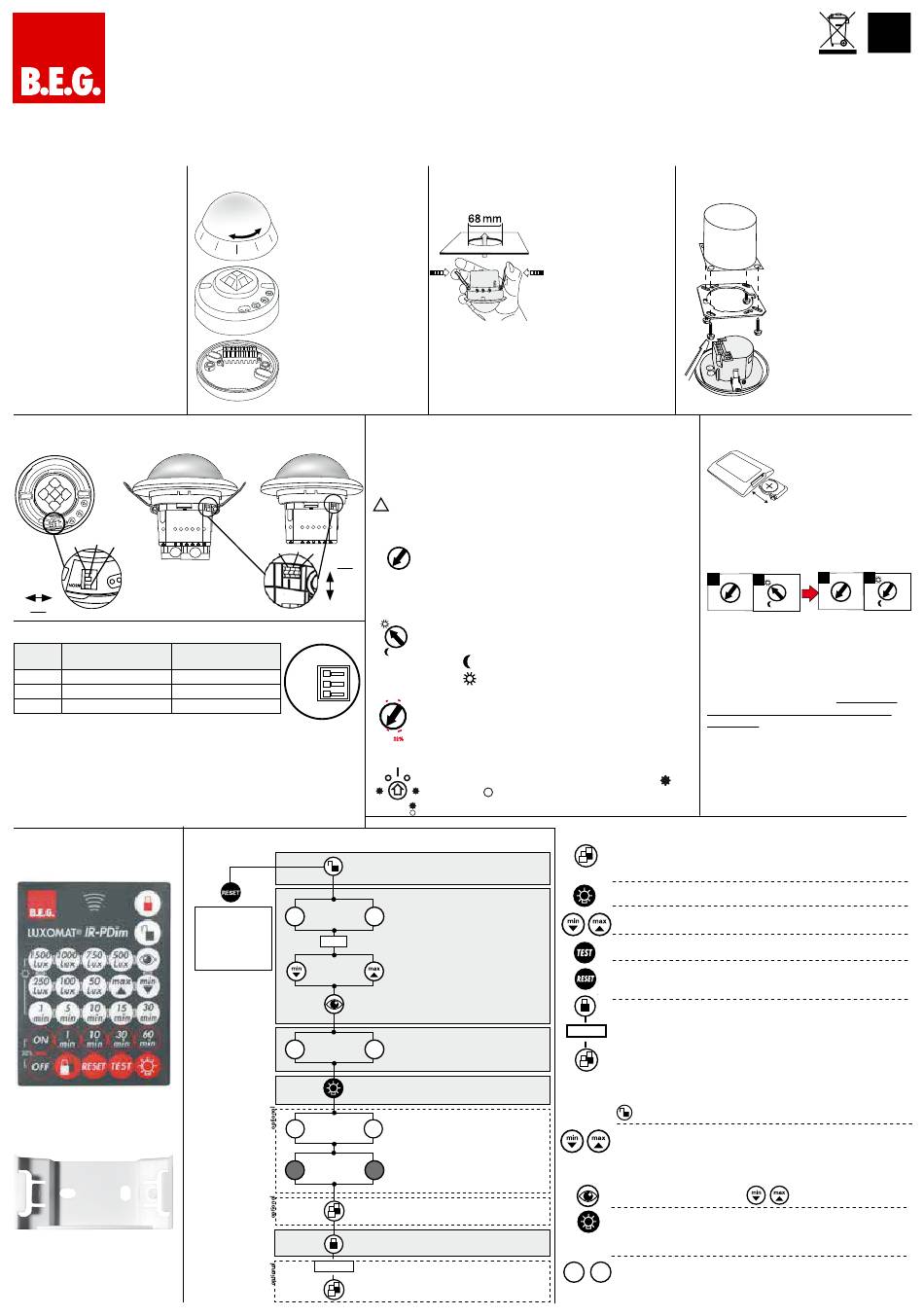

LUXOMAT
Installation and Operating Instruction for

1. Mounting preparations

Work on the 230 V mains supply
may only be carried out by quali-
fied professionals or by instructed
persons under the direction and
supervision of qualified skilled
electrical personnel in accordance
with electrical regulations.
Disconnect supply before installing!
The device is not suited for safe
disconnection of the mains supply.
When in Master/Slave mode of op-
eration, the Master-appliance must
always be installed at the location
where there is least daylight.

3. Position DIP-switches

Surface mounting False ceiling mounting
2
1 3
OFF ON
The DIP switch settings are
VA HA
LED
overriden using the remote
COR
OFF ON
control.
DIP

4. DIP switch functions

DIP- ON OFF
switch
1 Semi automatic mode Fully automatic mode
2 LED OFF LED ON
3 Corridor mode Standard mode
The DIP settings are enabled again by
• Adjusting the DIP switches when closed
• Reset with test sun setting at the potentiometers
• Reset when open
Corridor function: After deactivation by an external push button, the
detector switches off and returns to automatic mode after 5 sec.
Function LEDs OFF: In the open state and in test mode, the LEDs are
always ON.
7. Option:
IR-PDim
Wall bracket for remote
control IR-PDim
®
B.E.G.-Occupancy detectors
2a. Installation of the LUXOMAT
PD4-M-DIM-SM
The detector must be in stalled
on a solid and level surface.
close
open The circular cover ring
must be removed prior to
assembly. To do this, twist the
lens anticlockwise through
approximately 5° and lift off.
Having connected up the
wires in accordance with
regulations, secure the
detector with 2 screws. After
installation replace the lens
and lock (turn clockwise).
Mains to be connected.
Flush mounting
2
1
3
DIP
OFF
ON
OFF ON
1
DIP 2
3

8. Settings by remote control

Resetting when-
50 to 1500
Lux Lux
open: Deletes all
values set with
or
the remote con-
trol, light OFF.
or
1
to
min min
max
max
ON
ON OFF
OFF
1 to
min min
50
t < 5 sec. 1500
Lux Lux
max
PD4-M-DIM
® 2b. Installation of the LUXOMAT
PD4-M-DIM-FC

5. Putting into operation / Settings

Initialization
In the first 60 seconds after connecting the power supply the LUXOMAT
PD4-M-DIM will go through a self test cycle. During this time the device
doesn´t respond to movement, but will stay on the status depending on the
selected initialization mode on or off (INI OFF or ON).
Warning: In the Ini-OFF mode, does not switch on lights at power start
120 60 50
!
A
up. After 60 seconds, detector would switch on lights on upon detecting
40
30
movement.
15
5
10
Follow-up time for light control
25 22
30
The time can be set infinitely variably at between
18
R1 16
16 10 1 and 30 minutes.
5 10
6
Symbol TEST: Test mode (Every movement switches on the light
TEST 3
2
1
1
for a period of 1 second, switching it off for a period of 2
TEST
30
15
seconds after that regardless of the level of brightness)
Twilight-switch for light control (relay 1)
2000
The switch-on value for the light can be set at between 10 and
1200
2000 Lux. Using the rotary control, the luminance set points can
600
be set as desired.
200
40
Symbol : Night-time operation
Symbol : Daytime /Night-time operation
Orientation lighting
ON
This rotary controller serves to determine the working time of
60
50
the orientation lighting (fixed to 20 %).
30
10
"ON" for permanent orientation lighting.
5
OFF
"OFF" for deactiviation of orientation lighting.
Pulse spacing PD-Slave
2 or 9 seconds can be set for the pause between 2 pulses sent
9s 2s
to the master. The setting can be made with
deactivated ( ) LED indicator.
For devices with a separate slave input, 2 sec. can be set.
LED ON
LED OFF
Unlocking device - Activation of
the programming mode
Luminance set point for
constant light control
max
Start of the dim process
ON
Stop of the dim process and reading
in the current light value as new
OFF
luminance set point
50 1500
Lux Lux
30
Follow-up time light
50
1500
Lux
Lux
Fully automatic/semi automatic
mode => (see page 2, point10)
Orientation lighting ON/OFF
20 % of the nominal light
max
Orientation lighting and its
60
follow-up time
ON
Preset/user mode
=> (see page 2, point11 )
OFF
Locking device – Exit programming
mode
LED flashes
Permanent protection against
sabotage
PD4-M-DIM-SM/-FC/-FM
2c. Installation of the LUXOMAT
®
PD4-M-DIM-FM
A circular opening of
diameter 68 mm must first
of all be produced in the
ceiling.
Having connected up the
cables in accordance with
regulations, the detector is
inserted into the opening
as shown in the drawing
opposite and fixed into
position with the assis-
tance of the spring clip.
6. Settings carried out using remote
control (optional)
®
1. Check Battery:
open battery compartment by pressing the
plastic springs together and removing the
battery-holder.
1
30
R1
TEST
2. IMPORTANT
Please pay attention, that the setting is
Potentio-meter 1 at "TEST" and Potentiometer
2 not at "SUN". All values which have
been programmed using the remote control
will be deleted in the event of power failure
in the position "TEST /SUN". Please switch
Potentiometer 2 over to "MOON" or any
other value.
Caution:
Settings with remote control supersede the
settings by courtesy of potentiometers.
activated
( ) or

9. Explanation of the remote control button functions

In the initialization period
During initialization phase/self test cycle
Lights can be set to on or off status during initialization(60 Seconds) by using
INI OFF/ON mode.
Light on / off when closed
=> (see page 2, point 12)
Dimming in the closed state
50
1500
Lux Lux
=> (see page 2, point 11)
Test operation in the closed condition to enable
Disable the test mode: press reset
Resetting when closed
The lighting relay is switched off, i.e. opened and the follow-up times
reset.
Permanent protection against sabotage
This function blocks the unit permanently (green LED is illuminated). This
t < 5 s operating mode can only be activated during the period of 5 seconds after
pressing the "lock" button. This status will only permit actuating the function
"Light on/Light off". The procedure for leaving this mode is as follows:
1. Switch off the current
2. Apply current for 31 - 59 seconds
3. Switch of the current again
4. Apply current
5. Open detector
50 1500
Lux Lux
Dim in the open state
To set a target value, proceed as follows (example workplace):Place one
lux meter flat on the desk. Set the light with the help of remote control IR-
PDim by pressing the buttons „max" or „min" for starting the dim process.
50
1500
Wait until the desired light level is reached.
Lux Lux
Confirmation by the preset value
50 1500
max
Lux
Lux
Light during the initialization
The light is on by default in the initialization time.
max On / off with the „Light" button during Initialization. The final condition
ON
is then active.
Follow-up time orientation light ON / OFF when open
ON OFF
Note: Also during the orientation phase of the light constant light control is
active: With sufficient brightness is <20% dimmed and turned off the lights
if necessary.
OFF
GB
®
The detector can be installed
in conventional inlet-sockets
mounted on the ceiling.
The assembly plate enclosed must
be stripped off prior to installa-
tion and secured to the ceiling
using four screws and ensuring
that it flat. Having connected up
the cables in accordance with
regulations, the detector can be
placed in position as shown in
the drawing opposite and, ap-
plying a little pressure, can then
be locked into position with the
assistance of the spring clips.
(Please refer to the connection
diagrams)
Remote control
LUXOMAT IR-PDim
®
120 60 50
A
40
30
15
5 10
16 10
5
2
1
TEST 30
15
1 2
2
25 22 2000
25 22
30
2000
18 1200
18
1200
R1 16
16
600
600
10
10
200
6
6 200
TEST
3
3 1 40
1 40
