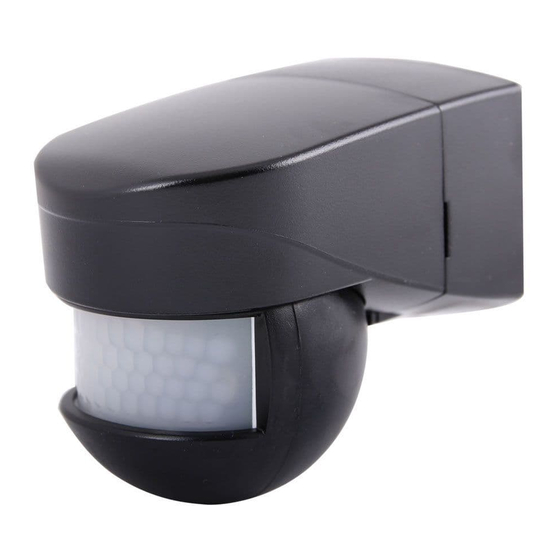

B.E.G. LUXOMAT LC-Mini 120 Installation And Operation Instruction

LUXOMAT

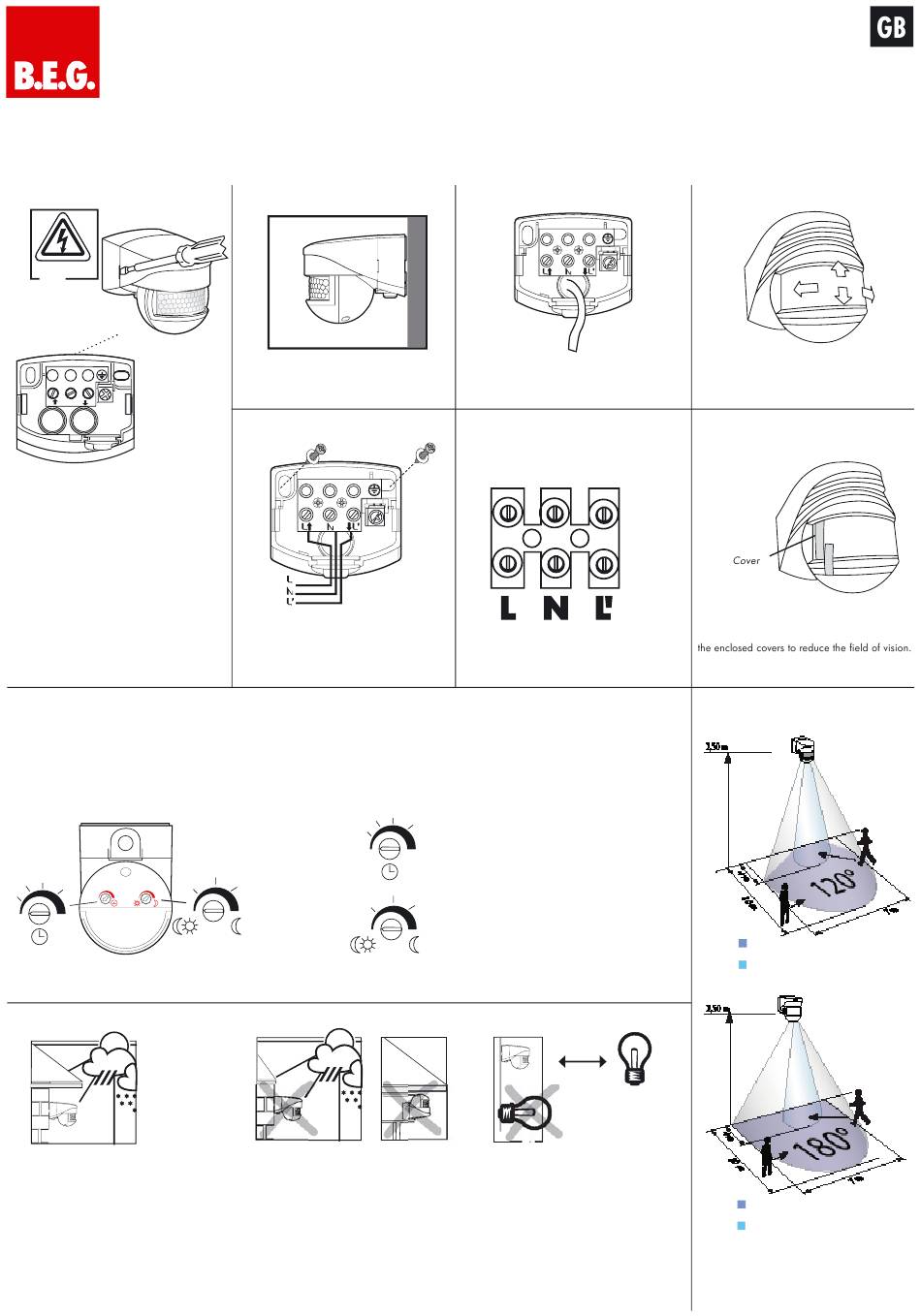

Installation and Operation Instruction motion detector B.E.G. – LUXOMAT

1. Mounting preparations

1
2
Caution: have all work involving the
1)
230 V mains supply carried out by a
qualified electrician! Before starting
disconnect the mains! Please be aware,
that the LUXOMAT LC-Mini 120/180 is
®
not suitable as an intrusion detector, since
it is not equipped with a tamper contact.
2) Socket base corner mounting
Important: The LUXOMAT
LC-Mini
®
120/180 has to be mounted in such a way,
that the adjusting elements / rotary regulators
are always pointed downward.

8. Putting into operation / Settings

Self test cycle
After mounting and connecting the 230 VAC supply
voltage, the LC-Mini 120 / 180 goes through a self
testing unit of 60 seconds. Then the unit is ready for
operation and the settings can be made manually
or with remote control.
1.2
50
130
6
20
4 1000
sec 10
min

10. Mounting place

1
1) If possible mount unit on a safe place
(wall or ceiling mount)
®

2. Mounting types

1
1) Wall mounting

3. Plug-in socket

N
L L'
L
N
L'
Mount the plug-in socket with two screws and
the enclosed seal rings on a firm base.
(Pay attention to inserting of the connection
cable, see point 4)
50
20
4
sec
40
10
130
2 Lux
1000
2
2) Influence of weather reduces the lifetime of
the unit. Please take care to mount correctly.
LC-Mini 120 / 180

4. Inserting of the connection cable

L
1) Connecting cable from top down
1) Connection cable from top down
and behind
2) Terminal markings
2) Terminal markings

5. Connection

1.2
6
Follow-up time
4 sec. ...10 min.
10
min
40
10
Lux value
Night operation...Dusk...Day operation
2 Lux
(Day operation: light sensor inactive, switching at
any brightness value)
4
3) Minimum distance to switched lighting,
frontally or laterally to device: 1 m
4) Never mount the connected lights below the
motion detector!
LC-Mini 120 and LC-Mini 180
®

6. Sensor head optics

N
L'
By swinging the sensor head horizontally
(ca. ±45°) and vertically (ca. ±15°) the
detection area can be changed.

7. Exclude sources of interference

If necessary, the lens segment(s) corresponds to
unwanted detection zones may be masked with

9. Range of Coverage

1
2
3
> 1m
1
2
1
2
walking towards
walking across
1
2
walking towards
walking across
