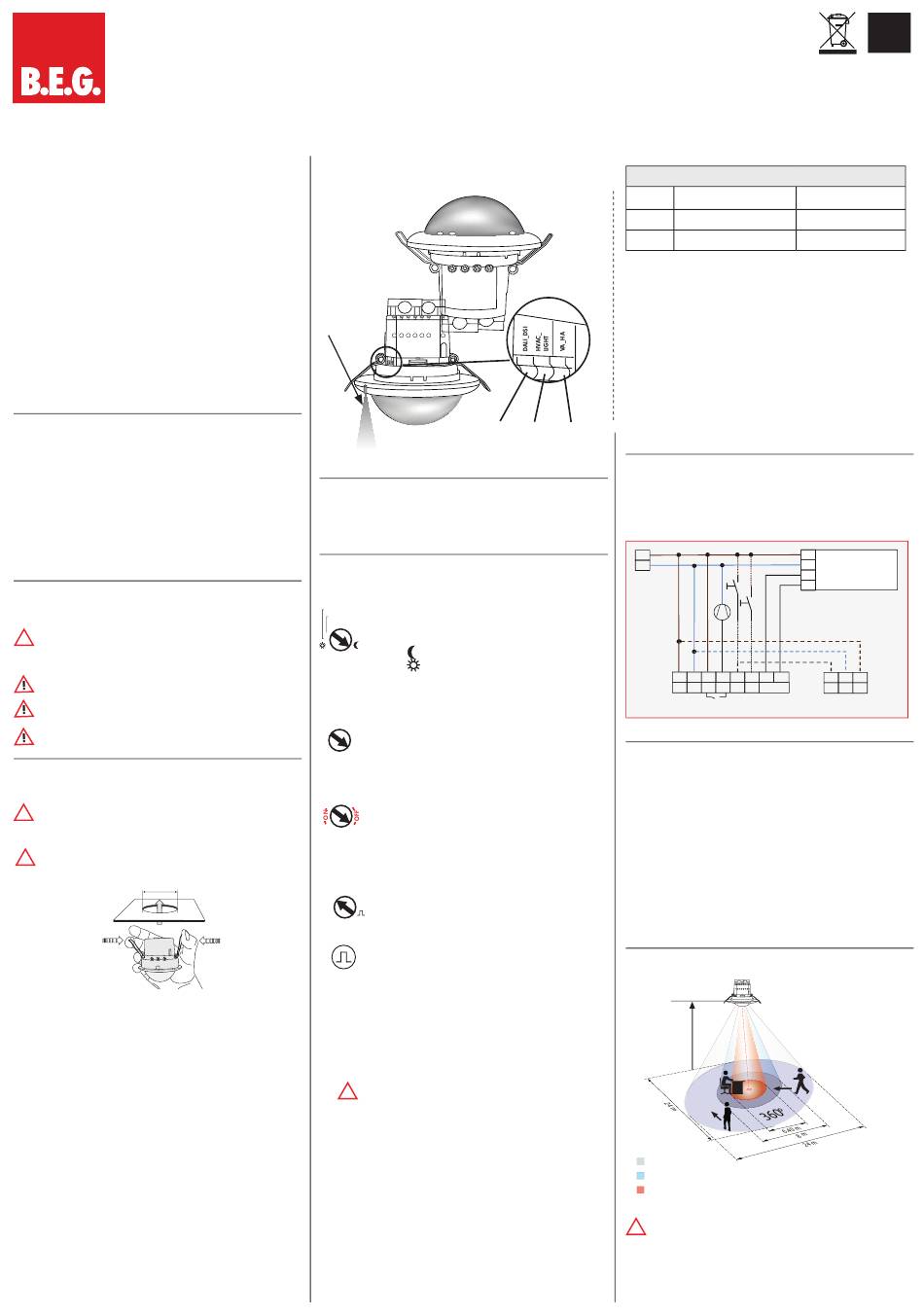

Installation and Operating Instruction for B.E.G. - Occupancy detector PD4-M-DALI/DSI-HVAC-FC
1. Product information
• Occupancy detector for daylight-dependent lighting
control
• DALI/DSI interface for controlling digitally dimmable
electronic ballasts as a group
• One additional switching channel (NO potential-free, dry)
for controlling lights and HVAC (heating, ventilation, air
conditioning) devices
• Switching between DSI and DALI program by remote
control or DIP switch
• Extension of the detection area by Slave devices is
possible
• Set value brightness, follow-up time – LIGHT/HVAC and
orientation light adjustable
• Manual switching and dimming via pushbutton possible
• Orientation light function
2. Operation
The presence detector controls the light automatically according
to people present (movements) and the ambient brightness.
The integrated light sensor constantly measures the ambient light
and compares it with the set value brightness on the detector. If
the ambient light is sufficient, lighting will not be switched.
If the ambient light level is below the set value brightness, a
movement activates the lighting in the room.
The detector switches the light off despite of a person being pre-
sent if there is enough natural light for 5 min or if no movement
is detected for one follow-up time.
3. Safety information
Work on the 110-240 V mains supply may only be
R2
carried out by qualified professionals or by instructed
40
30
50
60
60 15
persons under the direction and supervision of quali-
!
120 5
A
fied skilled electrical personnel in accordance with
electrotechnical regulations.
Disconnect supply before installing!
This device is not suitable for disconnection.
Mounting the cover ring, after introduction of the
power cable (FC version).
4. Mounting
In Master/Slave operation the Master device must
!
always be installed at the site with less daylight.
The light sensor should be mounted on the opposite
!
side of the window.
68 mm
A circular opening of diameter 68 mm must be produced in the
ceiling. Having connected up the cables in accordance with
regulations, the detector is inserted into the opening as shown in
the drawing and fixed into position with the assistance of the
spring clips.
All manuals and user guides at all-guides.com
®
5. Position DIP switches, LEDs and
Potentiometers
Light
measurement
6. Self test cycle/Startup behavior
The product enters an initial 60-second self-test cycle, when the
supply is first connected. During this time the device does not
respond to movement and stays on.
7. Putting into operation / Settings
20% R1 LUX
2000
1200
50 30 600
10 18 16
10
5
6 200
22
3
25 40
1
30
TE
R2 20% R1
40
50 30
30 10 18 16
50
10
5
60
15 6
60 22
3
25
120 5
1
30
A
TE
R2 20%
40
50 30
30 10
50
5
60
15
60
120 5
A
R2
40
50 30
60 15
120 5
A
A
!
net
PD4-M-DALI/DSI-HVAC
LEDs
I II III
A B C D
3
2
PD4-
False ceiling
mounting
Brightness value for constant light control
(Potentiometer A)
The brightness set value can be defined between
10 and 2000 lux. The potentiometer enables a free
selection of the brightness value.
Symbol : Night-time operation
Symbol : Day-time operation
(Light evaluation inactive)
Follow-up time for light control (Potentiometer B)
LUX
2000
The follow-up time can be set to 1 to 30 minutes.
1200
600
Symbol TEST: test mode
200
40
Irrespective of the brightness, every movement switches
the light on for 1s, then off again for 2s.
Follow-up time for orientation light (Potentiometer C)
R1 LUX
2000
The follow-up time can be set infinitely variably at
1200
18 16 600
between 5 and 60 minutes. Manually switching ON/
10
6 200
22
3
25 40
OFF the orientation light.
1
30
TE
"ON" for permanent orientation light
"OFF" for deactiviation of orientation light
Follow-up time for device control (Potentiometer D)
20% R1
The follow-up time can be adjusted between 5 min. and LUX
2000
1200
120 min. The delay is active from a set time of >15 mi-
50 30 600
10 18 16
10
5
60
6
nutes. This delay is about 5 min. If no other movements 22
3
25
are detected during this time, the delay starts again. 1
30
TE
Impulse function
The impulse function can be used to control external
HVAC systems. All 9 sec. will be set an impulse of
2.5 sec.
Alarm impulse
In order to initiate an alarm impulse, there have to be
three detected movements within a period of 9 sec.
This function can be used to display a presence in the
room on external visualizations. All 9 sec. will be set an
impulse of 2.5 sec.
The device does not fulfil the requirements of DIN
EN50131-2-2 and therefore cannot be used in
professional intrusion detection systems.
DIP switch functions
DIP 1 Full automatic mode
DIP 2 HVAC function
DIP 3 Operation mode DALI
* If you select "LIGHT", the switching relay R2 operates synchro-
nously to the DALI light channel. The potentiometer R2 has no
function in this setting.
Potentiometer A Brightness (constant light control) channel 1
Potentiometer B Follow-up time (light) channel 1
Potentiometer C Follow-up time (orientation light)
Potentiometer D Follow-up time (device control) channel 2
LED I green
LED II red
1
LED III white
8. Wiring diagram
Schematic diagram - when connecting the detector, please
respect the labelling of the terminal connections at the detector!
Standard mode with Master/Slave
L
N
M1
L N NO NO
HVAC HVAC
Master
9. Manual switching and dimming
By pressing the push button, the phase can be given to the S
terminal.
To turn on or off the light, press the push button briefly. The light
will remain on or off, as long as people are detected plus the
follow-up time.
With a long press of the push button the light will be dimmed
manually. When releasing the button, the current brightness value
is retained.
With renewed long press of the push button, the dimming direction
is reversed.
200
40
Taking the phase to the R terminal by using a button, the HVAC
channel can be switched with a short key press.
10. Range
2.50 m
1
quer zum Melder gehen Walking across
2
Walking towards frontal zum Melder gehen
3
Unterkriechschutz
Seated
Connected Slave devices must have the same phase
!
as the Master device.
EN
Semi-automatic mode
Light control*
Operation mode DSI
L
N
E1 DALI/DSI
DA
DA
T2
T1
R S + - R N
L
DA
Slave
3
2
1
