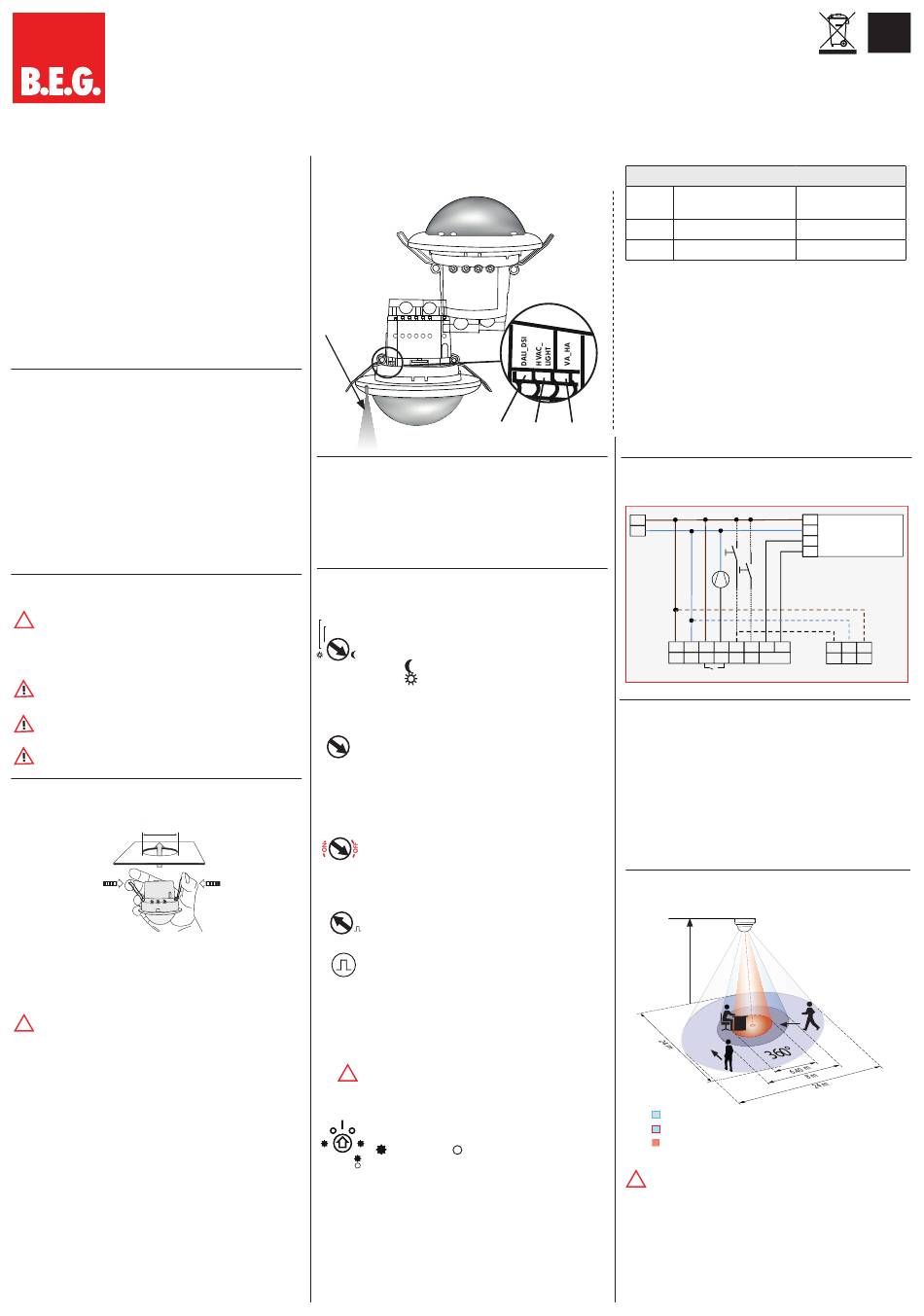

Installation and Operating Instruction for B.E.G. - Occupancy detector PD4-M-DALI/DSI-HVAC-DE
1. Product information
• For group operation of up to 50 lights
• Suitable for dimmable digital electronic ballasts and
control moduls
• One additional switching channel (NO potential-free, dry)
for controlling lights and HVAC (heating, ventilation, air
conditioning) devices
• DALI/DSI interface
• Constant light control
• Manual switching / dimming
• Full or semi-automatic mode
• Set value brightness, follow-up time – LIGHT/HVAC and
orientation light adjustable
• Sensor and power supply in one housing
• Infrared remote control
2. Operation
The presence detector controls the light automatically according
to people present (movements) and the ambient brightness.
The integrated light sensor constantly measures the ambient light
and compares it with the brightness level on the detector. If the
ambient light is sufficient, lighting will not be switched.
If the ambient light level is below the brightness level, a move-
ment activates the lighting in the room.
The detector switches the light off, if there is enough natural light
for 5 min. or if no movement is detected for one follow-up time.
The second channel can be interpreted as HVAC channel
(heating, ventilation, air conditioning). This channel switches the
connected load independent of the brightness.
3. Safety advice
Work on the 110-240V mains supply may only be
carried out by qualified professionals or by instructed
R2 20%
!
persons under the direction and supervision of quali-
40
50 30
50 30
60
60 15
fied skilled electrical personnel in accordance with
120
5
A
electrotechnical regulations
Disconnect supply before installing!
This device is not suitable for disconnection.
After having connected all cables, please mount the
cap onto the detector.
4. Mounting FC
68 mm
A circular opening of diameter 68 mm must be drilled into the ceil-
ing. Having connected the cables in accor dance with regulations,
the detector is inserted into the opening as shown in the drawing
above and has to be fixed into position by means of the spring clips.
In Master/Slave operation, the master device must always
!
be installed at location with least daylight.
®
5. Position DIP switches, LEDs
and potentiometers
Light
measurement
6. Self test cycle/Startup behavior
The product enters an initial 60-second self-test cycle, when the
supply is first connected. During this time, the device does not
respond to movement and stays on.
The initialization mode can be changed by using the remote
control.
7. Putting into operation / Settings
R1
LUX
2000
1200
600
10 18 16
10
5
6 200
22
3
25 40
1
30
TE
R2 20% R1
40
50 30
30 10 18 16
50 10
5
60 6
60 15
22
3
25
120 5
1
30
A
TE
R2 20%
40
50 30
50 30 10
5
60
60 15
120
5
A
R2
40
30
50
60 15
120 5
A
A
!
9s 2s
LED ON
LED OFF
PD4-M-DALI/DSI-HVAC/PD4-S
I II III
A B C D
3
2
PD4 - False ceiling
mounting
Twilight-switch for constant light control
The set value brightness can be adjusted at between 10 and
2000 Lux. Using the potentiometer, the set value brightness
can be adjusted as desired.
Symbol : Night-time operation
Symbol : Day/night time operation
Follow-up time for light control
LUX
2000
The time can be set infinitely variably between
1200
1 and 30 minutes. 600
200
Symbol TEST: Test mode 40
Every movement switches on the light independent of
brightness for a period of 1 second, switching it off for a
period of 2 seconds.
Orientation light
R1
LUX
The follow-up time can be set infinitely variably at between 2000
1200
5 and 60 minutes. Manually switching ON/OFF the
18 16 600
10
6 200
22
orientation light.
3
25 40
1
„ON" for permanent orientation light 30
TE
„OFF" for deactiviation of orientation light
Follow-up time for device control
20% R1 LUX
2000
The follow-up time can be adjusted between 5 min. and
1200
50 30 600
10 18 16
10
120 min. The delay is active from a set time of >15 minutes.
5
60 6 200
22
3
25
This delay is about 5 min. If no other movements are detec-
1
30
TE
ted during this time, the delay starts again.
Impulse function
The impulse function can be used to control external HVAC
systems. All 9 s will be set a 2.5 sec.
Alarm impulse
In order to initiate an alarm impulse, there have to be three
detected movements within a period of 9 sec.
This function can be used to display a presence in the room
on external visualizations. All 9 sec. will be set an impulse
of 2.5 sec.
The device does not fulfil the requirements of DIN EN50131-
2-2 and therefore cannot be used in professional intrusion
detection systems.
Pulse spacing PD-Slave
2 or 9 seconds can be set for the pause between 2 pulses
sent to the master. The setting can be made with activated
( ) or deactivated ( ) LED indicator.
For devices with a separate slave input, 2 sec.
can be set.
DIP switch functions
DIP 1 Fully automatic mode
(VA)
DIP 2 HVAC function
DIP 3 Operation mode DALI
* If you select „LIGHT", the switching relay R2 operates synchro-
nously to the DALI light channel. The potentiometer R2 has no
function in this setting.
Potentiometer A Lux Channel 1
Potentiometer B Time Channel 1
Potentiometer C Orientation light
Potentiometer D HVAC Channel 2
LED I green
LED II red
1
LED III white
8. Wiring diagram
Standard mode with Master/Slave
L
N
T2
M1
L N NO NO
HVAC HVAC
Master
L
9. Manual switching and dimming
N
By pressing the push button, the phase can be given to the S
terminal.
To turn on or off, press the push button briefly. The light will remain
on or off, as people are detected plus the follow-up time.
With a long key press the light will be dimmed manually. When
you release the button, the current brightness value is retained.
Upon renewed dimming, the dimming direction is reversed.
Taking the phase to the R terminal by using a button, the HVAC L N NO NO
HKL HKL
channel can be switched with a short key press.
Master
10. Range
2.50 m
40
1
quer zum Melder gehen
walking across
2
frontal zum Melder gehen
walking towards
Unterkriechschutz seated
Connected slaves must have the same phase
!
as the Master.
