The TRPCOM utility can help you to test and configuration the module's data transmit and
receive digital input and output communication status. User may download TRPCOM software
from TRYCOM web www.trycom.com.tw.

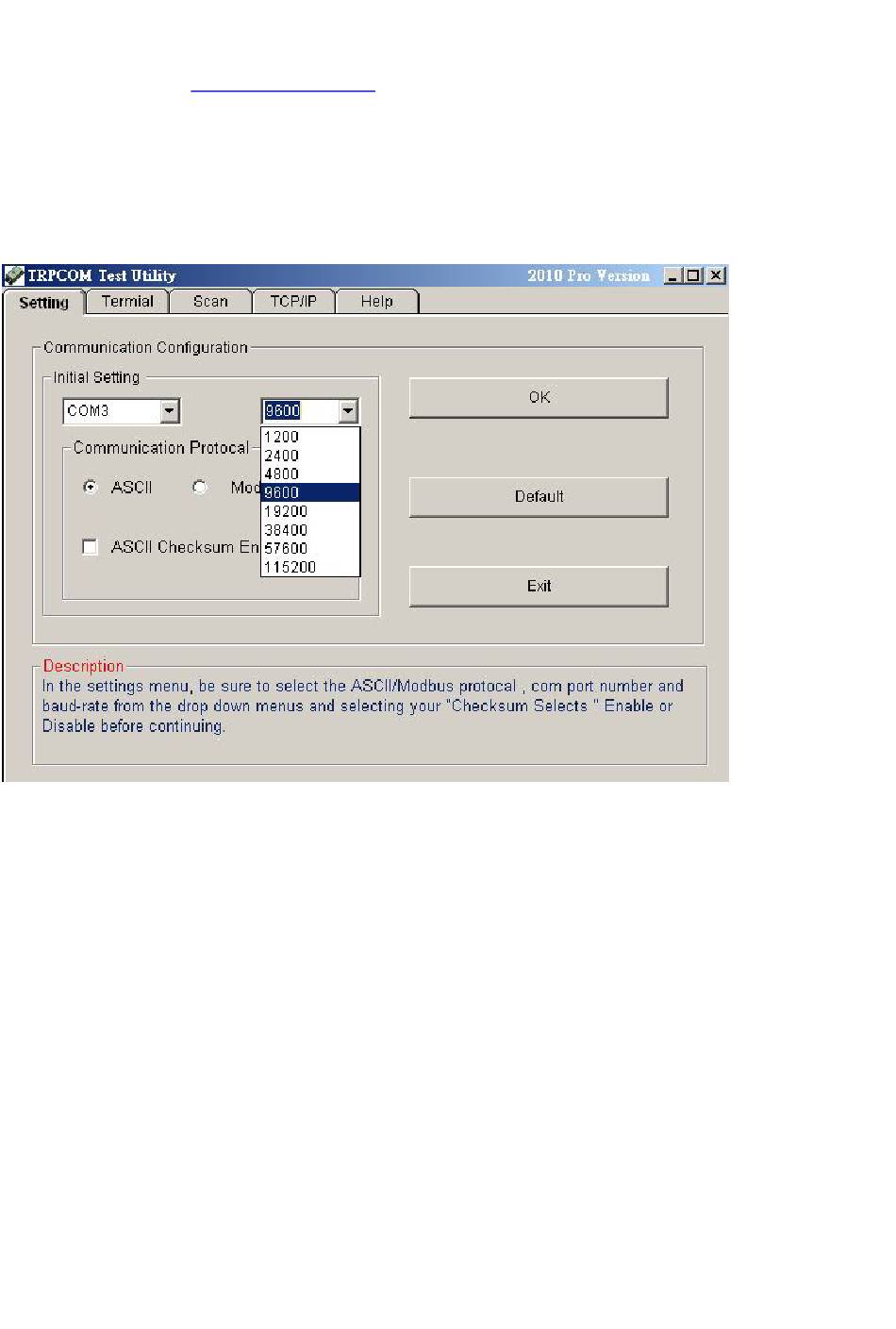

1.The "Setting"function is for user to initiate the software to set the Com Port from 1 to 20 and
setting the Baud-Rate from 1200 to 115200,Checksum Enable or Disable. ...See Figure 1
*The Module Factory Setting is "9600" and "ID" is 01, Checksum is Disable.
*Turn module's switch to "OFF,ON" position into ASCII communication mode.
2.The "Terminal" function is for user to input command, user can control all of module's digital
input/output status or wait to get module response status ...See Figure 2.
Figure
49
