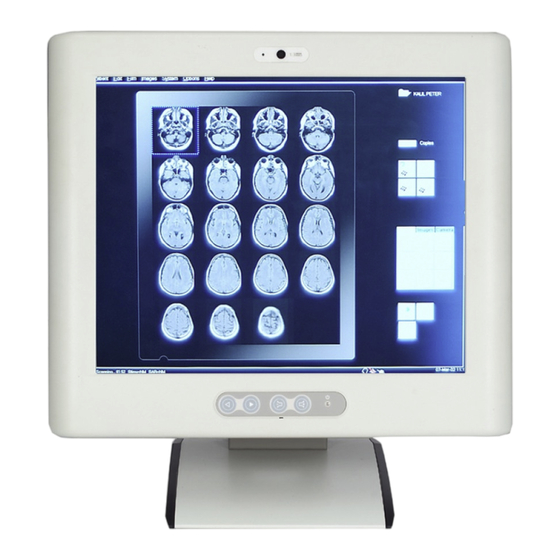

MPC175-873 Series
17" TFT Fanless Medical Grade
®
TM
Panel Computer with Intel
Core
i7/i5/i3 Processor
User's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MPC175-873 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for AXIOMTEK MPC175-873 Series

Summary of Contents for AXIOMTEK MPC175-873 Series

  • Page 1 MPC175-873 Series 17” TFT Fanless Medical Grade ® Panel Computer with Intel Core i7/i5/i3 Processor User’s Manual...

  • Page 2: Disclaimers

    AXIOMTEK does not make any commitment to update the information in this manual. AXIOMTEK reserves the right to change or revise this document and/or product at any time without notice. No part of this document may be reproduced, stored in a retrieval system, or transmitted, in any form or by any means, electronic, mechanical, photocopying, recording, or otherwise, without the prior written permission of AXIOMTEK Co., Ltd.

  • Page 3: Safety Approvals

    Safety Approvals  CE Marking  EN60601-1, UL60601-1  FCC Class B  FCC Compliance This equipment has been tested in compliance with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are meant to provide reasonable protection against harmful interference in a residential installation.

  • Page 4: Safety Precautions

    Turn OFF the system power before cleaning. Clean the system using a cloth only. Do not spray any liquid cleaner directly onto the screen. The MPC175-873 Series may come with or w/o a touchscreen. Although the touchscreen is chemical resistant, it is recommended that you spray the liquid cleaner on a cloth first before wiping the screen.

  • Page 5: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS READ BEFORE OPERATING EQUIPMENT This product was designed and manufactured to meet strict quality and safety standards. There are, however, some installation and operation precautions which you should be particularly aware of. Read these instructions. Keep these instructions. Heed all warnings.

  • Page 6: General Cleaning Tips

    General Cleaning Tips You may need the following precautions before you begin to clean the computer. When you clean any single part or component for the computer, please read and understand the details below fully. When you need to clean the device, please rub it with a piece of dry cloth. Be cautious of the tiny removable components when you use a vacuum cleaner to absorb the dirt on the floor.

  • Page 7: Scrap Computer Recycling

    If the computer equipments need the maintenance or are beyond repair, we strongly recommended that you should inform your Axiomtek distributor as soon as possible for the suitable solution. For the computers that are no longer useful or no longer work well, please contact your Axiomtek distributor for recycling and we will make the proper arrangement.

  • Page 8: Table Of Contents

    Table of Contents Disclaimers ......................ii Safety Approvals ....................iii Safety Precautions ....................iv Classification ......................iv IMPORTANT SAFETY INSTRUCTIONS ..............v General Cleaning Tips ..................vi Scrap Computer Recycling ................. vii CHAPTER 1 INTRODUCTION ............... 1 General Description ................1 Features ....................
  • Page 9 Uninstall this service ............... 52 APPENDIX A WATCHDOG TIMER .............. 55 About Watchdog Timer ................... 55 APPENDIX B INTEL iAMT SETTINGS ............57 Entering MEBx ....................57 Set and Change Password ................58 APPENDIX C INTEL iAMT WEB CONSOLE ..........61 APPENDIX D NOTE ..................
  • Page 10 This page is intentionally left blank.

  • Page 11: Chapter 1 Introduction

    MPC175-873 Series User’s Manual CHAPTER 1 INTRODUCTION This chapter contains general information and detailed specifications of the MPC175-873 Series. Chapter 1 includes the following sections:  General Description  Features  System Specification  Dimensions  I/O Outlets  Package List...

  • Page 12: System Specifications

    MPC175-873 Series Panel PC User’s Manual System Specifications Front Bezel Plastic ABS Display Type 17” SXGA TFT Brightness (Cd/M²) 350 nits LCD Panel Resolution 1280 x 1024 Viewing Angle 80º(Right) 80º(Left) / 60º(UP) 80º(Down) (H/V) ® Fanless socket rPGA988B 2 &...

  • Page 13: Dimensions

    MPC175-873 Series User’s Manual Dimensions The following diagrams show you dimensions and outlines of the MPC175-873 Series. Introduction...

  • Page 14: I/O Outlets

    MPC175-873 Series Panel PC User’s Manual I/O Outlets The following figures show you the locations of the MPC175-873 Series I/O outlets. CONNECTOR Brightness Adjust Buttons Volume Adjust Buttons LED indicator Touch on/off button Introduction...

  • Page 15: Packing List

    Driver/Utility Disc x 1 (For Driver and User’s Manual)  Super Multi DVD Cover x 2 (For Super-multi DVD type)  Wall-Mount Bracket x 1 If you cannot find this package or any items are missing, please contact AXIOMTEK distributors immediately. Introduction...
  • Page 16 MPC175-873 Series Panel PC User’s Manual This page is intentionally left blank. Introduction...

  • Page 17: Chapter 2 Hardware Installation

    MPC175-873 Series User’s Manual CHAPTER 2 HARDWARE INSTALLATION The MPC175-873 Series are convenient for your various hardware configurations, such as CPU (Central Processing Unit) and HDD (Hard Disk Drive). The chapter 2 will show you how to install the hardware. It includes:...
  • Page 18 MPC175-873 Series Panel PC User’s Manual Step 4 Open the back cover and find main board and locate the SO-DIMM socket and CPU cooler. Step 5 Release these screws as marked. Hardware Installation...
  • Page 19 MPC175-873 Series User’s Manual Step 6 Align pins of the CPU with pin holes of the socket. Be careful of the CPU’s orientation that you need to align the arrow mark on the CPU with the arrow key on the socket. Place the CPU into the socket, and use a screwdriver to lock it onto the socket as marked.
  • Page 20 MPC175-873 Series Panel PC User’s Manual Step 8 Push down latches on each side of the SO-DIMM socket. Step 9 Install the memory module into the socket and push it firmly down until it is fully seated. The socket latches are levered upwards and clipped on to the edges of the SO-DIMM.

  • Page 21: Hard Disk Drive Installation

    MPC175-873 Series User’s Manual Hard Disk Drive Installation The MPC175-873 Series offers a convenient drive bay module for users to install HDD. The system offers users one 2.5” Hard Disk Drive for installation. Please follow the steps: Step 1 Turn off the system, and unplug the Power cord.
  • Page 22 MPC175-873 Series Panel PC User’s Manual Step 4 Find the HDD bracket on accessory package and fine HDD socket on main board as marked. Step 5 Use assembly parts to fix HDD with the bracket. HDD Bracket x1 2.5 inch Hard-disk Screw x 4 Fix four screw holes on the bracket, and assembly the HDD with the bracket.
  • Page 23 MPC175-873 Series User’s Manual Step 6 Install the HDD bracket inside the system. Plug the HDD in the SATA connector on main board. Fix two screw holes on main board as marked Step 7 Close the back cover to the chassis, and fasten all screws.

  • Page 24: Serial Ports Interface

    MPC175-873 Series Panel PC User’s Manual Serial Ports Interface The MPC175-873 series has three serial ports, COM1 (RS-232/ 422/ 485) with isolated 4KV. The following table shows you the pin assignments of this connector: Signal Signal Data Carrier Detect (DCD)

  • Page 25: Pcie Mini Card Module Installation

    MPC175-873 Series User’s Manual PCIe Mini Card Module Installation You can follow the steps below to install PCIe mini card modules. Step 1 Turn off the system, and unplug the Power cord. Step 2 Locate and release these screws to open the back cover.
  • Page 26 MPC175-873 Series Panel PC User’s Manual Step 4 There are two slots. One is full-size mini card slot which supports mSATA. The other is half-size mini card slot with a SIM card socket. Step 5 The socket latches are clipped on to the edges of the mini card. Install mini card to the socket.
  • Page 27 MPC175-873 Series User’s Manual Step 7 If installing mSATA, please adjust JP3 jumper. Jumper Default Setting Jumper Setting PCIe device (default setting) Short 1-2 mSATA device Short 2-3 Step 8 If installing wireless or 3G module, f ind the built-in antenna cable and connect it to the connector on wireless or 3G module.

  • Page 28: Add-On Card Installation (Optional)

    MPC175-873 Series Panel PC User’s Manual Add-on card Installation (Optional) You can follow the steps below to install an optional add-on card. Step 1 Turn off the system, and unplug the Power cord. Step 2 Locate and release these screws to open the back cover.
  • Page 29 MPC175-873 Series User’s Manual Step 4 Release the screw as marked. And remove plates. Step 5 Insert the add-on card in the socket firmly until it is completely seated. Step 6 Fasten the screw as marked Hardware Installation...
  • Page 30 MPC175-873 Series Panel PC User’s Manual Step 7 Close the back cover to the chassis, and fasten all screws. Please note that users only can install either expansion card or optical drive. Hardware Installation...

  • Page 31: Mount

    MPC175-873 Series User’s Manual Mount There are several mounting ways for the MPC175-873 Series, Wall mount, VESA and Desktop mountings as below: 2.6.1 Wall mount The mounting for MPC175-873 Series is W all mount as below: Step 1 Prepare all parts for installing the wall mount kit and assemble the wall mount kit by using screws to fix the backplane.

  • Page 32: Desktop Stand (Optional)

    MPC175-873 Series Panel PC User’s Manual 2.6.3 Desktop Stand (Optional) The MPC175-873 Series provides you with an optional Desktop Stand that you can follow the steps below: Step 1 Prepare the parts of desktop stand. Screw A Screw B Screw C...
  • Page 33 MPC175-873 Series User’s Manual Step 3 Assemble the desktop stand by fixing it onto the system. (Use Screw B). Step 4 Assembly the hinge cover and fix the screws as marked on the back side of chassis (Use Screw C).
  • Page 34 MPC175-873 Series Panel PC User’s Manual Step 5 Fix the desktop stand finish. Hardware Installation...

  • Page 35: Chapter 3 Bios Setup Utility

    MPC175-873 Series User’s Manual CHAPTER 3 BIOS SETUP UTILITY This chapter provides users with detailed description how to set up basic system configuration through the AMIBIOS8 BIOS setup utility. Starting To enter the setup screens, follow the steps below: 1. Turn on the computer and press the <Del> key immediately.

  • Page 36: Main Menu

    MPC175-873 Series Panel PC User’s Manual Main Menu When you first enter the setup utility, you will enter the Main setup screen. You can always return to the Main setup screen by selecting the Main tab. System Time/Date can be set up as described below.

  • Page 37: Advanced Menu

    MPC175-873 Series User’s Manual Advanced Menu The Advanced menu allows users to set configuration of the CPU and other system devices. You can select any of the items in the left frame of the screen to go to the sub menus: ...
  • Page 38 MPC175-873 Series Panel PC User’s Manual  ACPI Settings You can use this screen to select options for the ACPI configuration, and change the value of the selected option. A description of the selected item appears on the right side of the screen.
  • Page 39 MPC175-873 Series User’s Manual  S5 RTC Wake Setting Use this option to wake on the system on the setting time. W hen enabled System will wake on the time specified BIOS Setup Utility...
  • Page 40 MPC175-873 Series Panel PC User’s Manual  CPU Configuration This screen shows the CPU Configuration, and you can change the value of the selected option. Hyper-threading Enabled for Windows XP and Linux and disabled for other OS which do not optimized for Hyper-threating technology.
  • Page 41 MPC175-873 Series User’s Manual  SATA Configuration In the SATA Configuration menu, you can see the currently installed hardware in the SATA ports. During system boot up, the BIOS automatically detects the presence of SATA devices. SATA Mode Selection Use this item to choose the SATA operation mode. Here are the options for your selection: IDE Mode and AHCI Mode.
  • Page 42 MPC175-873 Series Panel PC User’s Manual  PCH-FW Configuration You can use this screen to confirm ME Firmware version. BIOS Setup Utility...
  • Page 43 MPC175-873 Series User’s Manual  USB Configuration You can use this screen to select options for the Isolation USB Configuration, and change the value of the selected option. Isolation USB ports can support two kind of speed: Low Speed / Full Speed. Depending on your speed of USB device, user must select relative USB speed.
  • Page 44 MPC175-873 Series Panel PC User’s Manual  NCT6106D Super IO Configuration You can use this screen to select options for the Super IO Configuration, and change the value of the selected option. A description of the selected item appears on the right side of the screen.
  • Page 45 MPC175-873 Series User’s Manual  Serial Port 0 Configuration Serial Port Use this item to enable or disable serial port 0. The optimal setting for base I/O address is 3F8h and for interrupt request line is IRQ4. Transmission Mode Use this item to configure serial port 0. Here are the options for your selection:...
  • Page 46 MPC175-873 Series Panel PC User’s Manual  NCT6106D HW Monitor This screen shows the Hardware Health Configuration. BIOS Setup Utility...

  • Page 47: Chipset Menu

    MPC175-873 Series User’s Manual Chipset Menu The Chipset menu allows users to change the advanced chipset settings. You can select any of the items in the left frame of the screen to go to the sub menus: ► PCH-IO Configuration ►...
  • Page 48 MPC175-873 Series Panel PC User’s Manual  PCH-IO Configuration This screen allows users to set PCH parameters. Lanuch PXE OpROM policy Controls the execution of UEFI and Legacy OpROM BIOS Setup Utility...
  • Page 49 MPC175-873 Series User’s Manual  System Agent (SA) Configuration This screen shows System Agent information and provides function for specifying related parameters. For items marked with “”, please press <Enter> for more options. VT-d ® Enable or disable Intel chipset virtualization technology for directed I/O. VT-d can help end users improve security and reliability of the systems and also improve performance of I/O devices in virtualized environment.
  • Page 50 MPC175-873 Series Panel PC User’s Manual  Graphics Configuration This option allows users to change the integrated graphic device settings. Primary Display Allow you to select which graphics controller to use as the primary boot device. BIOS Setup Utility...
  • Page 51 MPC175-873 Series User’s Manual  LCD Control Select LCD panel used by Internal Graphics Device by selecting the appropriate setup item. BIOS Setup Utility...
  • Page 52 MPC175-873 Series Panel PC User’s Manual  Memory Configuration This screen displays system memory information. BIOS Setup Utility...

  • Page 53: Boot Menu

    MPC175-873 Series User’s Manual Boot Menu The Boot menu allows users to change boot options of the system. Setup Prompt Timeout Number of seconds to wait for setup activation key. 65535(0xFFFF) means indefinite waiting. Boot Option Priorities These are settings for boot priority. Specify the boot device priority sequence from the available devices.

  • Page 54: Security Menu

    MPC175-873 Series Panel PC User’s Manual Security Menu The Security menu allows users to change the security settings for the system . Administrator Password This item indicates whether an administrator password has been set (installed or uninstalled). User Password This item indicates whether an user password has been set (installed or uninstalled).

  • Page 55: Save & Exit Menu

    MPC175-873 Series User’s Manual Save & Exit Menu The Save & Exit menu allows users to load your system configuration with optimal or fail-safe default values. Save Changes and Exit When you have completed the system configuration changes, select this option to leave Setup and return to Main Menu.
  • Page 56 MPC175-873 Series Panel PC User’s Manual Save Changes When you have completed the system configuration changes, select this option to save changes. Select Save Changes from the Save & Exit menu and press <Enter>. Select Yes to save changes. Discard Changes Select this option to quit Setup without making any permanent changes to the system configuration.

  • Page 57: Chapter 4 Driver Installation

    MPC175-873 Series User’s Manual CHAPTER 4 DRIVER INSTALLATION System MPC175-873 supports Windows XP/ Windows 7/8 to facilitate the installation of system driver, please carefully read the instructions in this chapter before start installing. Insert Driver Disc in the disk, and select the \MPC175-873\Driver\..

  • Page 58: Touch Screen

    Panel Resistance: 770 ohm) 4.2.2 Driver Installation The MPC175-873 Series provides a driver of the touch screen that users can install it under operating system Windows XP/7/8. To facilitate this touch screen driver installation, users should read the instructions in this chapter carefully before start the installation.
  • Page 59 MPC175-873 Series User’s Manual Click the “Standard Calibration” button. Calibration: To adjust the display with touch panel, click “Calibration” and follow the calibrate point to do calibration; there are five points on screen for calibration. Press OK. Driver Installation...

  • Page 60: Osd Sync Service Install/Uninstall

    MPC175-873 Series Panel PC User’s Manual OSD sync service install/uninstall This OSD sync service can let front OSD key synchronize brightness and volume adjustment with Windows OS and also show OSD notification bar on the screen. 1. Insert Driver CD and select the D:\MPC175-873\Driver\Step7 - Touch 2.

  • Page 61: Led Indicator Status

    MPC175-873 Series User’s Manual LED indicator status  Power on(S0): Green  Power off(S5): Black  LCD off: Orange  Touch off: Orange flash OSD & notification bar & setup information When pressing front OSD key, OS will show OSD notification status as following.

  • Page 62: Uninstall This Service

    MPC175-873 Series Panel PC User’s Manual Uninstall this service 1. double click OSD Sync from programs and features of control panel 2. Choose “Automatically close applications” and click ok Driver Installation...
  • Page 63 MPC175-873 Series User’s Manual 3. uninstalling 4. restart computer Driver Installation...
  • Page 64 MPC175-873 Series Panel PC User’s Manual This page is intentionally left blank. Driver Installation...

  • Page 65: Appendix Awatchdog Timer

    MPC175-873 Series User’s Manual APPENDIX A WATCHDOG TIMER About Watchdog Timer Software stability is major issue in most application. Some embedded systems are not watched by human for 24 hours. It is usually too slow to wait for someone to reboot when computer hangs.
  • Page 66 MPC175-873 Series Panel PC User’s Manual Digital I/O Software Programming (Following is example to enable configuration by using debug tool) 1.Enable SIO configuration -O 2E 87 -O 2E 87 2. Select Logic device: -O 2E 07 -O 2F 07 3. GPIO2 Enable...

  • Page 67: Appendix B Intel Iamt Settings

    MPC175-873 Series User’s Manual APPENDIX B INTEL iAMT SETTINGS ® ® The Intel Active Management Technology (Intel iAMT) has decreased a major barrier to IT efficiency that uses built-in platform capabilities and popular third-party management and security applications to allow IT a better discovering, healing, and protection their networked computing assets.

  • Page 68: Set And Change Password

    MPC175-873 Series Panel PC User’s Manual Set and Change Password You will be asked to set a password when first log in. The default password is “admin”. You will be asked to change the password before setting ME. Intel iAMT Settings...
  • Page 69 MPC175-873 Series User’s Manual You must confirm your new password while revising. The new password must contain: (example: !!11qqQQ) (default value).  Eight characters  One upper case  One lower case  One number One special symbol, such as ! 、 $ or ; ， (、 " , excepted) ...
  • Page 70 MPC175-873 Series Panel PC User’s Manual This page is intentionally left blank. Intel iAMT Settings...

  • Page 71: Appendix C Intel Iamt Web Console

    MPC175-873 Series User’s Manual APPENDIX C INTEL iAMT WEB CONSOLE ® From a web browser, please type http://(IP ADDRESS):16992, which connects to Intel iAMT Web. Example: http://10.1.40.214:16992 To log on, you will be required to type in username and password for access to the Web.
  • Page 72 MPC175-873 Series Panel PC User’s Manual Enter the iAMT Web. Click Remote Control, and select commands on the right side. When you have finished using the iAMT Web console, close the Web browser. Intel iAMT Web Console...

  • Page 73: Appendix Dnote

    MPC175-873 Series User’s Manual APPENDIX D NOTE This product conforms to the provisions of the EC directive 93/42/EEC (Medical Device Directive). And also complies with following standards (included but not limited): Safety standard: - ANSI/AAMI ES60601-1 (2005)+ A1 (2012)(Medical Electrical Equipment - Part 1: General Requirements for Basic Safety and Essential Performance) - CAN/CSA-C22.2 No.
  • Page 74 MPC175-873 Series Panel PC User’s Manual This page is intentionally left blank. Note...

  • Page 75: Appendix Eemc Statement

    MPC175-873 Series User’s Manual APPENDIX E EMC STATEMENT WARNING:  MEDICAL ELECTRICAL EQUIPMENT needs special precautions regarding EMC and needs to be installed and put into service according to the EMC information provided in this manual.  Portable and mobile RF communications equipment can affect MEDICAL ELECTRICAL EQUIPMENT.
  • Page 76 MPC175-873 Series Panel PC User’s Manual Guidance and manufacturer’s declaration – electromagnetic immunity The device is intended for use in the electromagnetic environments listed below, and should only be used in such environments: Immunity IEC 60601 Test Compliance Electromagnetic Environment –...
  • Page 77 MPC175-873 Series User’s Manual Guidance and manufacturer’s declaration – electromagnetic immunity The device is intended for use in the electromagnetic environments listed below, and should only be used in such environments: Immunity IEC 60601-1-2 Compliance Electromagnetic Environment – Test Level...
  • Page 78 MPC175-873 Series Panel PC User’s Manual Recommended separation distances between portable and mobile RF communication equipment and the device. The device is intended for use in an electromagnetic environment where radiated RF disturbances are under control. User can help prevent electromagnetic interference by keeping the device at a minimum distance from portable and mobile RF communications equipment (transmitters).

  • Page 79: Appendix Ftpm Statement

    MPC175-873 Series User’s Manual APPENDIX F TPM STATEMENT Trusted Platform Module (TPM) is an international standard for a secure cryptoprocessor, which is a dedicated microcontroller designed to secure hardware by integrating cryptographic keys into devices. TPM's technical specification was written by a computer industry consortium called Trusted Computing Group (TCG).
  • Page 80 MPC175-873 Series Panel PC User’s Manual TPM Setting Steps Step 1: Log in BIOS system and set “Enable” under “Security Device Support”. Save and restart. TPM Statement...
  • Page 81 MPC175-873 Series User’s Manual Step 2: Log in BIOS system again and set “Enable” under TPM Status. Save and restart. Step 3: Install driver into OS. TPM Statement...
  • Page 82 MPC175-873 Series Panel PC User’s Manual Step 4: After install driver and restart system, then update driver under device manager. Step 5: After updated, see this device under “system devices”. TPM Statement...
  • Page 83 MPC175-873 Series User’s Manual Step 6: Open TPM utility and set TPM password. Step 7: Choose “advanced initialization”. TPM Statement...
  • Page 84 MPC175-873 Series Panel PC User’s Manual Step 8: Set the first Password (used to be 111111) Step 9: Create a new file on desktop and save “SPSsystemBackup.xml”. TPM Statement...
  • Page 85 MPC175-873 Series User’s Manual Step 10: Click browse to create a file on desktop is named “SPEmRecToken”, then click save. Set the second Password (used to be 222222). Step 11: Click browse to create a file on desktop is named “SPPwdResetToken”, then click save. Set...
  • Page 86 MPC175-873 Series Panel PC User’s Manual Step 12: Restart TPM software by double click from bottom right after step 11. Set the fourth Basic User Password (used to be 444444) Step 13: Save the “SPPwdResetSecret” in “SPPwdResetSecret” file which is located on desktop.
  • Page 87 MPC175-873 Series User’s Manual Step 14: All setting steps are completed. User could use right click Encrypt to choose files to add password. Step 15: When user open the execute file will be asked input password. Basic User Password (used to be 444444)
  • Page 88 MPC175-873 Series Panel PC User’s Manual Step 16: Using right click on the file to choose Decrypt could cancel password. Step 17: Restart system to BIOS main menu and choose TPM Clear. TPM Statement...
  • Page 89 MPC175-873 Series User’s Manual Step 18: Go to BIOS main menu again and choose “TPM State Enabled” after step 17. Step 19: Enter TPM OS to choose Restoration TPM Statement...
  • Page 90 MPC175-873 Series Panel PC User’s Manual Step 20: Please click browse to choose file “SPSsystemBackup.xml” by step 9 Step 21: Enter the first password: 111111 by step 8. TPM Statement...
  • Page 91 MPC175-873 Series User’s Manual Step 22: Please click browse to choose file “SPEmRecToken.xml” by step 10 Enter the second password: 222222 . Step 23: Enter the fourth password:444444 could recover TPM situation. TPM Statement...
