AXIOMTEK MPC225-873 Series User Manual

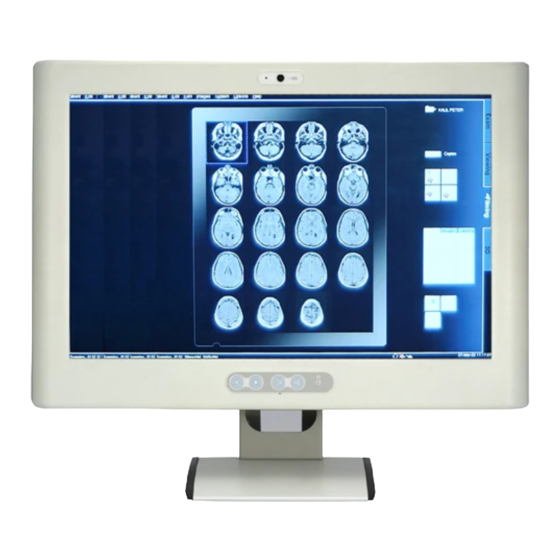

22” tft fanless medical grade panel computer with intel core i7/i5/i3 processors
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
MPC225-873 Series
22" TFT Fanless Medical Grade
®
TM
Panel Computer with Intel
Core
i7/i5/i3 Processors
User's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MPC225-873 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for AXIOMTEK MPC225-873 Series

Summary of Contents for AXIOMTEK MPC225-873 Series

  • Page 1 MPC225-873 Series 22” TFT Fanless Medical Grade ® Panel Computer with Intel Core i7/i5/i3 Processors User’s Manual...

  • Page 2: Disclaimers

    Axiomtek does not make any commitment to update the information in this manual. Axiomtek reserves the right to change or revise this document and/or product at any time without notice. No part of this document may be reproduced, stored in a retrieval system, or transmitted, in any form or by any means, electronic, mechanical, photocopying, recording, or otherwise, without the prior written permission of Axiomtek Co., Ltd.

  • Page 3: Safety Approvals

    Safety Approvals  CE Marking  EN60601-1, UL60601-1  FCC Class B  FCC Compliance This equipment has been tested in compliance with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are meant to provide reasonable protection against harmful interference in a residential installation.

  • Page 4: Safety Precautions

    Turn OFF the system power before cleaning. Clean the system using a cloth only. Do not spray any liquid cleaner directly onto the screen. The MPC225-873 Series may come with or w/o a touchscreen. Although the touchscreen is chemical resistant, it is recommended that you spray the liquid cleaner on a cloth first before wiping the screen.

  • Page 5: Important Safety Instructions

    Important Safety Instructions Read before operating equipment. This product was designed and manufactured to meet strict quality and safety standards. There are, however, some installation and operation precautions which you should be particularly aware of. Read these instructions. Keep these instructions. Heed all warnings.

  • Page 6: Classification

    Classification Degree of production against electric shock: Not classified. Degree of protection against the ingress of water: IPX1. Equipment not suitable for use in the presence of a flammable anesthetic mixture with air or with oxygen or nitrous oxide. Mode of operation: Continuous. Type of protection against electric shock: Class I equipment.

  • Page 7: Cleaning Tools

    Cleaning Tools Although many companies have created products to help improve the process of cleaning your computer and peripherals, users can also use household items to clean their computers and peripherals. Below is a listing of items you may need or want to use while cleaning your computer or computer peripherals.

  • Page 8: Scrap Computer Recycling

    If the computer equipments need the maintenance or are beyond repair, we strongly recommend that you should inform your Axiomtek distributor as soon as possible for the suitable solution. For the computers that are no longer useful or no longer working well, please contact your Axiomtek distributor for recycling and we will make the proper arrangement.

  • Page 9: Table Of Contents

    Table of Contents Disclaimers ..................... ii Safety Approvals ................... iii Safety Precautions ..................iv Important Safety Instructions ............... v Classification ....................vi General Cleaning Tips .................. vi Cleaning Tools ..................... vii Scrap Computer Recycling ................ viii Chapter 1 Introduction ..........1 Features ....................
  • Page 10 Security Menu ..................47 Save & Exit Menu ................48 Chapter 4 Drivers Installation ........ 51 System Drivers .................. 51 Touch Screen ..................52 4.2.1 Specifications .................... 52 4.2.2 Installing Touch Screen ................52 OSD Sync Service ................55 4.3.1 Installing OSD Sync ..................

  • Page 11: Chapter 1 Introduction

    MPC225-873 Series User’s Manual Chapter 1 Introduction The MPC225-873 is an ultra slim panel computer equipped with 22-inch 250nits brightness ® WSXGA+ LCD display and supports superior 2 and 3 Generation Intel Core i7/ i5/ i3/ ® ® Pentium / Celeron processors up to 35W and up to 16G of dual-channel DDR3 system ®...

  • Page 12: Specifications

    MPC225-873 Series User’s Manual Specifications  Front Bezel  Plastic ABS.  LCD Panel Display Type: 22” WSXGA TFT.   Brightness (Cd/M ): 250nits.  Resolution: 1680x1050.  Viewing Angle(H/V): 178º/178º.  Main System  CPU: ® ® Fanless socket rPGA988B 2...
  • Page 13 MPC225-873 Series User’s Manual  Power Supply  100~240V AC-DC medical adapter.  Dimensions  573.5mm(22.57")(W) x 75.9mm(2.98")(D) x 398.9mm(15.7")(H).  Weight  9.4kg (20.72lb).  Environmental Limits  Operating Temperature: 0°C~40°C (32°F~104°F).  Storage Temperature: -20°C~60°C (-4°F~140°F).  Relative Humidity: 10%~95%, non-condensing.

  • Page 14: Dimensions

    MPC225-873 Series User’s Manual Dimensions The following diagram shows dimensions and outlines of the MPC225-873 Series. Introduction...
  • Page 15 MPC225-873 Series User’s Manual Introduction...

  • Page 16: I/O Outlets

    MPC225-873 Series User’s Manual I/O Outlets The following figures show locations of the MPC225-873 Series I/O outlets Introduction...
  • Page 17 MPC225-873 Series User’s Manual Description Brightness Adjustment Buttons Volume Adjustment Buttons Power LED Indicator Enable/disable Touch Screen Button Speaker (R) COM2 (RS-232) Connector Isolated COM1 (RS-232/422/485) Connector Two Isolated Giga LAN Ports Two Isolated USB 2.0 Ports Two USB 3.0 Ports...

  • Page 18: Package Checklist

    Driver/utility disc x1 containing driver and user’s manual  Super Multi DVD cover x2 (for Super Multi DVD version)  Wall-mount bracket x1 If you can not find this package or any items are missing, please contact Axiomtek distributors immediately. Note Introduction...

  • Page 19: Chapter 2 Hardware Installation

    MPC225-873 Series User’s Manual Chapter 2 Hardware Installation The MPC225-873 Series is convenient and easy to maintain for your various hardware configurations, such as CPU (Central Processing Unit) and HDD (Hard Disk Drive). This chapter will show you how to install the hardware.
  • Page 20 MPC225-873 Series User’s Manual Step 4. Open the back cover and you can see the mainboard. Then locate the SO-DIMM socket and CPU cooler. Step 5-1. Release these screws as marked. Hardware Installation...
  • Page 21 MPC225-873 Series User’s Manual Step 5-2. Align pins of the CPU with pin holes of the socket. Be careful of the CPU’s orientation, you must align the arrow mark on the CPU with the arrow key on the socket. Place the CPU into the socket, and use a screwdriver to lock it onto the socket as marked.
  • Page 22 MPC225-873 Series User’s Manual Step 6-1. Push down latches on both sides of the SO-DIMM socket. Step 6-2. Install the memory module into the socket and push it firmly down until it is fully seated. The socket latches are levered upwards and clipped onto the edges of the SO-DIMM.

  • Page 23: Installing Hard Disk Drive

    MPC225-873 Series User’s Manual Installing Hard Disk Drive The MPC225-873 Series offers a convenient drive bay module for users to install HDD. The system offers users one 2.5” Hard Disk Drive (HDD) for installation. Please follow these steps: Step 1.
  • Page 24 MPC225-873 Series User’s Manual Step 4. You can find the HDD bracket in accessory package. Locate the HDD socket on mainboard as marked. Hardware Installation...
  • Page 25 MPC225-873 Series User’s Manual Step 5. Fix HDD to the bracket with assembly parts. HDD bracket x1 2.5” HDD Screw x4 Place HDD into the mounting bracket and fasten it by driving screws into the four screw holes on both sides of the bracket.
  • Page 26 MPC225-873 Series User’s Manual Step 6. Place HDD bracket into the system. Plug HDD into SATA connector on the mainboard. Then fasten bracket with screws to mainboard as marked. Step 7. Close back cover to the chassis, and fasten securely with all screws.

  • Page 27: Serial Port Interfaces

    MPC225-873 Series User’s Manual Serial Port Interfaces The MPC225-873 Series has three serial ports; COM1 (RS-232/422/485) with isolated 4KV, COM2 (RS-232), and COM3 (RS-232). You can change the communication mode (RS-232/422/485) via BIOS setting, see section 3.4. Each serial port interface is available through standard DB-9 connector.
  • Page 28 MPC225-873 Series User’s Manual Step 3. Please open the back cover by lifting the joint part as marked. Step 4. On the mainboard, there are two sockets. One is for full-size Mini Card which supports mSATA. The other is for half-size Mini Card with a SIM card slot.
  • Page 29 MPC225-873 Series User’s Manual Step 5. Insert Mini Card into the socket and push it firmly down until it is fully seated as marked. ○ ○ Step 6. Use screws to fasten the Mini Card. If you intend to install mSATA, remember to change JP3 setting to pin 2-3 close (see table below).
  • Page 30 MPC225-873 Series User’s Manual Step 7. If wireless or 3G module is installed, you need to find the built-in antenna cable and make sure to connect it to the connector on wireless or 3G module. Step 8. Close back cover to the chassis, and fasten securely with all screws.

  • Page 31: Installing Add-On Card (Optional)

    MPC225-873 Series User’s Manual Installing Add-on Card (Optional) To install an optional add-on card, please follow the steps below. Step 1. Turn off the system, and unplug the power cord. Step 2. Locate and release these screws to open the back cover.
  • Page 32 MPC225-873 Series User’s Manual Step 4. Release the screw as marked. And remove plates. Step 5. Insert the add-on card into the socket firmly until it is completely seated. Hardware Installation...
  • Page 33 MPC225-873 Series User’s Manual Step 6. Fasten with screw as marked. Step 7. Close back cover to the chassis, and fasten securely with all screws. Hardware Installation...

  • Page 34: Mounting

    MPC225-873 Series User’s Manual Mounting There are several mounting ways for the MPC225-873 Series; Wall mount, VESA-Arm and Desktop Stand mountings. 2.6.1 Wall Mounting For Wall mounting installation, please follow the steps below. Step 1. Prepare all assembly parts for the Wall mounting.

  • Page 35: Vesa-Arm Mounting

    Use screws to assemble VESA-Arm to the back side of chassis, as shown below. 2.6.3 Desktop Stand Mounting (Optional) The MPC225-873 Series provides you with an optional Desktop Stand mounting. Please follow the steps below. Step 1. Prepare all assembly parts for the Desktop Stand mounting.
  • Page 36 MPC225-873 Series User’s Manual Step 2. Assemble the Desktop Stand by using Screw A as marked on figure below. Step 3. Attach the Desktop Stand to the back side of chassis by using Screw B. Hardware Installation...
  • Page 37 MPC225-873 Series User’s Manual Step 4 . Then fix the hinge cover with Screw C as marked on figure below. Step 5 . Now the Desktop Stand mounting is finished. Rear View Front View Hardware Installation...
  • Page 38 MPC225-873 Series User’s Manual This page is intentionally left blank. Hardware Installation...

  • Page 39: Ami Bios Setup Utility

    MPC225-873 Series User’s Manual Chapter 3 AMI BIOS Setup Utility The AMI UEFI BIOS provides users with a built-in setup program to modify basic system configuration. All configured parameters are stored in a flash chip to save the setup information whenever the power is turned off.

  • Page 40: Main Menu

    MPC225-873 Series User’s Manual Hot Keys Description  Left/Right The Left and Right <Arrow> keys allow you to select a setup screen. The Up and Down <Arrow> keys allow you to select a setup screen or  Up/Down sub-screen. The Plus and Minus <Arrow> keys allow you to change the field value of a +...

  • Page 41: Advanced Menu

    MPC225-873 Series User’s Manual  BIOS Information Display the auto-detected BIOS information.  System Date/Time Use this option to change the system time and date. Highlight System Time or System Date using the <Arrow> keys. Enter new values through the keyboard. Press the <Tab>...
  • Page 42 MPC225-873 Series User’s Manual  ACPI Settings You can use this screen to select options for the ACPI configuration, and change the value of the selected option. A description of the selected item appears on the right side of the screen.
  • Page 43 MPC225-873 Series User’s Manual  S5 RTC Wake Setting Wake system with Fixed Time Enable or disable the system wake on alarm event. If enabled, system will wake on the time specified  Trusted Computing This screen provides function for specifying the TPM settings.
  • Page 44 MPC225-873 Series User’s Manual  CPU Configuration This screen shows the CPU configuration, and you can change the value of the selected option. Hyper-Threading Enable or disable Hyper-Threading Technology, which makes a single physical processor perform multi-tasking function as two logical ones.
  • Page 45 MPC225-873 Series User’s Manual  SATA Configuration In the SATA Configuration menu, you can see the currently installed hardware in the SATA ports. During system boot up, the BIOS automatically detects the presence of SATA devices. SATA Mode Selection Determine how SATA controller(s) operate. Operation mode options are IDE Mode and AHCI (Advanced Host Controller Interface) Mode.
  • Page 46 MPC225-873 Series User’s Manual  PCH-FW Configuration You can use this screen to confirm ME Firmware information.  AMT Configuration Use this screen to configure AMT parameters. Intel AMT ® Enable or disable Intel Active Management Technology BIOS Extension. AMI BIOS Setup Utility...
  • Page 47 MPC225-873 Series User’s Manual  USB Configuration This screen shows the USB configuration, and you can change the value of the selected option. USB Devices Display all detected USB devices. Isolated USB Speed The isolated USB port supports only low and full speed. Depending on the speed of your USB device, you must select the correct USB speed.
  • Page 48 MPC225-873 Series User’s Manual  NCT6106D Super IO Configuration You can use this screen to select options for the Super IO Configuration, and change the value of the selected option. A description of the selected item appears on the right side of the screen.
  • Page 49 MPC225-873 Series User’s Manual  Serial Port 1 Configuration Device Settings The optimal setting for base I/O address is 3F8h and for interrupt request address is IRQ4. Transmission Mode This item allow user to set RS-232/RS-422/RS-485 transmission mode for serial port 1.
  • Page 50 MPC225-873 Series User’s Manual  NCT6106D HW Monitor This screen monitors hardware health status. This screen displays the temperature of system and CPU, system voltages (+3.3V, +12V and +5V). AMI BIOS Setup Utility...

  • Page 51: Chipset Menu

    MPC225-873 Series User’s Manual Chipset Menu The Chipset menu allows users to change the advanced chipset settings. You can select any of the items in the left frame of the screen to go to the sub menus: ► PCH-IO Configuration ►...
  • Page 52 MPC225-873 Series User’s Manual  PCH-IO Configuration This screen allows user to set PCH parameters. Launch PXE OpROM policy Control the execution of UEFI and Legacy PXE OpROM. AMI BIOS Setup Utility...
  • Page 53 MPC225-873 Series User’s Manual  System Agent (SA) Configuration This screen shows System Agent version information and provides function for specifying related parameters. VT-d ® Enable or disable Intel chipset virtualization technology for directed I/O. VT-d can help end users improve security and reliability of the systems and also improve performance of I/O devices in virtualized environment.
  • Page 54 MPC225-873 Series User’s Manual  Graphics Configuration Primary Display Select the video device which will be activated during POST (Power-On Self Test).  LCD Control Model Select the LCD panel used by Internal Graphics Device. AMI BIOS Setup Utility...
  • Page 55 MPC225-873 Series User’s Manual  Memory Information This screen shows system memory information. AMI BIOS Setup Utility...

  • Page 56: Boot Menu

    MPC225-873 Series User’s Manual Boot Menu The Boot menu allows users to change boot options of the system.  Setup Prompt Timeout Number of seconds to wait for setup activation key. 65535(0xFFFF) means indefinite waiting.  Boot Option Priorities These are settings for boot priority. Specify the boot device priority sequence from the available devices.

  • Page 57: Security Menu

    MPC225-873 Series User’s Manual Security Menu The Security menu allows users to change the security settings for the system.  Administrator Password This item indicates whether an administrator password has been set (installed or uninstalled).  User Password This item indicates whether an user password has been set (installed or uninstalled).

  • Page 58: Save & Exit Menu

    MPC225-873 Series User’s Manual Save & Exit Menu The Save & Exit menu allows users to load your system configuration with optimal or fail-safe default values.  Save Changes and Exit When you have completed the system configuration changes, select this option to leave Setup and return to Main Menu.
  • Page 59 MPC225-873 Series User’s Manual  Discard Changes Select this option to quit Setup without making any permanent changes to the system configuration. Select Discard Changes from the Save & Exit menu and press <Enter>. Select Yes to discard changes. ...
  • Page 60 MPC225-873 Series User’s Manual This page is intentionally left blank. AMI BIOS Setup Utility...

  • Page 61: Chapter 4 Drivers Installation

    MPC225-873 Series User’s Manual Chapter 4 Drivers Installation The device drivers are located in driver CD that comes with the MPC225-873 Series package. ® The setup program will guide you to install utilities and device drivers under Windows ® ®...

  • Page 62: Touch Screen

    (VCC=5V, top sheet panel resistance: 274Ω, bottom sheet panel resistance: 770Ω) 4.2.2 Installing Touch Screen ® ® The MPC225-873 Series offers touch screen driver supporting Windows 8, Windows ® and Windows XP. User should read the instructions in this section carefully before starting the installation.
  • Page 63 MPC225-873 Series User’s Manual Click Start menu and select “PenMount Control Panel”, and then double click the “PenMount 6000 USB”. Click the “Standard Calibration” button, and you should see the following figure. Drivers Installation...
  • Page 64 MPC225-873 Series User’s Manual Before using touch screen, you are suggested to calibrate it in order to align touch screen’s coordinates with those of the LCD display behind it. Without proper calibration, application software cannot act accurately when a button or icon on display is pressed down.

  • Page 65: Osd Sync Service

    MPC225-873 Series User’s Manual OSD Sync Service This service synchronizes front panel OSD function keys with brightness and volume ® adjustment in Windows operating system. It is also capable of showing OSD notification bar on the display screen. 4.3.1 Installing OSD Sync Below you can find step by step instructions for installing OSD Sync.

  • Page 66: Osd Function Keys

    MPC225-873 Series User’s Manual 4.3.2 OSD Function Keys Function Key Description Key 1 Brightness-. Decrease the brightness of LCD screen. Key 2 Brightness+. Increase the brightness of LCD screen. Key 3 Volume-. Decrease the volume. Key 4 Volume+. Increase the volume.

  • Page 67: Osd Notification Bar

    MPC225-873 Series User’s Manual 4.3.3 OSD Notification Bar Press front panel OSD function key, and the operating system will show OSD notification status as follows: You can find OSD Sync service as shown in figure below. Drivers Installation...

  • Page 68: Uninstalling Osd Sync

    MPC225-873 Series User’s Manual 4.3.4 Uninstalling OSD Sync Step by step instructions for uninstalling OSD Sync are given below. Go to Control Panel\Programs and Features. Drivers Installation...
  • Page 69 MPC225-873 Series User’s Manual Select and double click the OSD Sync. When the following screen appears, click “Yes” to next step. You are suggested to select “Automatically close applications and attempt to restart them after setup is complete”. Then click “OK”.
  • Page 70 MPC225-873 Series User’s Manual Please wait while operating system processes the following operations. Click “Yes” to complete the uninstall process and reboot. Drivers Installation...

  • Page 71: Appendix A Watchdog Timer

    MPC225-873 Series User’s Manual Appendix A Watchdog Timer A.1 About Watchdog Timer Software stability is major issue in most application. Some embedded systems are not watched by human for 24 hours. It is usually too slow to wait for someone to reboot when computer hangs.
  • Page 72 MPC225-873 Series User’s Manual This page is intentionally left blank. Watchdog Timer...

  • Page 73: Appendix B Digital I/O

    MPC225-873 Series User’s Manual Appendix B Digital I/O B.1 Digital I/O Software Programming The following example enables configuration using debug tool. Start digital I/O programming  Enable configuration: -O 2E 87 ; Un-lock super I/O -O 2E 87  Select logic device:...
  • Page 74 MPC225-873 Series User’s Manual This page is intentionally left blank. Digital I/O...

  • Page 75: Appendix C Iamt Settings

    MPC225-873 Series User’s Manual Appendix C iAMT Settings ® ® The Intel Active Management Technology (Intel iAMT) has decreased a major barrier to IT efficiency that uses built-in platform capabilities and popular third-party management and security applications to allow IT a better discovering, healing, and protection their networked computing assets.

  • Page 76: Set And Change Password

    MPC225-873 Series User’s Manual Set and Change Password You will be asked to set a password when first log in. The default password is “admin”. iAMT Settings...
  • Page 77 MPC225-873 Series User’s Manual You will be asked to change the password before setting ME. You must confirm your new password while revising. The new password must contain: (example: !!11qqQQ) (default value).  Eight characters  One upper case ...

  • Page 78: Intel ® Iamt Web Console

    MPC225-873 Series User’s Manual ® Intel iAMT Web Console ® From a web browser, please type http://(IP ADDRESS):16992, which connects to Intel iAMT Web. Example: http://10.1.40.214:16992 To log on, you will be required to type in username and password for access to the Web.
  • Page 79 MPC225-873 Series User’s Manual Enter the iAMT Web. Click Remote Control, and select commands on the right side. When you have finished using the iAMT Web console, close the Web browser. iAMT Settings...
  • Page 80 MPC225-873 Series User’s Manual This page is intentionally left blank. iAMT Settings...

  • Page 81: Appendix D Note

    MPC225-873 Series User’s Manual Appendix D Note This product conforms to the provisions of the EC directive 93/42/EEC (Medical Device Directive). And also complies with following standards (included but not limited): Safety standard: - ANSI/AAMI ES60601-1 (2005)+ A1 (2012)(Medical Electrical Equipment - Part 1: General Requirements for Basic Safety and Essential Performance).
  • Page 82 MPC225-873 Series User’s Manual This page is intentionally left blank. Note...

  • Page 83: Appendix E Emc Statement

    MPC225-873 Series User’s Manual Appendix E EMC Statement WARNING:  MEDICAL ELECTRICAL EQUIPMENT needs special precautions regarding EMC and needs to be installed and put into service according to the EMC information provided in this manual.  Portable and mobile RF communications equipment can affect MEDICAL ELECTRICAL EQUIPMENT.
  • Page 84 MPC225-873 Series User’s Manual Guidance and manufacturer’s declaration – electromagnetic immunity The device is intended for use in the electromagnetic environments listed below, and should only be used in such environments: Electromagnetic Environment – Immunity IEC 60601 Test Compliance Level...
  • Page 85 MPC225-873 Series User’s Manual Guidance and manufacturer’s declaration – electromagnetic immunity The device is intended for use in the electromagnetic environments listed below, and should only be used in such environments: Immunity IEC 60601-1-2 Compliance Electromagnetic Environment – Guidance Test Level...
  • Page 86 MPC225-873 Series User’s Manual Recommended separation distances between portable and mobile RF communication equipment and the device. The device is intended for use in an electromagnetic environment where radiated RF disturbances are under control. User can help prevent electromagnetic interference by keeping the device at a minimum distance from portable and mobile RF communications equipment (transmitters).

  • Page 87: Appendix Ftpm Statement

    MPC225-873 Series User’s Manual Appendix F TPM Statement Trusted Platform Module (TPM) is an international standard for a secure cryptoprocessor, which is a dedicated microcontroller designed to secure hardware by integrating cryptographic keys into devices. TPM's technical specification was written by a computer industry consortium called Trusted Computing Group (TCG).
  • Page 88 MPC225-873 Series User’s Manual TPM Setting Steps Step 1: Log in BIOS system and set “Enable” under “Security Device Support”. Save and restart. TPM Statement...
  • Page 89 MPC225-873 Series User’s Manual Step 2: Log in BIOS system again and set “Enable” under TPM Status. Save and restart. Step 3: Install driver into OS. TPM Statement...
  • Page 90 MPC225-873 Series User’s Manual Step 4: After install driver and restart system, then update driver under device manager. Step 5: After updated, see this device under “system devices”. TPM Statement...
  • Page 91 MPC225-873 Series User’s Manual Step 6: Open TPM utility and set TPM password. Step 7: Choose “advanced initialization”. TPM Statement...
  • Page 92 MPC225-873 Series User’s Manual Step 8: Set the first Password (used to be 111111) Step 9: Create a new file on desktop and save “SPSsystemBackup.xml”. TPM Statement...
  • Page 93 MPC225-873 Series User’s Manual Step 10: Click browse to create a file on desktop is named “SPEmRecToken”, then click save. Set the second Password (used to be 222222). Step 11: Click browse to create a file on desktop is named “SPPwdResetToken”, then click save. Set...
  • Page 94 MPC225-873 Series User’s Manual Step 12: Restart TPM software by double click from bottom right after step 11. Set the fourth Basic User Password (used to be 444444) Step 13: Save the “SPPwdResetSecret” in “SPPwdResetSecret” file which is located on desktop.
  • Page 95 MPC225-873 Series User’s Manual Step 14: All setting steps are completed. User could use right click Encrypt to choose files to add password. Step 15: When user open the execute file will be asked input password. Basic User Password (used to be 444444)
  • Page 96 MPC225-873 Series User’s Manual Step 16: Using right click on the file to choose Decrypt could cancel password. Step 17: Restart system to BIOS main menu and choose TPM Clear. TPM Statement...
  • Page 97 MPC225-873 Series User’s Manual Step 18: Go to BIOS main menu again and choose “TPM State Enabled” after step 17. Step 19: Enter TPM OS to choose Restoration TPM Statement...
  • Page 98 MPC225-873 Series User’s Manual Step 20: Please click browse to choose file “SPSsystemBackup.xml” by step 9 Step 21: Enter the first password: 111111 by step 8. TPM Statement...
  • Page 99 MPC225-873 Series User’s Manual Step 22: Please click browse to choose file “SPEmRecToken.xml” by step 10 Enter the second password: 222222 . Step 23: Enter the fourth password:444444 could recover TPM situation. TPM Statement...
