IMPORTANT SAFETY INFORMATION
PLEASE READ AND FOLLOW THESE IMPORTANT
INSTRUCTIONS FOR THE SAFETY OF YOUR HOME AND
OF THE PEOPLE LIVING IN IT.
Save this Manual for local electrical inspector's use.
Read and save these instructions for future reference.
Observe all governing codes, ordinances and regulations.
WARNING!
If the information in this manual is not followed
exactly, a fire or explosion may result causing
property damage, personal injury or death.
‐ Do not store or use gasoline or other flammable
substances in the vicinity of this or any other appliance.
‐ WHAT TO DO IF YOU SMELL GAS
Do not light any appliance.
Do not touch any electrical switch.
Do not use any phone in your building.
Immediately call your gas supplier from a neighbor's
phone. Follow the gas supplier's instructions.
If you cannot reach your gas suppliers, call the fire
department.
‐ Installation and service must be performed by a
qualified installer, service agency or the gas supplier
In Massachusetts: All gas products must be installed by a
"Massachusetts" licensed plumber or gasfitter. A "T"
handle type manual gas valve must be installed in the gas
line connected to this appliance.

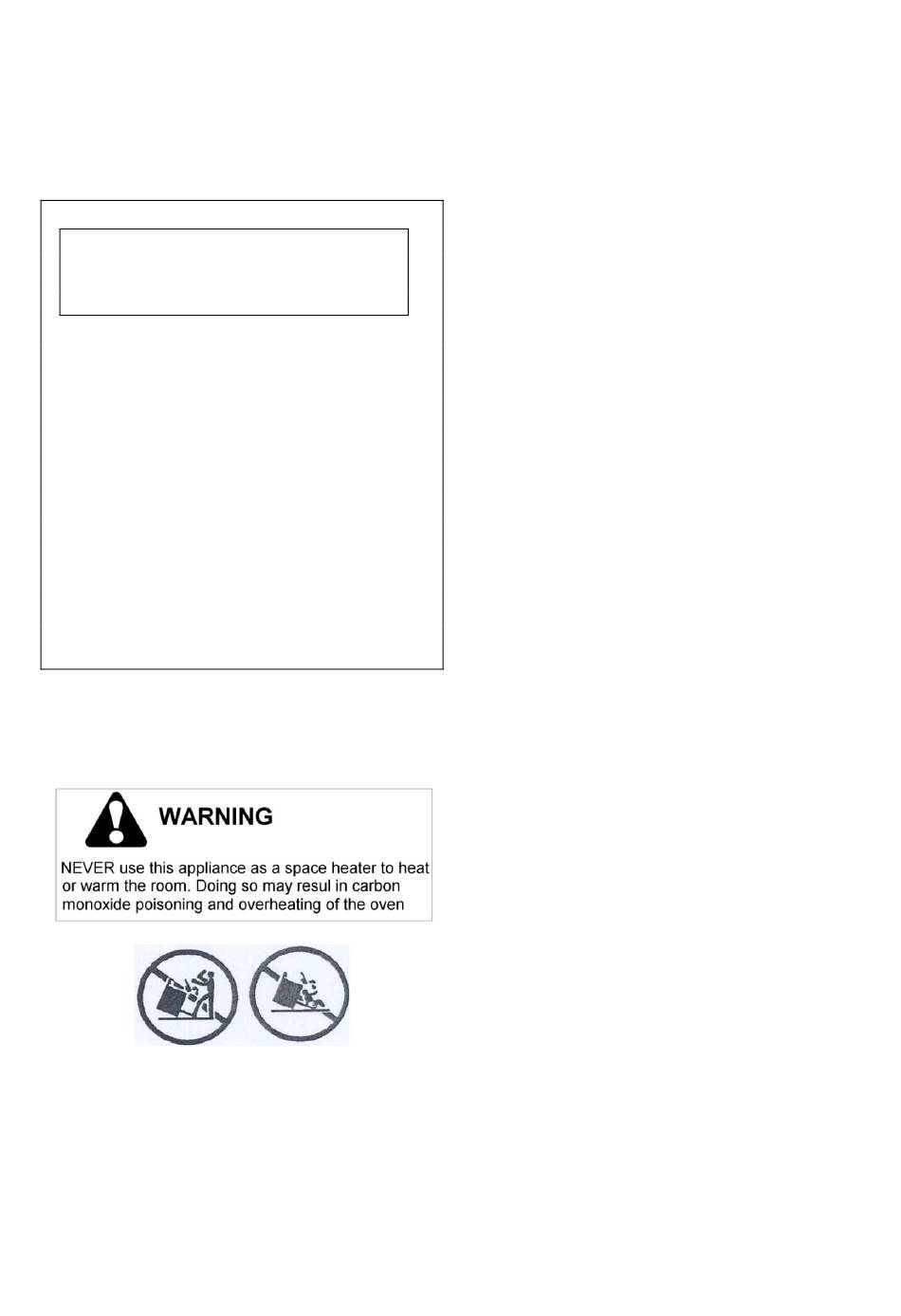

Warning
This range can tip. Injury to persons could result.
Install anti-tip device shipped with range. See
Installation Instructions.
!
Read this instruction booklet before installing and using
the appliance.
The manufacturer will not be responsible for any
damage to property or to persons caused by incorrect
installation or improper use of the appliance.
The manufacturer reserves the right to make changes to
its products when considered necessary and useful,
without affecting the essential safety and operating
characteristics.
This appliance has been designed for non‐professional,
domestic use only.
Do not use this appliance to heat a room.
Do not place any pot or pan on the open oven door. The
door is made of glass and it can break if loaded with a
weight.
Before beginning installation, please read these
instructions completely and carefully.
Do not remove permanently affixed labels, warnings, or
plates from the product. This may void the warranty. ‐
Please observe all local and national codes and
ordinances.
Please ensure the range is properly grounded.
The installer should leave these instructions with the
consumer who should retain for local inspector's use and
for future reference.
The plug should always be accessible.
Installation must conform with local codes or in the
absence of codes, the National Fuel Gas Code ANSI
Z223.1 / NFPA 54. Electrical installation must be in
accordance with the National Electrical Code,
ANSI/NFPA70 ‐ latest edition and/or local codes. IN
CANADA: Installation must be in accordance with the
current CAN/CGA‐B149.1 National Gas Installation Code
or CAN/CGA‐B 149.2, Propane Installation Code and/or
local codes. Electrical installation must be in accordance
with the current CSA C22.1 Canadian Electrical Codes
Part 1 and/or local codes.
Installation of any gas‐fired equipment should be made
by a licensed plumber. A manual gas shut‐off valve must
be installed in the gas supply line ahead of the oven in
the gas flow for safety and ease of service.
This appliance shall not be installed with a ventilation
system that blow air downward toward the
range/rangetop/cooktop; this type of ventilation system
may cause ignition and combustion problem with the gas
appliance resulting in a personal injury or unintended
operation
An
air
curtain
range/rangetop/cooktop hood, which operates by
blowing
a
downward
range/rangetop/cooktop, shall not be used/installed in
conjunction with this gas range/rangetop/cooktop,
1
WARNING!
WARNING
WARNING
or
other
airflow
onto
overhead
a
Advertisement
Table of Contents

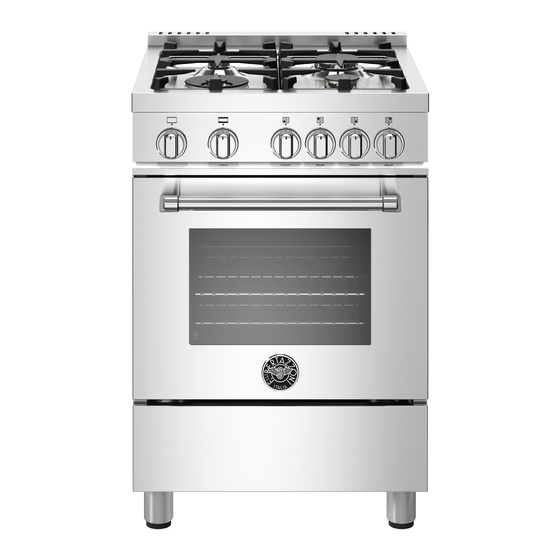

Related Manuals for Bertazzoni MAS244GASXE
Summary of Contents for Bertazzoni MAS244GASXE
- Page 1 WARNING! IMPORTANT SAFETY INFORMATION Read this instruction booklet before installing and using PLEASE READ AND FOLLOW THESE IMPORTANT the appliance. INSTRUCTIONS FOR THE SAFETY OF YOUR HOME AND OF THE PEOPLE LIVING IN IT. The manufacturer will not be responsible for any damage to property or to persons caused by incorrect Save this Manual for local electrical inspector’s use. installation or improper use of the appliance. Read and save these instructions for future reference. The manufacturer reserves the right to make changes to Observe all governing codes, ordinances and regulations. its products when considered necessary and useful, without affecting the essential safety and operating characteristics. WARNING! This appliance has been designed for non‐professional, If the information in this manual is not followed domestic use only. exactly, a fire or explosion may result causing property damage, personal injury or death. Do not use this appliance to heat a room. ...
- Page 2 ITALY recipes for yourself, your family and your friends, we try our best to make cooking easier, more WWW.BERTAZZONI.COM effective and more fun. Our appliances are designed according to the strictest safety and performance standard for the European and the North American market. We follow the most advanced manufacturing philosophy. Each appliance leaves the factory after thorough quality inspection and testing. Our distributors and our service partners are ready to answer any questions you may have regarding how to install, use and care for your Bertazzoni product. This manual will help you learn to use the product in the safest and most effective manner and care for it so that it may give you the highest satisfaction Model MAS244GASXE [MLS0GNA8X5A] for years to come. The manual also includes directions for the professional installer that will install the product in your home. We recommend using factory‐trained professionals for the delicate task of installing and testing appliances in your home. Please call Customer Service at (800) if you need help locating a factory‐trained professional installer in your area. Please keep this manual for future use. Grazie! ...
-
Page 3: Table Of Contents
TABLE OF CONTENTS IMPORTANT SAFETY INFORMATION ........................ 1 WARRANTY AND SERVICE ................ ERRORE. IL SEGNALIBRO NON È DEFINITO. CUSTOMER SERVICE .................... E RRORE L SEGNALIBRO NON È DEFINITO REPLACEMENT PARTS ..................... E RRORE L SEGNALIBRO NON È DEFINITO PRODUCT SPECIFICATIONS ............................ 5 BEFORE INSTALLATION ............................ 6 INSTALLING THE LEGS .............................. 7 INSTALLING THE WORKTOP FRONTGUARD ...................... 7 INSTALLING THE BACKGUARD .......................... 8 INSTALLING THE ANTI‐TIP STABILLTY DEVICE ...................... 9 ... - Page 4 Please kindly register on our web site www.bertazzoni.com to validate your new product warranty and help us to assist you better in case of any inconvenience. TWO YEAR LIMITED WARRANTY The warranties provided by Bertazzoni Spa in this statement apply exclusively to Bertazzoni appliances and accessories sold as new products to the original owner by a Bertazzoni authorized distributor, retailer, dealer or ...
-
Page 5: Product Specifications
PRODUCT SPECIFICATIONS Dimensions (insert drawings front, side and back Weight Burner power Natural gas LP gas 3750 BTU/h 3750 BTU/h Auxiliary 6000 BTU/h 6300 BTU/h Semi‐rapid 10400 BTU/h 11400 BTU/h Rapid 2730 BTU/h 2900 BTU/h Dual burner (inner) 15000 BTU/h 16400 BTU/h Dual burner ( outer) Oven 11000 BTU/h 11000 BTU/h broiler 10000 BTU/h 10000 BTU/h ... -
Page 6: Before Installation
BEFORE INSTALLATION WARNING! This appliance shall only be installed by an authorized professional. Do not use aerosol sprays in the vicinity of this appliance while it is in operation This appliance shall be installed in accordance with the manufacturer’s installation instructions. ROOM VENTILATION: An exhaust fan may be used with the appliance; in each case it shall be This ... -
Page 7: Installing The Legs
INSTALLING THE LEGS INSTALLING THE WORKTOP FRONTGUARD Bertazzoni ranges must be used only with the legs properly installed. To increase the clearance between the front edge of the worktop and the burners it is possible to Four height‐adjustable legs are shipped with the install the worktop frontguard shipped with the range in the polysterene container situated over appliance. the appliance. To install the front guard, hold it with the pointed Before installing the legs, position the appliance edges looking up. Align the edges of the ... -
Page 8: Installing The Backguard
2 lateral screws from the bottom. INSTALLING THE BACKGUARD The backguard must be installed prior to operation of the appliance for appropriate ventilation of the oven compartment. The supplied backguard is a 2‐part assembly. The box also contains a set of metal screws for securing the backguard to the worktop. Position the back part of the backguard and secure it to the worktop tightening 4 screws from the bottom. Disassemble the backguard and position the front part on the worktop. Align the screw holes with the ... -
Page 9: Installation Requirements
INSTALLING THE ANTI‐TIP STABILlTY INSTALLATION REQUIREMENTS DEVICE The anti‐tip bracket shipped with the range must ELECTRICAL be properly secured to the rear wall as shown in the pircture below. A properly‐grounded horizontally‐ mounted The height of the bracket from the floor must be electrical receptacle should be installed no higher determined after the range legs have been than 3" (7.6 cm) above the floor, no less than 2” adjusted to the desired height and after the (5 cm) and no more than 8” (20,3 cm) from the range has been leveled. left side (facing product). Measure the distance from the floor to the Check all local code requirements. bottom of the anti‐tip bracket receptacle on the back of the appliance. GAS Position the two anti‐tip brackets on the wall at the desired height plus 1/8" (0.32 cm). The An agency‐approved, properly‐sized manual shut‐ brackets must be placed at 2”5/16 (6,0 cm) from off valve should be installed no higher than 3" the side of the range. The distance between the (7.6 cm) above the floor and no less than 2” (5 two bracket is 19”1/4 (48,9 cm). cm) and no more than 8” (20.3 cm) from the right Secure the brackets to the wall with appropriate side (facing product). hardware. To connect gas between shut‐off valve and Slide the range against the wall until the brackets regulator, use agency‐approved, properly sized are fully inserted into their receptacles on the flexible or rigid pipe. Check all local code back of the range. ... -
Page 10: Exhaust Hood Installation
EXHAUST HOOD INSTALLATION This range will best perform when used with PRO INSTALLATION ADJACENT TO KITCHEN line Bertazzoni exhaust hoods. These hoods have CABINETS been designed to work in conjunction with the This range may be installed directly adjacent to Bertazzoni range and have the same finish for a existing countertop high cabinets (36" or 91.5 cm perfect look. from the floor). For maximum performance, the height of the For the best look, the worktop should be level bottom of the hood from the worktop should be with the cabinet countertop. This can be between 25 1/2" (65 cm) and 31 1/2" (80 cm). ... -
Page 11: Electrical Connection
WARNING! ELECTRICAL CONNECTION ELECTRICAL SHOCK HAZARD This unit is manufactured for a polarized, Disconnect electrical power at the circuit grounded 120 volt/60 Hz, 16 amp system. breaker box or fuse box before installing the Electric power consumption is about 300 W. appliance. The minimum of 102 VAC is required for proper Provide appropriate ground for the appliance. operation of gas ignition systems. Use copper conductors only. The circuit must be grounded and properly Failure to follow these instructions could result polarized. in serious injury or death The unit is equipped witth a SJT power cord. In ... -
Page 12: Gas Connection
MANUAL SHUT‐OFF VALVE GAS CONNECTION THIS VALVE IS NOT SHIPPED WITH THE APPLIANC All gas connections must comply with national AND MUST BE SUPPLIED BY THE INSTALLER. and local codes. The gas supply line (service) The manual shut‐off valve must be installed in must be the same size or greater than the inlet the gas service line between the gas hook‐up on line of the appliance. This range uses a 1/2" NPT the wall and the appliance inlet, in a position inlet (see drawing below for details of gas where it can be reached quickly in the event of an connection). On all pipe joints use appropriate emergency. sealant resistant to gas. In Massachusetts: A 'T' handle type manual gas This range can be used with Natural or valve must be installed in the gas supply line to LP/Propane gas. The range is shipped from the this appliance. factory for use with natural gas. For LP/propane household installation, the appliance must be converted by the dealer, by a FLEXIBLE CONNECTIONS factory‐trained professional or by a qualified In case of installation with flexible couplings licensed plumber or gas service company. and/or quick‐disconnect fittings, the installer Gas conversion is important for safe and effective ... -
Page 13: Pressure Regulator
PRESSURE REGULATOR Since service pressure may fluctuate with local demand, every gas cooking appliance must be equipped with a pressure regulator on the incoming service line for safe and efficient operation. The pressure regulator shipped with the appliance has has two female threads ½” NPT. The regulator shall be installed properly in order ... -
Page 14: Gas Conversion
STEP 1: PRESSURE REGULATOR APPLIANCE SERVICING The pressure regulator supplied with the Before carrying any servicing operation appliance is a convertible type pressure regulator disconnect the appliance from gas and electric for use with Natural Gas at a nominal outlet supply and extra appliance from final installation pressure of 4” w.c. or LP gas at a nominal outlet place in order to have access to the appliance for pressure of 11” w.c. and it is pre‐arranged from proper servicing intervention. ... - Page 15 STEP 3: MAIN OVEN BURNER STEP 2: SURFACE BURNERS To replace the nozzles of the main oven burner, To replace the nozzles of the surface burners, lift start by : up the burners and unscrew the nozzles shipped with the range using a 7 mm {sochet wrench). Replace nozzles using the conversion set supplied with the range or by a Bertazzoni authorized parts warehouse. Each nozzle has a number indicating its flow diameter printed on the body. Consult the table on page 20 for matching nozzles to burners. Remove the enamelled cavity base plate Loosen and the screw V and pull out the burner from the support being careful not to damage the ignition plug and the thermocouple ...
-
Page 16: Step 5: Visual Checks
Using a 7 mm [name of the tool] unscrew the nozzle. Replace the nozzle using the conversion set supplied with the range or by a Bertazzoni authorized parts warehouse. Each nozzle has a number indicating its flow diameter printed on ... -
Page 17: Step 6: Minimum Flame Adjustment
STEP 6: MINIMUM FLAME ADJUSTMENT WARNING! These adjustments should be made only for use of the appliance with natural gas. For use with liquid propane gas, the choke screw must be fully turned in a clockwise direction. SURFACE BURNERS 1. Light one burner at a time and set the knob to the MINIMUM position (small flame). The tip of the spark plug or thermocouple must fully overlap at least the first gas emission hole of 2. Remove the knob. the burner. 3. The range is equipped with a safety valve. Using a small‐size slotted screwdriver, locate the choke valve on the valve body and turn the choke screw to the right or left ... - Page 18 OVEN BURNER 1. Set the oven temperature control knob to the MAXIMUM setting. 2. Close the oven door and operate the oven for at least 10 minutes. 3. Set the knob to the MINIMUM setting . 4. Remove the knob. 5. With a slotted screwdriver turn the choking screw (by‐pass screw at the left side of the thermostat bar) and, while observing the flame at the same time through the bottom ...
-
Page 19: Installation Checkllst
INSTALLATION CHECKLlST FINAL PREPARATION 1. Is the range mounted on its legs? Before using the oven, remove any protective wrap from the stainless steel. 2. Is the backguard securely connected? All stainless steel body parts should be wiped with hot, soapy water and with a liquid stainless 3. Has the anti‐tip device been properly steel cleanser. installed? If buildup occurs, do not use steel wool, abrasive cloths, cleaners, or powders! If it is necessary to 4. Does the clearance from the side cabinets scrape stainless steel to remove encrusted comply with the manufacturers directions? materials, soak with hot, wet cloths to loosen the material, then use a wood or nylon scraper. Do 5. Is the electricity properly grounded? not use a metal knife, spatula, or any other metal tool to scrape stainless steel! Scratches are 6. Is the gas service line connected following almost impossible to remove. the directions of the manufacturer? Before using the oven for food preparation, wash the cavity thoroughly with a warm soap and 7. Have all the proper valves, stoppers and water solution to remove film residues and any dust or debris from installation, then rinse and gasket been installed between the range and wiped dry. the service line? 8. -
Page 20: User Manual
USER MANUAL SURFACE BURNER LAYOUT IMPORTANT: Take care of reset all worktop/oven/broiler burners controls in OFF Reflect names from brochure position after use of the appliance. 1. Small Burner 2. Medium burner 3. Rapid burner WARNING! 4. Dual burner (Power burner) Do not to cover the holes inside the oven with aluminium foil. Do not to cover the worktop with aluminium foil. Do not store any flammable object or objects under pressure in the storage compartment. Keep the area of operation of the range free from combustible materials, gasoline and other flammable vapors and liquid. Do not store dangerous or flammable materials in the cabinets above the appliance, since this may result in a potential fire hazard. Do not use the appliance for space heating. Do not use aerosol sprays in the vicinity of the appliance while cooking. Do not sit or step on the oven door. Do not use oven compartment for storage. ... -
Page 21: Surface Cooking
SURFACE BURNER OPERATION SURFACE COOKING IMPORTANT. Take care of reset all worktop/oven/broiler burners controls in OFF THERMOCOUPLE SAFETY VALVE position after use of the appliance. Each surface burner of a Bertazzoni range is SYMBOLS equipped with a thermocouple safety device. The thermocouple opens the flow of gas to the burner only when hot. Should the flame go off, the thermocouple will immediately close the gas flow to the burner eliminating any risk to your ... -
Page 22: Tips For Using Burners Correctly
TIPS FOR USING BURNERS CORRECTLY TIPS FOR USING PANS CORRECTLY WARNING! ATTENTION! KEEP CHILDREN AT A SAFE DISTANCE FROM THE Always ensure that bottom and handles of pans APPLIANCE DURING OPERATION. do not protrude from the worktop. DO NOT ALLOW CHILDREN TO OPERATE THE When cooking with flammable fat such as oil, do APPLIANCE. not leave the range unattended. IMPORTANT. Take care of reset all worktop/oven/broiler burners controls in OFF Use pots of the appropriate size on each burner position after use of the appliance. following the indication of the diagram below. 1. Always check that the burner caps are properly installed before operation. Burner Recommended pan size inches (mm) ... -
Page 23: Oven Cooking
IMPORTANT: Does not obstruct the oven/broiler’s flow of combustion outlets located Oven compartment light in the backguard fixed in the back side of the switch for baking or broiling worktop since this can produce poisonous excess of carbon monoxide. OVEN SHELVES SYMBOLS Bertazzoni ranges are equipped with commercial grade shelves and a enamel cooking tray. Shelves are mounted on the appropriate guides situated on the sides of the oven compartment. Insert the shelf between top and bottom guide in any of the 5 positions available. Thermal bake selector Broiler selector ... -
Page 24: Gas Oven Operation
THERMOCOUPLE SAFETY VALVE minute later The gas oven operation is indicated by a blue Bertazzoni gas ovens are equipped with a light on the left side of the control panel. thermocouple safety device and a thermostat to set the proper cooking temperature. Before closing the oven door, visually check that the flame is on through the portholes on the ... -
Page 25: Convection Cooking
ELECTRIC IGNITION CONVECTION COOKING Open the oven door, with oven/broiler Bertazzoni gas oven are equipped with a thermostat knob in the OFF position, press the CONVECTION fan. thermostat knob for about 1 sec., release it immediately in and turn it to the broiler position;... -
Page 26: Maintaining Your Range
with a warm soap and water solution. Never use abrasive powders or liquids! COOLING FAN FAILURE Cleaning the burner caps: lift the burner caps from the burner heads and wash them in a warm Bertazzoni ranges are equipped with a cooling soap and water solution. Dry thoroughly before fan. The fan starts operating each time the oven using them again. Before reinstalling them on the knob is on a position different from 0 (zero). burner head, check that the gas flow holes are The fan circulates the air between the control ... -
Page 27: Important Appliance Information
IMPORTANT APPLIANCE INFORMATION MODEL ______________________________________________________________ DATE INSTALLED _______________________________________________________________ DEALER _______________________________________________________________ _______________________________________________________________ INSTALLER _______________________________________________________________ ________________________________________________________________ SERVICER _______________________________________________________________ ... - Page 28 BERTAZZONI SpA Via Palazzina 8 42016 Guastalla RE ITALY WWW.BERTAZZONI.COM 3100129 ...
