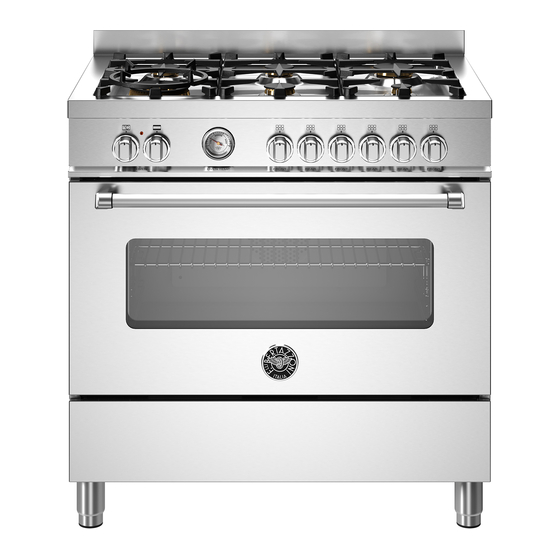

Bertazzoni Master Series Installation, User And Maintenance Manual
Freestanding electric ranges, induction worktop, electric manual clean oven
Hide thumbs
Also See for Master Series:
- Installation manual (384 pages) ,
- User manual (61 pages) ,
- Installation, user and maintenance manual (60 pages)
Subscribe to Our Youtube Channel
Related Manuals for Bertazzoni Master Series
Summary of Contents for Bertazzoni Master Series
- Page 1 INSTALLATION MANUAL USER AND MAINTENANCE MANUAL FREESTANDING ELECTRIC RANGES, INDUCTION WORKTOP, ELECTRIC MANUAL CLEAN OVEN MODEL www.bertazzoni.com...
- Page 3 Bertazzoni becomes a real pleasure. This manual will help you learn to use and care for your Bertazzoni appliance in the safest and most effective way, so that it can give you the highest satisfaction for years to come.
- Page 5 USER MANUAL VALIDITY The following manual is valid for all the product codes mentioned below: • MAS486IFEMXV...
-
Page 6: Table Of Contents
............... . . BERTAZZONI SERVICE . - Page 7 ............. . KEEPING YOUR BERTAZZONI CLEAN .
-
Page 9: Installation Manual
All other servicing should be referred to a qualified servicer. FOR THE INSTALLER: Before installing the Bertazzoni appliance, please read these instructions carefully. This appliance shall be installed in accordance with the manufacturer’s installation instructions. -
Page 10: Data Rating Label
WARNINGS DO NOT lift the appliance by the range’s control panel. The unit is heavy and should be handled accordingly. Proper safety equipment such as gloves and adequate manpower of at least two people must be used in moving the range to avoid injury and to avoid damage to the unit or the floor. -
Page 11: Before Installation
BEFORE INSTALLATION • This appliance shall only be installed by an authorized professional. • This appliance shall be installed in accordance with the manufacturer’s installation instructions. • This appliance must be installed in accordance with the norms & standards of the country where it will be installed. -
Page 12: Ventilation Preparation
VENTILATION PREPARATION This range will best perform when installed with Bertazzoni exhaust hoods. These hoods have been designed to work in conjunction with the Bertazzoni range and have the same finish for a perfect look. Before installation of the exhaust hood, consult local or regional building and installation codes for additional specific clearance requirements. -
Page 13: Specifications
SPECIFICATIONS 25'' 15/16 3 '' 7/16 11/16 Fig. 2 • A 48″ • B 37″½ MAX... -
Page 14: Clearance Dimensions
CLEARANCE DIMENSIONS INSTALLATION ADJACENT TO KITCHEN METAL HOOD CABINETS 48″(121.9 cm) This range may be installed directly adjacent to existing 25 1/2″(65 cm) and 31 1/2″ (80 cm) countertop high cabinets (36″ or 91.5 cm from the floor). 13″ (33.0 cm) For the best look, the worktop should be level with the 18″... -
Page 15: Installation Requirements
INSTALLATION REQUIREMENTS ELECTRICAL A properly-grounded horizontally- mounted electrical receptacle should be installed no higher than 3″ (7.6 cm) above the floor, no less than 2″ (5 cm) and no more than 8″ (20.3 cm) from the left side (facing product). Check all local code requirements. -
Page 16: Electrical Connection
ELECTRICAL CONNECTION WARNING ELECTRICAL SHOCK HAZARD Disconnect electrical power at the circuit breaker box or fuse box before installing the appliance. Provide appropriate ground for the appliance. Use copper conductors only. Failure to follow these instructions could result in serious injury or death. ELECTRICAL GROUNDING This appliance is equipped with a three-prong plug for your Fig. -
Page 17: Four Wires Connection
ELECTRICAL CONNECTION FOUR WIRES CONNECTION • Connect the L1 receptacle terminal to the incoming BLACK electrical supply wire (L1-hot wire) • Connect the L2 receptacle terminal to the incoming RED electrical supply wire (L2-hot wire) • Connect the NEUTRAL receptacle terminal to the incoming NEUTRAL (WHITE) electrical supply wire •... -
Page 18: Wiring Diagram
WIRING DIAGRAM The electric wiring diagrams and schematics are attached behind the range, and should not be removed except by a service technician, then replaced after service. Fig. 11... -
Page 19: 48 Right Side
WIRING DIAGRAM 48 RIGHT SIDE Fig. 12... -
Page 20: Installation
INSTALLATION APPLIANCE INSTALLATION UNPACKING THE RANGE • Remove all packing materials from the shipping pallet but leave the adhesive-backed foam layer over brushed- metal surfaces to protect it from scratches until the range is installed in its final position. Only the film on the side panels should be removed before inserting the range between the cabinets. -
Page 21: Installing The Legs
INSTALLATION INSTALLING THE LEGS INSTALLING THE WORKTOP FRONTGUARD Bertazzoni ranges must be used only with the legs properly To increase the clearance between the front edge of the installed. worktop and the burners, it is possible to install a front guard for the worktop. -
Page 22: Installing The Island Trim
INSTALLATION INSTALLING THE ISLAND TRIM INSTALLING BACKGUARD (OPTIONAL) The island trim must be installed prior to operation of the The backguard must be installed prior to operation of the appliance appropriate ventilation oven appliance appropriate ventilation oven compartment. compartment. The island trim is only placed on the cooktop, remove all The backguard is an optional contact you dealer for buying tape and packaging before installing it. -
Page 23: Installing The Anti/Tip Devices
INSTALLING THE ANTI/TIP DEVICES ANTI-TIP BRACKETS The anti-tip bracket shipped with the range must be properly secured to the rear wall as shown in the picture below. The height of the bracket from the floor must be determined after the range legs have been adjusted to the desired height and after the range has been levelled. -
Page 24: Installation Checklist
INSTALLATION CHECKLIST A qualified installer should carry out the following checks: Range mounted on its legs Island trim or Backguard attached according to instruction Anti-tip device properly installed Clearance to cabinet surfaces as manufacturer’s guideline... -
Page 25: Final Preparation
FINAL PREPARATION • Before using the oven, remove any protective wrap from the stainless steel. • All stainless steel body parts should be wiped with hot, soapy water and with a liquid stainless steel cleanser. • If buildup occurs, do not use steel wool, abrasive cloths, cleaners, or powders! •... -
Page 26: Bertazzoni Service
We have a dedicated team of trained 866 905 0010 professionals to answer your needs. https://us.bertazzoni.com/more/support If you own a Bertazzoni appliance and need service in the If located in CANADA: US or Canada please use the following contact information: 800 561 7265 https://ca.bertazzoni.com/more/support... -
Page 27: User And Maintenance Manual
WARNINGS TO PREVENT FIRE OR SMOKE DAMAGE Warning and Important Safety Instructions appearing in this manual are not meant to cover all possible conditions and • Be sure all packing materials are removed from the situations that may occur. Common sense, caution, and appliance before operating it. -
Page 28: Cooking Safety
WARNINGS COOKING SAFETY • DO NOT cook directly on the oven bottom. This could result in damage to your appliance. Always use the oven racks when cooking in the oven. • Once the unit has been installed as outlined in the Installation Instructions, it is important that the fresh air Do not connect any appliances to the plugs above or near supply is not obstructed. -
Page 29: Induction Cooking Surfaces
WARNINGS INDUCTION COOKING SURFACES • During and after use, DO NOT touch or let clothing or other flammable materials contact heating elements, areas near elements, or interior surfaces of oven until • Surface areas on or adjacent to the unit may be hot they have had sufficient time to cool. -
Page 30: Warning-Tipping Hazard
WARNINGS WARNING-TIPPING HAZARD Children and adults can tip over the range if it has not been secured. This may lead to fatal injuries. To reduce the risk of the appliance tipping, it must be secured and connected using the anti-tip device according to the installation instructions. -
Page 31: Worktop And Knobs Layout
WORKTOP AND KNOBS LAYOUT Fig. 24 Heating element Oven functions selector Oven thermostat Left front induction element Left rear induction element Central front induction element Central rear induction element Right front induction element Right rear induction element Auxiliary oven thermostat... -
Page 32: Induction Cooktop
INDUCTION COOKTOP COOKING WITH INDUCTION the knob anticlockwise, option “A” is automatically deactivated. Underneath each cooking zone there is a coil called an POWER MODE inductor. The inductor generates a variable magnetic field using electric power. When a pan is placed inside this The power mode allows the user to operate each heating magnetic field, the high frequency current radiates directly zone continuously at the maximum power for a time of no... -
Page 33: Suitable Induction Cookware
INDUCTION COOKTOP PAN DETECTION Each cooking zone is equipped with a “pan detection” device, which ensures that cooking cannot start unless a suitable pan is present on the cooking zone and properly positioned. If the user attempts to switch on the cooking zone with the pan not positioned properly or with a pan which is not of suitable material, the symbol will appear a few seconds... -
Page 34: Main Electric Oven
MAIN ELECTRIC OVEN OVEN COOKING MODES CAUTION When using the oven for the first time it The oven is equipped with 4 heating elements, used alone should be operated for 15-30 minutes at a or in combination to create different cooking modes: temperature of about 500℉/260℃... -
Page 35: Special Functions
MAIN ELECTRIC OVEN BROIL PIZZA Heat from the broil element only. Heat from lower bake element and circular element and airflow convection with fan. The BROIL setting creates intense heat from the top of the cavity. The broil mode is effective when food is placed on Use for cooking pizza, pastry or flat breads to get a upper racks. - Page 36 MAIN ELECTRIC OVEN SHELVES POSITIONS OVEN COOKING MODES Shelves are mounted on the appropriate guides situated on The oven is equipped with 3 heating elements, used alone the sides of the oven compartment. Insert the shelf or in combination to create different cooking modes: between top and bottom guide in any of the 7 positions •...
- Page 37 MAIN ELECTRIC OVEN LIGHT GETTING THE BEST RESULTS • Minimize opening and closing the oven door during Use this function to light the oven when the oven is off (for operation. example to manual clean the oven). • Use the rack position recommended by the recipe and CONDENSATION fine-tune with personal experience.
- Page 38 MAIN ELECTRIC OVEN BROILING RECOMMENDATION FOOD ITEM CONTROL APPROXIMATE COOKING SPECIAL INSTRUCTIONS TEMPERATURE SETTING TIME AND TIPS SELECTOR BEEF 500℉ fixed temperature 15 to 20 minutes Broil until no pink in center setting Ground Beef Patties, ½″ thick T-Bone Steak 500℉...
- Page 39 MAIN ELECTRIC OVEN TROUBLESHOOTING COMMON PROBLEMS WITH OVEN COOKING REMEDY PROBLEMS CAUSE Cakes burned on the sides or not Oven too hot Reduce temperature done in center Use recommended pan size Wrong pan size Cakes crack on top Batter too thick Follow recipe or add liquid Oven too hot Reduce temperature...
- Page 40 MAIN ELECTRIC OVEN TELESCOPIC GLIDES The telescopic glides fit any shelf level and work with the wire shelves provided as standard equipment. FITTING THE GLIDES • Locate the two spring clips at the front and back of the glides. • Locate the pin on the glide that indicates the back.
-
Page 41: Keeping Your Bertazzoni Clean
KEEPING YOUR BERTAZZONI CLEAN BURN HAZARD rhubarb, vinegar, alcohol or milk, should be wiped up and not allowed to bake onto the porcelain during the next use. Make sure the heating elements are turned off and allowed CLEANING THE INDUCTION COOKTOP to cool completely before any cleaning and/or maintenance operation. -
Page 42: Simple Maintenance
Slide the tip of a flat screw driver between the glass cover and the lamp housing. Gently twist the screw https://us.bertazzoni.com/more/support driver tip to loosen the glass lens cover, holding it in place with your fingers to prevent it from falling and If located in CANADA breaking. - Page 43 SIMPLE MAINTENANCE TOP OVEN LIGHT Bulb type: halogen G9 120 V, 40 W • Make sure the heating elements are turned off and allowed to cool completely. Disconnect the appliance from the power supply. • Unscrew the glass cover and remove the halogen bulb. •...
-
Page 44: Troubleshooting
GRILLING IN THE OVEN IS SLOW Here are answer to common problems you may experience. You are also welcome to call our toll free Customer Service line to troubleshoot any issue with your Bertazzoni: Have you selected the correct function? CONDENSATION FORMS IN THE OVEN... -
Page 45: Warranty
866 905 0010 https://us.bertazzoni.com/more/support Bertazzoni’s liability on any claim of any kind, with respect to the goods and/or services provided, shall in no event If located in CANADA exceed the value of the goods or service or part thereof which gives origin to the claim. -
Page 46: Warranty Exclusions - What Is Not Covered
• Use of the Product for anything other than its intended In no case shall Bertazzoni be held liable or responsible for purpose. damage to surrounding property, including furniture, • Repair service provided by a party other than a cabinetry, flooring, panels and other structures surrounding Bertazzoni authorized service agency. - Page 47 MISUSE OR INABILITY TO USE THIS PRODUCT, REGARDLESS OF THE LEGAL THEORY ON WHICH THE CLAIM IS BASED, AND EVEN IF BERTAZZONI HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. NOR SHALL RECOVERY OF ANY KIND AGAINST BERTAZZONI BE GREATER IN AMOUNT...
- Page 48 Via Palazzina, 8, 42016 Guastalla RE © 2023 BERTAZZONI. All rights reserved. 3100860_v.02...
