Vivotek IZ7151 User Manual

Vivotek IZ7151 User Manual

18x zoom progressive scan ccd network camera
Hide thumbs Also See for IZ7151:
Table of Contents

Advertisement

Quick Links

Download this manual
VIVOTEK
User's Manual - 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IZ7151 and is the answer not in the manual?

Questions and answers

Related Manuals for Vivotek IZ7151

Summary of Contents for Vivotek IZ7151

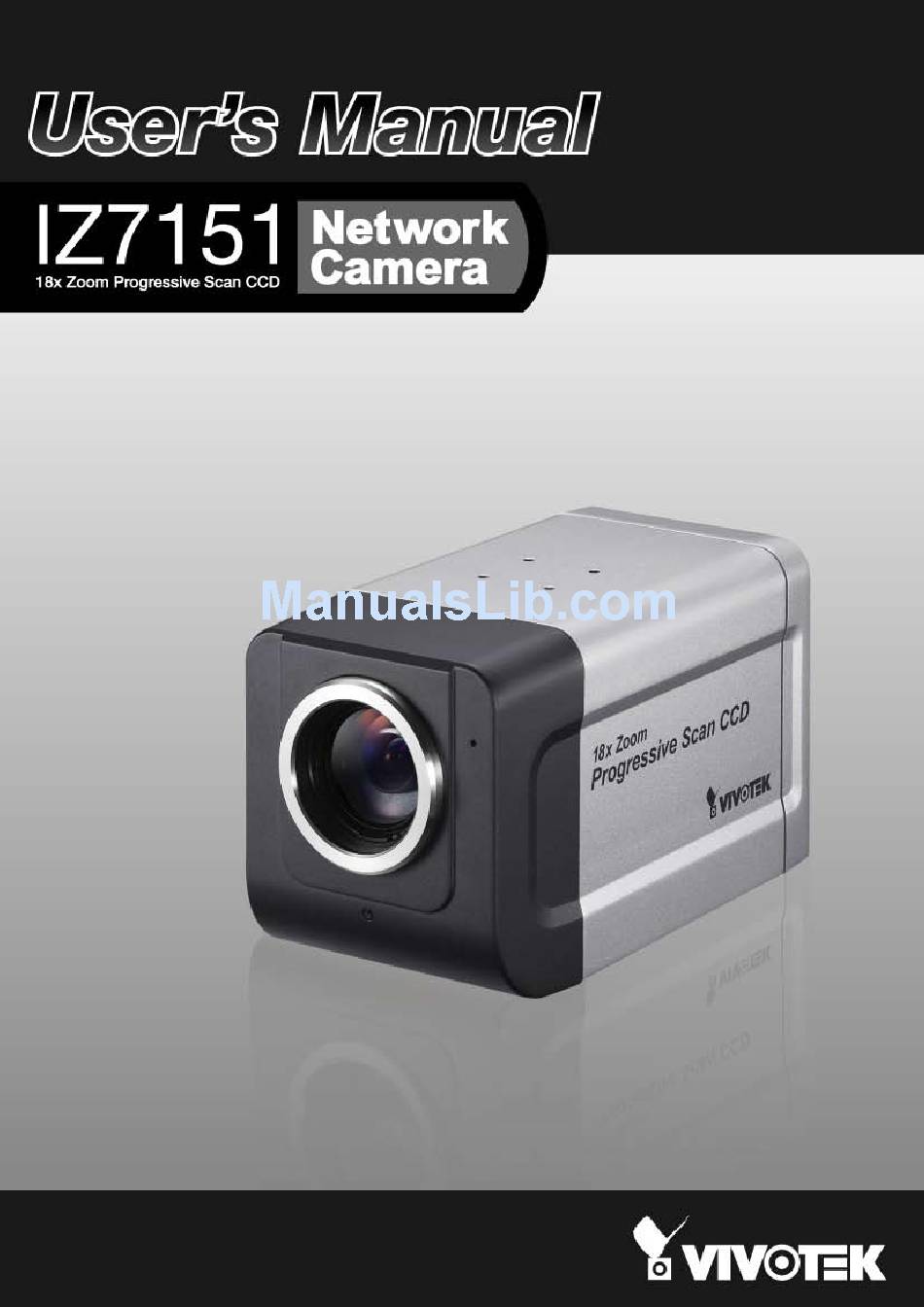

  • Page 1 VIVOTEK User's Manual - 1...

  • Page 2: Table Of Contents

    Network Deployment ����������������������������������������������������������������������������������������������������������������8 Software Installation ���������������������������������������������������������������������������������������������������������������11 Accessing the Network Camera 12 Using Web Browsers ��������������������������������������������������������������������������������������������������������������12 Using RTSP Players ���������������������������������������������������������������������������������������������������������������14 Using 3GPP Mobile Phones ���������������������������������������������������������������������������������������������������15 Using VIVOTEK Recording Software �������������������������������������������������������������������������������������16 Main Page 17 Client Settings 21 Configuration 23 System �����������������������������������������������������������������������������������������������������������������������������������23 Security ����������������������������������������������������������������������������������������������������������������������������������25 Network ����������������������������������������������������������������������������������������������������������������������������������27...

  • Page 3: Overview3

    Overview Read Before Use VIVOTEK IZ7151, featuring a 18x zoom progressive scan CCD module that can capture superior clear images of moving objects that traditional interlaced scanning techniques can not achieve, is a powerful Network Camera for both day and night applications� It effectively reduce motion blur and distorted, jagged edges of recorded images�...

  • Page 4: Physical Description

    VIVOTEK Physical Description Front View Status LED Rear View Microphone In Ethernet 10/100 RJ45 Socket General I/O Terminal Block General I/O Terminal Block This Network Camera provides a general I/O terminal block which is used to connect external input / output devices� The pin definitions are described below�...

  • Page 5: Status Led

    Power is being supplied to the Network Camera� The Network Camera is booting up� The Network Camera is trying to obtain an IP address� An IP address is successfully assigned to the Network Camera� The Network Camera is working� During firmware upgrade VIVOTEK User's Manual - 5...

  • Page 6: Hardware Reset

    VIVOTEK Hardware Reset There is an indented reset button on the back panel of the Network Camera� It is used to reboot the Network Camera or restore the Network Camera to factory default� Sometimes rebooting the Network Camera sets the Network Camera back to normal state� If the problems remain after rebooting, restore the factory default and install again�...

  • Page 7: Installation 7

    Attach the top mounting stand to the Network Camera using the supplied screws� Fasten the Network Camera stand to the wall / ceiling� Secure the Network Camera to the stand� Position the Network Camera with the lens facing the desired monitoring area� VIVOTEK User's Manual - 7...

  • Page 8: Network Deployment

    VIVOTEK Network Deployment Setup the Network Camera over the Internet This section explains how to configure the Network Camera to Internet connection� There are several ways to setup the Network Camera over the Internet� The first way is to setup the Network Camera behind a router�...
  • Page 9 Enter the static IP, Subnet mask, Default router, Primary DNS provided by your ISP� Internet connection via PPPoE (Point-to Point over Ethernet) Choose this connection type if you are connected to the Internet via a DSL Line� See PPPoE on page 28 for details� VIVOTEK User's Manual - 9...
  • Page 10 VIVOTEK Power over Ethernet (PoE) The Network Camera is PoE-compliant, allowing transmission of power and data via single Ethernet cable� If your switch/router supports PoE, refer to the following illustration to connect the Network Camera to a PoE-enabled switch/router via Ethernet cable�...

  • Page 11: Software Installation

    Next to continue the program� The program will search all VIVOTEK devices in the same local area network� After searching, the main installer window will pop up� Click on the MAC that matches the one labeled on the back of your device to connect to the Network Camera�...

  • Page 12: Accessing The Network Camera 12

    VIVOTEK Accessing the Network Camera This chapter explains how to access the Network Camera using web browsers, RTSP players, 3GPP mobile phones and VIVOTEK recording software� Using Web Browsers Launch your web browser (ex� Microsoft Enter the IP address of the Network Camera in the address field. Press Enter.
  • Page 13 ► If you see a dialog box indicating that your security settings prohibit running ActiveX Controls, please enable your ActiveX Choose Tools > Internet Options > Security > Custom Level. Look for Download signed ActiveX Controls for your browser. ® controls; select Enable or Prompt� Click OK� ® VIVOTEK ® User's Manual - 13...

  • Page 14: Using Rtsp Players

    VIVOTEK Using RTSP Players To view the MPEG-4 streaming media using RTSP players, you can use one of the following players that support RTSP streaming� Quick Time Player Real Player VLC media player mpegable Player pvPlayer Launch a RTSP player�...

  • Page 15: Using 3Gpp Mobile Phones

    Launch the players on 3GPP mobile phones, (ex� Real Player)� Type the URL commands in the player. The format is rtsp://<public ip address of your camera>:<rtsp port>/<access name for stream1 or stream2>. MPEG-4 176 x 144 5 fps 40kbps 12�2kbps VIVOTEK User's Manual - 15...

  • Page 16: Using Vivotek Recording Software

    VIVOTEK Using VIVOTEK Recording Software The product software contains a recording software, allowing simultaneous monitoring and video recording for multiple Network Cameras� Please install the recording software; then launch the program to add the Network Camera to the Channel list� For detailed information on how to use the recording software, please refer to the user’s manual packaged with the software or download it at...

  • Page 17: Main Page 17

    Main Page This chapter explains the layout of the main page� It is composed of the following four sections: VIVOTEK Logo, Menu, Host Name and Live Video Window� VIVOTEK logo Menu VIVOTEK Logo Click this logo to visit VIVOTEK website�...
  • Page 18 VIVOTEK Zoom speed Host Name The host name can be customized to fit your needs� For more information, see Host Name System on page 23� Live Video Window The following window is displayed when the video mode is set to MPEG-4:...
  • Page 19 To move to a different area you want to magnify, drag the navigation screen� mute function is not activated, move the slider bar to adjust the GATE 10:11:50 2008/01/09 Depending on the Network Camera model and Network Camera VIVOTEK Resume button Pause button Play button to continue...
  • Page 20 VIVOTEK Click this button to record video clips in MP4 file format to your computer� Start MP4 Recording Press the Stop MP4 recording button to end recording� When you qite the web browser, video recording stops accordingly� To specify the storage destination and the file name, see MP4 Saving Options on page 22 for details�...

  • Page 21: Client Settings 21

    VIVOTEK Client Settings This chapter explains how to select the streaming source, transmission mode and saving options at local computer� It is composed of the following four sections: Stream Options, MPEG-4 Media Options, MPEG-4 Protocol Options and MP4 Saving Options� When completed with the settings on this page, click Save to take effect�...

  • Page 22: Mp4 Saving Options

    VIVOTEK This protocol allows the same quality as TCP protocol and the users don’t need to open HTTP specific port for streaming under some network environment� Users inside a firewall can utilize this protocol to allow streaming data to come through�...

  • Page 23: Configuration 23

    To manually configure the daylight saving time rules, see Upload / Export Daylight Saving Time Configuration File on page 69 for details� Select this option to enable daylight saving time (DST)� During DST, VIVOTEK User's Manual - 23...
  • Page 24 VIVOTEK According to your local time zone, select one from the drop-down list� Time zone Keep current date and time Camera� The Network Camera's internal real-time clock maintains the date and time even when the power of the system is turned off�...

  • Page 25: Security

    Though operators can not access the page, they are capable of using the url commands to get and set the value of parameters� For more information, see URL Commands for the Network Camera on page 72� Viewers can only monitor the main page� Manage User VIVOTEK User's Manual - 25...
  • Page 26 VIVOTEK Here you can change user’s access rights or delete user accounts� Pull down the user list to find an account. Make necessary changes and then click Save or Delete to take effect� 26 - User's Manual...

  • Page 27: Network

    VIVOTEK Network This section explains how to configure wired network connection for the Network Camera� It is composed of the following five columns: Network Type, HTTP, Two way audio, FTP and RTSP Streaming� When completed with the settings on this page, click Save to take effect�...
  • Page 28 VIVOTEK If the default ports are already used by other device connecting to the same router, the Network Camera will select other ports for the Network Camera� If UPnP is not supported by your router, you will see the following message�...
  • Page 29 In the Add or Remove Programs dialog box, click Add/Remove Windows Components� In the Windows Components Wizard dialog box, select Networking Services and then click Details� In the Networking Services dialog box, select Universal Plug and Play and then click OK� VIVOTEK User's Manual - 29...
  • Page 30 VIVOTEK Click Next in the following window� Click Finish� UPnP ► How does UPnP work? UPnP networking technology provides automatic IP configuration and dynamic discovery of devices added to a network. Services and capabilities offered by networked devices, such as printing and file sharing, are available among each other without bothersome network configuration.
  • Page 31 NOTE : ► To utilize the HTTP authentication, make sure that your have set a password for the Network Camera first; see Security on page 25 for details. The access name is used to differentiate User's Manual - 31 VIVOTEK...
  • Page 32 VIVOTEK ► Microsoft Internet Explorer does not support server push technology; therefore, using http:// ® <ip address>:<http port>/<access name for stream1 or stream2> will fail to access the Network Camera Two way audio By default, the two way audio port is set to 5060� Also, it can be assigned with another port number between 1025 and 65535�...

  • Page 33: Rtsp Streaming

    The FTP server allows the Network Camera to utilize VIVOTEK Installation Wizard 2 to upgrade firmware� By default, the FTP port is set to 21� Also, it can be assigned with another port number between 1025 and 65535� RTSP Streaming...
  • Page 34 VIVOTEK rtsp://<ip address>:<rtsp port>/<access name for stream1 or stream2> For example, when the access name for stream 1 is set to live�sdp: Launch a RTSP player� Choose File > Open URL. This opens the URL dialog box. Type the URL command in the text box�...
  • Page 35 Multicast TTL [1~255] packet can be forwarded� NOTE : ► To utilize the RTSP streaming authentication, make sure that your have set a password for the Network Camera first; see Security on page 25 for details. VIVOTEK User's Manual - 35...

  • Page 36: Ddns

    Select a DDNS provider of your choice from the Provider drop-down list� Provider VIVOTEK offers safe100, a free dynamic domain name service to VIVOTEK customers� It is recommended that you register with the safe100 to access the Network Camera from the Internet�...
  • Page 37 Select Enable DDNS and then click Save to take effect� ■ CustomSafe100 VIVOTEK offers documents to establish CustomSafe100 DDNS server for distributors and system integrators� You can use CustomSafe100 to register a dynamic domain name if your distributor or system integrators offer such services�...
  • Page 38 VIVOTEK ■ Dyndns�org(Dynamic) / Dyndns�org(Custom) ■ TZO�com visit http://www�tzo�com/ ■ DHS�org visit http://www�dhs�org/ ■ dyn-interfree�it visit Dyndns�org(Dynamic) / Dyndns�org(Custom) DHS�org Click this button if you forget the key of Safe100 or CustomSafe100� Your account Forget key information will be sent to your email address�...

  • Page 39: Access List

    ► For example, when the range of allowed list is set from 1.1.1.0 to 192.255.255.255 and the range of denied list is set from 1.1.1.0 to 170.255.255.255, Only users’ IP located between 171000 and 192255255255 can access the Network Camera Denied Allowed List List VIVOTEK User's Manual - 39...
  • Page 40 VIVOTEK Delete allowed list / Delete denied list In the Delete allowed list or Delete denied list, select a list from the drop-down list� Click Delete to take effect� 40 - User's Manual...

  • Page 41: Audio And Video

    Network Camera in order for the new setting to take effect� Video orientation ■ Flip Vertically reflect the display of the live video� ■ Mirror VIVOTEK User's Manual - 41...

  • Page 42: Image Settings

    VIVOTEK Horizontally reflect the display of the live video� Select both options if the Network Camera is installed upside-down (ex� on the ceiling) to correct the image orientation� Overlay title and time stamp on video streams� Note that when the frame size is set to 176 x 144, only time will be stamped on video streams�...
  • Page 43 Click CCD settings to open the CCD Settings page� In this page, you can set the exposure time and day/night function� When completed with the settings on this page, click Save to take effect and click Close to quit this page� VIVOTEK User's Manual - 43...
  • Page 44 VIVOTEK Exposure ■ Auto The Network Camera automatically adjusts the iris and gain, but fixed shutter speed (1/30 s) in response to different environment� The exposure setting defaults to Auto and works well in most situations� Depending on ambient lighting conditions, select either to turn on the back light compensation or not;...
  • Page 45 1/4 second, 1/2 second, 1 second, 2 seconds, 3 seconds and 4 seconds� ■ Video quality A complex scene generally produces larger file size, meaning that higher bandwidth will Set two streams for the Network Camera for different VIVOTEK User's Manual - 45...
  • Page 46 VIVOTEK be needed for data transmission� Therefore, if Constant bit rate is selected, the bandwidth utilization is fixed at a selected level, resulting in mutable video quality performances� The bit rates are selectable at the following rates: 20Kbps, 30Kbps, 40Kbps, 50Kbps, 64Kbps, 128Kbps, 256Kbps, 512Kbps, 768Kbps, 1Mbps, 2Mbps, 3Mbps and 4Mbps�...

  • Page 47: Audio Settings

    ► The Network Camera offers two inputs to capture audio - internal microphone or external microphone. You can use the internal microphone to capture audio around the Network WindowA Select the gain of the internal audio input according to ambient VIVOTEK User's Manual - 47...
  • Page 48 VIVOTEK Camera. Alternatively, you can use external microphone to capture audio. The internal/external microphone switch is located on the back panel of the Network Camera Ext. Int. Audio Ext. Int. Audio Ethernet 1 2 3 4 5 6 7 8...

  • Page 49: Motion Detection

    For more information on how to plot an event, see Application on page 56� A green bar indicates that even though motions are detected, the event will not be triggered because the image variations are still falling under the defined threshold� VIVOTEK Percentage = 30% User's Manual - 49...
  • Page 50 VIVOTEK NOTE : ► In a privacy mask window, motion detection will not take effect. ► How does motion detection work? There are two parameters for setting the motion detection: Sensitivity and Percentage. In the illustration above, frame A and frame B are two sequential images. Pixel differences between the two frames are detected and highlighted in gray (frame C), and will be compared with the sensitivity setting.
  • Page 51 VIVOTEK motion window will be outlined in red. For applications that require higher security management, it is suggested to set higher sensitivity settings and smaller percentage values User's Manual - 51...

  • Page 52: Camera Control

    To utilize this feature, please connect the Network Camera with a PTZ scanner via RS485 interface first� VIVOTEK offers three PTZ drivers: DynaDome/SmartDOME, Lilin PIH-7x00 and Pelco D protocol� If none of the above PTZ drivers is supported by your PTZ scanner, please select Custom camera�...

  • Page 53: Preset Position

    Click Preset Position to open the Preset Position page� In this page, you can set the preset position for the Network Camera� A total of twenty preset positions can be configured� Follow the steps below to set a preset position� Tilt speed VIVOTEK Slower Faster User's Manual - 53...

  • Page 54: Custom Command

    VIVOTEK To set a preset position, follow the steps below� Adjust the Network Camera to a desired position using the buttons on the right side of the window� In the Preset position name text box, enter a descriptive name for the preset position� The preset position name allows up to forty characters�...
  • Page 55 VIVOTEK NOTE : ► If Custom camera is selected as the PTZ driver, the PTZ control buttons will not take effect. Please go to Configuration > Camera control > Custom Command to set the commands in the Control settings session. Please refer to the user's manual of the PTZ scanner for the command.

  • Page 56: Application

    VIVOTEK Application This section explains how to configure the Network Camera to react in response to particular situations� A typical application is that when a motion is detected, the Network Camera sends buffered images to a FTP server or via e-mail as notifications�...
  • Page 57 6 pic. 7 pic. 8 pic. 9 pic. 10 pic. 11 pic. 10 pic. The moment the trigger is activated. Date and time suffix The format is: YYYYMMDD_HHMMSS VIVOTEK 12 pic. 13 pic. 14 pic. 15 pic. User's Manual - 57...

  • Page 58: Server Settings

    VIVOTEK record video clips for how many seconds before a trigger is activated� Up to nine seconds can be set� ■ Maximum duration Specify the maximal recording duration in seconds� Up to ten seconds can be set� For example, if the Pre-event recording is set to five seconds and the Maximum duration is set to ten seconds, the Network Camera continues to record for another four seconds after a trigger is activated�...
  • Page 59 To verify if the email settings are correctly configured, click Test� The result will be shown in a pop-up window� If it works, you will also receive an email indicating the result� Select to send the media to a FTP server when a trigger is activated� VIVOTEK User's Manual - 59...
  • Page 60 VIVOTEK ■ Server address Enter the domain name or IP address of the FTP server� ■ Server port By default, the FTP port server is set to 21� Also, it can be assigned with another port number between 1025 and 65535�...
  • Page 61 In the Event column, click Add to open the event setting page� In this page, you can arrange the three elements -- Trigger, Schedule and Action to plot an event� A total of three event settings can be configured� VIVOTEK User's Manual - 61...
  • Page 62 VIVOTEK An event is an action initiated by user-defined trigger source; it is the causal arrangement of the following three elements: ■ Trigger, also referred as the cause or stimulus, defines when to trigger the Network Camera� The trigger source can be configured to use the Network Camera's built-in motion detection mechanism or external digital input devices�...
  • Page 63 The new event name will appear in the event drop-down list on the application page� To remove an event setting from the list, select an event name from the drop-down list and then click Delete� VIVOTEK User's Manual - 63...

  • Page 64: Recording

    VIVOTEK Recording This section explains how to configure the recording settings for the Network Camera� Recording Settings Click Add to open the recording setting page� In this page, you can define the recording source, recording schedule and recording capacity� A total of two recording settings can be configured�...
  • Page 65 VIVOTEK User's Manual - 65...

  • Page 66: System Log

    VIVOTEK System Log This section explains how to configure the Network Camera to send system log to remote server as a backup� It is composed of the following two columns: Remote Log and Current Log� Remote Log You can configure the Network Camera to send the system log file to a remote server as a log backup�...

  • Page 67: View Parameters

    VIVOTEK View Parameters The View parameters page lists the entire system’s parameters in alphabetical order� If you need technical assistance, please provide the information listed in this page� User's Manual - 67...

  • Page 68: Maintenance

    VIVOTEK Maintenance This chapter explains how to restore the Network Camera to factory default, upgrade firmware version, etc� Reboot This feature allows you to turn off and then turn on the Network Camera� It takes about one ~ two minutes to complete the process� When completed, the live video will be displayed in your browser�...
  • Page 69 In the Upload Column, click Browse… and specify the XML file. If the incorrect date and time is assigned, you will see the following warning message when uploading the file to the Network Camera� ® Notepad and locate your time zone; set the starting VIVOTEK User's Manual - 69...
  • Page 70 Do not power down the Network Camera during the upgrade� The upgrade is successful as you see “Reboot system now!! This connection will close”� Download a new firmware file from VIVOTEK website. The file is in pkg file format. Click Browse… and specify the firmware file.
  • Page 71 VIVOTEK The following message is displayed when you have selected an incorrect firmware file� Starting firmware upgrade... Do not power down the server during the upgrade. The server will restart automatically after the upgrade is completed. It will takes about 1 - 5 minutes.

  • Page 72: Url Commands For The Network Camera

    VIVOTEK Appendix URL Commands for the Network Camera Overview For some customers who already have their own web site or web control application, the Network Camera/Video Server can be easily integrated through URL syntax� This section specifies the external HTTP-based application programming interface� The HTTP-based camera interface provides the functionality to request a single image, control camera functions (PTZ, output relay etc�), and get and set...

  • Page 73: General Cgi Url Syntax And Parameters

    Operator access rights can modify most of the camera’s parameters except some privileges and network options. Administrator access rights can fully control the camera’s operations. Internal parameters. Unable to be changed by any external interfaces. VIVOTEK User's Manual - 73...
  • Page 74 VIVOTEK http://<servername>/cgi-bin/viewer/getparam.cgi?[<parameter>] [&<parameter>…] http://<servername>/cgi-bin/operator/getparam.cgi?[<parameter>] [&<parameter>…] http://<servername>/cgi-bin/admin/getparam.cgi?[<parameter>] [&<parameter>…] Where the <parameter> should be <group>[_<name>] or <group>[.<name>]. If you do not specify any parameters, all the parameters on the server will be returned. If you specify only <group>, the parameters of the related group will be returned.

  • Page 75: Set Server Parameter Values

    (Note: The return page can be a general HTML file (.htm, .html) or a VIVOTEK server script executable (.vspx) file. It cannot be a CGI command or have any extra parameters. This parameter must be placed at the end of the parameter list...

  • Page 76: Available Parameters On The Server

    VIVOTEK <parameter>=<value>\r\n [<parameter pair>] Only the parameters that you set and are readable will be returned. Example: Set the IP address of server to 192.168.0.123: Request: http://myserver/cgi-bin/admin/setparam.cgi?network_ipaddress=192.168.0.123 Response: HTTP/1.0 200 OK\r\n Content-Type: text/html\r\n Context-Length: 33\r\n \r\n network.ipaddress=192.168.0.123\r\n Available parameters on the server...
  • Page 77 -200: GMT-05:00 Eastern Time, New York, Toronto -201: GMT-05:00 Bogota, Lima, Quito, Indiana -160: GMT-04:00 Atlantic Time, Canada, Caracas, La Paz, Santiago -140: GMT-03:30 Newfoundland -120: GMT-03:00 Brasilia, Buenos Aires, Georgetown, Greenland -80: GMT-02:00 Mid-Atlantic VIVOTEK User's Manual - 77...
  • Page 78 VIVOTEK -40: GMT-01:00 Azores, Cape_Verde_IS. 0: GMT Casablanca, Greenwich Mean Time: Dublin, Edinburgh, Lisbon, London 40: GMT 01:00 Amsterdam, Berlin, Rome, Stockholm, Vienna, Madrid, Paris 41: GMT 01:00 Warsaw, Budapest, Bern 80: GMT 02:00 Athens, Helsinki, Istanbul, Riga 81: GMT 02:00 Cairo...
  • Page 79 Internal model name of the server 12 characters MAC address (without hyphens). Firmware version, including model, company, and version number in the format: <MODEL-BRAND-VERSION> Number of webpage languages available on the server. Available language lists. VIVOTEK daylight saving time in User's Manual - 79...
  • Page 80 VIVOTEK Group: status NAME VALUE di_i<0~(ndi-1)> <boolean> do_i<0~(ndo-1)> <boolean> onlinenum_rtsp integer onlinenum_httppush integer Group: di_i<0~(ndi-1)> NAME normalstate Group: do_i<0~(ndo-1)> NAME normalstate Group: security NAME VALUE user_i0_name string[64] user_i<1~20>_name string[64] user_i0_pass password[64] user_i<1~20>_pass password[64] user_i0_privilege admin user_i<1~20>_ viewer, privilege operator, admin...
  • Page 81 RTSP port. RTSP authentication mode. RTSP access name for stream1. RTSP access name for stream2. The current audio track for stream1. -1 => audio mute The current audio track for stream2. -1 => audio mute VIVOTEK User's Manual - 81...
  • Page 82 VIVOTEK Subgroup of network_rtsp_s<0~(n-1)>: multicast, n is stream count NAME VALUE alwaysmulticast <boolean> ipaddress <ip address> videoport 1025 ~ 65535 audioport 1025 ~ 65535 1 ~ 255 Subgroup of network: sip NAME VALUE port 1025 ~ 65535 Subgroup of network: rtp...
  • Page 83 Bit 4 => Support zoom operation; 0(not support), 1(support) Bit 5 => Support focus operation; 0(not support), 1(support) Enclose caption. Overlay time stamp on video. Indicate exposure. 0 => auto mode 1 => shutter priority 2 => iris priority VIVOTEK User's Manual - 83...
  • Page 84 VIVOTEK shutterpriority 0~15 shutterspeed 0~10 irispriority 0~16 84 - User's Manual 3 => manual mode Indicate exposure time when choosing shutter priority in“exposurecontrol” 0 => 1/2 1 => 1/4 2 => 1/8 3 => 1/15 4 => 1/30 5 => 1/60 6 =>...
  • Page 85 1 => F19 0 => F22 Indicate gain of input 1 => 0dB 2 => 2dB 3 => 4dB 4 => 6dB 5 => 8dB 6 => 10dB 7 => 12dB 8 => 14dB 9 => 16dB VIVOTEK User's Manual - 85...
  • Page 86 VIVOTEK s<0~(m-1)>_codectype mpeg4, mjpeg s<0~(m-1)>_resolution 176x144, 320x240, 640x480 s<0~(m-1)>_mpeg4_in 250, 500, traperiod 1000, 2000, 3000, 4000 s<0~(m-1)>_mpeg4_ra cbr, vbr tecontrolmode s<0~(m-1)>_mpeg4_q uant s<0~(m-1)>_mpeg4_bi 20000 trate 30000 40000 50000 64000 128000 256000 384000 512000 768000 1000000 1200000 1500000 2000000 3000000 4000000 86 - User's Manual 10 =>...
  • Page 87 30 => 30 fps (on for 60Hz) Force I frame. SECURITY DESCRIPTION (get/set) Day mode begin time Day mode end time SECURITY DESCRIPTION (get/set) Micin => use external microphone input. Linein => use line input. Enable audio mute. 0 => Disable VIVOTEK User's Manual - 87...
  • Page 88 VIVOTEK gain boostmic s<0~(m-1)>_codectype s<0~(m-1)>_aac4_bitrate 88 - User's Manual 1 => Enable 0~31 Gain of input 31 => +12 dB 30 => +10.5 dB 29 => +9 dB 28 => +7.5 dB 27 => +6 dB 26 => +4.5 dB 25 =>...
  • Page 89 0 ~ 100 Percent of motion detection window. 0 ~ 100 Sensitivity of motion detection window. SECURITY DESCRIPTION (get/set) Enable or disable the dynamic DNS. Safe100 => safe100.net DyndnsDynamic => dyndns.org (dynamic) DyndnsCustom => dyndns.org (custom) VIVOTEK User's Manual - 89...
  • Page 90 VIVOTEK TZO, DHS, DynInterfree, CustomSafe100 <provider>_hostna string[128] <provider>_userna string[64] meemail <provider>_passwo string[64] rdkey <provider>_servern string[128] Group: upnppresentation NAME VALUE enable <boolean> Group: upnpportforwarding NAME VALUE enable <boolean> upnpnatstatus Group: syslog NAME VALUE enableremotelog <boolean> serverip <IP address> serverport 514, 1025~65535...
  • Page 91 “x11: 14930 “x12: 15236 “x13: 15504 “x14: 15738 “x15: 15938 “x16: 16112 “x17: 16258 “x18: 16384 Select corresponding uart Camera ID controlling external PTZ camera. To distinguish the video channel if mapping to a PTZ camera VIVOTEK User's Manual - 91...
  • Page 92 VIVOTEK Group: uart NAME ptzdrivers_i<0~19, 127>_name ptzdrivers_i<0~19, 127>_location Group: uart_i<0~(n-1)> n is uart port count NAME baudrate databit paritybit stopbit uartmode uartreset customdrvcmd_i<0~9> speedlink_i<0~4>_name speedlink_i<0~4>_cmd ptzdriver Group: privacymask_c<0~(n-1)> for n channel product NAME VALUE enable <boolean> win_i<0~4>_enable <boolean> win_i<0~4>_name string[14] win_i<0~4>_left...
  • Page 93 Bit 1 => Build-in or external Network Camera. 0(external), 1(build-in) Bit 2 => Support pan operation. 0(not support), 1(support) Bit 3 => Support tilt operation. 0(not support), 1(support) Bit 4 => Support zoom operation. Bit 5 => Support focus operation. VIVOTEK User's Manual - 93...
  • Page 94 VIVOTEK protocol_https < boolean > protocol_rtsp < boolean > protocol_sip <boolean> protocol_maxconn <positive integer> ection protocol_rtp_multi <boolean> cast_scalable protocol_rtp_multi <boolean> cast_backchannel protocol_rtp_tcp <boolean> protocol_rtp_http <boolean> protocol_spush_m <boolean> jpeg protocol_snmp <boolean> videoin_type 0, 1, 2 videoin_resolution <a list of available resolution separated by commas>...
  • Page 95 “di”= Digital input “motion” = Video motion detection “seq” = Periodic condition Indicate which DI detects. This field is required when trigger condition is “di”. One bit represents one digital input. The LSB indicates DI 0. VIVOTEK User's Manual - 95...
  • Page 96 VIVOTEK mdwin <integer> inter 1~999 weekday 0~127 begintime hh:mm endtime hh:mm action_do_i<0~(ndo-1) 0, 1 >_enable action_do_i<0~(ndo-1) 1~999 >_duration action_server_i<0~4>_e 0, 1 nable action_server_i<0~4>_ NULL, 0~4 media Group: server_i<0~4> PARAMETER VALUE name string[40] 96 - User's Manual Indicate which motion detection windows detect.
  • Page 97 Media type to send to the server or store on the server. Indicate the source of media stream. 0 means the first stream. 1 means the second stream and etc. Indicate the prefix of the filename. VIVOTEK User's Manual - 97...
  • Page 98 VIVOTEK snapshot_datesuffix 0, 1 snapshot_preevent 0 ~ 7 snapshot_postevent 0 ~ 7 videoclip_source <integer> videoclip_prefix string[16] videoclip_preevent 0 ~ 9 videoclip_maxduration 1 ~ 10 videoclip_maxsize 50 ~ 1500 Group: recording_i<0~1> PARAMETER VALUE name string[40] enable 0, 1 priority 0, 1, 2 source <integer>...

  • Page 99: Drive The Digital Output

    The destination to store the recorded data. “0~4” means the index of the network storage. SECURITY DESCRIPTION (get/set) Specify the HTTP push server is active for stream 1 Specify the HTTP push server is active for stream 2 VIVOTEK User's Manual - 99...

  • Page 100: Query Status Of The Digital Input

    VIVOTEK Query Status of the Digital Input Note: This request requires Viewer privileges. Method: GET/POST Syntax: http://<servername>/cgi-bin/dido/getdi.cgi?[di0][&di1][&di2][&di3] If no parameter is specified, all of the digital input statuses will be returned. Return: HTTP/1.0 200 OK\r\n Content-Type: text/plain\r\n Content-Length: <length>\r\n \r\n [di0=<state>]\r\n...

  • Page 101: Capture Single Snapshot

    VIVOTEK Syntax: http://<servername>/cgi-bin/dido/getdo.cgi?[do0][&do1][&do2][&do3] If no parameter is specified, all the digital output statuses will be returned. Return: HTTP/1.0 200 OK\r\n Content-Type: text/plain\r\n Content-Length: <length>\r\n \r\n [do0=<state>]\r\n [do1=<state>]\r\n [do2=<state>]\r\n [do3=<state>]\r\n where <state> can be 0 or 1. Example: Query the status of digital output 1.

  • Page 102: Account Management

    VIVOTEK channel 0~(n-1) resolution <available resolution> 0 quality The server will return the most up-to-date snapshot of the selected channel and stream in JPEG format. The size and quality of the image will be set according to the video settings on the server.

  • Page 103: System Logs

    Note: This request requires Administrator privileges. Method: POST Syntax: http://<servername>/cgi-bin/admin/upgrade.cgi Post data: fimage=<file name>[&return=<return page>]\r\n \r\n <multipart encoded form data> Server will accept the file named <file name> to upgrade the firmware and return with <return page> if indicated. VIVOTEK User's Manual - 103...
  • Page 104 VIVOTEK Camera Control Note: This request requires Viewer privileges. Method: GET/POST Syntax: http://<servername>/cgi-bin/viewer/camctrl.cgi?[channel=<value>][&camid=<value>][&move=<value >][&focus=<value>][&speedpan=<value>][&speedtilt=<value>][&speedzoom=<value>] [&speedfocus=<value>][&auto=<value>][&zoom=<value>][&speedlink=<value>] [&return=<return page>] PARAMETER VALUE channel <0~(n-1)> camid 0,<positive integer> move home down left right speedpan -5 ~ 5 speedtilt -5 ~ 5 speedzoom -3 ~ 3...

  • Page 105: Preset Locations

    Redirect to the page <return page> after the parameter is assigned. The <return page> can be a full URL path or relative path according to the current path. If you omit this parameter, it will redirect to an empty page. VIVOTEK User's Manual - 105...
  • Page 106 VIVOTEK IP Filtering Note: This request requires Administrator access privileges. Method: GET/POST Syntax: http://<servername>/cgi-bin/admin/ipfilter.cgi? method=<value>&[start=<ipaddress>&end=<ipaddress>][&index=<value>] [&return=<return page>] PARAMETER VALUE Method addallow adddeny deleteallow deletedeny start <ip address> <ip address> index <value> return <return page> Get SDP of Streams Note: This request requires Viewer access privileges.
  • Page 107 VIVOTEK Syntax: http://<servername>/<network_rtsp_s<0~m-1>_accessname> “m” is the stream number. “network_accessname_<0~(m-1)>” is the accessname for stream “1” to stream “m”. Please refer to the “subgroup of network: rtsp” for setting the accessname of SDP. You can get the SDP by HTTP GET.

  • Page 108: Technical Specifications

    Supports audio mute ． VIVOTEK INC. 6F, No.192, Lien-Cheng Rd., Chung-Ho,Taipei County, Taiwan |T: +886 2 82455282| F: +886 2 82455532| E: sales@vivotek.com 108 - User's Manual Networking ．10/100 Mbps Ethernet, RJ-45 ．Protocols: IPv4, TCP/IP, HTTP, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP,...

  • Page 109: Technology License Notice

    VIVOTEK Technology License Notice MPEG-4 AAC Technology THIS PRODUCT IS LICENSED UNDER THE MPEG-4 AAC AUDIO PATENT LICENSE� THIS PRODUCT MAY NOT BE DECOMPILED, REVERSE-ENGINEERED OR COPIED, EXCEPT WITH REGARD TO PC SOFTWARE, OF WHICH YOU MAY MAKE SINGLE COPIES FOR ARCHIVAL PURPOSES� FOR MORE INFORMATION, HTTP://WWW�VIALICENSING�COM�...

  • Page 110: Electromagnetic Compatibility (Emc)

    Liability VIVOTEK Inc� cannot be held responsible for any technical or typographical errors and reserves the right to make changes to the product and manuals without prior notice� VIVOTEK Inc� makes no warranty of any kind with regard to the material contained within this document, including, but not limited to, the implied warranties of merchantability and fitness for any particular purpose�...
