Vivotek IZ7151 User Manual

Vivotek IZ7151 User Manual

18x zoom progressive scan ccd
Hide thumbs Also See for IZ7151:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual
VIVOTEK - A Leading Provider of Multimedia Communication Solutions

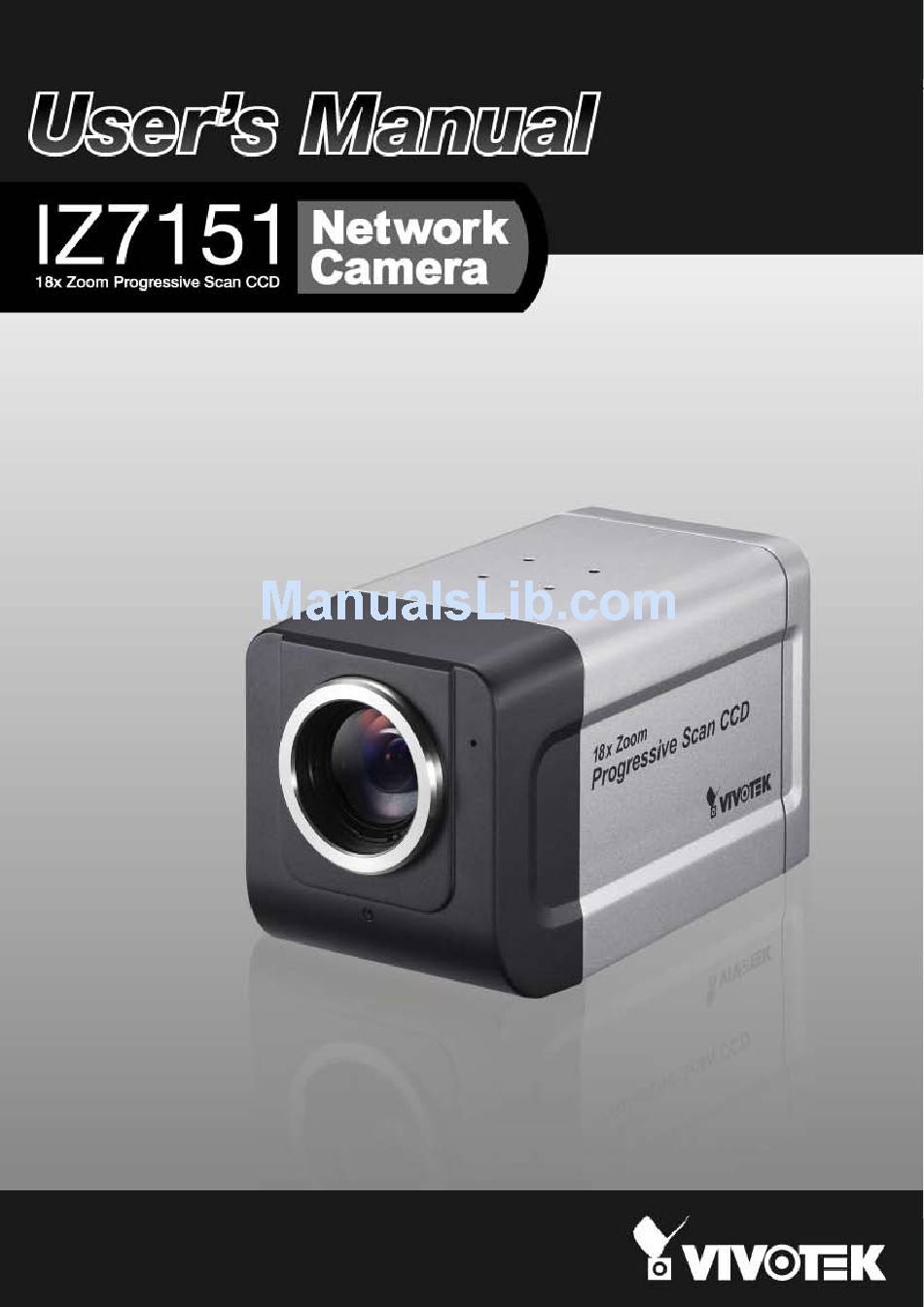

User's Manual -

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IZ7151 and is the answer not in the manual?

Questions and answers

Related Manuals for Vivotek IZ7151

Summary of Contents for Vivotek IZ7151

  • Page 1 VIVOTEK - A Leading Provider of Multimedia Communication Solutions User's Manual - ...

  • Page 2: Table Of Contents

    VIVOTEK - A Leading Provider of Multimedia Communication Solutions Table of Contents Overview3 Read before use �����������������������������������������������������������������������������������������������������������������������3 Package contents ���������������������������������������������������������������������������������������������������������������������3 Physical description ������������������������������������������������������������������������������������������������������������������4 Installation 7 Hardware installation ����������������������������������������������������������������������������������������������������������������7 Network deployment �����������������������������������������������������������������������������������������������������������������8 Software installation ���������������������������������������������������������������������������������������������������������������11 Accessing the Network Camera  Using web browsers ���������������������������������������������������������������������������������������������������������������12 Using RTSP players ���������������������������������������������������������������������������������������������������������������14 Using 3GPP mobile phones ���������������������������������������������������������������������������������������������������15 Using VIVOTEK recording software ���������������������������������������������������������������������������������������16...

  • Page 3: Overview3

    Overview Read before use VIVOTEK IZ7151, featuring a 18x zoom progressive scan CCD module that can capture superior clear images of moving objects that traditional interlaced scanning techniques can not achieve, is a powerful Network Camera for both day and night applications� It effectively reduce motion blur and distorted, jagged edges of recorded images�...

  • Page 4: Physical Description

    VIVOTEK - A Leading Provider of Multimedia Communication Solutions Physical description Front View Built-in Microphone Status LED Rear View External/Internal Microphone switch Microphone in Audio out Ext. Int. Audio Ethernet 10/100 Power cord socket RJ45 socket Ethernet 1 2 3 4 5 6 7 8 RESET General I/O Indented reset button...

  • Page 5: Status Led

    VIVOTEK - A Leading Provider of Multimedia Communication Solutions DI/DO Diagram Pin 1~4 are used to connect with digital input and digital output devices� Refer to the following illustration for connection method� PIN 1 Power+12V PIN 2 Digital output +12V PIN 3 Digital input PIN 4...

  • Page 6: Hardware Reset

    VIVOTEK - A Leading Provider of Multimedia Communication Solutions Hardware Reset 1 2 3 4 5 6 7 8 RESET Ext. Int. Audio Ethernet 1 2 3 4 5 6 7 8 RESET There is a indented reset button on the back panel of the Network Camera� It is used to reboot the Network Camera or restore the Network Camera to factory default�...

  • Page 7: Installation 7

    VIVOTEK - A Leading Provider of Multimedia Communication Solutions Installation Hardware installation Follow the steps below to install the Network Camera to the wall / ceiling� Attach the top mounting stand to the Network Camera using the supplied screws� Fasten the Network Camera stand to the wall / ceiling� Secure the Network Camera to the stand�...

  • Page 8: Network Deployment

    VIVOTEK - A Leading Provider of Multimedia Communication Solutions Network deployment Setup the Network Camera over the Internet This section explains how to configure the Network Camera to Internet connection� There are several ways to setup the Network Camera over the Internet� The first way is to setup the Network Camera behind a router�...
  • Page 9 VIVOTEK - A Leading Provider of Multimedia Communication Solutions Internet connection with static IP Choose this connection type if you are required to use a static IP for the Network Camera� Set up the Network Camera in a local area network� Go to Configuration >...
  • Page 10 VIVOTEK - A Leading Provider of Multimedia Communication Solutions Power over Ethernet (PoE) The Network Camera is PoE-compliant, allowing transmission of power and data via single Ethernet cable� If your switch/router support PoE, refer to the following illustration to connect the Network Camera to a PoE-enabled switch/router via Ethernet cable�...

  • Page 11: Software Installation

    VIVOTEK - A Leading Provider of Multimedia Communication Solutions Software installation Installation Wizard 2, a software packaged in the product CD, helps to located your Network Camera in a local area network� Install the "Installation Wizard 2" under the Software Utility directory from software CD� Double click the Installation Wizard 2 shortcut on your desktop to launch the program�...

  • Page 12: Accessing The Network Camera

    VIVOTEK - A Leading Provider of Multimedia Communication Solutions Accessing the Network Camera This chapter explains how to access the Network Camera using web browsers, RTSP players, 3GPP mobile phones and VIVOTEK recording software� Using web browsers Launch your web browser (ex� Microsoft Internet Explorer, Mozilla Firefox or Netscape)�...
  • Page 13 VIVOTEK - A Leading Provider of Multimedia Communication Solutions ► If you see a dialog box indicating that your security settings prohibit running ActiveX ® Controls, please enable your ActiveX Controls for your browser. ® Choose Tools > Internet Options > Security > Custom Level. Look for Download signed ActiveX controls;...

  • Page 14: Using Rtsp Players

    VIVOTEK - A Leading Provider of Multimedia Communication Solutions Using RTSP players To view the MPEG-4 streaming media using RTSP players, you can use one of the following players that support RTSP streaming� Quick Time Player Real Player VLC media player mpegable Player pvPlayer Launch a RTSP player�...

  • Page 15: Using 3Gpp Mobile Phones

    VIVOTEK - A Leading Provider of Multimedia Communication Solutions Using 3GPP mobile phones To view the streaming media using mobile phones, make sure the Network Camera is setup on the Internet� For more information on how to set up the Network Camera over the internet, see Setup the Network Camera over the Internet on page 8�...

  • Page 16: Using Vivotek Recording Software

    VIVOTEK - A Leading Provider of Multimedia Communication Solutions Using VIVOTEK recording software The product software contains a recording software, allowing simultaneous monitoring and video recording for multiple Network Cameras� Please install the recording software; then launch the program to add the Network Camera to the Channel list� For detailed information on how to use the recording software, please refer to the user’s manual packaged with the software or download it at http://www�vivotek�com  - User's Manual...

  • Page 17: Main Page 7

    VIVOTEK - A Leading Provider of Multimedia Communication Solutions Main Page This chapter explains the layout of the main page� It is composed of the following four sections: VIVOTEK Logo, Menu, Host Name and Live Video Window� VIVOTEK logo Host name Live video window Menu VIVOTEK Logo...
  • Page 18 VIVOTEK - A Leading Provider of Multimedia Communication Solutions Zoom speed Focus speed Slower Faster Host Name The host name can be customized to fit your needs� For more information, see Host Name System on page 23� Live Video Window The following window is displayed when the video mode is set to MPEG-4: MPEG-4 protocol and media options Video title...
  • Page 19 VIVOTEK - A Leading Provider of Multimedia Communication Solutions Click this button to record video clips in MP4 file format to your computer� Start MP4 Recording Press the Stop MP4 recording button to end recording� When you qite the web browser, video recording stops accordingly�...
  • Page 20 VIVOTEK - A Leading Provider of Multimedia Communication Solutions Click this button to record video clips in MP4 file format to your computer� Start MP4 Recording Press the Stop MP4 recording button to end recording� When you qite the web browser, video recording stops accordingly�...

  • Page 21: Client Settings

    VIVOTEK - A Leading Provider of Multimedia Communication Solutions Client Settings This chapter explains how to select the streaming source, transmission mode and saving options at local computer� It is composed of the following four sections: Stream Options, MPEG-4 Media Options, MPEG-4 Protocol Options and MP4 Saving Options�...

  • Page 22: Mp4 Saving Options

    VIVOTEK - A Leading Provider of Multimedia Communication Solutions This protocol allows the same quality as TCP protocol and the users don’t need to open HTTP specific port for streaming under some network environment� Users inside a firewall can utilize this protocol to allow streaming data to come through�...

  • Page 23: Configuration 3

    VIVOTEK - A Leading Provider of Multimedia Communication Solutions Configuration Only Administrators can access the system configuration page� Each category in the left column will be explained in the following sections� System This section explains how to configure the basic settings for the Network Camera, such as the host name and system time�...
  • Page 24 VIVOTEK - A Leading Provider of Multimedia Communication Solutions According to your local time zone, select one from the drop-down list� Time zone Select this option to reserve the current date and time of the Network Keep current date and time Camera�...

  • Page 25: Security

    VIVOTEK - A Leading Provider of Multimedia Communication Solutions Security This section explains how to enable password protection and create multiple accounts� It is composed of the following three columns: Root Password, Add User and Manage User� Root Password The administrator account "root" is permanent and can not be deleted� Please note that if you want to add more accounts, you must apply a password for the root administrator first�...
  • Page 26 VIVOTEK - A Leading Provider of Multimedia Communication Solutions Here you can change user’s access rights or delete user accounts� Pull down the user list to find an account. Make necessary changes and then click Save or Delete to take effect�  - User's Manual...

  • Page 27: Network

    VIVOTEK - A Leading Provider of Multimedia Communication Solutions Network This section explains how to configure wired network connection for the Network Camera� It is composed of the following five columns: Network Type, HTTP, Two way audio, FTP and RTSP Streaming�...
  • Page 28 VIVOTEK - A Leading Provider of Multimedia Communication Solutions If the default ports are already used by other device connecting to the same router, the Network Camera will select other ports for the Network Camera� If UPnP is not supported by your router, you will see the following message� PPPoE Select this option to configure your Network Camera to make it accessible from anywhere as long as there is an Internet connection�...
  • Page 29 VIVOTEK - A Leading Provider of Multimedia Communication Solutions In the Add or Remove Programs dialog box, click Add/Remove Windows Components� In the Windows Components Wizard dialog box, select Networking Services and then click Details� In the Networking Services dialog box, select Universal Plug and Play and then click OK�...
  • Page 30 VIVOTEK - A Leading Provider of Multimedia Communication Solutions Click Next in the following window� Click Finish� UPnP is enabled� ► How does UPnP work? UPnP networking technology provides automatic IP configuration and dynamic discovery of devices added to a network. Services and capabilities offered by networked devices, such as printing and file sharing, are available among each other without bothersome network configuration.
  • Page 31 VIVOTEK - A Leading Provider of Multimedia Communication Solutions port is set to 8080� Also, they can be assigned with another port number between 1025 and 65535� If the ports are incorrectly assigned, the following warning messages are displayed: To access the Network Camera within a local area network, both HTTP port and secondary HTTP port can be used to access the Network Camera�...
  • Page 32 VIVOTEK - A Leading Provider of Multimedia Communication Solutions ► Microsoft Internet Explorer does not support server push technology; therefore, using http:// ® <ip address>:<http port>/<access name for stream1 or stream2> will fail to access the Network Camera Two way audio By default, the two way audio port is set to 5060�...

  • Page 33: Rtsp Streaming

    VIVOTEK - A Leading Provider of Multimedia Communication Solutions The FTP server allows the Network Camera to utilize VIVOTEK Installation Wizard 2 to upgrade firmware� By default, the FTP port is set to 21� Also, it can be assigned with another port number between 1025 and 65535�...
  • Page 34 VIVOTEK - A Leading Provider of Multimedia Communication Solutions rtsp://<ip address>:<rtsp port>/<access name for stream1 or stream2> For example, when the access name for stream 1 is set to live�sdp: Launch a RTSP player� Choose File > Open URL. This opens the URL dialog box. Type the URL command in the text box�...
  • Page 35 VIVOTEK - A Leading Provider of Multimedia Communication Solutions address and allows multiple clients to acquire the stream by requesting a copy from the Multicast group address� The five ports can be changed between 1025 and 65535� The multicast RTP port must be an even number and the multicast RTCP port is multicast RTP port number plus one, and thus always be odd�...

  • Page 36: Ddns

    VIVOTEK - A Leading Provider of Multimedia Communication Solutions DDNS This section explains how to configure dynamic domain name service for the Network Camera� DDNS is a service that allows your Network Camera, especially when assigned with a dynamic IP address, to have a fixed host and domain name�...
  • Page 37 VIVOTEK - A Leading Provider of Multimedia Communication Solutions [Register] Successfully� Your account information has been mailed to registered e-mail address� Click Copy and all the registered information will be uploaded to the corresponding fields in the DDNS column� Select Enable DDNS and then click Save to take effect� ■...
  • Page 38 VIVOTEK - A Leading Provider of Multimedia Communication Solutions ■ Dyndns�org(Dynamic) / Dyndns�org(Custom) visit http://www�dyndns�com/ ■ TZO�com visit http://www�tzo�com/ ■ DHS�org visit http://www�dhs�org/ ■ dyn-interfree�it visit http://dyn-interfree�it/ Dyndns�org(Dynamic) / Dyndns�org(Custom) TZO�com DHS�org dyn-interfree�it Click this button if you forget the key of Safe100 or CustomSafe100� Your account Forget key information will be sent to your email address�...

  • Page 39: Access List

    VIVOTEK - A Leading Provider of Multimedia Communication Solutions Access list This section explains how to control the access permission by checking the client PC’s IP addresses� It is composed of the following four columns: Allowed list, Denied list, Delete allowed list and Delete denied list Allowed list / Denied list There are two lists for permission control: Allowed list and Denied list�...
  • Page 40 VIVOTEK - A Leading Provider of Multimedia Communication Solutions Delete allowed list / Delete denied list In the Delete allowed list or Delete denied list, select a list from the drop-down list� Click Delete to take effect� 0 - User's Manual...

  • Page 41: Audio And Video

    VIVOTEK - A Leading Provider of Multimedia Communication Solutions Audio and video This section explains how to cofigure audio and video performances of the Network Camera� It is composed of the following two columns: Video settings and Audio settings� Video settings Enter a name that will be displayed on the title bar of the live video�...

  • Page 42: Image Settings

    VIVOTEK - A Leading Provider of Multimedia Communication Solutions Horizontally reflect the display of the live video� Select both options if the Network Camera is installed upside-down (ex� on the ceiling) to correct the image orientation� Select this option to place the video title and time on video Overlay title and time stamp on video streams�...
  • Page 43 VIVOTEK - A Leading Provider of Multimedia Communication Solutions Select Keep current value to confirm the setting while the white balance is being measured. Click Save to take effect� Adjust the image brightness in fifteen steps from -7 (least bright) ~ +7 (brightest)� By Brightness default, the brightness is set to 0�...
  • Page 44 VIVOTEK - A Leading Provider of Multimedia Communication Solutions Exposure ■ Auto The Network Camera automatically adjusts the iris and gain, but fixed shutter speed (1/30 s) in response to different environment� The exposure setting defaults to Auto and works well in most situations�...
  • Page 45 VIVOTEK - A Leading Provider of Multimedia Communication Solutions The Network Camera switches on the infrared cut filter at all times to block the infrared light from reaching the sensor so that the colors are not distorted� ■ Night mode The Network Camera switches off the infrared cut filter to allow the infrared light to pass through�...
  • Page 46 VIVOTEK - A Leading Provider of Multimedia Communication Solutions be needed for data transmission� Therefore, if Constant bit rate is selected, the bandwidth utilization is fixed at a selected level, resulting in mutable video quality performances� The bit rates are selectable at the following rates: 20Kbps, 30Kbps, 40Kbps, 50Kbps, 64Kbps, 128Kbps, 256Kbps, 512Kbps, 768Kbps, 1Mbps, 2Mbps, 3Mbps and 4Mbps�...

  • Page 47: Audio Settings

    VIVOTEK - A Leading Provider of Multimedia Communication Solutions WindowA Audio Settings Select this option to disable audio transmission from the Network Camera to all clients� Mute Note that if mute mode is turned on, no audio data will be transmitted to all clients even though the audio transmission is enabled in the Client Settings page�...
  • Page 48 VIVOTEK - A Leading Provider of Multimedia Communication Solutions Camera. Alternatively, you can use external microphone to capture audio. The internal/external microphone switch is located on the back panel of the Network Camera Ext. Int. Audio Ext. Int. Audio Ethernet 1 2 3 4 5 6 7 8 RESET  - User's Manual...

  • Page 49: Motion Detection

    VIVOTEK - A Leading Provider of Multimedia Communication Solutions Motion detection This section explains how to configure the Network Camera to enable motion detection� A total of three motion detection windows can be configured� To enable motion detection, follow the steps below� Click New to add a new motion detection window�...
  • Page 50 VIVOTEK - A Leading Provider of Multimedia Communication Solutions NOTE : ► In a privacy mask window, motion detection will not take effect. WindowA ► How does motion detection work? There are two parameters for setting the motion detection: Sensitivity and Percentage. In the illustration above, frame A and frame B are two sequential images.
  • Page 51 VIVOTEK - A Leading Provider of Multimedia Communication Solutions motion window will be outlined in red. For applications that require higher security management, it is suggested to set higher sensitivity settings and smaller percentage values User's Manual - ...

  • Page 52: Camera Control

    VIVOTEK - A Leading Provider of Multimedia Communication Solutions Camera control This section explains how to control the Network Camera's Pan/Tilt operation by connecting with a PTZ scanner� RS-485 Settings Select this option to enable PTZ operation� Enable PTZ Operation To utilize this feature, please connect the Network Camera with a PTZ scanner via RS485 interface first�...

  • Page 53: Preset Position

    VIVOTEK - A Leading Provider of Multimedia Communication Solutions Return the Network Camera to home position� Adjust the speed of pan and tilt� Pan / Tilt speed Pan speed Tilt speed Slower Faster Select a preset position from the Go to drop-down list� Note that the preset Preset position position field is empty by default�...

  • Page 54: Custom Command

    VIVOTEK - A Leading Provider of Multimedia Communication Solutions To set a preset position, follow the steps below� Adjust the Network Camera to a desired position using the buttons on the right side of the window� In the Preset position name text box, enter a descriptive name for the preset position� The preset position name allows up to forty characters�...
  • Page 55 VIVOTEK - A Leading Provider of Multimedia Communication Solutions NOTE : ► If Custom camera is selected as the PTZ driver, the PTZ control buttons will not take effect. Please go to Configuration > Camera control > Custom Command to set the commands in the Control settings session.

  • Page 56: Application

    VIVOTEK - A Leading Provider of Multimedia Communication Solutions Application This section explains how to configure the Network Camera to react in response to particular situations� A typical application is that when a motion is detected, the Network Camera sends buffered images to a FTP server or via e-mail as notifications�...
  • Page 57 VIVOTEK - A Leading Provider of Multimedia Communication Solutions Select to send snapshots when a trigger is activated� Snapshot ■ Source Select to take snapshots from stream 1 or stream 2� ■ Send pre-event images The Network Camera has a buffer area; it temporarily holds data up to a certain limit� Specify to capture how many images before a trigger is activated�...

  • Page 58: Server Settings

    VIVOTEK - A Leading Provider of Multimedia Communication Solutions record video clips for how many seconds before a trigger is activated� Up to nine seconds can be set� ■ Maximum duration Specify the maximal recording duration in seconds� Up to ten seconds can be set� For example, if the Pre-event recording is set to five seconds and the Maximum duration is set to ten seconds, the Network Camera continues to record for another four seconds after a trigger is activated�...
  • Page 59 VIVOTEK - A Leading Provider of Multimedia Communication Solutions Enter a descriptive name for the server setting� Server name There are four choices of server types available: Server Type Select to send the media via Email when a trigger is activated� Email ■...
  • Page 60 VIVOTEK - A Leading Provider of Multimedia Communication Solutions ■ Server address Enter the domain name or IP address of the FTP server� ■ Server port By default, the FTP port server is set to 21� Also, it can be assigned with another port number between 1025 and 65535�...
  • Page 61 VIVOTEK - A Leading Provider of Multimedia Communication Solutions Select to send the media to a network storage when a trigger is activated� Network storage ■ Network storage location Enter the path of the network storage� ■ Workgroup Enter the workgroup for network storage� ■...
  • Page 62 VIVOTEK - A Leading Provider of Multimedia Communication Solutions An event is an action initiated by user-defined trigger source; it is the causal arrangement of the following three elements: ■ Trigger, also referred as the cause or stimulus, defines when to trigger the Network Camera� The trigger source can be configured to use the Network Camera's built-in motion detection mechanism or external digital input devices�...
  • Page 63 VIVOTEK - A Leading Provider of Multimedia Communication Solutions ■ Digital input Select this option to allow the Network Camera to use external digital input device as a trigger source� Depending on your applications, there are choices of digital input devices on the market which helps to sense any changes in temperature, vibration, sound and light, etc�...

  • Page 64: Recording

    VIVOTEK - A Leading Provider of Multimedia Communication Solutions Recording This section explains how to configure the recording settings for the Network Camera� Recording Settings Click Add to open the recording setting page� In this page, you can define the recording source, recording schedule and recording capacity�...
  • Page 65 VIVOTEK - A Leading Provider of Multimedia Communication Solutions User's Manual - ...

  • Page 66: System Log

    VIVOTEK - A Leading Provider of Multimedia Communication Solutions System log This section explains how to configure the Network Camera to send system log to remote server as a backup� It is composed of the following two columns: Remote Log and Current Log� Remote Log You can configure the Network Camera to send the system log file to a remote server as a log backup�...

  • Page 67: View Parameters

    VIVOTEK - A Leading Provider of Multimedia Communication Solutions View parameters The View parameters page lists the entire system’s parameters in alphabetical order� If you need technical assistance, please provide the information listed in this page� User's Manual - 7...

  • Page 68: Maintenance

    VIVOTEK - A Leading Provider of Multimedia Communication Solutions Maintenance This chapter explains how to restore the Network Camera to factory default, upgrade firmware version, etc� Reboot This feature allows you to turn off and then turn on the Network Camera� It takes about one ~ two minutes to complete the process�...
  • Page 69 VIVOTEK - A Leading Provider of Multimedia Communication Solutions Upload / Export Daylight Saving Time Configuration File This feature allows you to set the starting time and ending time of DST� In the Export Daylight Saving Time Configuration File Column, click Export to export an Extensible Markup Language (*�xml) file from the Network Camera�...
  • Page 70 VIVOTEK - A Leading Provider of Multimedia Communication Solutions Click Upload� To enable the DST, see System Time on page 21� The following message is displayed when attempting to upload an incorrect file format� Upgrade Firmware This feature allows you to upgrade the firmware on your Network Camera� It takes about five minutes to complete the process�...
  • Page 71 VIVOTEK - A Leading Provider of Multimedia Communication Solutions The following message is displayed when you have selected an incorrect firmware file� Starting firmware upgrade... Do not power down the server during the upgrade. The server will restart automatically after the upgrade is completed.

  • Page 72: Url Commands Of The Network Camera

    VIVOTEK - A Leading Provider of Multimedia Communication Solutions Appendix URL Commands of the Network Camera Overview For some customers who already have their own web site or web control application, Network Camera/Video server can be easily integrated through convenient URLs� This section specifies the external HTTP based application programming interface�...

  • Page 73: Security Level

    VIVOTEK - A Leading Provider of Multimedia Communication Solutions Syntax: http://<servername>/cgi-bin/<subdir>[/<subdir>...]/<cgi>.<ext> [?<parameter>=<value>[&<parameter>=<value> ���]] Example: Setting digital output #1 to active http://mywebserver/cgi-bin/dido/setdo.cgi?do1=1 Security level Security level Sub-directory Description anonymous Unprotected anonymous, viewer, dido, 1� Can view, listen, talk to Network Camera 1 [view] camctrl 2�...

  • Page 74: Set Server Parameter Values

    VIVOTEK - A Leading Provider of Multimedia Communication Solutions Request: http://192.168.0.123/cgi-bin/admin/getparam.cgi?network_ipaddress Response: HTTP/1�0 200 OK\r\n Content-Type: text/html\r\n Context-Length: 33\r\n \r\n network.ipaddress=192.168.0.123\r\n Set server parameter values Note: The access right depends on the URL directory� Method: GET/POST Syntax: http://<servername>/cgi-bin/anonymous/setparam.cgi? <parameter>=<value> [&<parameter>=<value>… ][&update=<value>][&return=<return page>] http://<servername>/cgi-bin/viewer/setparam.cgi? <parameter>=<value>...

  • Page 75: Available Parameters On The Server

    VIVOTEK - A Leading Provider of Multimedia Communication Solutions Request: http://myserver/cgi-bin/admin/setparam.cgi?network_ipaddress=192.168.0.123 Response: HTTP/1�0 200 OK\r\n Content-Type: text/html\r\n Context-Length: 33\r\n \r\n network.ipaddress=192.168.0.123\r\n Available parameters on the server Valid values: Valid values Description string[<n>] Text string shorter than ‘n’ characters. The characters “,’, <,>,& are invalid. password[<n>] The same as string but display ‘*’...
  • Page 76 VIVOTEK - A Leading Provider of Multimedia Communication Solutions Indicate timezone and area -480: GMT-12:00 Eniwetok, Kwajalein -440: GMT-11:00 Midway Island, Samoa -400: GMT-10:00 Hawaii -360: GMT-09:00 Alaska -320: GMT-08:00 Las Vegas, San_Francisco, Vancouver -280: GMT-07:00 Mountain Time, Denver -281: GMT-07:00 Arizona -240: GMT-06:00 Central America, Central Time, Mexico City, Saskatchewan -200: GMT-05:00 Eastern Time, New York, Toronto...
  • Page 77 VIVOTEK - A Leading Provider of Multimedia Communication Solutions Restore the system parameters to default value�Restart the restore <positive integer> server after <value> seconds. reset Restart the server after <value> seconds. <positive integer> Restore the system parameters to default value except restoreexceptnet (ipaddress, subnet, router, dns1, dns2, ddns settings)�...
  • Page 78 VIVOTEK - A Leading Provider of Multimedia Communication Solutions Security Name Value Description (get/set) user_i0_name string[64] User’s name of root user_i<1~20> string[64] User’s name _name user_i0_pass string [64] Root’s password user_i<1~20> string [64] User’s password _pass user_i0_privilege admin Root’s privilege user_i<1~20>...
  • Page 79 VIVOTEK - A Leading Provider of Multimedia Communication Solutions 554, 1025 ~ port RTSP port 65535 disable authmode basic RTSP authentication mode digest s0_accessname string[32] RTSP access name for stream 1 s1_accessname string[32] RTSP access name for stream 2 s0_audiotrack <integer>...
  • Page 80 VIVOTEK - A Leading Provider of Multimedia Communication Solutions deny_i<0~9> 1�0�0�0 ~ Denied ending IP address for RTSP connection _end 255�255�255�255 Group: videoin Security Name Value Description (get/set) cmosfreq CMOS frequency 1 => Auto whitebalance 2 => Keep current value enableblc <boolean>...
  • Page 81 VIVOTEK - A Leading Provider of Multimedia Communication Solutions Indicate exposure time when choosing shutter priority in “exposurecontrol” 0 => 1/2 1 => 1/4 2 => 1/8 3 => 1/15 4 => 1/30 5 => 1/60 6 => 1/90 shutterpriority 0~15 7 =>...
  • Page 82 VIVOTEK - A Leading Provider of Multimedia Communication Solutions Indicate gain of input 1 => 0dB 2 => 2dB 3 => 4dB 4 => 6dB 5 => 8dB 6 => 10dB 7 => 12dB gain 1~15 8 => 14dB 9 => 16dB 10 =>...
  • Page 83 VIVOTEK - A Leading Provider of Multimedia Communication Solutions Set maximum frame rate in fps (for MPEG-4)� 1 => 1 fps 2 => 2 fps 3 => 3 fps s<0~(m-1)>_ 5 => 5 fps mpeg4_ 8 => 8 fps maxframe 10 =>...
  • Page 84 VIVOTEK - A Leading Provider of Multimedia Communication Solutions Gain of input 31 => +12 dB 30 => +10.5 dB 29 => +9 dB 28 => +7.5 dB 27 => +6 dB 26 => +4.5 dB 25 => +3 dB 24 =>...
  • Page 85 VIVOTEK - A Leading Provider of Multimedia Communication Solutions Group: image_c<0~(n-1)> for n channel products Security Name Value Description (get/set) brightness -7 ~ 7 Adjust brightness of image according to mode settings sharpness -7 ~ 7 Adjust sharpness of image according to mode settings� Group: motion_c<0~(n-1)>...
  • Page 86 VIVOTEK - A Leading Provider of Multimedia Communication Solutions enable <boolean> Enable or disable the UPNP presentation service� Group: upnpportforwarding Security Name Value Description (get/set) enable <boolean> Enable or disable the UPNP port forwarding service� The status of UpnP port forwarding, used internally� 0 is OK upnpnatstatus 1 is FAIL...
  • Page 87 VIVOTEK - A Leading Provider of Multimedia Communication Solutions Group: uart Security Name Value Description (get/set) ptzdrivers_i <0~19, 127>_ string[40] The name of the PTZ driver name ptzdrivers_i<0~ 19, 127>_ string[128] The full path of the PTZ driver location enablehttptunnel <boolean> Enable HTTP tunnel channel to control UART Group:uart_i<0~(n-1)>...
  • Page 88 VIVOTEK - A Leading Provider of Multimedia Communication Solutions Security Name Value Description (get/set) enable <boolean> Enable the privacy mask win_i<0~4>_ <boolean> Enable the privacy mask window enable win_i<0~4>_ string[14] The name of privacy mask window name win_i<0~4>_left 0 ~ 320/352 Left coordinate of window position�...
  • Page 89 VIVOTEK - A Leading Provider of Multimedia Communication Solutions protocol_rtp_mult icast_backchann <boolean> Indicate whether to support backchannel multicast protocol_rtp_tcp <boolean> Indicate whether to support rtp over tcp protocol_rtp_http <boolean> Indicate whether to support rtp over http protocol_spush_ <boolean> Indicate whether to support server push motion jpeg mjpeg protocol_snmp <boolean>...
  • Page 90 VIVOTEK - A Leading Provider of Multimedia Communication Solutions wireless_encrypt <boolean> Indicate whether to support the wireless WPA2 _wpa2 Group: event_i<0~2> Security Name Value Description (get/set) name string[40] The identification of this entry To enable or disable this event� enable 0 =>...
  • Page 91 VIVOTEK - A Leading Provider of Multimedia Communication Solutions action_server_i< NULL, 0~4 The index of attached media� 0~4>_media Group: server_i<0~4> Security Name Value Description (get/set) name string[40] The identification of this entry Indicate the server type� email, “email” is email server� ftp, type “ftp”...

  • Page 92: Drive The Digital Output

    VIVOTEK - A Leading Provider of Multimedia Communication Solutions snapshot_ It indicates the number of pre-event images� preevent snapshot_ The number of post-event images� postevent Indicate the source of media stream� videoclip_source <integer> 0 means the first stream� 1 means the second stream and etc� videoclip_prefix string[16] Indicate the prefix of the filename�...
  • Page 93 VIVOTEK - A Leading Provider of Multimedia Communication Solutions Syntax: http://<servername>/cgi-bin/dido/setdo.cgi?do1=<state>[&do2=<state>][&do3=<state>][&do4=<state>][&return =<return page>] Where state is 0, 1� “0” means inactive or normal state while “1” means active or triggered state� Parameter Value Description 0 => inactive, normal state do<num> 1 =>...

  • Page 94: Capture Single Snapshot

    VIVOTEK - A Leading Provider of Multimedia Communication Solutions http://<servername>/cgi-bin/dido/getdo.cgi?[do0][&do1][&do2][&do3] If no parameter is specified, all the status of digital output will be returned� Return: HTTP/1�0 200 OK\r\n Content-Type: text/plain\r\n Content-Length: <length>\r\n \r\n [do0=<state>]\r\n [do1=<state>]\r\n [do2=<state>]\r\n [do3=<state>]\r\n where <state> can be 0 or 1. Example: Query the status of digital output 1 Request: http://myserver/cgi-bin/dido/getdo.cgi?do1...

  • Page 95: System Logs

    VIVOTEK - A Leading Provider of Multimedia Communication Solutions Syntax: http://<servername>/cgi-bin/admin/editaccount.cgi?method=<value>&username=<name>[&userpass=<value>][ &privilege=<value>][&privilege=<value>][…] [&return=<return page>] Parameter Value Description When using this method, “username” field is necessary� It will use default value of other fields if not specified� Remove an account from server� When using this delete method, “username”...
  • Page 96 VIVOTEK - A Leading Provider of Multimedia Communication Solutions fimage=<file name>[&return=<return page>]\r\n \r\n <multipart encoded form data> Server will accept the upload file named <file name> to be upgraded the firmware and return with <return page> if indicated. IP filtering Note: This request requires administrator access privilege Method: GET/POST Syntax:...
  • Page 97 VIVOTEK - A Leading Provider of Multimedia Communication Solutions Parameter Value Description Add a set of allow IP address range to server� Start and end parameters must be specified� If the index addallow parameter is specified, it will try to add starting from index position�...
  • Page 98 VIVOTEK - A Leading Provider of Multimedia Communication Solutions rtsp://<servername>/<network_rtsp_s<0~m-1>_accessname> “m” is the stream number� For detailed streaming protocol, please refer to “control signaling” and “data format” documents� Camera Control Note: This request requires privilege of viewer Method: GET/POST Syntax: http://<servername>/cgi-bin/viewer/camctrl.cgi?[channel=<value>][&camid=<value>][&move=<value>][&focus= <value>][&iris=<value>][&speedpan=<value>][&speedtilt=<value>][&speedzoom=<value>] [&speedapp=<value >][&auto=<value>][&zoom=<value>][&speedlink=<value>][&return=<return page>]...

  • Page 99: Preset Locations

    VIVOTEK - A Leading Provider of Multimedia Communication Solutions channel <0~(n-1)> channel of video source Redirect to the page <return page> after the parameter is assigned. The <return page> can be a full URL path return <return page> or relative path according to the current path� If you omit this parameter, it will redirect to an empty page�...

  • Page 100: Technical Specifications

    VIVOTEK - A Leading Provider of Multimedia Communication Solutions Technical Specifications System Image Settings ■ CPU: VVTK-1000 SoC ■ Adjustable image size, quality, and bit rate ■ Flash: 8MB ■ Time stamp and text caption overlay ■ RAM: 64MB ■ Flip &...
  • Page 101 VIVOTEK - A Leading Provider of Multimedia Communication Solutions LED Indicator ■ System power and status indicator ■ System activity and network link indicator Power ■ 12V DC ■ 24V AC ■ 802�3af compliant Power over Ethernet Approvals CE, FCC, C-Tick, LVD, MIC Operating Environments ■...

  • Page 102: Technology License Notice

    VIVOTEK - A Leading Provider of Multimedia Communication Solutions Technology License Notice MPEG-4 AAC Technology THIS PRODUCT IS LICENSED UNDER THE MPEG-4 AAC AUDIO PATENT LICENSE� THIS PRODUCT MAY NOT BE DECOMPILED, REVERSE-ENGINEERED OR COPIED, EXCEPT REGARD TO PC SOFTWARE, YOU MAY MAKE SINGLE COPIES FOR ARCHIVAL PURPOSES� FOR MORE INFORMATION, PLEASE REFER TO HTTP://WWW�VIALICENSING�COM�...

  • Page 103: Electromagnetic Compatibility (Emc)

    VIVOTEK - A Leading Provider of Multimedia Communication Solutions Electromagnetic Compatibility (EMC) This device compiles with FCC Rules Part 15� Operation is subject to the following two conditions� ■ This device may not cause harmful interference, and ■ This device must accept any interference received, including interference that may cause undesired operation�...
