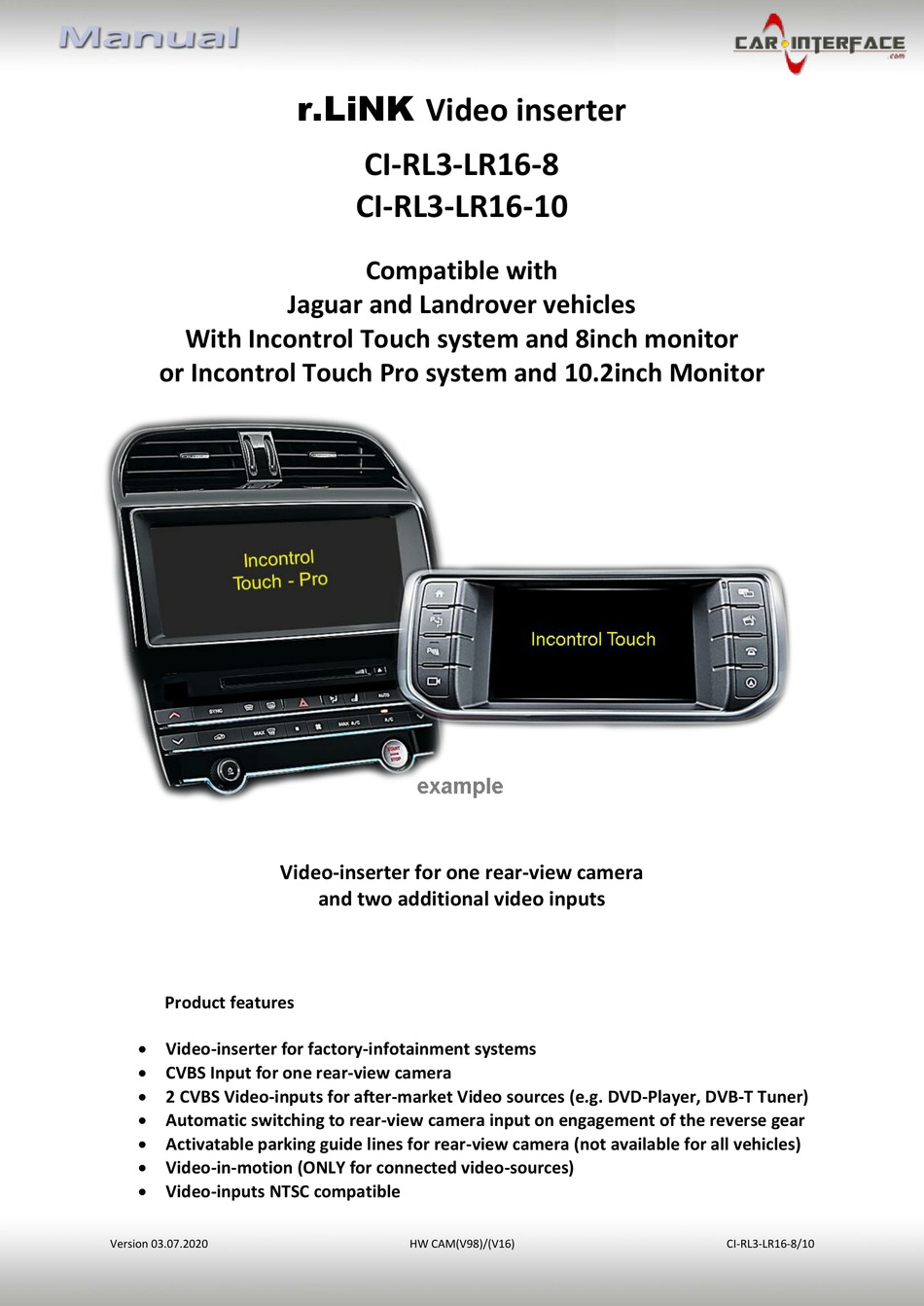

r.LiNK Video inserter
CI-RL3-LR16-8
CI-RL3-LR16-10
Compatible with
Jaguar and Landrover vehicles
With Incontrol Touch system and 8inch monitor
or Incontrol Touch Pro system and 10.2inch Monitor
Video-inserter for one rear-view camera
and two additional video inputs
Product features
Video-inserter for factory-infotainment systems
CVBS Input for one rear-view camera
2 CVBS Video-inputs for after-market Video sources (e.g. DVD-Player, DVB-T Tuner)
Automatic switching to rear-view camera input on engagement of the reverse gear
Activatable parking guide lines for rear-view camera (not available for all vehicles)
Video-in-motion (ONLY for connected video-sources)
Video-inputs NTSC compatible
Version 03.07.2020
HW CAM(V98)/(V16)
CI-RL3-LR16-8/10
Advertisement
Table of Contents
Related Manuals for Car-Interface CI-RL3-LR16-8
Summary of Contents for Car-Interface CI-RL3-LR16-8
- Page 1 Video inserter CI-RL3-LR16-8 CI-RL3-LR16-10 Compatible with Jaguar and Landrover vehicles With Incontrol Touch system and 8inch monitor or Incontrol Touch Pro system and 10.2inch Monitor Video-inserter for one rear-view camera and two additional video inputs Product features Video-inserter for factory-infotainment systems ...
-
Page 2: Table Of Contents
Case 2Interface does not receive the reverse gear signal 2.6. Connecting - video-interface and external keypad 2.7. Picture settings and guide lines 3. Interface operation 3.1. By factory infotainment button 3.2. By keypad 4. Specifications 5. FAQ – Trouble Shooting-Interface functions Version 03.07.2020 HW CAM(V98)/(V16) CI-RL3-LR16-8/10... -
Page 3: Prior To Installation
Due to changes in the production of the vehicle manufacturer there’s always a possibility of incompatibility. 1.1. Delivery contents Take down the serial number of the interface and store this manual for support purposes: ____________________ Version 03.07.2020 HW CAM(V98)/(V16) CI-RL3-LR16-8/10... -
Page 4: Checking The Compatibility Of Vehicle And Accessories
Video input signal Only NTSC video sources compatible PDC and guidelines If the video interface does not receive the required information from the vehicle CAN-bus, neither guide-lines nor optical PDC display will be supported. Version 03.07.2020 HW CAM(V98)/(V16) CI-RL3-LR16-8/10... -
Page 5: Boxes And Connectors - Video Interface
CVBS Video 2-input enabled disabled No function set to OFF Rear-view cam type after-market factory or none Guide lines enabled disabled enabled disabled Monitor size 8inch 10.2inch See the following chapters for detailed information. Version 03.07.2020 HW CAM(V98)/(V16) CI-RL3-LR16-8/10... -
Page 6: Enabling The Interface's Video Inputs (Dip 2-3)
Using the 10,2inch monitor, the dip switch setting is OFF. Size of monitor Dip 8 8inch – INCONTROL TOUCH 10.2inch – INCONTROL TOUCH PRO Note: Dip 1 and 4 are out of function and have to be set to OFF! Version 03.07.2020 HW CAM(V98)/(V16) CI-RL3-LR16-8/10... -
Page 7: Settings Of The 4 Dip Switches (Can Function - Red)
Depending on the vehicle, the head unit may be located at the following places: Behind the trim panel in the boot on the left (e.g. F-Pace 10.2 inch - not 8 inch) Under the rear centre console Under the driver seat Under the passenger seat. Version 03.07.2020 HW CAM(V98)/(V16) CI-RL3-LR16-8/10... -
Page 8: Connection Schema
2.2. Connection schema Version 03.07.2020 HW CAM(V98)/(V16) CI-RL3-LR16-8/10... -
Page 9: Connection - Factory Head Unit And Monitor
Connect the female aubergine coloured HSD+2 connector opposite the picture signal cable to the waterblue coloured male HSD+2 connector „HU IN“ of the video interface. Note: The colours of the HSD+2 connectors at monitor and head unit may vary. Version 03.07.2020 HW CAM(V98)/(V16) CI-RL3-LR16-8/10... - Page 10 Connect the angled female aubergine coloured HSD+2 connector opposite the picture signal cable to the waterblue coloured male HSD+2 connector „HU IN“ of the video interface. Note: The colours of the HSD+2 connectors at monitor and head unit may vary. Version 03.07.2020 HW CAM(V98)/(V16) CI-RL3-LR16-8/10...
-
Page 11: Connection - Quadlock - Can
Quadlock connector at the rear-side of the head unit. Note: If, after connecting the PNP harness, no interface LED lightens up while the ignition is turned on, refer to chapter “Analogue power supply for the video interface” Version 03.07.2020 HW CAM(V98)/(V16) CI-RL3-LR16-8/10... -
Page 12: Incontrol Touch Pro Head Unit (10,2 Inch Monitor - Rl3-Lr16-10)
24pin connector at the rear-side of the head unit. Note: If, after connecting the PNP harness, no interface LED lightens up while the ignition is turned on, refer to chapter “Analog power supply for the video interface” Version 03.07.2020 HW CAM(V98)/(V16) CI-RL3-LR16-8/10... -
Page 13: Analog Power Supply For The Video Interface
ACC-out (max 3A) and the purple coloured wire Manual ACC of the 12pin interface cable both have to be connected additionately to S-contact terminal 86s +12V (e.g. glove compartment illumination). Version 03.07.2020 HW CAM(V98)/(V16) CI-RL3-LR16-8/10... -
Page 14: Connection - Video-Sources
Connect the video RCA of the Rear-view camera to the female RCA connector “Camera IN” of the 12pin interface cable. Connect the video RCA of the video source 1 and 2 to the female RCA connector “Video IN1” ”Video IN 2” of the 12pin interface cable. Version 03.07.2020 HW CAM(V98)/(V16) CI-RL3-LR16-8/10... -
Page 15: Audio Insertion
“Camera IN” while the reverse gear is engaged. Additionally, the +12V (max. 3A) power supply for the rear-view camera can be taken from the green wire of the 12pin interface cable. Version 03.07.2020 HW CAM(V98)/(V16) CI-RL3-LR16-8/10... - Page 16 Connect the output connector (87) of the relay to the rear-view camera’s power- cable, like you did it to the green “Reverse-IN” cable before. Connect stabile and permanent +12V to the relay’s input connector (30). Version 03.07.2020 HW CAM(V98)/(V16) CI-RL3-LR16-8/10...
-
Page 17: Connecting - Video-Interface And External Keypad
Connect the keypad’s female 4pin connector to the male 4pin connector of the 12pin interface cable. Note: Even if switching through several video sources by the keypad mightn’t be required, the invisible connection and availability is strongly recommended. Version 03.07.2020 HW CAM(V98)/(V16) CI-RL3-LR16-8/10... -
Page 18: Picture Settings And Guide Lines
If there is no communication between interface and the vehicle`s CAN-bus (several vehicles aren’t compatible), the reverse gear guide-lines can`t be shown during the vehicle’s operation, even if they once appear after having switched the system to powerless! Version 03.07.2020 HW CAM(V98)/(V16) CI-RL3-LR16-8/10... -
Page 19: Interface Operation
Each press will switch to the next enabled input. Inputs which are not enabled will be skipped. Switchover by vehicle buttons isn’t possible in all vehicles. In some vehicles the external keypad has to be used. Version 03.07.2020 HW CAM(V98)/(V16) CI-RL3-LR16-8/10... -
Page 20: By Keypad
7V - 25V Stand-by power drain 12mA Power 170mA @12V Video input 0.7V - 1V Video input formats NTSC Temperature range -40°C to +85°C Dimensions video-box 118 x 25 x 105 mm (W x H x D) Version 03.07.2020 HW CAM(V98)/(V16) CI-RL3-LR16-8/10... -
Page 21: Faq - Trouble Shooting-Interface Functions
Camera input picture fluorescent light which shines Test camera under natural light outside the garage. flickers. directly into the camera. Camera input picture is Protection sticker not Remove protection sticker from lens. bluish. removed from camera lens. Version 03.07.2020 HW CAM(V98)/(V16) CI-RL3-LR16-8/10... - Page 22 Cut the grey wire of 6pin to 8pin and isolate both Interface switches compatibility to vehicle is ends. If problem still occurs, additionally cut the white video-sources by itself. limited. wire of 6pin to 8pin cable and isolate both ends. 10R-03 5384 Made in China Version 03.07.2020 HW CAM(V98)/(V16) CI-RL3-LR16-8/10...
