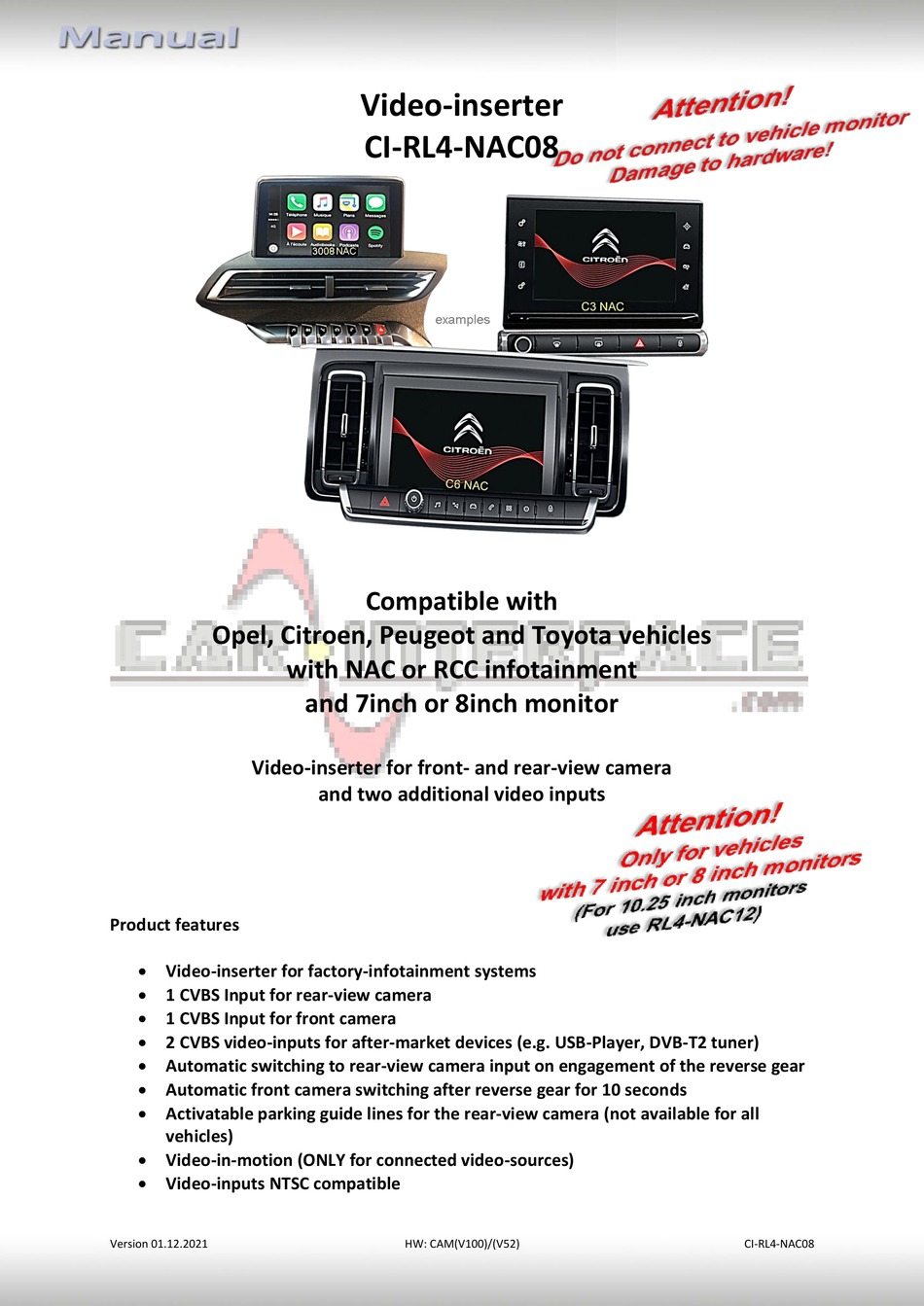

Opel, Citroen, Peugeot and Toyota vehicles
Video-inserter for front- and rear-view camera
Product features
Video-inserter for factory-infotainment systems
1 CVBS Input for rear-view camera
1 CVBS Input for front camera
2 CVBS video-inputs for after-market devices (e.g. USB-Player, DVB-T2 tuner)
Automatic switching to rear-view camera input on engagement of the reverse gear
Automatic front camera switching after reverse gear for 10 seconds
Activatable parking guide lines for the rear-view camera (not available for all
vehicles)
Video-in-motion (ONLY for connected video-sources)
Video-inputs NTSC compatible
Version 01.12.2021
Video-inserter
CI-RL4-NAC08

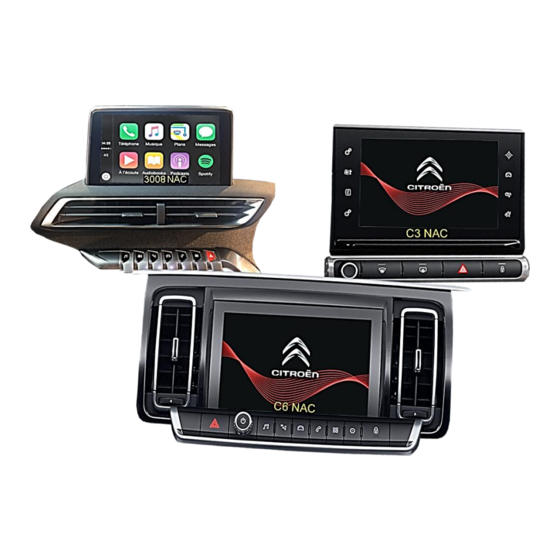

Compatible with
with NAC or RCC infotainment
and 7inch or 8inch monitor
and two additional video inputs
HW: CAM(V100)/(V52)
CI-RL4-NAC08
Advertisement
Table of Contents
Related Manuals for Car-Interface CI-RL4-NAC08
Summary of Contents for Car-Interface CI-RL4-NAC08
- Page 1 Video-inserter CI-RL4-NAC08 Compatible with Opel, Citroen, Peugeot and Toyota vehicles with NAC or RCC infotainment and 7inch or 8inch monitor Video-inserter for front- and rear-view camera and two additional video inputs Product features Video-inserter for factory-infotainment systems 1 CVBS Input for rear-view camera ...
-
Page 2: Table Of Contents
Case 2: Video interface does not receive the reverse gear signal 2.6. Connection - external keypad 2.7. Picture settings and guide lines 3. Interface operation 3.1. By NAVI button 3.2. By external keypad 4. Specifications 5. FAQ – Trouble shooting Version 01.12.2021 HW: CAM(V100)/(V52) CI-RL4-NAC08... -
Page 3: Prior To Installation
Read the manual prior to installation. Technical knowledge is necessary for installation. The place of installation must be free of moisture and away from heat sources. 1.1. Delivery contents Take down the serial number of the interface and store this manual for support purposes: ____________________ Version 01.12.2021 HW: CAM(V100)/(V52) CI-RL4-NAC08... -
Page 4: Checking The Compatibility Of Vehicle And Accessories
For Continental High version an additional 5008 II since 02/2017, cable CAB-HSD-MF026 might be required Expert III since 03/2016, Partner III since 06/2018, Rifter since 09/2018, Traveller since 09/2016 Toyota ProAce since model year 2016 RCC (Bosch) Version 01.12.2021 HW: CAM(V100)/(V52) CI-RL4-NAC08... - Page 5 Video input signal NTSC video sources compatible only. NAC high-version If the two HSD connectors cannot be separated for the reconnection of the white HSD socket, the separately available cable CAB-HSD-MF026 can optionally be connected here. Version 01.12.2021 HW: CAM(V100)/(V52) CI-RL4-NAC08...
-
Page 6: Warning Notes
-the 4pin HSD connectors of this harness are wrong-plugged -the 4pin HSD harness is connected to the vehicle monitor Prior to installation, the head-unit’s version has to be determined (see following page). Version 01.12.2021 HW: CAM(V100)/(V52) CI-RL4-NAC08... - Page 7 Dip 8 switch position (see following chapters) high version head-unit (double black male 4pin HSD on the backside) Please, carefully follow the manual for high or low version connection of the head unit and the assignment of the Dip-8 switch position! Version 01.12.2021 HW: CAM(V100)/(V52) CI-RL4-NAC08...
-
Page 8: Connection Video-Interface
If you do not know the resolution, test both settings. Power reset after change of dip switches necessary. See the following chapters for detailed information. After each Dip-switch-change a power-reset of the Can-box has to be performed! Version 01.12.2021 HW: CAM(V100)/(V52) CI-RL4-NAC08... -
Page 9: Adjustment - Power Supply Output (Dip 1)
Note: If you do not know the resolution, test both settings. Note: Dip4 and 7 are out of function and have to be set to OFF. After each Dip-switch-change a power-reset of the interface box has to be performed! Version 01.12.2021 HW: CAM(V100)/(V52) CI-RL4-NAC08... -
Page 10: Settings Of The 4 Dip Switches (Can Function - Red)
Erfahrungswerte zu Einbauorten: Radio/Navi in Peugeot 2008 FY 2019 vehicles: Directly behind the display. Head Units in Peugeot 5008 and Opel Grandland X vehicles: Behind the centre console (for this, remove the panel in the passenger footwell). Version 01.12.2021 HW: CAM(V100)/(V52) CI-RL4-NAC08... -
Page 11: Connection Schema
2.2. Connection schema Version 01.12.2021 HW: CAM(V100)/(V52) CI-RL4-NAC08... -
Page 12: Connection - Picture Signal Cable
4pin HSD connector of the enclosed 4pin HSD harness. Connect the waterblue coloured female 4pin HSD connector to the previously become free black 4pin HSD connector at the rearside of the head unit. Version 01.12.2021 HW: CAM(V100)/(V52) CI-RL4-NAC08... -
Page 13: High Version Head Unit (2 X 4 Pin Hsd)
Attention: The picture’s representation of the double 4-pin HSD connector may be reversed. Make sure that the white 4pin HSD connector is reconnected to the same position of the head unit, where it has been connected before! Version 01.12.2021 HW: CAM(V100)/(V52) CI-RL4-NAC08... -
Page 14: Connection- Power / Can
Connect the singel four cables of the POWER / CAN cable to ACC and exactely to the 22pin connector’s shown chambers, as the vehicle’s cable colours may vary! Connect the power / CAN cable’s female 10pin connector to the 10pin connector of the video interface. Version 01.12.2021 HW: CAM(V100)/(V52) CI-RL4-NAC08... -
Page 15: Installation With Analogue Connection (Without Can-Bus)
Connect the female 12pin connector of the 12pin interface cable to the male 12pin connector of the video interface. Connect the 12pin interface cable’s purple coloured wire Manual ACC to +12V or to +12V S-contact terminal 86s +12V (e.g. glove compartment illumination). Version 01.12.2021 HW: CAM(V100)/(V52) CI-RL4-NAC08... -
Page 16: Power Supply Output
+12V (max. 3A) when reverse gear is engaged incl. 10 seconds delay after reverse gear is disengaged and +12V by manual switching to front camera by keypad (short press) Dip 1 OFF +12V (max. 3A) simulated ACC (while CAN has activity) Version 01.12.2021 HW: CAM(V100)/(V52) CI-RL4-NAC08... -
Page 17: Connection - Video Sources
Connect the front camera’s video RCA connector to the 12pin interface cable’s female RCA connector „Front V3“. Connect the video RCA of the AV source 1 and 2 to the 12pin interface cable’s female RCA connector “Left (V1)” ”Right (V2)”. Version 01.12.2021 HW: CAM(V100)/(V52) CI-RL4-NAC08... -
Page 18: Audio Insertion
Note: In addition, a manual switch-over to the front camera input is possible via keypad (short press) from any image mode. The power supply output supplies +12V then, too (if Dip 1 is set to ON and the front camera input is selected). Version 01.12.2021 HW: CAM(V100)/(V52) CI-RL4-NAC08... -
Page 19: After-Market Rear-View Camera
The 12 V power supply for the rear-view camera (max 3A) has to be taken from the green wire of the 20pin cable to avoid an unnecessary, permanent power supply to the camera electronic. For the operation, both green cables “Reverse IN” “Reverse OUT” have to remain connected. Version 01.12.2021 HW: CAM(V100)/(V52) CI-RL4-NAC08... -
Page 20: Case 2: Video Interface Does Not Receive The Reverse Gear Signal
Connect the output connector (87) of the relay to the rear-view camera’s power- cable, like you did it to the green “Reverse-IN” cable before. Connect permanent power / 12V to the relay’s input connector (30). Version 01.12.2021 HW: CAM(V100)/(V52) CI-RL4-NAC08... -
Page 21: Connection - External Keypad
Connect the keypad’s female 4pin connector to the video-interface’s male 4pin connector. Note: Even if the switching through several video sources by the keypad mightn’t be required, the invisible connection and availability is strongly recommended. Version 01.12.2021 HW: CAM(V100)/(V52) CI-RL4-NAC08... -
Page 22: Picture Settings And Guide Lines
Note: If the vehicle’s CAN communication does not support the video interface, the guide- lines cannot be used, even if they’re once shown with the first operation! Version 01.12.2021 HW: CAM(V100)/(V52) CI-RL4-NAC08... -
Page 23: Interface Operation
Factory video video IN1 video IN2 factory video … By dip switch deactivated inputs will be skipped. Switchover by vehicle buttons isn’t possible in all vehicles. In some vehicles the external keypad has to be used. Version 01.12.2021 HW: CAM(V100)/(V52) CI-RL4-NAC08... -
Page 24: Specifications
7V - 25V Stand-by power drain Power 290mA @12V Video input 0.7V – 1V Video input formats NTSC Temperature range -40°C to +85°C Dimensions Video-Box 118 x 23 x 105 mm (W x H x D) Version 01.12.2021 HW: CAM(V100)/(V52) CI-RL4-NAC08... -
Page 25: Faq - Trouble Shooting
Camera input picture fluorescent light which shines Test camera under natural light outside the garage. flickers. directly into the camera. Camera input picture is Protection sticker not Remove protection sticker from lens. bluish. removed from camera lens. Version 01.12.2021 HW: CAM(V100)/(V52) CI-RL4-NAC08... - Page 26 Cut the grey wire of 6pin to 8pin and isolate both Interface switches compatibility to vehicle is ends. If problem still occurs, additionally cut the white video-sources by itself. limited. wire of 6pin to 8pin cable and isolate both ends. 10R-05 0068 Made in China Version 01.12.2021 HW: CAM(V100)/(V52) CI-RL4-NAC08...
