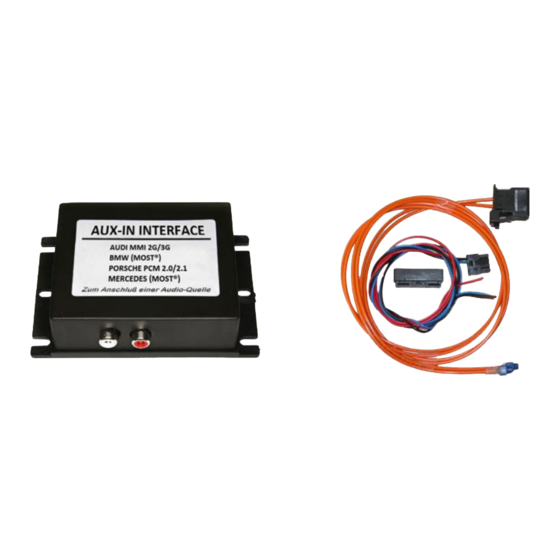

- Page 1 AUX-In Interface CI-AUX-110 Compatible with: Audi MMI3G basic/high BMW Professional radio, Business and Professional navigation systems (CCC, CIC) with iDrive, Mercedes Benz Audio5, Audio20, APS50, Comand APS NTG1/NTG2, Porsche PCM 2.0 and 2.1 Version 07.12.2015...
- Page 2 To receive a free update, the interface must be sent in at own cost. Labor cost for and other expenses involved with the software-updates will not be refunded. Version 07.12.2015 CI-AUX-110...
- Page 3 A existing factory CD-changers must be removed. BMW without If factory CD-changer has never been installed, the head-unit MOST®-components needs to be coded to CD-changer by diagnosis computer or OBD-xxx-CD-xx activator. Mercedes/Porsche without MOST®-ring needs to be activated by diagnosis computer MOST®-components Version 07.12.2015 CI-AUX-110...
- Page 4 Obey arrows one the MOST® -connectors as well as the order of components. Connect black wire to ground and red wire to permanent +12V. Isolate blue wire. Black wire Red wire +12V permanent 2.3. Installation example Porsche Cayenne PCM 2.1 Version 07.12.2015 CI-AUX-110...
- Page 5 In this case a connector bridge for optical wires is necessary. 2.5. Exception: Vehicles without optical lead components Mercedes/Porsche The MOST®-ring (optical) needs to be opened/activated by diagnosis computer. 3. Operation Version 07.12.2015 CI-AUX-110...
- Page 6 -30°C bis +80°C Weight Measurements (box only) B x H x T 106 x 30 x 71 mm Legal disclaimer: Mentioned company and trademarks, as well as product names/codes are registered trademarks ® of their corresponding legal owners. Version 07.12.2015 CI-AUX-110...
