Compatible with Ford vehicles with
with 6.5, 7 or 8inch tablet monitor
Sync Connected Radio version
Video-inserter for front- and rear-view camera
Product features
Video-inserter for factory-infotainment systems
1 CVBS Input for rear-view camera
1 CVBS Input for front camera
2 CVBS video-inputs for after-market devices (e.g. USB-Player, DVB-T2 tuner)
Automatic switching to rear-view camera input on engagement of the reverse gear
Automatic front camera switching after reverse gear for 10 seconds
Activatable parking guide lines for rear-view camera (not available for all vehicles)
Video-in-motion (ONLY for connected video-sources)
Video-inputs NTSC and PAL compatible
Version 30.12.2021
Video-inserter
CI-RL4-SY3-R5
Sync3 Light (R5) version
with 4inch monitor
and two additional video sources
HW: CAM(V100)/(V11+V41)
ab Serien Nr: NZ20NOV694
CI-RL4-SY3-R5
Advertisement
Table of Contents
Related Manuals for Car-Interface CI-RL4-SY3-R5
Summary of Contents for Car-Interface CI-RL4-SY3-R5

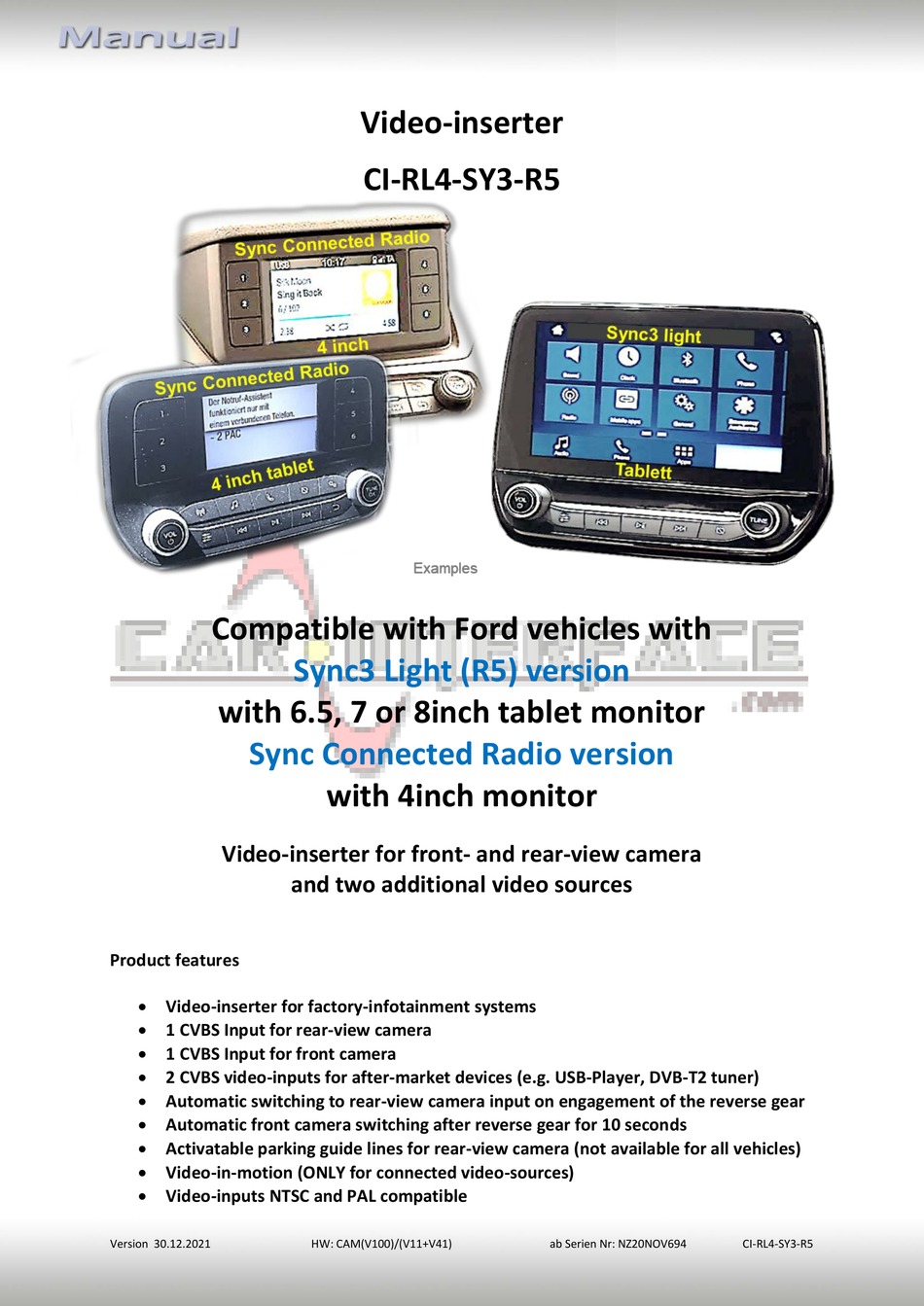

- Page 1 Video-inserter CI-RL4-SY3-R5 Compatible with Ford vehicles with Sync3 Light (R5) version with 6.5, 7 or 8inch tablet monitor Sync Connected Radio version with 4inch monitor Video-inserter for front- and rear-view camera and two additional video sources Product features Video-inserter for factory-infotainment systems ...
-
Page 2: Table Of Contents
Case 2: Interface does not receive the reverse gear signal 3.4. Connection video-interface and keypad 3.5. Picture settings 4. Interface operation 4.1. By infotainment button 4.2. By keypad 5. Specifications 6. FAQ – Trouble Shooting-Interface functions Version 30.12.2021 HW: CAM(V100)/(V11+V41) ab Serien Nr: NZ20NOV694 CI-RL4-SY3-R5... -
Page 3: Prior To Installation

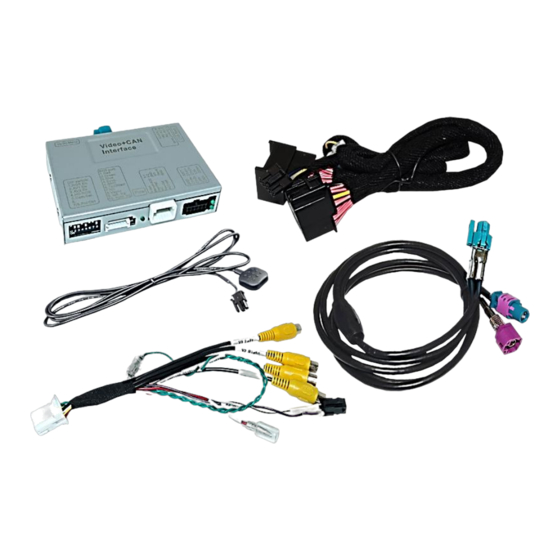

The place of installation has to be free of moisture and away from heat sources. 1.1. Delivery contents Take down the serial number of the interface and store this manual for support purposes: ____________________ Version 30.12.2021 HW: CAM(V100)/(V11+V41) ab Serien Nr: NZ20NOV694 CI-RL4-SY3-R5... -
Page 4: Checking The Compatibility Of Vehicle And Accessories
The front camera will automatically be switched for 10 seconds after disengaging the reverse gear. A manually front camera switching is possible by external keypad. Guidelines and PDC Displayed guidelines and PDC are not available in all vehicles. Version 30.12.2021 HW: CAM(V100)/(V11+V41) ab Serien Nr: NZ20NOV694 CI-RL4-SY3-R5... -
Page 5: Connectors - Video Interface
Further it reads the vehicle’s digital signals out of the vehicle’s CAN-bus and converts them for the video interface. Version 30.12.2021 HW: CAM(V100)/(V11+V41) ab Serien Nr: NZ20NOV694 CI-RL4-SY3-R5... -
Page 6: Dip Switch Settings
*The front camera will automatically be switched for 10 seconds after disengaging the reverse gear. After each Dip-switch-change a power-reset of the Video Interface has to be performed! See the following chapters for detailed information. Version 30.12.2021 HW: CAM(V100)/(V11+V41) ab Serien Nr: NZ20NOV694 CI-RL4-SY3-R5... -
Page 7: Activating The Front Camera Input (Dip 1)
If set to OFF, 6.5-, 7- and 8inch monitors are selected on the interface. Note: Dip8 is out of function and has to be set to OFF. After each Dip-switch-change a power-reset of the Video Interface has to be performed! Version 30.12.2021 HW: CAM(V100)/(V11+V41) ab Serien Nr: NZ20NOV694 CI-RL4-SY3-R5... -
Page 8: Dip - Red
(head unit), a DIN housing. In most vehicles, this is located behind/below the monitor in the centre console. There is no APIM module with these Sync versions. Version 30.12.2021 HW: CAM(V100)/(V11+V41) ab Serien Nr: NZ20NOV694 CI-RL4-SY3-R5... -
Page 9: Connection Schema
2.2. Connection schema Version 30.12.2021 HW: CAM(V100)/(V11+V41) ab Serien Nr: NZ20NOV694 CI-RL4-SY3-R5... -
Page 10: Connection - Picture Signal Cable
Note: No liability for vehicle wire colours and pin definition! Changes by the vehicle manufacturer are possible. The given information has to be verified by the installer. Version 30.12.2021 HW: CAM(V100)/(V11+V41) ab Serien Nr: NZ20NOV694 CI-RL4-SY3-R5... -
Page 11: Connection - Pnp Power / Can Cable
32pin connector of the enclosed PNP Power/CAN cable. Connect the enclosed PNP Power / CAN cable’s opposite female 32pin connector to the previously become free male 32pin connector of the head-unit. Version 30.12.2021 HW: CAM(V100)/(V11+V41) ab Serien Nr: NZ20NOV694 CI-RL4-SY3-R5... -
Page 12: Special Case: Sync3 Full Version
Installation location is behind the monitor and on the APIM module - the APIM module is located behind the centre console or behind the glove box. Note: The radio module is a separate DIN-sized module and is NOT required for installation! Version 30.12.2021 HW: CAM(V100)/(V11+V41) ab Serien Nr: NZ20NOV694 CI-RL4-SY3-R5... - Page 13 Connect the single brown cable to the vehicle’s Ground. Note: No liability for vehicle wire colours and pin definition! Changes by the vehicle manufacturer are possible. The given information has to be verified by the installer. Version 30.12.2021 HW: CAM(V100)/(V11+V41) ab Serien Nr: NZ20NOV694 CI-RL4-SY3-R5...
- Page 14 Connect the single brown cable to the vehicle’s Ground. Note: No liability for vehicle wire colours and pin definition! Changes by the vehicle manufacturer are possible. The given information has to be verified by the installer. Version 30.12.2021 HW: CAM(V100)/(V11+V41) ab Serien Nr: NZ20NOV694 CI-RL4-SY3-R5...
-
Page 15: Installation With Analogue Connection (Without Can-Bus)
Connect the female 12pin connector of the 12pin interface cable to the male 12pin connector of the video interface. Connect the 12pin interface cable’s purple coloured wire Manual ACC to+12V ACC S-contact terminal 86s +12V (e.g. glove compartment illumination). Version 30.12.2021 HW: CAM(V100)/(V11+V41) ab Serien Nr: NZ20NOV694 CI-RL4-SY3-R5... -
Page 16: Power Supply Output
+12V (max. 3A) when reverse gear is engaged incl. 10 seconds delay after reverse gear is disengaged and +12V by manual switching to front camera by keypad (short press) Dip 1 OFF +12V (max. 3A) ACC Version 30.12.2021 HW: CAM(V100)/(V11+V41) ab Serien Nr: NZ20NOV694 CI-RL4-SY3-R5... -
Page 17: Connection - Video Sources
Connect the front camera’s video RCA connector to the 12pin interface cable’s female RCA connector „Front V3“. Connect the video RCA of the AV source 1 and 2 to the 12pin interface cable’s female RCA connector “Left (V1)” ”Right (V2)”. Version 30.12.2021 HW: CAM(V100)/(V11+V41) ab Serien Nr: NZ20NOV694 CI-RL4-SY3-R5... -
Page 18: Audio Insertion
(short press) from any image mode. The power supply output gives +12V then, as well (if Dip 1 is set to ON and the front camera input is selected). Attention: A long press of the external keypad push button will switch the interface to the next source. Version 30.12.2021 HW: CAM(V100)/(V11+V41) ab Serien Nr: NZ20NOV694 CI-RL4-SY3-R5... -
Page 19: After-Market Rear-View Camera
The 12 V power supply for the rear-view camera (max 3A) has to be taken from the 12pin interface cabl’s green wire “Reverse-OUT” to avoid an unnecessary, permanent power supply to the camera electronic. Both green cables “Reverse IN” “Reverse OUT” have to remain connected. Version 30.12.2021 HW: CAM(V100)/(V11+V41) ab Serien Nr: NZ20NOV694 CI-RL4-SY3-R5... -
Page 20: Case 2: Interface Does Not Receive The Reverse Gear Signal
Connect the output connector (87) of the relay to the rear-view camera’s power- cable, like you did it to the green “Reverse-IN” cable before. Connect permanent power / 12V to the relay’s input connector (30). Version 30.12.2021 HW: CAM(V100)/(V11+V41) ab Serien Nr: NZ20NOV694 CI-RL4-SY3-R5... -
Page 21: Connection Video-Interface And Keypad
Connect the keypad’s female 4pin connector to the 12pin interface cable’s male 4pin connector. Note: Even if the switching through several video sources by the keypad mightn’t be required, the keypad’s invisible connection and availability is strongly recommended. Version 30.12.2021 HW: CAM(V100)/(V11+V41) ab Serien Nr: NZ20NOV694 CI-RL4-SY3-R5... -
Page 22: Picture Settings
Note: The OSD menu is only shown when a working video source is connected to the selected video-input of the interface. The following settings are available Contrast Brightness Saturation Position H (horizontal) Position V (vertical) Version 30.12.2021 HW: CAM(V100)/(V11+V41) ab Serien Nr: NZ20NOV694 CI-RL4-SY3-R5... -
Page 23: Interface Operation
Short press of keypad (only if DIP 1 is set to ON) By short pressing the external keypad, the video interfaces witches from the factory video to the front camera input and back to factory video. Version 30.12.2021 HW: CAM(V100)/(V11+V41) ab Serien Nr: NZ20NOV694 CI-RL4-SY3-R5... -
Page 24: Specifications
Video input formats NTSC / PAL RGB-video amplitude 0.7V with 75 Ohm impedance Temperature range -40°C to +85°C Dimensions video-box 118 x 25 x 104 mm (W x H x D) Version 30.12.2021 HW: CAM(V100)/(V11+V41) ab Serien Nr: NZ20NOV694 CI-RL4-SY3-R5... -
Page 25: Faq - Trouble Shooting-Interface Functions
Test camera under natural light outside the garage. flickers. directly into the camera. Camera input picture is Protection sticker not Remove protection sticker from lens. bluish. removed from camera lens. Version 30.12.2021 HW: CAM(V100)/(V11+V41) ab Serien Nr: NZ20NOV694 CI-RL4-SY3-R5... - Page 26 If problem still occurs, additionally cut the white video-sources by itself. limited. wire of 6pin to 8pin cable and isolate both ends. 10R-05 0068 Made in China Version 30.12.2021 HW: CAM(V100)/(V11+V41) ab Serien Nr: NZ20NOV694 CI-RL4-SY3-R5...
