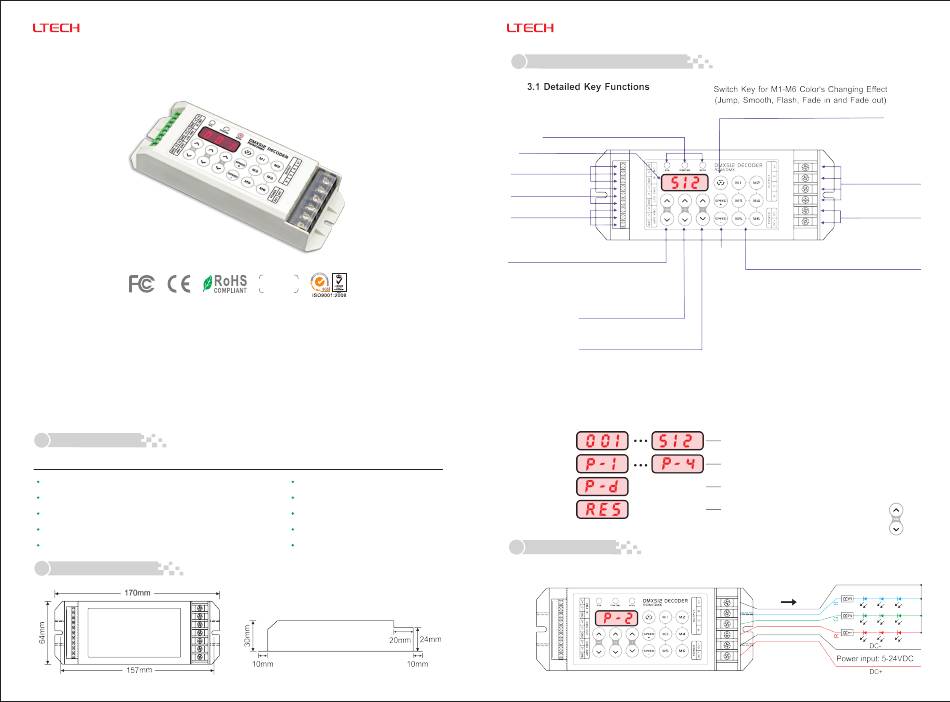

Ltech LT-860-8A Quick Start Manual

LT-860-8A
CV RDM/DMX Decoder
LT-860-8A is a 3CH RDM/ DMX CV decoder with three digital tubes displaying DMX address, built-in
DMX signal amplifier. Support four self-testing dynamic change modes. Any color adjusted by DMX
console can be stored on the decoder and played dynamically offline. A user-friendly way to DIY
changing effect.
LT-860-8A, w ith the standard RDM remote device management protocol, supports DMX512 signal
bi-directional communication, achieves remote management of reading and writing DMX address (DMX
master controller must recognize the RDM protocol). Realize
workable with single color, bi-color or RGB LED lamps.
1. Technical Specs:
LT-860-8A
Input Signal: RDM, DMX512
Input Voltage 5~24VDC :
Max Current Load: 8A×3CH Max 24A
Max Power Load: 120W/288W/576W(5V/12V/24V)
Gray Scale Level: 256 Levels per Channel
2. Product Dimension:
LT-860-8A CV RDM/DMX Decoder
warranty
5 years
0-100% dimming or different lighting effect;
Dimming Range: 0~100%
Working Temperature -30℃~55℃ :
Dimensions : L170×W64×H30mm
Package Size : L172×W66×H34mm
Weight (G.W) : 215g
1
3. Operation Interface Instruction:
for R UN
Indicator Light ,
DMX/ Mode, Self-testing Mode.
RDM
Nixie Tube Display
DMX Signal
Input Socket
DMX Signal
Output Socket
Inside DMX
Signal Amplifier
Address values
hundreds of digits+/-
Setting the hundreds for DMX address(0-5).
Setting 4 kinds of self-testing dynamic modes
when continue to add/subtract(6-9, display P1-P4).
Address values
ten's place+/-
Address values
unit's place+/-
In the DMX Decoder Mode, the "
RDM/ DMX" indicator light is on, the "RUN" indicator light flash
quickly if RDM/DMX signal input. In the self-testing mode or editing dynamic effect mode, the "MODE"
indicator light is on.
3.2 Nixie Tube State Display
4. Wiring Diagram:
4.1 Stand-alone Use
LT-860-8A CV RDM/DMX Decoder
(Other function: long press to turn on/off the buzzer)
LED Lamps
Connection Socket
Power Input
Socket
Speed
DMX Console Color
Save Keys
(Short press to display the preset static color.
Long press to save the current RGB data of DMX console)
DMX Address
1-4 Self-testing Dynamic Mode:
RGB jumping/7 color jumping/RGB fading/7 color fading
Play DIY Dynamic Mode
Recovery Parameter:
Press "100+"key and "100-" key at same time
