Summary of Contents for ViewZ vz19rtld

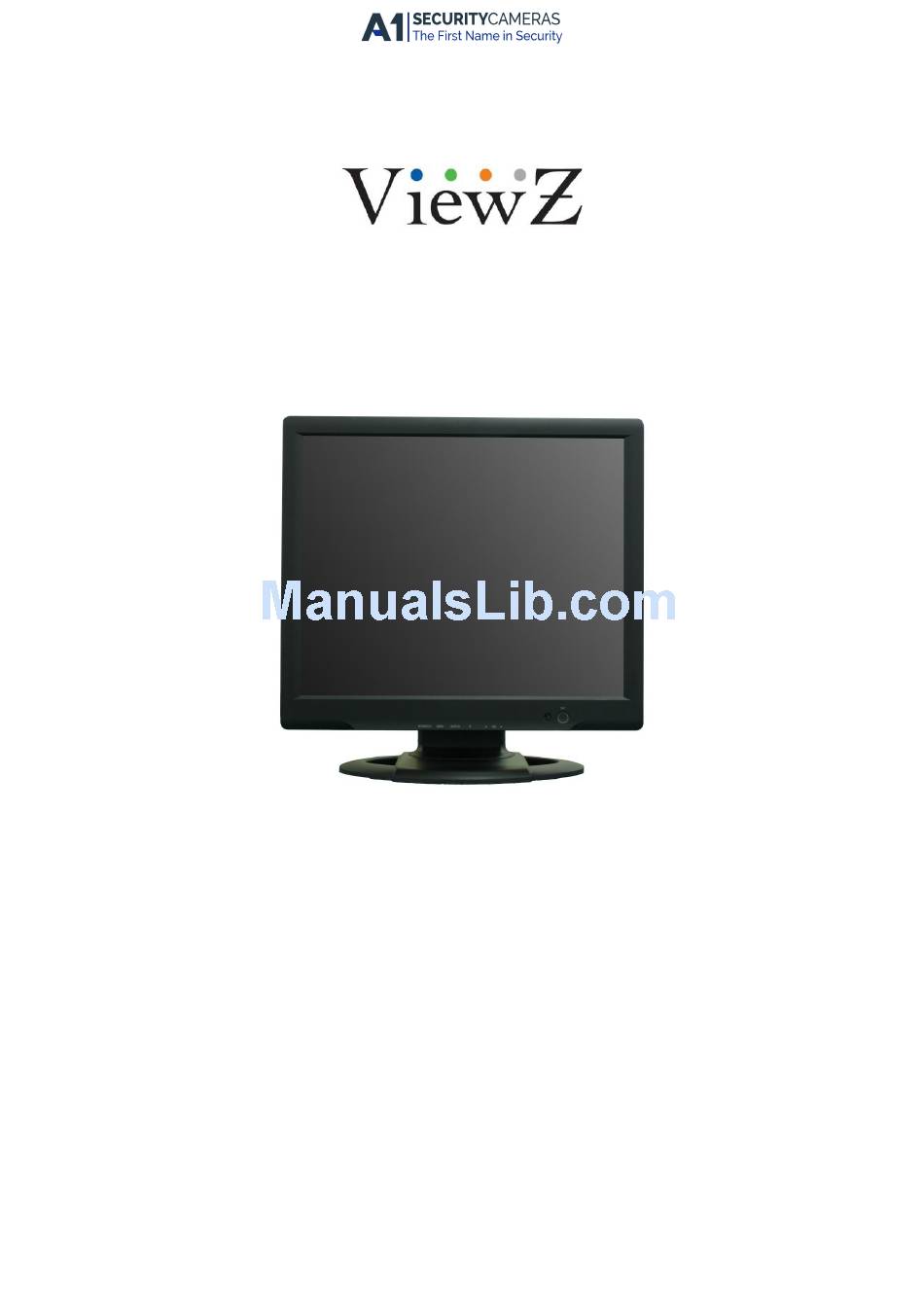

- Page 1 17/19-INCH TFT-LCD MONITOR INSTRUCTION MANUAL Please read this manual thoroughly before use, and keep it handy for future reference. Available from A1 Security Cameras www.a1securitycameras.com email: sales@a1securitycameras.com...
- Page 2 Available from A1 Security Cameras www.a1securitycameras.com email: sales@a1securitycameras.com...
- Page 3 SAFETY INSTRUCTION ………………………………………………………………….. 2 ~ 3 CAUTIONS ………………………………………………………………......FCC RF INTERFERENCE STATEMENT ……………………………......CONNECTING WITH EXTERNAL EQUIPMENT ………………………………………. REMOTE FUNCTIONS …………………………………………………………………… CONTROLS AND FUNCTIONS ………………………………………………………….. 8 ~ 11 MOUNTING GUIDE ……………………………………………………………………….. D-SUB CONNECTOR PIN ASSIGNMENTS ……………………………………………. POWER MANAGEMENT …………………………………………………………………. SPECIFICATIONS …………………………………………………………………………. TROUBLE SHOOTING GUIDE …………………………………………………………...
-
Page 4: Important Safety Instruction
Important Safety Instruction 1. Read these instructions. 2. Keep these Instructions. 3. Heed all warnings. 4. Follow all instructions. 5. Do not use this apparatus near water. 6. Clean only with dry cloth. 7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. - Page 5 - The apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed no the apparatus. - Minimum distances(e.g. 10cm) around the apparatus for sufficient ventilation. “WARNING - To reduce the risk of fire or electric shock, do not expose the apparatus to rain or moisture.” “The apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the apparatus.”...
- Page 6 CAUTION The power supply cord is used as the main disconnect device, ensure that the socket-outlet is located/installed near the equipment and is easily accessible. ATTENTIONN Le cordon d`alimentation est utillsé comme interrupteur général. La prise de courant doit être située ou installée à...
-
Page 7: Doc Compliance Notice
NOTE This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. - Page 8 A. BOTTOM PANEL CONTROL 1. DC12V 2. PC AUDIO 3. PC-RGB PC Analog(VGA) Input 4. DVI PC Digital Input 6 ……………………………………………………………………. INSTRUCTION MANUAL Available from A1 Security Cameras www.a1securitycameras.com email: sales@a1securitycameras.com...
-
Page 9: Remote Controller (Option)
B. REMOTE CONTROLLER (Option) 1. POWER( Turns the power ON or OFF. There will be a few seconds delay before the display appears. 2. SOURCE Select pc or video( AV1 / AV2 / PC ) sources. 3. APC (Auto Picture Control) Select picture mode. - Page 10 C. FRONT KEY CONTROL 1. SOURCE / Select input source, and move the previous menu. 2. MENU Activates and exits the On Screen Display. This button can also be used to move previous menu or status. 3, 4. AUTO/▲, ▼ These buttons allow user to move the sub-menu of the activated function.
-
Page 11: Self-Test Display
1. SELF-TEST DISPLAY When there is no connection at PC, the On Screen Display will show for 3 seconds. POWER SAVING MODE 2. OSD MENU DESCRIPTION 2-1 AUTO ADJUST Adjust screen size when input is Analog(VGA). 2-2. SCREEN 1) BRIGHTNESS Increase or decrease the intensity of the image. - Page 12 2-3. COLOR 1) COLOR TEMP. Adjust color temperature to 9300, 6500, user. 2) RED Adjust red color for user. COLOR TEMP 3) GREEN GREEN BLUE Adjust green color for user. 4) BLUE 1280 X 1024 63.9kHz 60Hz Adjust blue color for user. 2-4.
- Page 13 6. OSD 1) OSD TIMEOUT. Select the OSD display timing. 2) OSD H.POSITION OSD TIMEOUT Move the OSD position to right or left. OSD H.POSITION OSD V.POSITION 3) OSD V.POSITION OSD TRANSPARENCY Move the OSD position up or down. 4) OSD TRANSPARENCY 1280 X 1024 63.9kHz 60Hz...
- Page 14 Using the VESA standard wall mount design and the 100mm hole pattern on the back panel to install the LCD monitor to the wall. Wall-mount Installation (Option) 1. The Monitor fixing bracket to the monitor using the fixing screws provided. 2.
-
Page 15: Pin Assignments
▶ PIN ASSIGNMENTS Pin 1 RED VIDEO GREEN VIDEO SIGNAL CABLE DETECT BLUE VIDEO GROUND GROUND SDA(for DDC) GROUND H-SYNC.(or H+V SYNC.) RED GROUND V-SYNC. GREEN GROUND SCL(for DDC) BLUE GROUND ▶ ACCESSORIES 1. Power cord 2. Power adaptor 3. User’s manual 4. -
Page 16: Led Indicator
This monitor features a power management system to “power down” upon receipt of the VESA DPMS(The display power management signaling) from a VESA DPMS video card. The VESA DPMS-compliant video card performs this signaling system through not sending horizontal, vertical, or sync signal. This monitor enters an appropriate mode through identifying each of the three modes of the signaling system. - Page 17 ” ” 17˝ Diagonal AM-TFT(Active-Matrix) 19˝ Diagonal AM-TFT(Active-Matrix) Pixel pitch(mm) : 0.264(H) x 0.264(V) Pixel pitch(mm) : 0.294(H) x 0.294(V) BRIGHTNESS: 250cd/㎡(Typical) BRIGHTNESS: 250cd/㎡(Typical) LCD- Type CONTRAST RATIO: 1000:1(Typical) CONTRAST RATIO: 800:1(Typical) RESPONSE TIME: 5msec(Typical) RESPONSE TIME: 5msec(Typical) RESOLUTION 1280X1024 @60Hz 1280X1024 @60Hz (H x V) HORIZONTAL: 31~64KHz...
-
Page 18: Weee Symbols
WEEE Symbols Correct Disposal of This Product (Waste Electrical & Electronic Equipment) (Applicable in the European Union and other European countries with separate collection systems) This marking shown on the product or its literature, indicates that it should not be disposed with other household wastes at the end of its working life. - Page 19 Available from A1 Security Cameras www.a1securitycameras.com email: sales@a1securitycameras.com...
- Page 20 P/N : L39ME0184 Rev.6 Available from A1 Security Cameras www.a1securitycameras.com email: sales@a1securitycameras.com...
