Summary of Contents for ViewZ VZ-070PM-3G
- Page 1 Operating Instructions Broadcasting Monitor User guide Monitor Operation Manual V1.3 VZ-070PM-3G VZ-070RM-3G...
-
Page 2: Table Of Contents
Contents Getting Started Setting Caution Load System Default Product features Bklight Dimming Monitor View Misc Initial Setup Basic Information Advanced Input Output Connections Timecode Source Alias Connecting to BNC Signal Device System Info SDI input signal Format SDI output signal Format H Flip Connecting to HDMI Signal Device Test Pattern... -
Page 3: Caution
Caution ■ Caution It is highly recommended to read and understand the cautions listed below thoroughly before you start using the product. And if you are unclear with any parts of the cautions or have questions, please contact us. ■ Apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the apparatus. - Page 4 Caution (cont'd) Explanation of Safety Related Symbols ■ Manual contents are subject to change without notice ■...
-
Page 5: Product Features
Allows for color temperature and gamma encoding changes to be implemented quickly. Active Video Looping supports full 1080p/60 frames on the HDMI output 2K Input Capability 2k content can be displayed on ViewZ monitors without the loss of HD signal by converting and downscaling the content Peaking / Focus Assist... -
Page 6: Monitor View

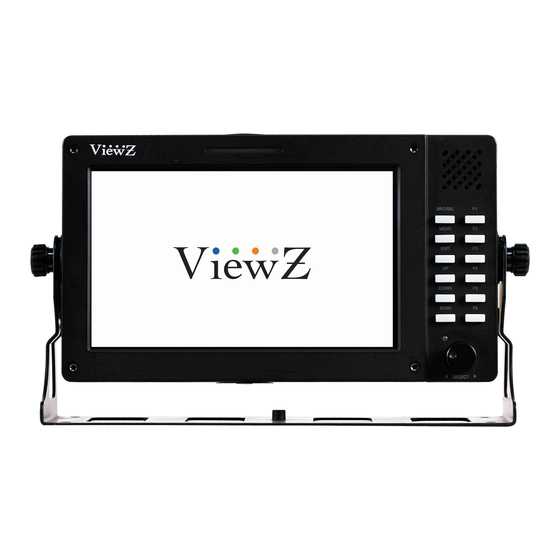

Monitor View ■ Exterior Information VZ-070XXXXX monitor 221.5 x 126 (mm) Stand 221.5 x 136 (mm) Front Mount Source select Function key F1 scan choice Function key F2 Tally display Main menu open Function key F3 EXIT Function key F4 Speaker Function key F5 DOWN... -
Page 7: Initial Setup
Initial Setup ■ First Steps When the monitor is powered on and connected to your source, Selecting Input - To select your source, please press SOURCE button - Turn the main jog to make your choice, and click the jog to select - Factory default is HDMI. -
Page 8: Basic Information
Basic Information ■ Display information ■ Settings you have entered are displayed on the screen with graphs and texts. Audio Level Center Maker Tally Display Timecode Display Audio Level meter [ Left ] meter [ Right ] CH-1 CH-2 CH-3 CH-4 CH-5 CH-6... -
Page 9: Connecting To Bnc Signal Device
Connecting to Various Signals ■ ■ HDMI signal HDMI signal 3Gbps~270Mbps Signal Formats Signal Formats INPUT OUTPUT INPUT OUTPUT ○ ○ ○ ○ 1080 60P 1080 60P 425M(3G) 4 : 2 : 2 ○ ○ ○ ○ 1080 50p 1080 50p ○... - Page 10 Connecting to Analog Signals ■ Component Component Input signal 1.0Vpp (Y with Sync), 0.7Vpp (Pb,Pr) Input Signal Formats VZ-070XXXXX ○ 480 50i ○ 480 60i ○ 480 60p ○ 576 50i ○ 576 50p ○ 720 50p ○ 720 60p ○...
-
Page 11: Video
VIDEO ■ ▶ Video ▶ Color model Color Temp Main - Select your preferred color temperature settings [ User, 9300K, 7500K, 6500K ] RED gain - adjusts R, G, B Gain GREEN gain - selectable level between [ 0min ~ 100max ] BLUE gain RED bias - adjusts R, G, B Bias or Offset... -
Page 12: Aspect Menu
Aspect ▶ Aspect ▶ ■ Scan Main Scan - This product supports various scan modes [ Zreoscan, Underscan, Overscan ] ▶ VZ-185 for demonstration Zeroscan Underscan Overscan Zooms in/out of the image without Zooms in/out of the image without Zooms in/out of the image to 96% changing the aspect ratio. -
Page 13: Anamorphic
Pixel To Pixel Zoom If the resolution of the input signal is Zoom Ratio greater than that of ViewZ monitor, Used to change zoom ratio between [ 0min ~ 230max ] only area equivalent to monitor H Position resolution out of the input resolution... -
Page 14: A/V Scope
A/V Scope ▶ A/V Scope ▶ ■ Scope Position Main Scope Position - Used to change the position of scopes [ Right/Bottom, Right/Top, Left/Bottom, Left Top ] ▶ VZ-185 for demonstration ▶ A/V Scope ▶ ■ Waveform Enable Main Waveform Enable - Used to turn on waveform on the screen [ On, Off ] ▶... -
Page 15: Setting
Setting ■ ▶ Setting ▶ OSD Main - Used to change options in on-screen display Language English OSD Blend used to change the trasparency level of OSD [ 0 (opaque) ~ 10 (transparent) ] OSD Position used to change the position of OSD [ Left/Top, Center/Top, Right/Top, Left/Middle, Center/Middle, Right/Middle, Left/Bottom, Center/Bottom, Right/Bottom ] ■... -
Page 16: Advanced
M o n AVI2 AVI3 Component HDMI ViewZ - example above will name HDMI input source as ViewZ and AVI1 to Monitor - red box to change alphabet and black box to confirm ■ ▶ Advanced ▶ UMD Main - Used to turn on/off UMD and control UMD options at the bottom of the monitor... -
Page 17: System Info
Adavnced (cont'd) ■ ▶ Advanced ▶ System Info System Info Main - Used to control all additional updates Firmware Version displays current firmware version FPGA Version displays current FPGA version ■ ▶ Advanced ▶ H Flip H Flip Main - Used to reverse the display image horizontally [ On, Off ] *remark: OSD also flips which gives difficulty to read OSD menu ■... -
Page 18: Handheld
Handheld ■ ▶ Handheld ▶ DSLR Scale DSLR Scale Main - selectable image to enlarge to full screen [ Off, Rec/Live Normal, Rec/Live Fullfill ] ■ ▶ Handheld ▶ Peaking Peaking Main - Used to aid the focus setting of camera. Peak colors will be displayed where there are sharp edges in the image [ On, Off ] ■... -
Page 19: Accessory
Accessory ■ Accessory Wallmount Hardware 19" Rack Mountable Camera Mount Protective Carrying Bag Protective Sun Visor Battery Mount AC Power Cable ND Filter AR Glass Adaptor... -
Page 20: Specification
Specification ■ Specifications VZ-070XXXXX Product Size 7 inch Resolution 1024 x 600 (16:9) Back light Type Color Depth 16.7M ( 8 Bit ) Lcd spec viewing Angle 170°(H) / 170°(V) (Typ.) Luminance (Max.) 400 cd/m² Contrast Ratio 800 : 1 Display Area Monitor Dim 221.5 x 126 (mm) - Page 21 Operating Instruction Broadcast Monitor User guide Thank you...
