- Page 1 VZ-FM SERIES 7" HD-SDI/3G-SDI BROADCAST MONITOR USER MANUAL EDITION : MAR 2018 Please read this manual thoroughly before use, and keep it handy for future reference.
-
Page 2: Table Of Contents
2. Interface ........................................ 3. Remote Control Function ................................Function .......................................... 1. Monitor Button Function ................................2. OSD Control and Function ................................Mounting Guide ......................................Specification ........................................Trouble Shooting ................................................................................Warranty ........................................Visit the ViewZ USA website at https://www.viewzusa.com User Manual... -
Page 3: Safety Instruction
The monitor shall not be exposed to dripping or splashing and objects containing liquids, such as vases shall be placed near the monitor. The monitor should have ample distance (e.g. 10cm) from the wall for sufficient ventilation. User Manual Visit the ViewZ USA website at https://www.viewzusa.com... -
Page 4: Mark Indication & Substance
• Please read the cautions to prevent possible danger and loss of property. • Please enjoy the benefits of convenience, safety, and space-saving from this TFT LCD monitor in different ways. Visit the ViewZ USA website at https://www.viewzusa.com User Manual... - Page 5 - Please note that disconnection may cause a fire or accident due to a short circuit. Do not remove the power cord while using the monitor. - An electric shock occurring during disconnection may damage the monitor. User Manual Visit the ViewZ USA website at https://www.viewzusa.com...
-
Page 6: Warning
- Do not place cigarettes, candles, or mosquito repellent incense on top of the product. To mount a wall-mount monitor on the wall, please consult an expert. - Installation by an unqualified person may cause personal injury. Make sure to use the designated mounting device. Visit the ViewZ USA website at https://www.viewzusa.com User Manual... - Page 7 If the monitor makes unusual noises or smoke, unplug the product and contact our Service Center. - Failure to do so may cause an electric shock or fire. User Manual Visit the ViewZ USA website at https://www.viewzusa.com...
- Page 8 - If the product collapses, it may cause injury or death. Set the product resolution and frequency correctly. Otherwise, it may lead to eye problems. - The resolution varies depending on the monitor size. Find and set the correct resolution Visit the ViewZ USA website at https://www.viewzusa.com User Manual...
-
Page 9: Caution
While most pixel faults occur in isolated regions, a cluster of dead pixels or sub-pixels can sometimes form for which a separate ruling applies. A cluster is defined as an area of 5x5 pixels. ViewZ’s policy on pixel failure: either as an isolated fault or in the form of a cluster is outlined on the website: www.viewzusa.com User Manual Visit the ViewZ USA website at https://www.viewzusa.com... -
Page 10: Installation
Level Phillips Screwdriver Assembly Components - provided Your ViewZ monitor is shipped with all proper installation hardware and components. If there are parts missing and/or damaged, please stop the installation and contact ViewZ USA at (888)-998-4399. 7" TFT-LED Monitor (Qty 1) -
Page 11: Interface
5. Audio signal input. 6. Audio (L/R) input. 7. HDMI (High Definition Multimedia Interface) signal input / output. 8. 4-pin XLR DC power input. PIN NUMBER SIGNAL Red Light Green Light +12V User Manual Visit the ViewZ USA website at https://www.viewzusa.com... - Page 12 3. Red: for TALLY red light connector. (Open - Close) 4. Green: for TALLY green light connector. (Open - Close) 5. Black: for grounding. 6. XLR (F) connector: for the XLR adapter. Visit the ViewZ USA website at https://www.viewzusa.com User Manual...
- Page 13 2. As shown, cover buttoned into the appropriate slot, and fastened in accordance with the order of the both sides. 3. As shown, bend hood panel to meet and paste with hood interlocking. 4. Installation completed. User Manual Visit the ViewZ USA website at https://www.viewzusa.com...
- Page 14 V-mount battery plate (optional): Please refer to BP-IDX type battery specifications Adapter Panel BP-IDX V-mount Battery Plate Anton Bauer mount battery plate (optional): Please refer to BP-AB type battery specifications BP-AB Adapter Panel Anton Bauer Mount Battery Plate Visit the ViewZ USA website at https://www.viewzusa.com User Manual...
-
Page 15: Function

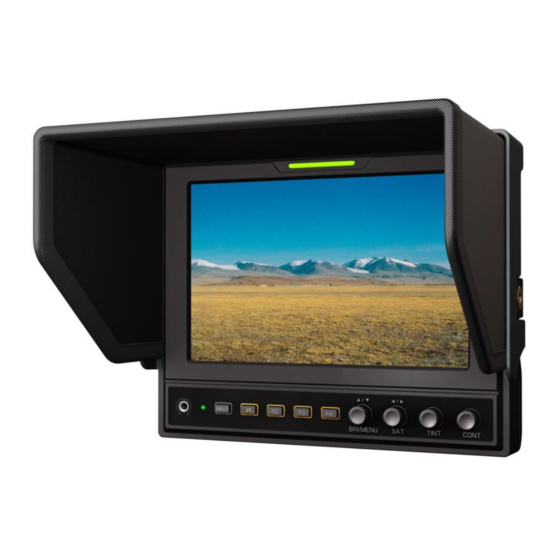

7. Knob SAT: Press the knob to select main MENU options; rotate knob to confirm the selection and adjust parameter values. Default as Saturation function. 8. Knob TINT: Default as Tint function. 9. Knob CONT: Default as Contrast function. User Manual Visit the ViewZ USA website at https://www.viewzusa.com... - Page 16 BRI/MENU knob to return to the previous, and press the BRI/MENU knob again to exit the menu settings. BRI / MENU knob: to select an option. SAT knob to select the main menu, adjusting option values and confirm the selection. Visit the ViewZ USA website at https://www.viewzusa.com User Manual...
- Page 17 480P (5DII Mode), 1080I (5DIII Mode) H/V delay Observe blank area for H sync and V sync OFF, H&V Delay, V Delay, H Delay Underscan Change the underscan mode OFF, ON User Manual Visit the ViewZ USA website at https://www.viewzusa.com...
- Page 18 Setup the marker color Red, Green, Blue, White, Black Marker Mat Setup the darkness of areas out of line marker OFF, 1 ~ 6 Thickness Setup the marker line thickness 1 ~ 7 Visit the ViewZ USA website at https://www.viewzusa.com User Manual...
- Page 19 Small, Large Level Meter Adjust the balance Manual, Auto Manufacturer Default Reverse the SAT / ADJ knob to select "OK" OK, Cancel For program upgrades (Please reboot your monitor if press accidentally!) User Manual Visit the ViewZ USA website at https://www.viewzusa.com...
- Page 20 As follows (item selected default as blue font): Option can be selected by rotating BRI / MENU knob. Finally, right turn the SAT knob to set the option as default. Visit the ViewZ USA website at https://www.viewzusa.com User Manual...
-
Page 21: Specification
Black Metal General Power Consumption ≤ 11 W Accessories Monitor x1, Hood x1, Gimbal stand x1, Power Adapter x1, Shoe Mount x1, Adapter Panel x1, Power&Tally Cable x1, Carrying Case x1 User Manual Visit the ViewZ USA website at https://www.viewzusa.com... -
Page 22: Trouble Shooting
We recommend that you test with different input sources when you have trouble with At start the current input source. If symptom persists, follow the instructions below. After following the instructions below, please contact us at 1-888-99-VIEWZ. Only black-and-white Check whether the color saturation is properly setup. - Page 23 ► Consumable parts are to be exchanged due to natural wear. ► Damage is caused by external forces rather than internal defects. User Manual Visit the ViewZ USA website at https://www.viewzusa.com...
-
Page 24: Warranty
What ViewZ USA Will Do At the sole discretion of ViewZ USA, ViewZ USA will repair or replace any product or product part that is defective. If ViewZ USA chooses to replace a defective product or part, a replacement product or part will be shipped to you at no charge, but you must pay any labor costs.
