Summary of Contents for CYP CPLUS-12FTX

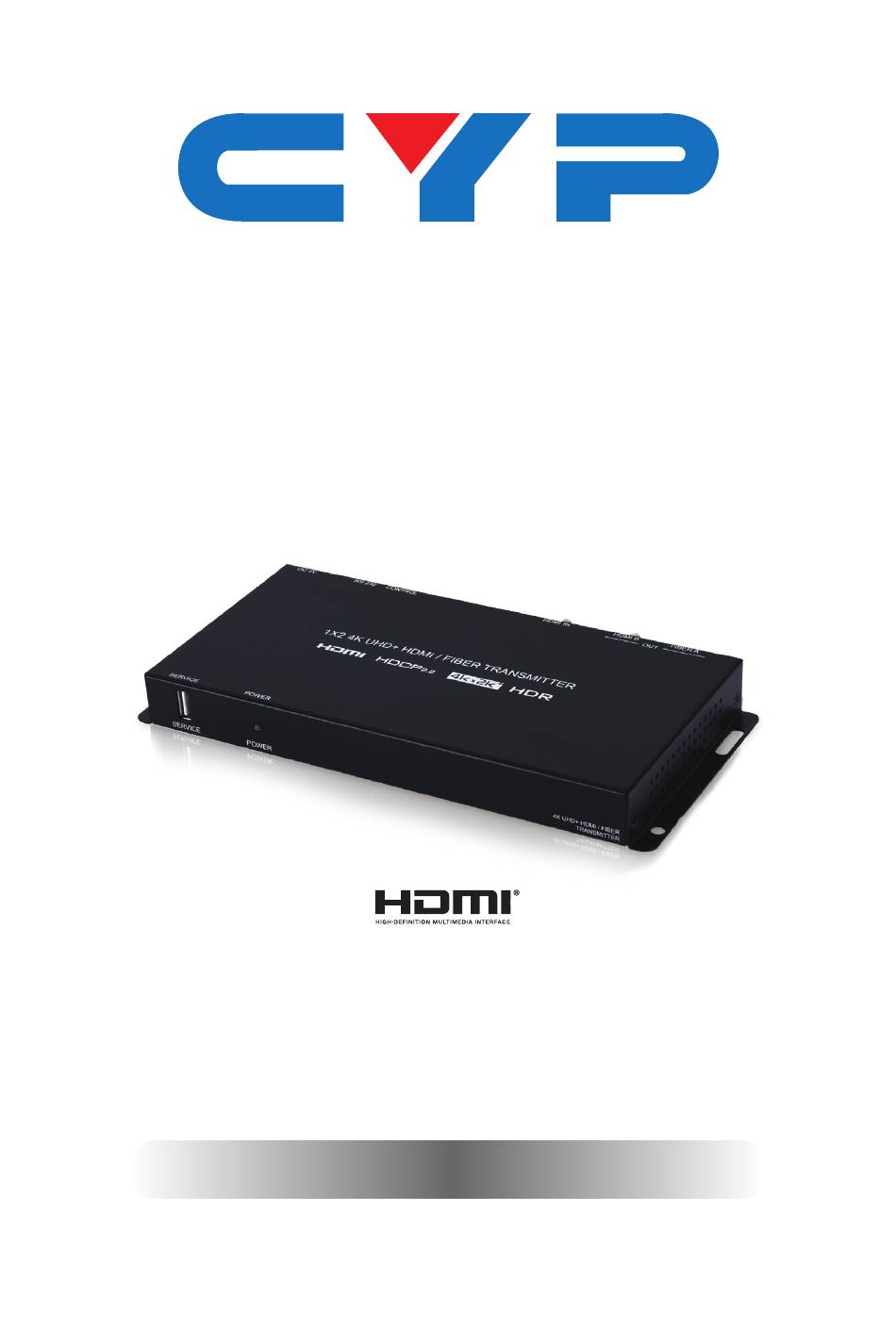

- Page 1 CPLUS-12FTX 4K UHD HDMI over Fiber Transmitter Operation Manual Operation Manual...
- Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.
- Page 4 SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.
-
Page 5: Table Of Contents
CONTENTS 1. Introduction ............1 2. Applications .............1 3. Package Contents ..........1 4. System Requirements ........2 5. Features ............2 6. Operation Controls and Functions ....3 6.1 Front Panel ..........3 6.2 Rear Panel ..........3 6.3 WebGUI Control ........4 6.4 RS-232 Control ......... 11 6.5 Telnet Control .......... -
Page 6: Introduction
1. INTRODUCTION This HDMI over Fiber Transmitter is designed to extend your 4K UHD HDMI signal using a single segment of multi-mode optical fiber cable. Using fiber optical cable provides many advantages over traditional copper-based extension methods, including immunity to RF and magnetic interference, thinner and lighter cables, and much longer extension distances (up to 300 meters per segment). -
Page 7: System Requirements
4. SYSTEM REQUIREMENTS • HDMI source equipment such as a media player, video game console or set-top box. • HDMI receiving equipment such as an HDTV, monitor or audio amplifier. • The use of “Premium High Speed HDMI” cables is highly recommended. -
Page 8: Operation Controls And Functions

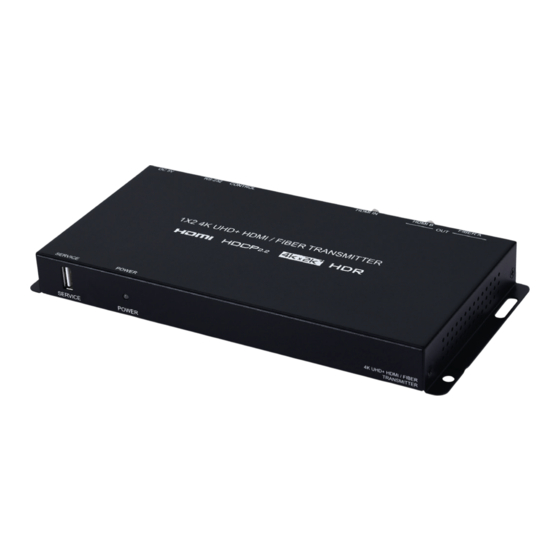

6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel 4K UHD+ HDMI / FIBER SERVICE POWER TRANSMITTER SERVICE: This slot is reserved for firmware update use only. POWER LED: This LED will illuminate to indicate the unit is on and receiving power. 6.2 Rear Panel RS-232 DC 5V... -
Page 9: Webgui Control
6.3 WebGUI Control • Device Discovery APP Please obtain the “Device Discovery” software from your authorized dealer and save it in a directory where you can easily find it. Connect the unit and your PC/Laptop to the same active network and execute the “Device Discovery”... - Page 10 • WebGUI Control Page After connecting to the WebGUI’s address in a web browser, the login screen will appear. Please enter the appropriate user name and password then click “Submit” to log in. Note: The default user name and password is “admin”. On the left side of the browser you will see the following menu tabs where all primary functions of the unit (Video, EDID Settings and System Settings) are controllable via the built in WebGUI.
- Page 11 • Video Tab This tab provides control over the HDCP behavior of the HDMI input as well as the naming of the inputs and outputs. 1) Output: Rename Output A or Output B by clicking on the appropriate edit icon to open the editing window then type in the preferred name for the output.
- Page 12 • EDID Settings Tab This tab provides control over the EDID behavior of the unit. There are six internal EDIDs, one customer uploaded EDID, and two sink sourced EDIDs that can be assigned to the HDMI input port. Both sink EDIDs and the Customer EDID are also available for download to the connected 1) Customer EDID Settings: Manage the uploadable User EDID content.
- Page 13 ■ Keep: Will copy and use the selected sink’s current EDID but will not re-copy the EDID if the sink is changed. ■ Renew: Will automatically copy and use the EDID from the selected sink every time a new sink is connected or the EDID changes.
- Page 14 • System Settings Tab This tab provides access to control a number of system configuration controls including displaying the unit’s serial number, modifying the web access privileges, changing the IP configuration, performing a factory reset, rebooting the system, and updating the firmware. 1) Serial Number: Displays the unit’s serial number.
- Page 15 the firmware update file (*.bin format) located on your local PC. After selecting the file, click the “Upgrade” button to begin the firmware update process. Once the process completes the unit will automatically reboot.
-
Page 16: Rs-232 Control
6.4 RS-232 Control Unit Controlling PC Serial Port Settings Definition Definition Baud Rate 115200 Data Bits Parity Bit None Stop Bits Flow Control None 6.5 Telnet Control Before attempting to use Telnet control, please ensure that both the unit and the PC are connected to the same active networks. To Access the Command Line Interface (CLI) Click Start, type “cmd”... -
Page 17: Rs-232 And Telnet Commands
6.6 RS-232 and Telnet Commands COMMAND Description and Parameters HELP Show all available commands. ? Show all available commands. SOURCEDET Show all source information. SINKINFO Show all sink information. HDCPIN 1 N1 Set the HDCP mode for the input. Available values for N1: [Follow In] [Follow Out] [Apple Mode]... - Page 18 COMMAND Description and Parameters EDIDIN ? Show the current EDID selection for the HDMI input. INNAME 1 N1 Set the name of the input to name N1. N1 = {name} [16 characters max] INNAME ? Show the current input name. OUTNAME N1 N2...
- Page 19 COMMAND Description and Parameters SETIP N1 N2 N3 Set the static IP address, netmask, and gateway address for the unit with a single command. Disables DHCP. N1 = X.X.X.X [X = 0 ~ 255, IP Address] N2 = X.X.X.X [X = 0 ~ 255, Netmask] N3 = X.X.X.X [X = 0 ~ 255, Gateway] SIPADDR N1...
- Page 20 COMMAND Description and Parameters VER Show the unit’s current firmware version. REBOOT Reboot the unit. USBUPDATE Put the unit into USB update mode. Note: Commands will not be executed unless followed by a carriage return. Commands are not case-sensitive.
-
Page 21: Connection Diagram
7. CONNECTION DIAGRAM 7.1 Configuration 1 RS-232 Equipped PC/Laptop Media Player HDMI Input Network Switch UHDTV HDMI RS-232 (Local Monitor) Output Power Supply RS-232 DC 5V HDMI B HDMI 1 CONTROL FIBER A Fiber Cable Power Supply RS-232 DC 5V HDMI OUT HDMI 1 CONTROL... -
Page 22: Configuration 2
7.2 Configuration 2 Media Player HDMI Input 4K UHD+ HDMI / FIBER SERVICE POWER TRANSMITTER Fiber Output Set-top Box Network Switch Media Player 60° IR Input HDMI Power Supply Inputs Transceiver RS-232 IR IN DC 5V HDMI B HDMI 1 HDMI 2 CONTROL FIBER A... -
Page 23: Specifications
8. SPECIFICATIONS 8.1 Technical Specifications HDMI Bandwidth 600MHz/18Gbps Fiber Bandwidth 340MHz/10.2Gbps Input Port 1×HDMI Output Ports 1×HDMI 1×Fiber (Paired LC) Control Ports 1×RS-232 (3.5mm) 1×IP Control (RJ45) Baud Rate Up to 115200bps Power Supply 5V/2.6A DC (US/EU standards, CE/FCC/UL certified) ESD Protection Human Body Model: ±8kV (Air Discharge) -
Page 24: Video Specifications
8.2 Video Specifications HDMI Fiber Supported Resolutions (Hz) Input Output Output 640×480@60/72/75/85 720×480p@60 720×576p@50 800×600@56/60/72/75/85 1024×768@60/75/85 1280×720p@50/60 1280×768@60/70/75/85 1280×800@60 1280×1024@60 1360×768@60 ... -
Page 25: Cable Specifications
8.3 Cable Specifications 1080p HDMI Cable Length 8-bit 12-bit 8-bit Input Output Fiber Cable Length Multi-mode OM3 300m 9. ACRONYMS ACRONYM COMPLETE TERM Command-Line Interface Digital Visual Interface EDID Extended Display Identification Data Graphical User Interface High-Definition HDCP High-bandwidth Digital Content Protection HDMI High-Definition Multimedia Interface High Dynamic Range... - Page 28 CYPRESS TECHNOLOGY CO., LTD. www.cypress.com.tw...
