Summary of Contents for CYP CH-1107TX

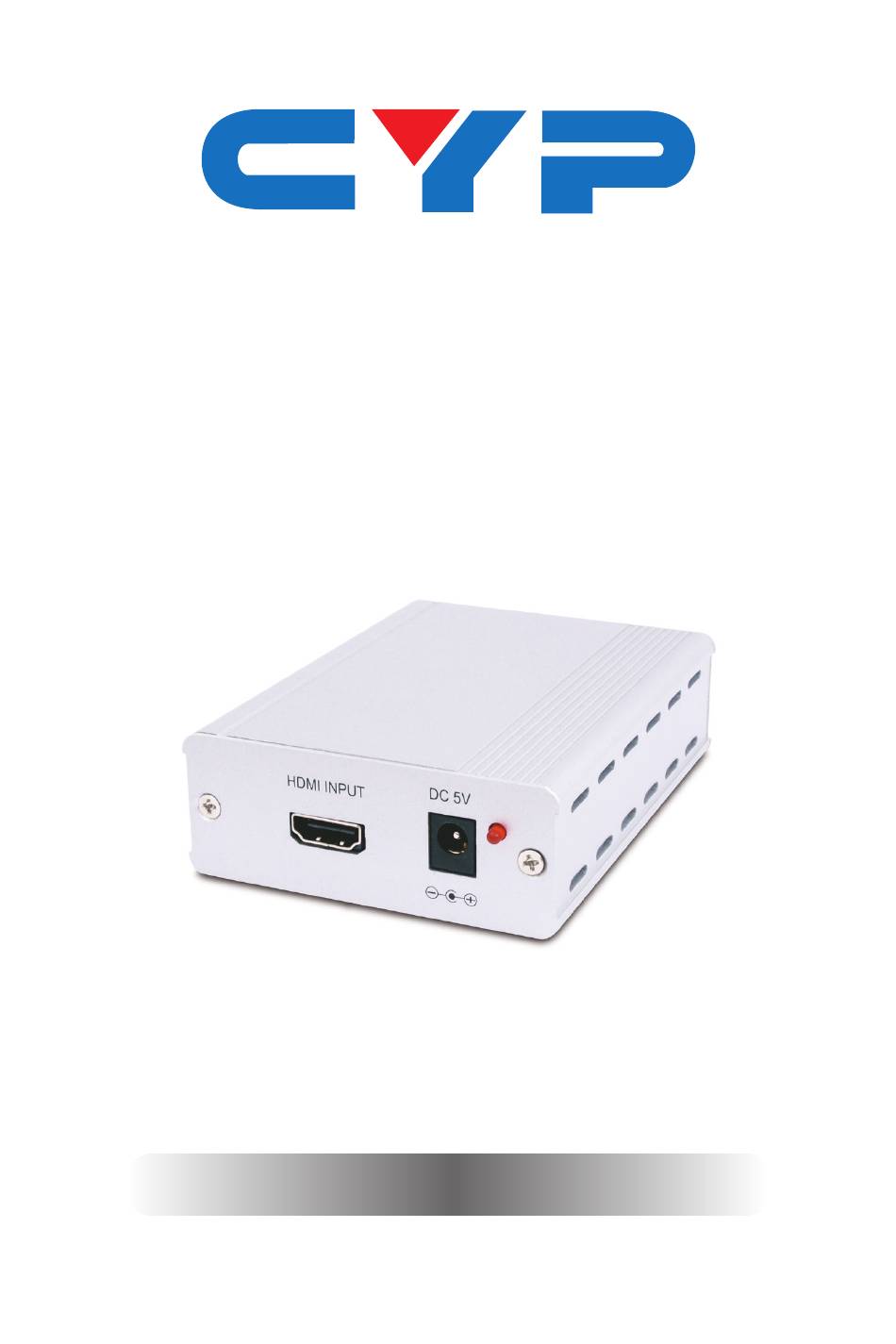

- Page 1 CH-1107TX HDMI to Single CAT6 Transmitter Operation Manual Operation Manual...
- Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.
- Page 4 SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.
-
Page 5: Table Of Contents
CONTENTS 1. Introduction ..........1 2. Applications ........... 1 3. Package Contents ........ 1 4. System Requirements ......1 5. Features ..........2 6. Operation Controls and Functions ..3 6.1 Front Panel ........3 6.2 Rear Panel .........3 7. Connection Diagram ......4 8. -
Page 6: Introduction
1. INTRODUCTION The HDMI to Single CAT6 transmitter can send High Definition video (1080p/Deep Color) and audio (Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio) over a single run of CAT6 cable to a compatible receiver unit. 2. APPLICATIONS •... -
Page 7: Features
5. FEATURES • HDMI, HDCP 1.1 and DVI 1.1 compliant • Supports digital video formats in 'Deep Color' mode at up to 36-bit (12-bit/color) • Supports lossless compressed Digital Audio formats (Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio) •... -
Page 8: Operation Controls And Functions
6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel DC 5V HDMI INPUT HDMI IN: Connect to the HDMI or DVI output (with a DVI to HDMI adaptor)of a source device such as a DVD/Blu-ray player or a Set- top Box with an HDMI cable or cascade to a compatible Receiver unit (see Section 8.2) to extend the transmission distance. -
Page 9: Connection Diagram
7. CONNECTION DIAGRAM DVD or Blu-ray Player HDMI Input Power Supply DC 5V HDMI INPUT CAT6 OUT EDID 10 Bit TV/STD 8 Bit 12 Bit CAT6/7 Cable (45m/8-bit) CAT6 IN Power Supply DC 5V HDMI OUT HDMI Output Display... -
Page 10: Specifications
8. SPECIFICATIONS 8.1 Technical Specifications Video Bandwidth 2.25 MHz/6.75 Gbps Input Port 1×HDMI (Female connector) Output Port 1×RJ45 HDMI Cable Distance 20m@1080p/8-bit or 12-bit CAT6 Cable Distance 45m@1080p/8-bit or 10m@1080p/12-bit Power Supply 5 V/1 A DC (US/EU standards, CE/FCC/UL certified) ESD Protection Human Body Model: ±... -
Page 11: Compatible Products
8.2 Compatible Products (Single CAT6) The models listed below are compatible with each other: • CLUX-8MCAT • CH-107TX • CH-107RXN • CH-1107TX • CH-1107EX 9. ACRONYMS ACRONYM COMPLETE TERM CAT5e Category 5 Cable CAT6 Category 6 Cable Digital Visual Interface... - Page 12 CYPRESS TECHNOLOGY CO., LTD Home page: http://www.cypress.com.tw...
