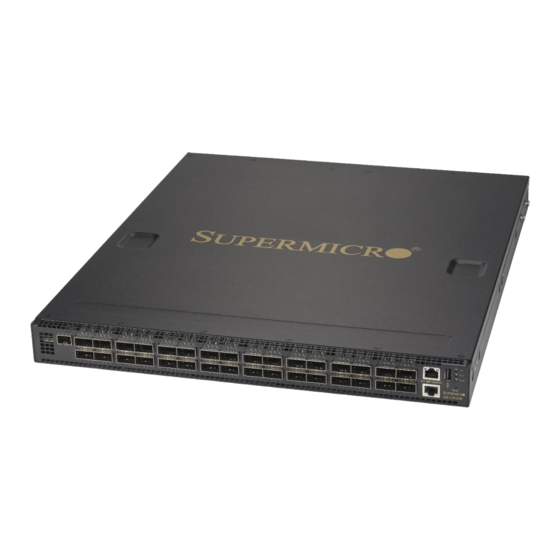

Supermicro SSE-C3632S Installation Manual
  1. Manuals
  2. Brands
  3. Supermicro Manuals
  4. Switch
  5. SSE-C3632S
  6. Installation manual

Supermicro SSE-C3632S Installation Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
SSE-C3632S
SSE-C3632SR
Switch Installation Guide
Revision 1.0a

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SSE-C3632S and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Supermicro SSE-C3632S

Summary of Contents for Supermicro SSE-C3632S

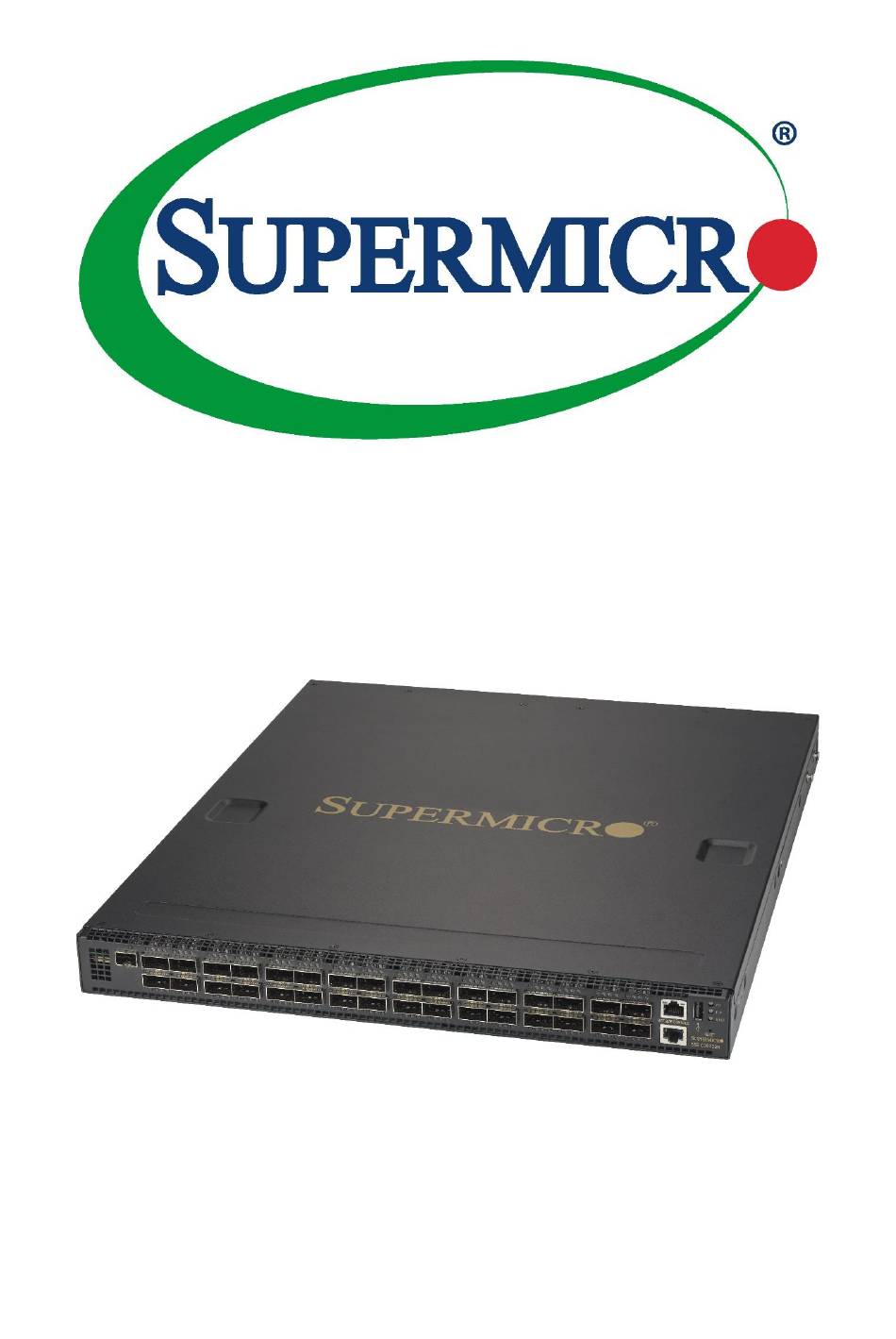

  • Page 1 SSE-C3632S SSE-C3632SR Switch Installation Guide Revision 1.0a...
  • Page 2 Super Micro Computer, Inc. (“Supermicro”) reserves the right to make changes to the product described in this manual at any time and without notice. This product, including software, if any, and documentation may not, in whole or in part, be copied, photocopied, reproduced, translated or reduced to any medium or machine without prior written consent.
  • Page 3 LANs (Local Area Networks). It provides information for the installation and use of the Supermicro's SSE-C3632R and SSE-C3632SR switches. Installation and maintenance should be performed by experienced professionals only.

  • Page 4: Table Of Contents

    Supermicro SSE-C3632S/SSE-C3632SR Switch Installation Guide Table of Contents Introduction ..........................6 1.1 Overview ............................... 6 1.2 Features and Benefits ........................... 7 Various Interfaces ............................7 Supports 100Gbs Ethernet ..........................7 Different Airflow Options ..........................7 1.3 Hardware ..............................8 Front Panel ..............................8 Back Panel ...............................
  • Page 5 Supermicro SSE-C3632S/SSE-C3632SR Switch Installation Guide Required Tools and Utilities .......................... 30 Device Installation ..........................31 Installing the Switch ............................31 Installation with Mounting Rails ........................32 Installing the Power Supply Module ......................33 Installing the Fan ............................34 Connecting the Console ..........................35 QSFP28 Transceiver Installation ........................

  • Page 6: Introduction

    Introduction 1.1 Overview The Supermicro SSE-C3632S and SSE-C3632SRS switches are at the top of the Supermicro bare metal switch line. A new generation of 100G Ethernet routing switches, they enable a robust layer-3 IP fabric with a flexible layer-2 overlay in an optimized Ethernet architecture. They are well-suited to function as the high-speed spine layer, giving scalable bi-sectional fabric bandwidth for leaf layer switches like the SSE-X3648S or even the SSE-G3648B.

  • Page 7: Features And Benefits

    Different Airflow Options The SSE-C3632S provides “front-to-back” air flow (port-side to power-supply side) for cooling – sometimes called “normal air flow”. The SSE-C3632SR provides air flow in the opposite direction (“reverse air flow”).

  • Page 8: Hardware

    Supermicro SSE-C3632S/SSE-C3632SR Switch Installation Guide 1.3 Hardware Front Panel The front panel descriptions of SSE-C3632S and SSE-C3632SR switches are given in the following table. Panel Descriptions of the SSE-C3632S/SR Switches QSFP28 10/100/1000Base-T Console USB 2.0 Type Port ETHERNET Port Port...

  • Page 9: Back Panel

    Fig 1-5. Back Panel View 1.4 Status LEDs The front panel of the SSE-C3632S/R has 128 QSFP28 port indicator lights, two power supply indicator lights and system automatic diagnostic LEDs. They are shown below and described in the following tables.

  • Page 10: Port Description

    10/100/1000Mbps auto negotiation MDI/MDI-X cable mode auto negotiation 100GBASE-CR4 transceiver, Copper, 5m QSFP28 100GBASE-SR4 transceiver, 850nm, MMF, OM3/OM4, 100m The SSE-C3632S/R provides 32 QSFP28 ports and supports use of a QSFP28 cable. It enhances the flexibility of the network. Page 10...

  • Page 11: Power Supply Module

    1.6 Power Supply Module 800W Power Module The Power Supply Module (PSM) of the SSE-C3632S/R is shown in the sketch below: Fig 1-6. Sketch of SSE-C3632S/R Power Supply Module SSE-C3632S and SSE-C3632SR switches have two PSMs for redundancy. There are two airflow options - front to back (SSE-C3632S) and back to front (SSE-C3632SR).

  • Page 12: System Specifications

    Supermicro SSE-C3632S/SSE-C3632SR Switch Installation Guide 1.8 System Specifications System Specifications of the SSE-C3632S/R Type SSE-C3632S/R Attribute Dimension(W * H * D) (mm) 433.8 * 44 * 520 Weight 10.18kg(with 2 PSU) Fixed Port 32 QSFP28 ports Management Port 1 RJ-45 serial console port...

  • Page 13: Standardized Warning Statements

    Supermicro's Technical Support department for assistance. Only certified technicians should attempt to install or configure components. Read this appendix in its entirety before installing or configuring components in the Supermicro chassis These warnings may also be found on our web site at http://www.supermicro.com/about/policies/safety_information.cfm...
  • Page 14 Supermicro SSE-C3632S/SSE-C3632SR Switch Installation Guide 此警告符号代表危险。 您正处于可能受到严重伤害的工作环境中。在您使用设备开始工作之前，必须充分意识到触电的危险， 并熟练掌握防止事故发生的标准工作程序。请根据每项警告结尾的声明号码找到此设备的安全性警告说 明的翻译文本。 此警告符號代表危險。 您正處於可能身體可能會受損傷的工作環境中。在您使用任何設備之前，請注意觸電的危險，並且要熟 悉預防事故發生的標準工作程序。請依照每一注意事項後的號碼找到相關的翻譯說明內容。 Warnung WICHTIGE SICHERHEITSHINWEISE Dieses Warnsymbol bedeutet Gefahr. Sie befinden sich in einer Situation, die zu Verletzungen führen kann. Machen Sie sich vor der Arbeit mit Geräten mit den Gefahren elektrischer Schaltungen und den üblichen Verfahren zur Vorbeugung vor Unfällen vertraut.
  • Page 15 Supermicro SSE-C3632S/SSE-C3632SR Switch Installation Guide 안전을 위한 주의사항 경고! 이 경고 기호는 위험이 있음을 알려 줍니다. 작업자의 신체에 부상을 야기 할 수 있는 상태에 있게 됩니다. 모든 장비에 대한 작업을 수행하기 전에 전기회로와 관련된 위험요소들을 확인하시고 사전에 사고를 방지할 수 있도록 표준...
  • Page 16 Supermicro SSE-C3632S/SSE-C3632SR Switch Installation Guide BELANGRIJKE VEILIGHEIDSINSTRUCTIES Dit waarschuwings symbool betekent gevaar. U verkeert in een situatie die lichamelijk letsel kan veroorzaken. Voordat u aan enige apparatuur gaat werken, dient u zich bewust te zijn van de bij een elektrische installatie betrokken risico's en dient u op de hoogte te zijn van de standaard procedures om ongelukken te voorkomen.
  • Page 17 Supermicro SSE-C3632S/SSE-C3632SR Switch Installation Guide 保護装置の定格が 250 V、20 A を超えないことを確認下さい。 警告 此产品的短路(过载电流)保护由建筑物的供电系统提供,确保短路保护设备的额定电流不大于 250V,20A。 警告 此產品的短路(過載電流)保護由建築物的供電系統提供,確保短路保護設備的額定電流不大於 250V,20A 。 Warnung Dieses Produkt ist darauf angewiesen, dass im Gebäude ein Kurzschluss- bzw. Überstromschutz installiert ist. Stellen Sie sicher, dass der Nennwert der Schutzvorrichtung nicht mehr als: 250 V, 20 A beträgt.
  • Page 18 Supermicro SSE-C3632S/SSE-C3632SR Switch Installation Guide システムの電源はすべてのソースから切断され、電源コードは電源モジュールから取り外す必要があ ります。 警告 在你打开机箱并安装或移除内部器件前,必须将系统完全断电,并移除电源线。 警告 在您打開機殼安裝或移除內部元件前，必須將系統完全斷電，並移除電源線。 Warnung Das System muss von allen Quellen der Energie und vom Netzanschlusskabel getrennt sein, das von den Spg.Versorgungsteilmodulen entfernt wird, bevor es auf den Chassisinnenraum zurückgreift, um Systemsbestandteile anzubringen oder zu entfernen.
  • Page 19 Supermicro SSE-C3632S/SSE-C3632SR Switch Installation Guide Equipment Installation Warning! Only trained and qualified personnel should be allowed to install, replace, or service this equipment. 機器の設置 トレーニングを受け認定された人だけがこの装置の設置、交換、またはサービスを許可されていま す。 警告 只有经过培训且具有资格的人员才能进行此设备的安装、更换和维修。 警告 只有經過受訓且具資格人員才可安裝、更換與維修此設備。 Warnung Das Installieren, Ersetzen oder Bedienen dieser Ausrüstung sollte nur geschultem, qualifiziertem Personal gestattet werden.
  • Page 20 Supermicro SSE-C3632S/SSE-C3632SR Switch Installation Guide 警告 此部件应安装在限制进出的场所，限制进出的场所指只能通过使用特殊工具、锁和钥匙或其它安全手段进出的场所。 警告 此裝置僅限安裝於進出管制區域，進出管制區域係指僅能以特殊工具、鎖頭及鑰匙或其他安全方式才能 進入的區域。 Warnung Diese Einheit ist zur Installation in Bereichen mit beschränktem Zutritt vorgesehen. Der Zutritt zu derartigen Bereichen ist nur mit einem Spezialwerkzeug, Schloss und Schlüssel oder einer sonstigen Sicherheitsvorkehrung möglich.
  • Page 21 Supermicro SSE-C3632S/SSE-C3632SR Switch Installation Guide 警告 電池更換不當會有爆炸危險。請使用製造商建議之相同或功能相當的電池更換原有電池。請按照製造商 的說明指示處理廢棄舊電池。 Warnung Bei Einsetzen einer falschen Batterie besteht Explosionsgefahr. Ersetzen Sie die Batterie nur durch den gleichen oder vom Hersteller empfohlenen Batterietyp. Entsorgen Sie die benutzten Batterien nach den Anweisungen des Herstellers. Attention Danger d'explosion si la pile n'est pas remplacée correctement.
  • Page 22 Supermicro SSE-C3632S/SSE-C3632SR Switch Installation Guide Attention L'équipement doit être installé conformément aux normes électriques nationales et locales. 경고! 현 지역 및 국가의 전기 규정에 따라 장비를 설치해야 합니다. Waarschuwing Bij installatie van de apparatuur moet worden voldaan aan de lokale en nationale elektriciteitsvoorschriften.
  • Page 23 Using any other cables and adaptors could cause a malfunction or a fire. Electrical Appliance and Material Safety Law prohibits the use of UL or CSA -certified cables (that have UL/CSA shown on the code) for any other electrical devices than products designated by Supermicro only.
  • Page 24 Aparatos Eléctricos y la Ley de Seguridad del Material prohíbe el uso de UL o CSA cables certificados que tienen UL o CSA se muestra en el código de otros dispositivos eléctricos que los productos designados por Supermicro solamente. Attention Lors de l'installation du produit, utilisez les bables de connection fournis ou désigné.

  • Page 25: Installation Notices

    SSE-C3632S/SR Switch Installation Guide Installation Notices To ensure the proper operation of the SSE-C3632S/R and your physical security, please read carefully the following installation guide. 3.1 Environmental Requirements • The switch must be installed in a clean area. Otherwise, the switch may be damaged by electrostatic adherence.

  • Page 26: Temperature And Humidity

    SSE-C3632S/SR Switch Installation Guide Environmental Requirements: Particles Average (mg/m³) Max (mg/m³) 0.006 0.03 0.04 0.15 0.05 0.15 0.01 Temperature and Humidity Although the switch is designed to use 5 fans, the site should still maintain a desirable temperature and humidity. High-humidity conditions can cause electrical resistance degradation or even electric leakage, degradation of mechanical properties and corrosion of internal components.

  • Page 27: Power Supply

    SSE-C3632S/SR Switch Installation Guide Power Supply Before powering on the power supply, please check the power input to ensure proper grounding of the power supply system. The input source for the switch should be reliable and secure; a voltage adaptor can be used if necessary.

  • Page 28: Rack Configuration

    Caution: If a standard 19’’ rack is not available, the SSE-C3632S/R can be placed on a clean level desktop. Leave a clearance of 100mm around the switch for ventilation, and do not place anything on top of the switch.

  • Page 29: Security Warnings

    SSE-C3632S/SR Switch Installation Guide 3.3 Security Warnings • When using a QSFP transceiver, do not stare directly at the fiber bore when the switch is in operation. Otherwise the laser may hurt your eyes. • Do not attempt to conduct the operations which can damage the switch or which can cause physical injury.

  • Page 30: Device Installation

    SSE-C3632S/SR Switch Installation Guide Device Installation 4.1 Installation Preparation Verify the Package Contents Please unpack the shipping package and verify carefully the contents inside. Required Tools and Utilities The required tools and utilities are shown below: • Cross screwdrivers •...

  • Page 31: Device Installation

    Please mount the SSE-C3632S/R on the 19’’ rack as follows: 1. Attach the two brackets on the SSE-C3632S/R with screws provided in the accessory kit. 2. Provide additional support (such as the rack shelf) for the switch when installing because the machine is fairly heavy.

  • Page 32: Installation With Mounting Rails

    SSE-C3632S/SR Switch Installation Guide Installation with Mounting Rails Figure 44-2 Switches Installed Using Front and Rear Mounting Rails Page 32...

  • Page 33: Installing The Power Supply Module

    SSE-C3632S/SR Switch Installation Guide Installing the Power Supply Module The SSE-C3632S and SSE-C3632SR switches support two power supplies. Figure 44-2 Switch Power Supply Installation Please install the power supply module as follows: 1. Insert the power supply into the opening as shown.

  • Page 34: Installing The Fan

    SSE-C3632S/SR Switch Installation Guide Installing the Fan The SSE-C3632S and SSE-C3632SR switches have five fans in the standard configuration. Figure 44-5 Fan installation in SSE-C3632S/R switches Please install or remove the fan module as follows: The golden fingers should be positioned inward and on the back of the switch. After proper insertion you can hear the lock sound of “click”.

  • Page 35: Connecting The Console

    Connecting the Console The SSE-C3632S/R has a serial console port. Figure 44-6 Connecting Console to a SSE-C3632S/R Switch The connection procedure is as follows: Find the console cable provided in the accessory kit. Attach the console cable end to the console port of the switch.

  • Page 36: Qsfp28 Transceiver Installation

    SSE-C3632S/SR Switch Installation Guide QSFP28 Transceiver Installation The SSE-C3632S/R provides 32 QSFP28 ports. The procedure for installing a QSFP28 transceiver is shown below: 1. Put on an ESD wrist strap (or antistatic gloves). 2. Insert the QSFP28 transceiver to the guide rail inside the QSFP28 port. Do not insert the QSFP28 transceiver up-side-down.
  • Page 37 The connection approach of DAC cable is below: Connect the end of the DAC cable to into the QSFP28 port of the SSE-C3632S/R switch. Check the indicator light state of the light port. If the LINK light is bright, it means the link is connected.

  • Page 38: Ac Power Supply Connection

    2. Check the power status indicator in the front panel of the switch. The corresponding PWR indicator should light. SSE-C3632S/R is self-adjusts to the input voltage. As soon as the input voltage is in the range printed on the switch surface the switch can operate correctly.

  • Page 39: Grounding Cable Connection

    SSE-C3632S/SR Switch Installation Guide Grounding Cable Connection Figure 4-3. Connect the Grounding Cable to the Switches Please connect the grounding cable as follows: 1. Cover one side of the grounding cable to the grounding pillar of the back panel. 2. Take the grounding screw from the accessory bag, insert and screw down to the fixed nut on the grounding pillar of the switch, 3.

  • Page 40: Checking The Switch

    SSE-C3632S/SR Switch Installation Guide Checking the Switch • Does the power used correspond to the power on the label? • Is the ground cable connected? • If there are outside cables, please ensure they are well connected to lightning protection device.
  • Page 41 Page 41...
