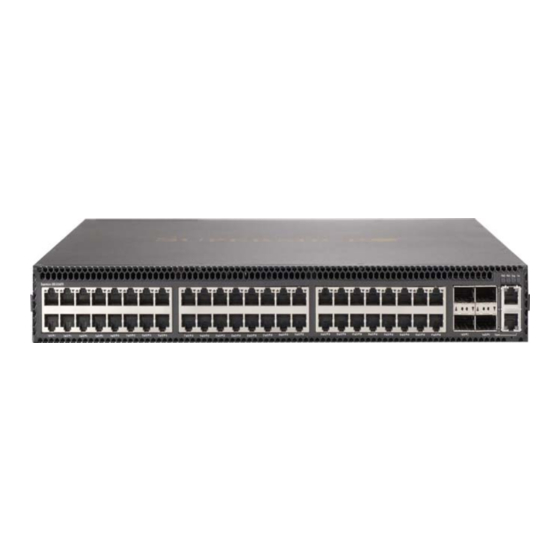

Supermicro SSE-X3348T Installation Manual

48-port 10g top-of-rack switches revison 1.0
Hide thumbs Also See for SSE-X3348T:
Table of Contents

Advertisement

Quick Links

Download this manual

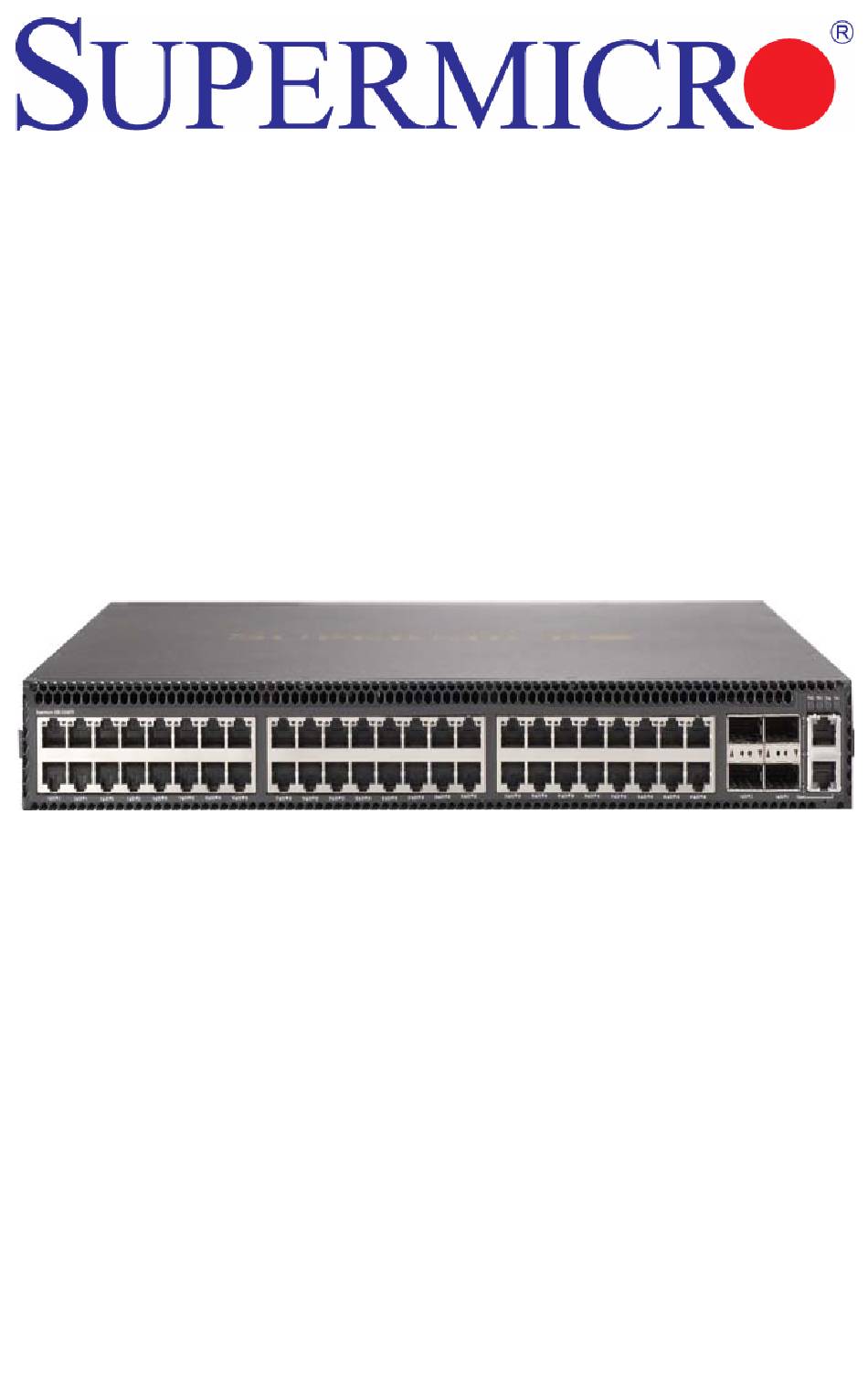

SSE-X3348T and SSE-X3348TR
48-Port 10G
Top-of-Rack Switches
Installation Manual
Revison 1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SSE-X3348T and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Supermicro SSE-X3348T

Summary of Contents for Supermicro SSE-X3348T

  • Page 1 SSE-X3348T and SSE-X3348TR 48-Port 10G Top-of-Rack Switches Installation Manual Revison 1.0...
  • Page 2 Please Note: For the most up-to-date version of this manual, please see our web site at www.supermicro.com. Super Micro Computer, Inc. (“Supermicro”) reserves the right to make changes to the product described in this manual at any time and without notice. This product, including software, if any, and documentation may not, in whole or in part, be copied, photocopied, reproduced, translated or reduced to any medium or machine without prior written consent.
  • Page 3 LANs (Local Area Networks). It provides information for the installation and use of the Supermicro's SSE-X3348T and SSE-X3348TR switches. Installation and maintenance should be performed by experienced professionals only.
  • Page 4 SSE-X3348T/ SSE-X3348TR Switch Installation Manual Glossary Glossary Term Description IEEE 802.3 specification for 10 Mbps Ethernet over two pairs of Category 10BASE-T 3, 4, or 5 UTP cable. IEEE 802.3 specification for 100 Mbps Ethernet over two strands of 50/ 100BASE-FX 125, 62.5/125 micron, or 9/125 micron core fiber cable.
  • Page 5 Glossary Term Description Defines carrier sense multiple access with collision detection (CSMA/CD) IEEE 802.3 access method and physical layer specifications. Defines CSMA/CD access method and physical layer specifications for IEEE 802.3ab 1000BASE-T Gigabit Ethernet. (Now incorporated in IEEE 802.3-2005.) Defines the IEEE 802.3az specification for Energy Efficient Ethernet (EEE).
  • Page 6 SSE-X3348T/ SSE-X3348TR Switch Installation Manual Notes...

  • Page 7: Table Of Contents

    Table of Contents Chapter 1 Introduction ............... 1-1 1-1 Overview ..................... 1-1 1-2 Key Hardware Components ............1-2 10GBASE-T RJ-45 Ports ................ 1-2 40G QSFP+ Slots ................... 1-2 1000BASE-T RJ-45 Ports ............... 1-2 Reset Button ................... 1-3 System LEDs ..................1-3 Port LEDs....................
  • Page 8 SSE-X3348T/ SSE-X3348TR Switch Installation Manual Chapter 4 Installing the Switch ............ 4-1 4-1 Package Contents ................4-1 4-2 Switch Chassis .................. 4-1 General Installation Guidelines ............... 4-1 How to Install the Switch in a Rack ............4-2 Rack-Mounting Items ................4-2 Rack-Mount Procedure ................
  • Page 9 Table of Contents Chapter 6 Hardware Specifications ........... 6-1 6-1 Physical Characteristics ..............6-1 6-2 Switch Features ................. 6-2 6-3 Management Features ..............6-2 6-4 Standards ................... 6-2 6-5 Compliances ..................6-3 Chapter 7 Switch Management ............ 7-1 7-1 Understanding the System Status LEDs ........
  • Page 10 SSE-X3348T/ SSE-X3348TR Switch Installation Manual Notes...

  • Page 11: Chapter 1 Introduction

    Chapter 1 Introduction Overview The SSE-X3348T/SSE-X3348TR switch is built with leading-edge technology to deliver reliable high-performance connectivity for your data network. The SSE-X3348T/SSE-X3348TR switch is a high-performance top-of-rack switch, designed for data center operating environments. The switch provides 48 10GBASE-T RJ-45 ports, four 40G Quad Small Form Factor Pluggable Plus (QSFP+) ports, and two 1G RJ-45 ports.

  • Page 12: Key Hardware Components

    SSE-X3348T/ SSE-X3348TR Switch Installation Manual Key Hardware Components The switch consists of several key hardware components (Figure 1-1). This manual describes each specific component, or related components, together with their installation requirements and procedures in each chapter. To understand each component in detail, refer to the relevant section.

  • Page 13: Reset Button

    Chapter 1: Introduction Reset Button Pressing the reset button on the front panel causes the switch to preform a hard reset. For more information, see “Section 7-3: "How to Reset the Switch" on page 7-4. System LEDs For information on system status LED indicators, see Section 7-1: "Understanding the System Status LEDs"...
  • Page 14 SSE-X3348T/ SSE-X3348TR Switch Installation Manual Notes...

  • Page 15: Chapter 2 Standardized Warning Statements

    The following statements are industry standard warnings, provided to warn the user of situations which have the potential for bodily injury. Should you have questions or experience difficulty, contact Supermicro's Technical Support department for assistance. Only certified technicians should attempt to install or configure components.
  • Page 16 SSE-X3348T/ SSE-X3348TR Switch Installation Manual Warnung WICHTIGE SICHERHEITSHINWEISE Dieses Warnsymbol bedeutet Gefahr. Sie befinden sich in einer Situation, die zu Verletzungen führen kann. Machen Sie sich vor der Arbeit mit Geräten mit den Gefahren elektrischer Schaltungen und den üblichen Verfahren zur Vorbeugung vor Unfällen vertraut.

  • Page 17: Installation Instructions

    Chapter 2: Standardized Warning Statements 이 경고 기호는 위험이 있음을 알려 줍니다 . 작업자의 신체에 부상을 야기 할 수 있는 상태에 있게 됩니다 . 모든 장비에 대한 작업을 수행하기 전에 전기회로와 관련된 위험 요소들을 확인하시고 사전에 사고를 방지할 수 있도록 표준 작업절차를 준수해 주시기 바랍니다...

  • Page 18: Circuit Breaker

    SSE-X3348T/ SSE-X3348TR Switch Installation Manual ‫ﻣﺼﺪﺭ ﻟﻠﻄﺎﻗﺔ‬ ‫ﺍﻟﻨﻈﺎﻡ ﺇﻟﻰ‬ ‫ﻗﺒﻞ ﺗﻮﺻﻴﻞ‬ ‫ﺘﺮﻛﻴﺐ‬ ‫ﺍﻗﺮ ﺇﺭﺷﺎﺩﺍﺕ ﺍﻟ‬ 시스템을 전원에 연결하기 전에 설치 안내를 읽어주십시오 . Waarschuwing Raadpleeg de installatie-instructies voordat u het systeem op de voedingsbron aansluit. Circuit Breaker Warning! This product relies on the building's installation for short-circuit (overcurrent) protection.

  • Page 19: Power Disconnection Warning

    Chapter 2: Standardized Warning Statements ‫ﻓﻲ‬ ‫ﺍﻟﺘﻲ ﺗﻢ ﺗﺜﺒﻴﺘﻬﺎ‬ ‫ﻣﻦ ﺍﻟﺪﻭﺍﺋﺮﺍﻟﻘﺼﻴﺮﺓ‬ ‫ﺍﻟﺤﻤﺎﻳﺔ‬ ‫ﻣﻌﺪﺍﺕ‬ ‫ﻳﻌﺘﻤﺪ ﻋﻠﻰ‬ ‫ﻫﺬﺍ ﺍﻟﻤﻨﺘﺞ‬ ‫ﺍﻟﻤﺒﻨﻰ‬ ‫ﺃﻛﺜﺮ ﻣﻦ‬ ‫ﻟﻴﺲ‬ ‫ﻮﻗﺎﺋﻲ‬ ‫ﺍﻟ‬ ‫ﺍﻟﺠﻬﺎﺯ‬ ‫ﺗﻘﻴﻴﻢ‬ ‫ﺃﻥ‬ ‫ﺗﺄﻛﺪ ﻣﻦ‬ 20A, 250V 경고 ! 이 제품은 전원의 단락 ( 과전류 ) 방지에 대해서 전적으로 건물의 관련 설비에 의존합니 다...

  • Page 20: Equipment Installation

    SSE-X3348T/ SSE-X3348TR Switch Installation Manual ¡Advertencia! El sistema debe ser disconnected de todas las fuentes de energía y del cable eléctrico quitado de los módulos de fuente de alimentación antes de tener acceso el interior del chasis para instalar o para quitar componentes de sistema.

  • Page 21: Restricted Area

    Chapter 2: Standardized Warning Statements Warnung Das Installieren, Ersetzen oder Bedienen dieser Ausrüstung sollte nur geschultem, qualifiziertem Personal gestattet werden. ¡Advertencia! Solamente el personal calificado debe instalar, reemplazar o utilizar este equipo. Attention Il est vivement recommandé de confier l'installation, le remplacement et la maintenance de ces équipements à...
  • Page 22 SSE-X3348T/ SSE-X3348TR Switch Installation Manual Warnung Diese Einheit ist zur Installation in Bereichen mit beschränktem Zutritt vorgesehen. Der Zutritt zu derartigen Bereichen ist nur mit einem Spezialwerkzeug, Schloss und Schlüssel oder einer sonstigen Sicherheitsvorkehrung möglich. ¡Advertencia! Esta unidad ha sido diseñada para instalación en áreas de acceso restringido. Sólo puede obtenerse acceso a una de estas áreas mediante la utilización de una...

  • Page 23: Battery Handling

    Chapter 2: Standardized Warning Statements Battery Handling Warning! There is the danger of explosion if the battery is replaced incorrectly. Replace the battery only with the same or equivalent type recommended by the manufacturer. Dispose of used batteries according to the manufacturer's instructions. 電池の取り扱い...

  • Page 24: Redundant Power Supplies

    SSE-X3348T/ SSE-X3348TR Switch Installation Manual 배터리가 올바르게 교체되지 않으면 폭발의 위험이 있습니다 . 기존 배터리와 동일하거 나 제조사에서 권장하는 동등한 종류의 배터리로만 교체해야 합니다 . 제조사의 안내에 따라 사용된 배터리를 처리하여 주십시오 . Waarschuwing Er is ontploffingsgevaar indien de batterij verkeerd vervangen wordt. Vervang de batterij slechts met hetzelfde of een equivalent type die door de fabrikant aanbevolen wordt.

  • Page 25: Backplane Voltage

    Chapter 2: Standardized Warning Statements ‫ﺍﻣﺪﺍﺩ ﺍﻟﻄﺎﻗﺔ‬ ‫ﺑﻮﺣﺪﺍﺕ‬ ‫ﻋﺪﺓ ﺍﺗﺼﺎﻻﺕ‬ ‫ﺠﻬﺎﺯ‬ ‫ﺍﻟ‬ ‫ﻳﻜﻮﻥ ﻟﻬﺬﺍ‬ ‫ﻗﺪ‬ ‫ﺍﻟﻜﻬﺮﺑﺎء‬ ‫ﻋﻦ‬ ‫ﻮﺣﺪﺓ‬ ‫ﺍﻟ‬ ‫ﻟﻌﺰﻝ‬ ‫ﻛﺎﻓﺔ ﺍﻻﺗﺼﺎﻻﺕ‬ ‫ﻳﺠﺐ ﺇﺯﺍﻟﺔ‬ 경고 ! 이 장치에는 한 개 이상의 전원 공급 단자가 연결되어 있을 수 있습니다 . 이 장치에 전 원을...

  • Page 26: Comply With Local And National Electrical Codes

    SSE-X3348T/ SSE-X3348TR Switch Installation Manual ‫ﺍﻟﻠﻮﺣﺔ‬ ‫ﺃﻭﺍﻟﻄﺎﻗﺔ ﺍﻟﻤﻮﺟﻮﺩﺓ ﻋﻠﻰ‬ ‫ﺍﻟﺘﻴﺎﺭ ﺍﻟﻜﻬﺮﺑﺎﺋﻲ‬ ‫ﻣﻦ‬ ‫ﺧﻄﺮ‬ ‫ﻫﻨﺎﻙ‬ ‫ﻫﺬﺍ ﺍﻟﺠﻬﺎﺯ‬ ‫ﺧﺪﻣﺔ‬ ‫ﻛﻦ ﺣﺬﺭﺍ ﻋﻨﺪ‬ ‫ﻳﻌﻤﻞ‬ ‫ﺍﻟﻨﻈﺎﻡ‬ ‫ﻋﻨﺪﻣﺎ ﻳﻜﻮﻥ‬ 경고 ! 시스템이 동작 중일 때 후면판 (Backplane) 에는 위험한 전압이나 에너지가 발생 합니 다 . 서비스 작업 시 주의하십시오 .

  • Page 27: Product Disposal

    Chapter 2: Standardized Warning Statements 경고 ! 현 지역 및 국가의 전기 규정에 따라 장비를 설치해야 합니다 . Waarschuwing Bij installatie van de apparatuur moet worden voldaan aan de lokale en nationale elektriciteitsvoorschriften. Product Disposal Warning! Ultimate disposal of this product should be handled according to all national laws and regulations.

  • Page 28: Hot Swap Fan Warning

    SSE-X3348T/ SSE-X3348TR Switch Installation Manual 경고 ! 이 제품은 해당 국가의 관련 법규 및 규정에 따라 폐기되어야 합니다 . Waarschuwing De uiteindelijke verwijdering van dit product dient te geschieden in overeenstemming met alle nationale wetten en reglementen. Hot Swap Fan Warning...

  • Page 29: Power Cable And Ac Adapter

    Electrical Appliance and Material Safety Law prohibits the use of UL or CSA -certified cables (that have UL/CSA shown on the code) for any other electrical devices than products designated by Supermicro only. 電源コードと AC アダプター...
  • Page 30 Fehlfunktion oder ein Brand entstehen. Elektrische Geräte und Material Safety Law verbietet die Verwendung von UL-oder CSA-zertifizierte Kabel, UL oder CSA auf der Code für alle anderen elektrischen Geräte als Produkte von Supermicro nur bezeichnet gezeigt haben.
  • Page 31 Het gebruik van andere kabels en adapters kan leiden tot een storing of een brand. Elektrisch apparaat en veiligheidsinformatiebladen wet verbiedt het gebruik van UL of CSA gecertificeerde kabels die UL of CSA die op de code voor andere elektrische apparaten dan de producten die door Supermicro alleen. 2-17...
  • Page 32 SSE-X3348T/ SSE-X3348TR Switch Installation Manual Notes 2-18...

  • Page 33: Chapter 3 Network Planning

    Chapter 3 Network Planning Data Center Deployment The SSE-X3348T/SSE-X3348TR switch is designed for use in high-availability data center environments with a high port density (Figure 3-1). The switch includes redundant, hot-swappable, load-sharing AC PSUs, a hot-swappable fan tray, and port-to-power and power-to-port airflow direction options. Meeting the network scaling...
  • Page 34 SSE-X3348T/ SSE-X3348TR Switch Installation Manual Figure 3-2. Converged Ethernet Data Center Deployment Core Switch Core Switch FCoE Storage Li nk Li nk Li nk Li nk Li nk Li nk Li nk Li nk Li nk Li nk Li nk...

  • Page 35: Rack Cooling

    Most rack-mounted servers draw cool air from the front and expel hot air at the rear. The SSE-X3348T top-of-rack switch includes power supply units and a fan tray module that have a front-to-back (F2B) airflow direction that maintains cool aisles in the data center (Figure 3-3).
  • Page 36 SSE-X3348T/ SSE-X3348TR Switch Installation Manual Figure 3-4. B2F Airflow Cooling Hot Aisle Cool Aisle ToR Switch Servers Front of Rack Rear of Rack...

  • Page 37: Chapter 4 Installing The Switch

    Console cable (DB-9 to DB-9) Switch Chassis The SSE-X3348T/SSE-X3348TR switch is designed to be installed in a standard 19-inch equipment rack. Be sure to take into account switch cooling requirements. Before continuing with switch installation, first review the general guidelines and switch cooling requirements in this chapter.

  • Page 38: How To Install The Switch In A Rack

    The switch can be mounted in a rack using the included mounting brackets or optional mounting rails. Due to the weight of the switch, it is strongly recommended that is be supported by a rack shelf or by using Supermicro mounting rails (part number CSE-PT052L).
  • Page 39 Chapter 4: Installing the Switch Figure 4-1. Switch Cooling F2B Airflow – SSE-X3348T B2F Airflow – SSE-X3348TR...

  • Page 40: Rack Cooling

    W x D x H: 207 x 94.25 x 40.4 mm (8.15 x 3.71 x 1.59 inches) Switch Installation Tasks Follow these tasks to install the SSE-X3348T/SSE-X3348TR switch in your network. For full details on each task, go to the relevant chapter or section by clicking on the link.

  • Page 41: Task 1: Unpack Package And Check Contents

    The switch can be mounted in a rack using the included mounting brackets or optional mounting rails. Due to the weight of the switch, it is strongly recommended that it be supported by a rack shelf or by using Supermicro mounting rails (part number CSE-PT052L).
  • Page 42 SSE-X3348T/ SSE-X3348TR Switch Installation Manual Figure 4-2. Connecting AC Power...

  • Page 43: Task 4: Verify Switch Operation

    Chapter 4: Installing the Switch Task 4: Verify Switch Operation Verify basic switch operation by checking the system LEDs (Figure 4-3). When operating normally, the PSU1/PSU2, Diagnostic, and Fan LEDs should all be on green. If any of the LEDs are on amber, see Section 8-1: "Diagnosing LED Indicators"...

  • Page 44: Task 5: Make Initial Configuration Changes

    SSE-X3348T/ SSE-X3348TR Switch Installation Manual Task 5: Make Initial Configuration Changes At this point you may need to make a few basic switch configuration changes before connecting to the network. It is suggested to connect to the switch console port to perform this task.

  • Page 45: Task 6: Install Transceivers And Connect Cables

    Chapter 4: Installing the Switch Task 6: Install Transceivers and Connect Cables Install QSFP+ transceivers and connect network cables to port interfaces: • For RJ-45 ports, use 100-ohm Category 5e, 6, 6a or 7 twisted-pair cable for 10GBASE-T connections, or Category 5, 5e or better cable for 1000BASE-T connections.

  • Page 46: Power And Grounding

    SSE-X3348T/ SSE-X3348TR Switch Installation Manual Power and Grounding This section focuses on the switch power supplies, how to intall them, and how to power-on the switch. Connecting the switch to ground is also covered. Power Supply Modules The switch supports hot-swappable power supply units (PSUs). You can install up to two PSUs with matching airflow direction in the switch.
  • Page 47 Chapter 4: Installing the Switch Table 4-2. AC Power Supply Module Specifications Item Description AC Input 100-240 VAC, 50-60 Hz, 6-3 A 5 VDC @ 3 A DC Output 12 VDC @ 33 A 100-240 VAC, 50-60 Hz, auto-sensing; hot pluggable Power Supply 400 Watts @ 220V/110V per module Power Consumption...

  • Page 48: Grounding The Chassis

    SSE-X3348T/ SSE-X3348TR Switch Installation Manual Grounding the Chassis The switch chassis must be connected to ground to ensure proper operation and to meet electromagnetic interference (EMI) and safety requirements. The switch chassis is connected internally to 0 V, which is then grounded through an installed AC PSU when it is connected to a grounded AC power outlet by an AC power cord.
  • Page 49 Chapter 4: Installing the Switch Connecting the Switch to a Power Source 1. If not already present, install one or two AC PSU modules. Slide them into the PSU slots at the rear of the switch until they click into place. (Push the red release lever to remove a module from the switch.) Table 4-4.
  • Page 50 SSE-X3348T/ SSE-X3348TR Switch Installation Manual Notes 4-14...

  • Page 51: Chapter 5 Making Network Connections

    This chapter focuses on making connections to SSE-X3348T/SSE-X3348TR switch network interfaces, including how to install optional transceivers, and details on network cable specifications. The SSE-X3348T/SSE-X3348TR switch features 48 10G RJ-45 ports, four 40G QSFP+ transceiver slots, and two 1G RJ-45 ports. The sections that follow describe these interfaces.

  • Page 52: Understanding The Port Status Leds

    SSE-X3348T/ SSE-X3348TR Switch Installation Manual Understanding the Port Status LEDs The switch includes LED indicators for each port to indicate link status and network activity. The port LEDs are shown below and described in the following table. Figure 5-1. Port Status LEDs...

  • Page 53: How To Install A Qsfp+ Transceiver

    Chapter 5: Making Network Connections How to Install a QSFP+ Transceiver The switch provides slots for optional QSFP+ transceivers. The supported transceiver types are listed below: • 40 Gbps Ethernet QSFP+ transceivers • 40GBASE-CR4 • 40GBASE-SR4 NOTE: QSFP+ transceivers are hot-swappable. The switch does not need to be powered off before installing or removing a transceiver.

  • Page 54: How To Connect To Twisted-Pair Copper Ports

    SSE-X3348T/ SSE-X3348TR Switch Installation Manual How to Connect to Twisted-Pair Copper Ports The RJ-45 management port on the switch supports automatic MDI/MDI-X pinout configuration, so you can use standard straight-through twisted-pair cables to connect to any other network device (PCs, servers, switches, routers, or hubs).

  • Page 55: 10/100Base-Tx Pin Assignments

    Chapter 5: Making Network Connections 10/100BASE-TX Pin Assignments All 100BASE-TX RJ-45 ports support automatic MDI/MDI-X operation, so you can use straight-through or crossover cables for all network connections to PCs, switches, or hubs. In straight-through cable, pins 1, 2, 3, and 6, at one end of the cable, are connected straight through to pins 1, 2, 3, and 6 at the other end of the cable.

  • Page 56: 1000Base-T Pin Assignments

    SSE-X3348T/ SSE-X3348TR Switch Installation Manual 1000BASE-T Pin Assignments All 1000BASE-T ports support automatic MDI/MDI-X operation, so you can use straight-through cables for all network connections to PCs, servers, or switches. The table below shows the 1000BASE-T MDI and MDI-X port pinouts. These ports require that all four pairs of wires be connected.

  • Page 57: Connection Procedure

    Chapter 5: Making Network Connections Note that when testing your cable installation, be sure to include all patch cables between switches and end devices. Connection Procedure Follow these steps to connect cables to 10GBASE-T or 1000BASE-T RJ-45 twisted-pair copper ports. Connecting Cables to 10GBASE-T or 1000BASE-T RJ-45 Twisted-pair Copper Ports 1.

  • Page 58: How To Connect To Qsfp+ Fiber Optic Ports

    SSE-X3348T/ SSE-X3348TR Switch Installation Manual How to Connect to QSFP+ Fiber Optic Ports The switch includes four slots for 40-Gigabit Ethernet QSFP+ fiber-optic transceivers. Note that 40G fiber optic ports can provide either one 40-Gbps full-duplex link, four independent 10G fiber optic links. Connecting a 40G QSFP+ port to four 10G SFP+ ports requires the use of a breakout cable.

  • Page 59: Dac Connections

    Chapter 5: Making Network Connections Figure 5-5. Making a Connection to an QSFP+ Transceiver QSFP+ Transceiver Port QSFP+ Fiber Optic Cable 4. As a connection is made, check the Link LED on the switch to be sure that the connection is valid. NOTE: Be sure to secure cables properly and route them away from the switch without exceeding the minimum bending radius for fiber cables (typically a few inches).

  • Page 60: Making Dac Connections

    SSE-X3348T/ SSE-X3348TR Switch Installation Manual Table 5-6. Maximum 40GBASE-CR4 40 Gigabit Ethernet Cable Lengths Cable Type Cable Lengths Connector 1 m (3.28 ft) 2 m (6.56 ft) Pre-terminated Direct Attach Cable (DAC) — 3 m (9.8 ft) QSFP+ (twinax copper cable) 5 m (16.4 ft)
  • Page 61 Chapter 5: Making Network Connections 5-11...

  • Page 62: Chapter 6 Hardware Specifications

    Chapter 6 Hardware Specifications This chapter lists and describes hardware specifications for the SSE-X3348T switches. Physical Characteristics Physical characteristic specifications for the switches are shown below: Ports 48x10Gbps RJ-45 ports, 4x40 Gbps QSFP+ transceiver slotsand 2x10/100/1000 Mbps RJ-45 ports Network Interface...

  • Page 63: Switch Features

    Chapter 6: Hardware Specifications Humidity Operating: 5% to 95% (non-condensing) AC Input SSE-X3348T/SSE-X3348TR AC 100-240V, 50-60Hz, 1A Power Supply 100-240 VAC, 50-60 Hz, auto-sensing; hot pluggable 600 Watts@ 220V/110V per module Power Consumption 357 Watts maximum Switch Features Switch feature specifications are shown below:...

  • Page 64: Compliances

    SSE-X3348T/ SSE-X3348TR Switch Installation Manual • Full-duplex flow control • Link Aggregation Control Protocol • IEEE 802.1Q • IEEE 802.1P • ISO/IEC 8802-3 Compliances Switch compliances are shown below: Emissions EN55022 (CISPR 22) Class A EN 61000-3-2/3 FCC Class A...
  • Page 65 SSE-X3348T/ SSE-X3348TR Switch Installation Manual Notes...

  • Page 66: Chapter 7 Switch Management

    Chapter 7 Switch Management The SSE-X3348T/SSE-X3348TR switch includes a management agent that allows you to configure or monitor the switch using its embedded management software. To manage the switch, you can make a direct connection to the console port (out-of-band), or you can manage it through a network connection (in-band) using Telnet, Secure Shell (SSH), a web browser, or SNMP-based network management software.

  • Page 67: How To Connect To The Console Port

    Chapter 7: Switch Management How to Connect to the Console Port The DB-9 Console port (Figure 7-2) on the switch’s rear panel is used to connect to the switch for out-of-band console configuration. The console device can be a PC or workstation running a VT-100 terminal emulator, or a VT-100 terminal.
  • Page 68 4. Log in to the command-line interface (CLI) using default settings: • User — ADMIN • Password — ADMIN For a detailed description of connecting to the console and using the switch’s command line interface (CLI), refer to the Supermicro Switch CLI Reference Guide.

  • Page 69: How To Reset The Switch

    Chapter 7: Switch Management How to Reset the Switch The Reset button (Figure 7-4) on the switch can be used to restart the device and set the configuration back to factory default values. Use a long thin object, such as the end of a paperclip, to depress the Reset button. One push of the button restarts the system software using default values.

  • Page 70: Chapter 8 Troubleshooting

    For more information on connecting to the console port and using the CLI, refer to the Supermicro Switch CLI Reference Guide. Note a POST failure normally indicates a serious hardware fault that cannot be rectified or worked around.

  • Page 71: Installation

    Chapter 8: Troubleshooting Installation Verify that all system components have been properly installed. If one or more components appear to be malfunctioning (such as the power cord or network cabling), test them in an alternate environment where you are sure that all the other components are functioning properly.
  • Page 72 SSE-X3348T/ SSE-X3348TR Switch Installation Manual...
  • Page 73 Disclaimer The products sold by Supermicro are not intended for and will not be used in life support systems, medical equipment, nuclear facilities or systems, aircraft, aircraft devices, aircraft/emergency communication devices or other critical systems whose failure to perform be reasonably expected to result in significant injury or loss of life or catastrophic property damage.
  • Page 74 SSE-X3348T/ SSE-X3348TR Switch Installation Manual...
