Sunricher SR-2820B Manual

RF RGBW Wall Mounted Controller
Important: Read All Instructions Prior to Installation

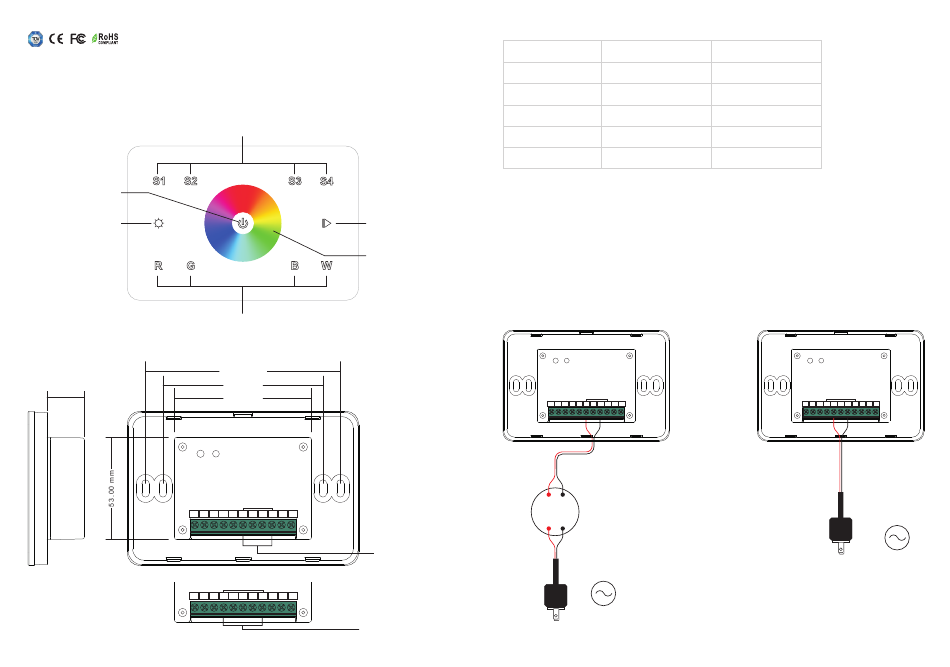

Function introduction

Press and hold down to save color/effect;
Click to recall the saved
Click to switch on/off
Press and hold down to
increase/decrease light
intensity
R/G/B/W 4channels:Click to turn off/on the channel
Press and hold down to increase/decrease light intensity of each channel
19.50 mm
Wall Mounted Controller
Click to play / pause the
10 built-in effects,
Press and hold down to
speed up/down the
running effects
Touch color wheel, touch to
select R/G/B color
Front side
101.00 mm
83.00 mm
71.00 mm
RF RGBW Color
DC Version
DC INPUT
V+ V+ V- V-
DC Power input
AC INPUT
L L N N
AC Version
AC Power input
Back side

Product Data

09.282BI.04267
Output Signal
Power Supply
Power consumption
Operating temperature
Relative humidity
Dimensions
• Touch sensitive
• Glass interface(white & black)
• Control RGBW color
• Compatible with all universal series RF receivers
• Radio frequency: 869.5/434MHz
• Waterproof grade: IP20
Safety & Warnings
• DO NOT install with power applied to device.
• DO NOT expose the device to moisture.

Wiring diagram

DC Version
RF RGBW Color
Wall Mounted Controller
V+ V+ V- V-
12-24VDC
PSU
AC 100-240V
DC Version AC Version
RF signal RF signal
12-24VDC 100-240VAC
20 mA 20 mA
0-40°C 0-40°C
8% to 80% 8% to 80%
120x80x29.1mm 120x80x29.1mm
DC INPUT
AC Power
50/60Hz
AC Version
RF RGBW Color
Wall Mounted Controller
AC INPUT
L L N N
AC Power
AC 100-240V 50/60Hz
