Sunricher SR-2820B Quick Start Manual

RF RGBW Wall Mounted Controller
Important: Read All Instructions Prior to Installation

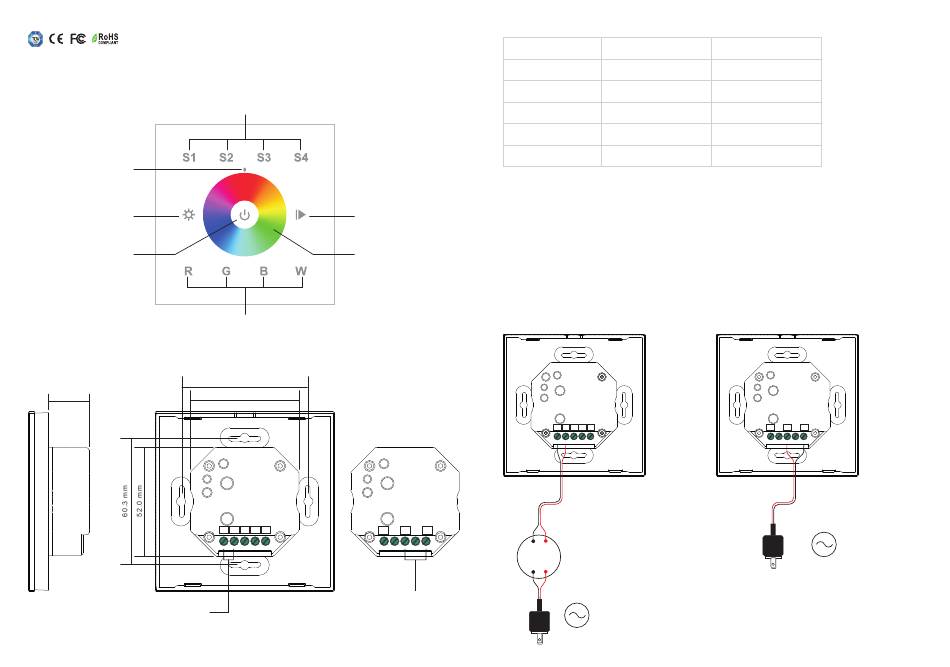

Function introduction
Press and hold down to save color/effect;
Click to recall the saved
LED indicator
Press and hold down to
increase/decrease light
intensity
Click to switch on/off
R/G/B/W 4channels:Click to turn off/on the channel
Press and hold down to increase/decrease light intensity of each channel
19.4 mm
DC Power input
Click to play / pause the
10 built-in effects,
Press and hold down to
speed up/down the
running effects
Touch color wheel, touch to
select R/G/B color
Front side
60.3 mm
52.0 mm
DC Version AC Version
RF Wall RF Wall
Panel Controller Panel Controller
V- V+
AC Power input
Back side
Product Data
09.2820B.04173
Output Signal
Power Supply
Power consumption
Operating temperature
Relative humidity
Dimensions
• Touch sensitive
• Glass interface(white & black)
• Compatible with all universal series RF receivers
• Control 1 Zone of RGBW LED lighting
• Radio frequency: 869.5/434MHz
• Waterproof grade: Ip20
Safety & Warnings
• DO NOT install with power applied to device.
• DO NOT expose the device to moisture.
Wiring diagram
DC Version
RF Wall
Panel Controller
V- V+
L N
12-24VDC
PSU
AC Power
50/60Hz
AC 100-240V
DC Version AC Version
RF signal RF signal
12-24VDC 100-240VAC
20 mA 20 mA
0-40°C 0-40°C
8% to 80% 8% to 80%
86x86x29.1mm 86x86x29.1mm
AC Version
AC Version
RF Wall
Panel Controller
L N
AC 100-240V
AC Power
50/60Hz
