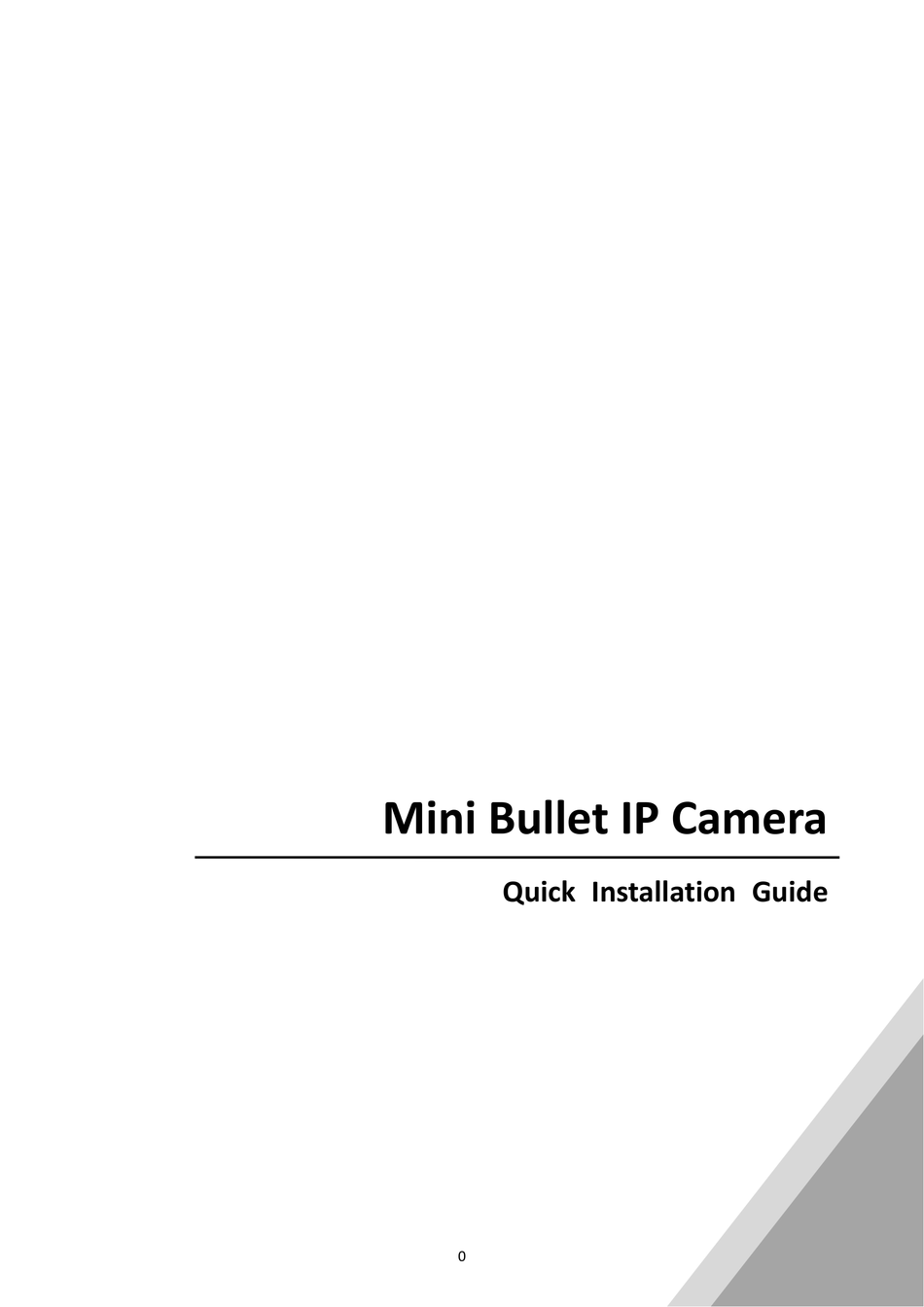

- Page 1 Mini Bullet IP Camera Quick Installation Guide 0 ...
- Page 2 The following software and information are available online: - Video Management Software - Z PLUS - User manuals - Camera Language Packs You may download the above at http://www.zavio.com/downloads.php or you may scan the below QR-Code. To activate Video Management Software, please contact with Zavio FAE (techsupport@zavio.com) to get the license key (Please provide camera’s Model name/Serial number/MAC). ...
- Page 3 Physical Overview CB3210 CB3211 2 ...
-
Page 4: I/O Terminal Block Circuit
I/O Terminal Block Circuit Note: Please use the supplied waterproof RJ45 connector and seal all connectors tightly to avoid moisture. I/O Terminal Block Pin Definition Pin Color Definition Description Max. V/A Connect the wires of the audio input device to GND Green &... - Page 5 LED Indicator Color Indication Green Solid green when network is established. Network Orange Blink orange when there is network activity. SD Card & Reset button Reset: When the device is powered, press the Reset Button to reboot the device, or hold the Reset Button for 15 seconds to the settings back to factory default. Install the hardware and connect all cables A.
- Page 6 C. Junction box AZ-J01 (optional accessory) 1. Install sticker 2. Wall screw 3. Adapter plate 4. Adapter plate sticker 5. Bracket and camera 6. Foam pad 7. Stopper 8. Cable box 9. Sink head screw 10. Flat head screw D. Connect all cables D1.
- Page 7 MAC OS using Safari Browser 1. Select Safari Icon 2. Click Bonjour function and select the camera you wish to access. 3. Enter name and password to login to the IP camera (Default is admin / admin) ...
- Page 8 Z Plus A. Get the image of camera with Z Plus. 1. Download Z Plus from ZAVIO official website.. 2. Follow the instruction and install Z Plus. 3. Click the icon and get into the software. 7 ...
- Page 9 B. Camera setting 8 ...
- Page 10 Before accessing the Setting page to change the language of the web interface, you must download the language pack. 1. Go to http://www.zavio.com/downloads.php and download the language pack corresponding to your IP camera model. 2. Go to the IP camera setting page and upload the preferred language from the language pack downloaded from step 1.
