Summary of Contents for Zavio CD5220

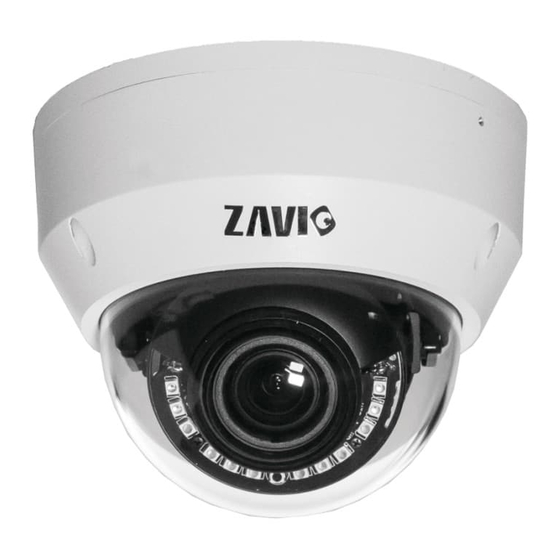

- Page 1 ZAVIO Outdoor IR Dome Quick Installation Guide...
-
Page 2: Quick Installation Guide
- Camera Language Packs You may download the above at http://www.zavio.com/downloads.php or you may scan the below QR-Code. To activate Video Management Software, please contact with Zavio FAE (techsupport@zavio.com) to get the license key (Please provide camera’s Model name/Serial number/MAC). -
Page 3: Physical Overview
Physical overview CD5220/ CD6230/ CD6330... -
Page 4: I/O Terminal Block Circuit
I/O Terminal Block Circuit Note: Please use the supplied waterproof RJ45 connector and seal all connectors tightly to avoid moisture. I/O Terminal Block Pin Definition Pin Color Definition Description Max. V/A Connect the wires of the audio input device to GND Green &... - Page 5 LED Indicator Color Indication Green Solid green when network is established. Network Orange Blink orange when there is network activity. Install the hardware and connect all cables A. RJ45 waterproof connector 1) Make sure all components are assembled as shown on the below graph. Check that the ethernet port and the waterproof main body are tightly fasten.
- Page 6 (2) Junction box AZ-J01 (optional accessory) (3) Wall mount AD-M06 (optional accessory)
- Page 7 C. Connect all cables E1. Without Power over Ethernet (PoE) connection 1. Connect the power adaptor to the IP Camera. 2. Use a standard RJ-45 network cable and connect the IP Camera to a hub/switch/router. E2. Power over Ethernet (PoE) 1.
- Page 8 Important: Make sure the IR LEDs are not blocked by the housing as it will affect the IR performance. If the image is upside down, please use the image rotate function in Video Setting. MAC OS using Safari Browser 1. Select Safari Icon 2.
- Page 9 3. Enter name and password to login to the IP camera (Default is admin / admin) 4. Live video will display in the center of your web browser...
- Page 10 Z Plus A. Get the image of camera with Z Plus. 1. Download Z Plus from ZAVIO official website.. 2. Follow the instruction and install Z Plus. 3. Click the icon and get into the software.
- Page 11 B. Camera setting...
- Page 12 Before accessing the Setting page to change the language of the web interface, you must download the language pack. 1. Go to http://www.zavio.com/downloads.php and download the language pack corresponding to your IP camera model. 2. Go to the IP camera setting page and upload the preferred language from the language pack downloaded from step 1.
