Summary of Contents for Zavio CD3210

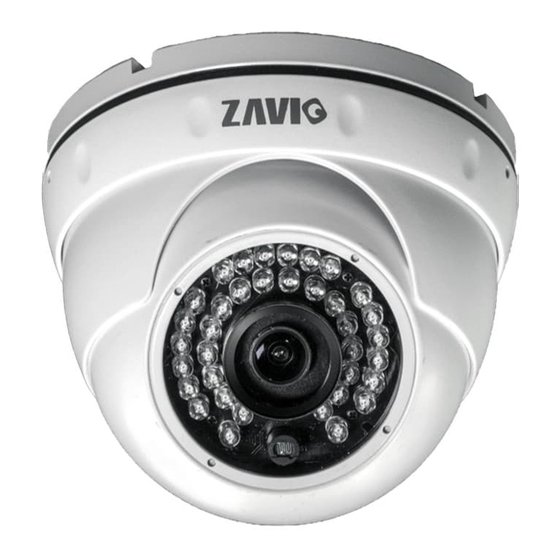

- Page 1 Eyeball Dome IP Camera Quick Installation Guide...
- Page 2 The following software and information are available online: - Video Management Software - Z PLUS - User manuals - Camera Language Packs You may download the above at http://www.zavio.com/downloads.php or you may scan the below QR-Code. To activate Video Management Software, please enter the license key below.
-
Page 3: Physical Overview
Physical Overview CD3210 IR LED Light sensor CD3211 IR LED Light sensor... -
Page 4: I/O Terminal Block Circuit
I/O Terminal Block Circuit Note: Please use the supplied waterproof RJ45 connector and seal all connectors tightly to avoid moisture. I/O Terminal Block Pin Definition Pin Color Definition Description Max. V/A Connect the wires of the audio input device to GND Green &... - Page 5 Reset: When the device is powered, press the Reset Button to reboot the device, or hold the Reset Button for 15 seconds to the settings back to factory default. Install the hardware and connect all cables A. RJ45 waterproof connector 1.
- Page 6 D. Junction box AZ-J01 (optional accessory) 1. Self-adhesive sticker 2. Cable tie 3. Connection plate 4. Stopper 5. Wall screws 6. Foam pad 7. Round head screws E. Connect all cables E1. Without Power over Ethernet (PoE) connection 1. Connect the power adaptor to the IP Camera. 2.
- Page 7 MAC OS using Safari Browser 1. Select Safari Icon 2. Click Bonjour function and select the camera you wish to access. 3. Enter name and password to login to the IP camera (Default is admin / admin)
- Page 8 4. Live video will display in the center of your web browser Z Plus A. Get the image of camera with Z Plus. 1. Download Z Plus from ZAVIO official website.. 2. Follow the instruction and install Z Plus.
- Page 9 3. Click the icon and get into the software.
- Page 10 B. Camera setting...
- Page 11 Before accessing the Setting page to change the language of the web interface, you must download the language pack. 1. Go to http://www.zavio.com/downloads.php and download the language pack corresponding to your IP camera model. 2. Go to the IP camera setting page and upload the preferred language from the language pack downloaded from step 1.
