I
ntroduction

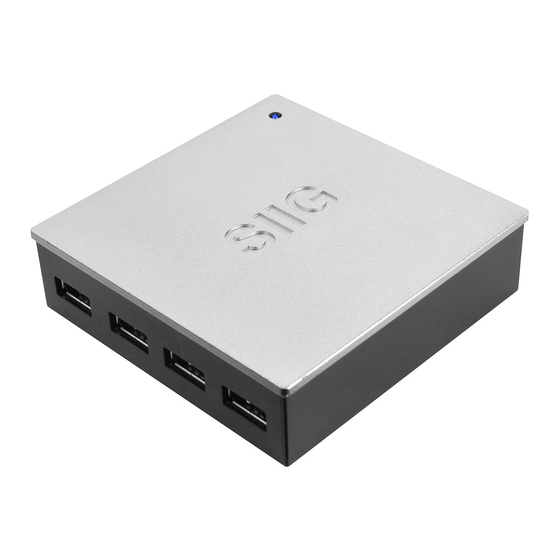

The USB 3.0 & 2.0 Hub quickly adds multiple USB
ports to your PC system and expands data transfer
rate up to 5Gb/s.
Key Features and Benefits
•
Wide clearance between USB ports to avoid
interference between USB devices
•
Supports data transfer rates up to 5Gb/s
•
Over current protection built in
•
Comes with 5V/4A adapter to fulfill
power hungry USB devices (for JU-
H70411-S2 & JU-H40812-S1 only)
System Requirements
•
Desktop or notebook PC with an available
USB port (USB 3.0 recommended)
•
Windows
/64-bit) / Vista (32-/64-bit) / XP (32-/64-
bit) / Server 2003 & 2008 (32-/64-bit) /
Server 2008 R2
04-0654B
USB 3.0 & 2.0 Hub
Quick Installation Guide
8 (32-/64-bit) / Windows 7 (32-
®
1
Advertisement
Table of Contents
Related Manuals for SIIG JU-H70411-S2
Summary of Contents for SIIG JU-H70411-S2
- Page 1 USB 3.0 & 2.0 Hub Quick Installation Guide ntroduction The USB 3.0 & 2.0 Hub quickly adds multiple USB ports to your PC system and expands data transfer rate up to 5Gb/s. Key Features and Benefits • Wide clearance between USB ports to avoid interference between USB devices •...
- Page 2 Package Contents • USB 3.0 & 2.0 Hub • USB 3.0 cable (Type-A to Type-B) • Power adapter (5V/4A for JU-H70411-S2 & JU-H40812-S1; 5V/2A for JU-H70212- • Quick installation guide Layout JU-H70411-S2 & JU-H70212-S2 Upstream port (Type-B) Power adapter jack Power LED USB 3.0 downstream ports...
- Page 3 USB 2.0 downstream ports Figure 2: Layout Back JU-H40812-S1 USB 3.0 downstream ports Figure 3: Layout Front...
- Page 4 Upstream port (Type-B) Power adapter jack Figure 4: Layout Back Device Connections Upstream Port (Type-B): connect to an available USB • 3.0 port of the computer using the included USB 3.0 cable USB 3.0 downstream ports: connect your USB 3.0 •...
- Page 5 Installation Connect the Type-B connector of the included USB 3.0 cable to the Upstream port (Type-B) of the hub. Connect the Power adapter into the Power adapter jack of the hub, then plug the power adapter into a reliable power source. Plug the Type-A connector of the included USB 3.0 cable into an available USB port (USB 3.0 recommended) of the computer,...
- Page 6 For Server 2008: Right click Computer, click Manage, double click Diagnostics, and click Device Manager. Double click Universal Serial Bus controllers. For Windows 8 When connected to a USB 3.0 host adapter: Generic SuperSpeed USB Hub should be listed. When connected to a USB 2.0 host adapter: Generic USB Hub should be listed twice.
- Page 7 Go to www.siig.com, click Support, then REQUEST A PRODUCT REPLACEMENT to submit a request to SIIG RMA or fax a request to 510-657-5962. Your RMA request will be processed, if the product is determined to be defective, an RMA number will be issued.
- Page 8 Fremont, CA 94538-3152, USA Phone: 510-657-8688 USB 3.0 & 2.0 Hub is a trademark of SIIG, Inc. SIIG and the SIIG logo are registered trademarks of SIIG, Inc. All other names used in this publication are for identification only and may be trademarks of their respective owners.
