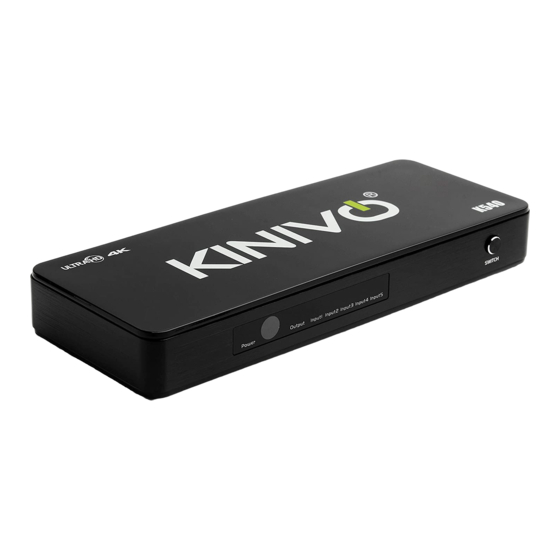

K540 HDMI Switch
User Manual
© 2015 Kinivo, Inc. All rights reserved.
Kinivo is a trademark of Kinivo, Inc. Bluetooth word mark and the Bluetooth logo
are registered trademarks of Bluetooth SIG. All other trade names are registered
trademarks of respective manufacturers. This manual may not be copied in any
media or form without the written consent of Kinivo, Inc.
Kinivo Product Support
Online : http://support.kinivo.com
Email : support@kinivo.com
K540
Advertisement
Table of Contents
Related Manuals for Kinivo K540
Summary of Contents for Kinivo K540

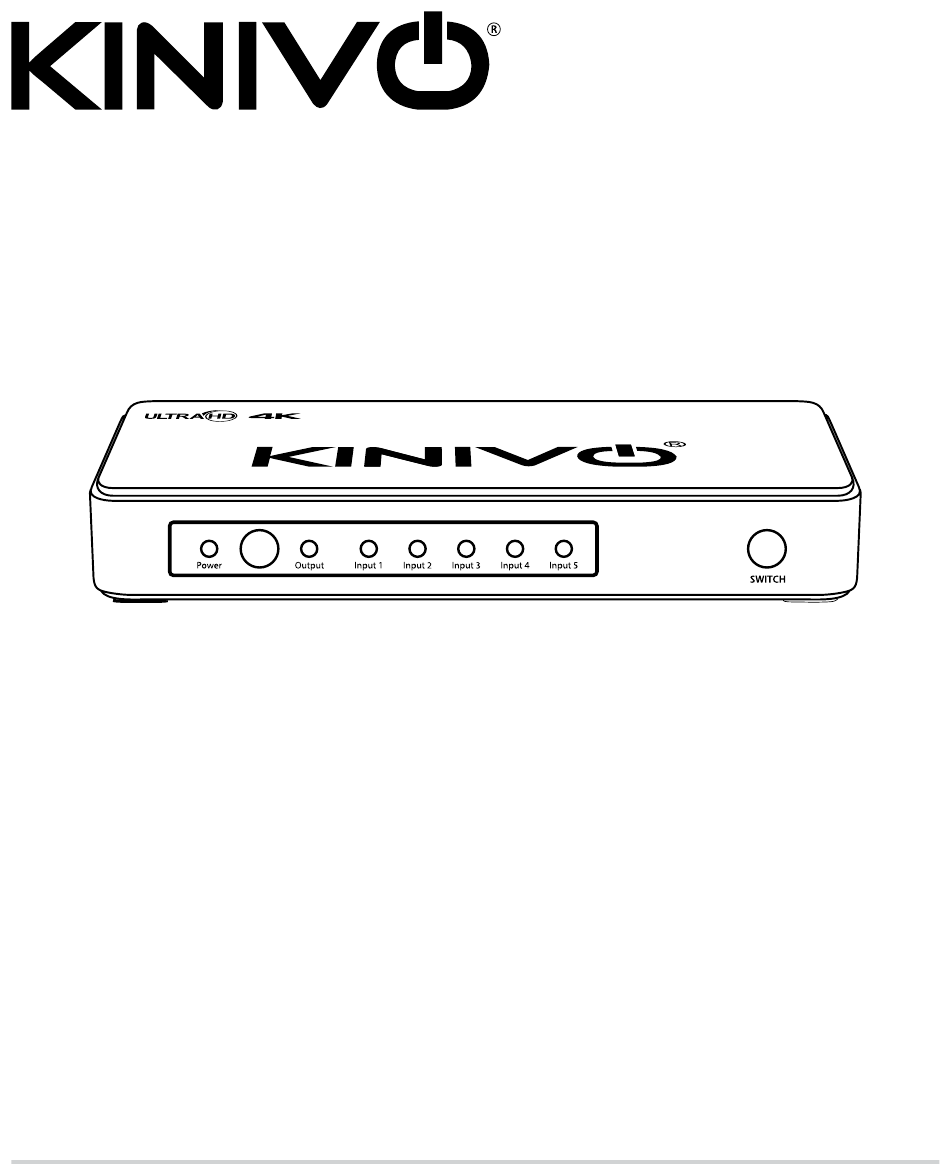

- Page 1 K540 © 2015 Kinivo, Inc. All rights reserved. Kinivo is a trademark of Kinivo, Inc. Bluetooth word mark and the Bluetooth logo are registered trademarks of Bluetooth SIG. All other trade names are registered trademarks of respective manufacturers. This manual may not be copied in any media or form without the written consent of Kinivo, Inc.
- Page 2 English: Thank you for choosing Kinivo. Our user manuals are available in multiple languages at http://downloads.kinivo.com français: Merci d’avoir choisi Kinivo. Nos modes d’emploi sont disponibles en plusieurs langues sur http://downloads.kinivo.com Deutsch: Danke für die Wahl von Kinivo. Unsere Bedienungsanleitungen sind unter http://downloads.kinivo.com in mehreren Sprachen verfügbar...
-
Page 3: Table Of Contents
Important Safety Instructions............4 Panel Description ................5 Connection Diagram ..............6 LED Indicators ................6 How to connect devices to the K540 ..........7 IR Remote Control ................8 Specifications ................. 8 Warranty ..................9 Online Support / Contact Us ............10... -
Page 4: Important Safety Instructions
Do not install near any heat sources such as radiators, stoves, heat registers etc. Unplug during lightning storms or when unused for a long period of time. Protect power cord from being pinched, particularly near plug points. Only use attachments/accessories specified by manufacturer. Warning Kinivo K540 HDMI Switch... -
Page 5: Panel Description
Power indicator LED IR receiver Output indicator LED Input indicator LEDs Switch button short press it to switch between input 1-2-3-4-5 long press it to turn on/standby the K540 Output port Input ports Power port (DC~5V) Kinivo K540 HDMI Switch... -
Page 6: Connection Diagram
Red LED HDMI Switch standby Blue LED Output connected to TV OUTPUT Dark LED Output not connected to TV Blue LED Selected Active input INPUTS Red LED Unselected Active input Dark LED Unconnected Or Inactive input Kinivo K540 HDMI Switch... -
Page 7: How To Connect Devices To The K540
How to connect devices to the K540 First, connect the AC adapter cable into the K540 and plug the adapter into a power outlet. Connect the HDMI source device to an input on the K540 HDMI switch. Connect an HDMI cable from the K540’s output port into a TV input port. -
Page 8: Ir Remote Control
Note: Please pull out the plastic tab on the bottom of the remote in order to activate it. Specifications Supports HDMI v1.4 Supports HDCP V1.3 Supports resolutions up to Ultra HD 4K x 2K and 1080p Full HD Kinivo K540 HDMI Switch... -
Page 9: Warranty
Warranty 1 Year Limited Hardware Warranty. Kinivo hereby warrants to the customer of record that this product is in good- working condition and free from defects in material or workmanship under normal use for a duration of 1 year after the date of purchase. The product has been tested to meet the highest quality standards in each testing category. -
Page 10: Online Support / Contact Us
If your product is not functioning or you have any concerns please contact Kinivo Support before returning the product. Online Support / Contact Us Please visit us at support.kinivo.com or www.kinivo.com for support information, downloads and how-to’s. You may also reach us via email or live chat (details below). - Page 11 This page intentionally left blank...
