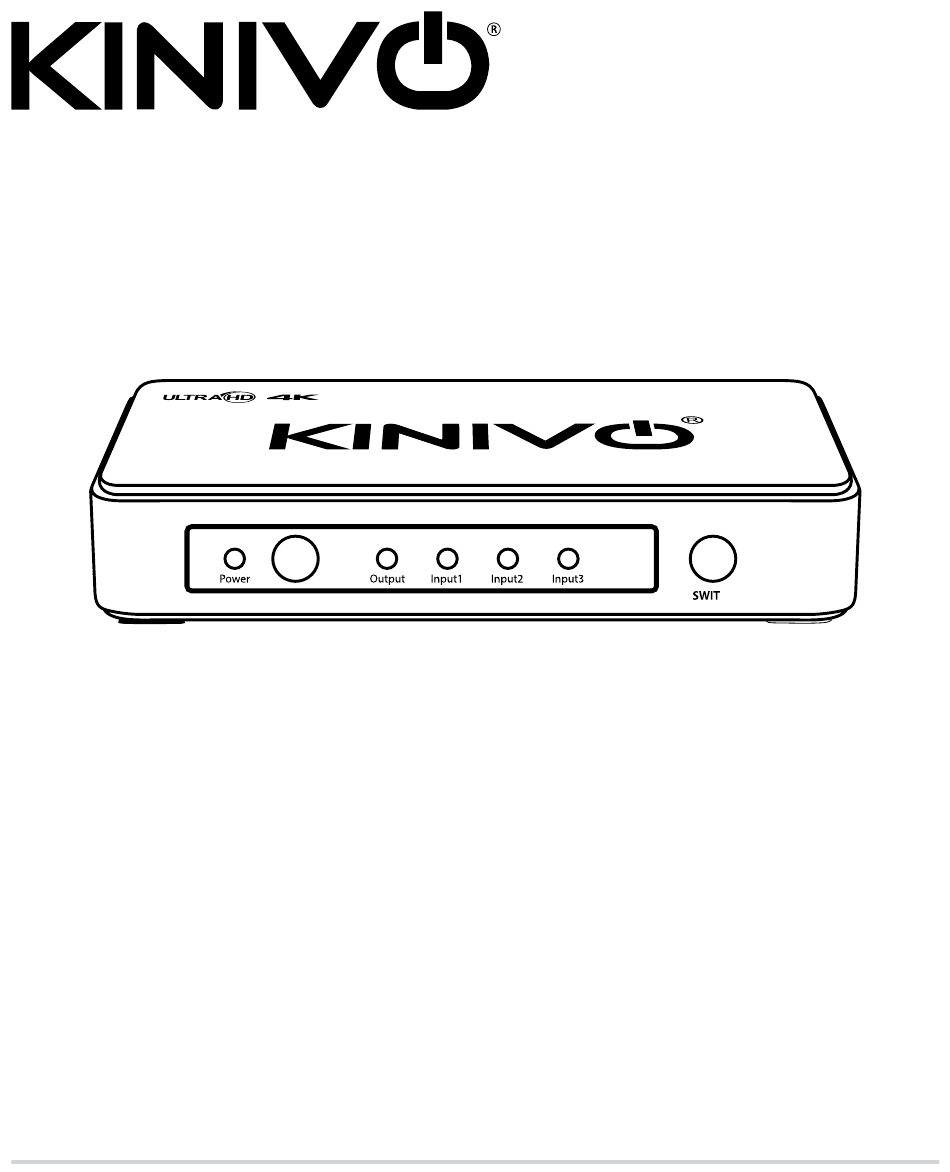

K340 HDMI Switch
User Manual
© 2015 Kinivo, Inc. All rights reserved.
Kinivo is a trademark of Kinivo, Inc. Bluetooth word mark and the Bluetooth logo
are registered trademarks of Bluetooth SIG. All other trade names are registered
trademarks of respective manufacturers. This manual may not be copied in any
media or form without the written consent of Kinivo, Inc.
Kinivo Product Support
Online : http://support.kinivo.com
Email : support@kinivo.com
K340
CH
Advertisement
Table of Contents
Related Manuals for Kinivo K340
Summary of Contents for Kinivo K340
- Page 1 K340 © 2015 Kinivo, Inc. All rights reserved. Kinivo is a trademark of Kinivo, Inc. Bluetooth word mark and the Bluetooth logo are registered trademarks of Bluetooth SIG. All other trade names are registered trademarks of respective manufacturers. This manual may not be copied in any media or form without the written consent of Kinivo, Inc.
- Page 2 English: Thank you for choosing Kinivo. Our user manuals are available in multiple languages at http://downloads.kinivo.com français: Merci d’avoir choisi Kinivo. Nos modes d’emploi sont disponibles en plusieurs langues sur http://downloads.kinivo.com Deutsch: Danke für die Wahl von Kinivo. Unsere Bedienungsanleitungen sind unter http://downloads.kinivo.com in mehreren Sprachen verfügbar...
-
Page 3: Table Of Contents
Table of Contents Important Safety Instructions............4 Panel Description ................5 Connection Diagram .................6 LED Indicators ..................6 IR Remote Control ................7 How to connect devices to the K340 ..........7 Specifications ..................8 Warranty .....................9 Online Support / Contact Us ..............10... -
Page 4: Important Safety Instructions
Do not install near any heat sources such as radiators, stoves, heat registers etc. Unplug during lightning storms or when unused for a long period of time. Protect power cord from being pinched, particularly near plug points. Only use attachments/accessories specified by manufacturer. Warning Kinivo K340 HDMI Switch... -

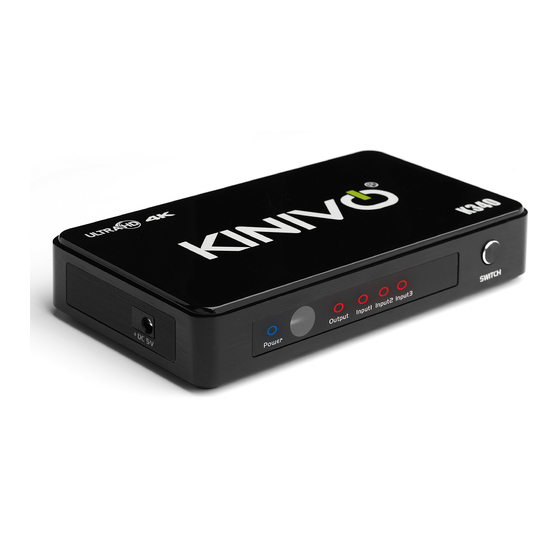

Page 5: Panel Description
HDMI output port HDMI input ports DC 5V Power Port Power indicator IR receiver Output indicator Input indicators Switch button Short press it to switch between input 1-2-3; long press it to turn on/standby the K340 Kinivo K340 HDMI Switch... -
Page 6: Connection Diagram
Red LED HDMI Switch standby Blue LED Output connected to TV OUTPUT Dark LED Output not connected to TV Blue LED Selected Active input INPUTS Red LED Unselected Active input Dark LED Unconnected Or Inactive input Kinivo K340 HDMI Switch... -
Page 7: Ir Remote Control
First, connect the AC adapter cable into the Kinivo K340 and plug the adapter into a power outlet. Connect the HDMI source device to an input on the Kinivo K340 HDMI switch. Connect an HDMI cable from the Kinivo K340’s output port into a TV input Kinivo K340 HDMI Switch... -
Page 8: Specifications
Supports data rate up to 3.4Gbps/per TMDS TMDS input equalization up to 15db (Transmission distance: ≤15M AWG24) Power supply:+5V/1A Working temperature: 5 to 131°F (-15 to +55°C) (Humidity: 5-90% RH) Dimensions: 4.33” x 2.36” x 0.78” (110x60x20mm) Kinivo K340 HDMI Switch... -
Page 9: Warranty
Warranty 1 Year Limited Hardware Warranty. Kinivo hereby warrants to the customer of record that this product is in good- working condition and free from defects in material or workmanship under normal use for a duration of 1 year after the date of purchase. The product has been tested to meet the highest quality standards in each testing category. -
Page 10: Online Support / Contact Us
Online Support / Contact Us Please visit us at support.kinivo.com or www.kinivo.com for support information, downloads and how-to’s. You may also reach us via email or live chat (details below). Kinivo Product Support Email : support@kinivo.com Live chat : http://support.kinivo.com... - Page 11 This page intentionally left blank...
- Page 12 Kinivo Product Support Made in china Online : http://support.kinivo.com Email : support@kinivo.com...
