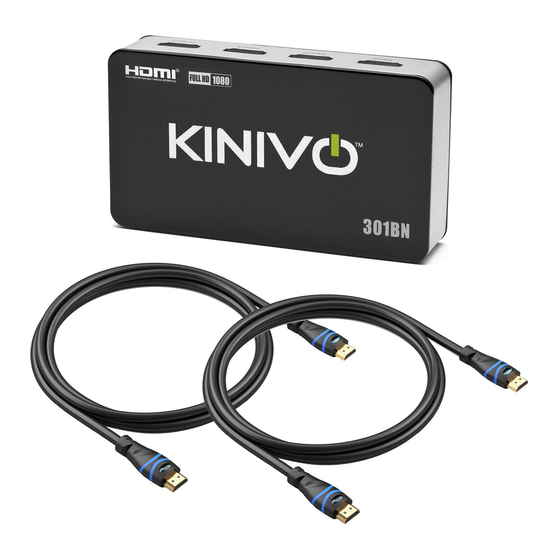

Kinivo 301BN HDMI Switch
User Manual
© 2012 Kinivo LLC. All rights reserved.
Kinivo is a trademark of Kinivo LLC. Bluetooth word mark and the Bluetooth logo are registered trademarks of
Bluetooth SIG. All other trade names are registered trademarks of respective manufacturers. This manual may
not be copied in any media or form without the written consent of Kinivo LLC.
Kinivo Product Support
Online : http://support.kinivo.com
Email : support@kinivo.com
Advertisement
Table of Contents
Related Manuals for Kinivo 301BN
Summary of Contents for Kinivo 301BN
-

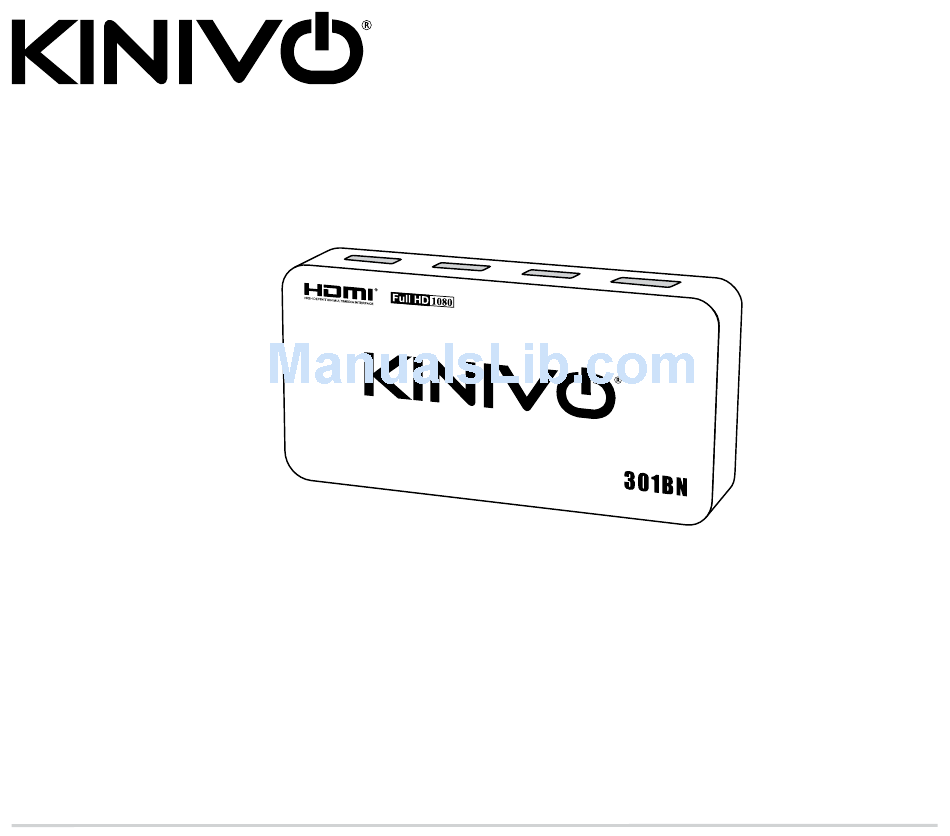

Page 1: User Manual
© 2012 Kinivo LLC. All rights reserved. Kinivo is a trademark of Kinivo LLC. Bluetooth word mark and the Bluetooth logo are registered trademarks of Bluetooth SIG. All other trade names are registered trademarks of respective manufacturers. This manual may not be copied in any media or form without the written consent of Kinivo LLC. -
Page 2: Table Of Contents
Table of Contents Important Safety Instructions......................3 Introduction ............................4 Installation ............................4 Front and Side Panel Controls ............................4 Back and Side Panel Connectors ............................. 5 Remote Control ..................................6 Typical Setup ..................................6 LED Indication ..................................7 Specifications ............................8 FAQ Frequently Asked Questions ..................... -
Page 3: Important Safety Instructions
Unplug during lightning storms or when unused for a long period of time. Protect power cord from being pinched, particularly near plug points. Only use attachments/accessories specified by manufacturer. CAUTION RISK OF ELECTRIC SHOCK. DO NOT OPEN. Kinivo 301BN HDMI Switch... -
Page 4: Introduction
Introduction The Kinivo HDMI switch enables up to three HDMI source devices (Such as the DVD player, cable box, gaming console etc.) to be connected to a single HDMI input port on your HDTV or video projector. It can be used to expand the number of HDMI ports on a single input HDMI equipped audio/video receiver. -
Page 5: Back And Side Panel Connectors
Back and Side Panel Connectors Input 1 Input 2 Input 3 Output 1) to 3) HDMI Inputs; 4) HDMI Output + DC 5V DCPower Jack Kinivo 301BN HDMI Switch... -
Page 6: Remote Control
Take another HDMI cable and plug one end into the HDMI Output port on your Gaming Console. Plug the other end into the HDMI Input 1 port of the HDMI Switch. Repeat the above step to connect your Cable Box, Digital Video Recorder (DVR), DVD Player etc. Kinivo 301BN HDMI Switch... -
Page 7: Led Indication
Note: The remote control uses infrared light signal and requires direct line-of-sight to the IR Remote Sensor. Please make sure that the IR Remote Sensor is not blocked. LED Indication RED LED indicates “Signal Not Selected” BLUE LED indicates “Active Signal Path” No LED indicates “No Input Signal” Kinivo 301BN HDMI Switch... -
Page 8: Specifications
HDCP errors are usually caused by syncing/handshake problems. Simply unplug all your devices from the switch Unplug switch from the power source Re-Plug all your devices and restart the entire set up again. This should help resolve the issue. Kinivo 301BN HDMI Switch... -
Page 9: Operation
Operation HDMI Input Indicator The 301BN Switch has three HDMI Input indicator lights on its front panel. When the switch senses audio/ video transmission on one of its HDMI Input ports, the corresponding HDMI Input Indicator is illuminated in Red color. When an HDMI Input is selected for use, the corresponding HDMI Input Indicator is illuminated in Blue. -
Page 10: Input Selection With The Front Panel Button
Automatic Input Selection When 301BN HDMI Switch is powered on for the first time, it senses input ports automatically and switches to the input port source automatically in the sequence 1 -> 2 -> 3... It bypasses input ports without signal. -
Page 11: Fcc Statement
TV falls next in the sequence 1 -> 2 -> 3... You can approach support@kinivo.com if you need help in deciding the best assignment of ports. As a first step, you will need to test your input devices (such as the cable box, Blu-ray player etc.) for the above mentioned non-compliant behavior of keeping their HDMI port active in powered-off state. -
Page 12: Warranty
In the unlikely event that the product proves to be defective, Kinivo will repair or replace the product free of charge. If replacement is required and if Kinivo then no longer carries the same product, then Kinivo reserves the right to substitute the product with a replacement product of like quality and size, suitable for the intended use. -
Page 13: Online Support / Contact Us
If your product is not functioning or you have any concerns please contact Kinivo Support before returning the product. - Page 14 Made in china Kinivo Product Support Online : http://support.kinivo.com Email : support@kinivo.com...
