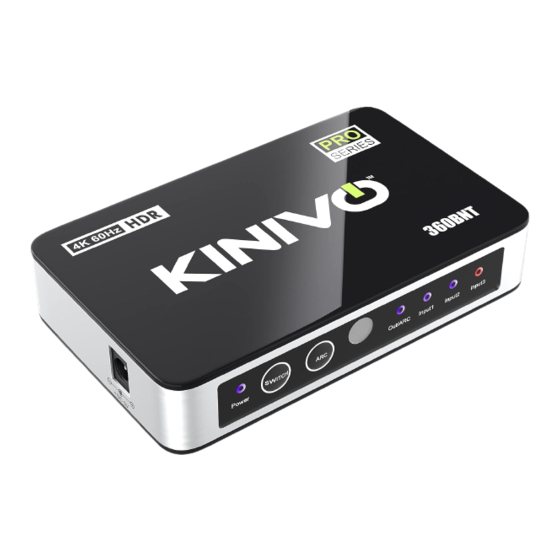

Kinivo 360BNT HDMI Switch with Toslink
User Manual
© 2021 Kinivo LLC. All rights reserved.
Kinivo is a trademark of Kinivo LLC. HDMI word mark and the
HDMI logo are registered trademarks of HDMI Consortium.
All other trade names are registered trademarks of respective
manufacturers. This manual may not be copied in any media
or form without the written consent of Kinivo LLC.
Kinivo Product Support
Online : http://support.kinivo.com
Email : support@kinivo.com
3 6 0 B N T

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 360BNT and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Kinivo 360BNT

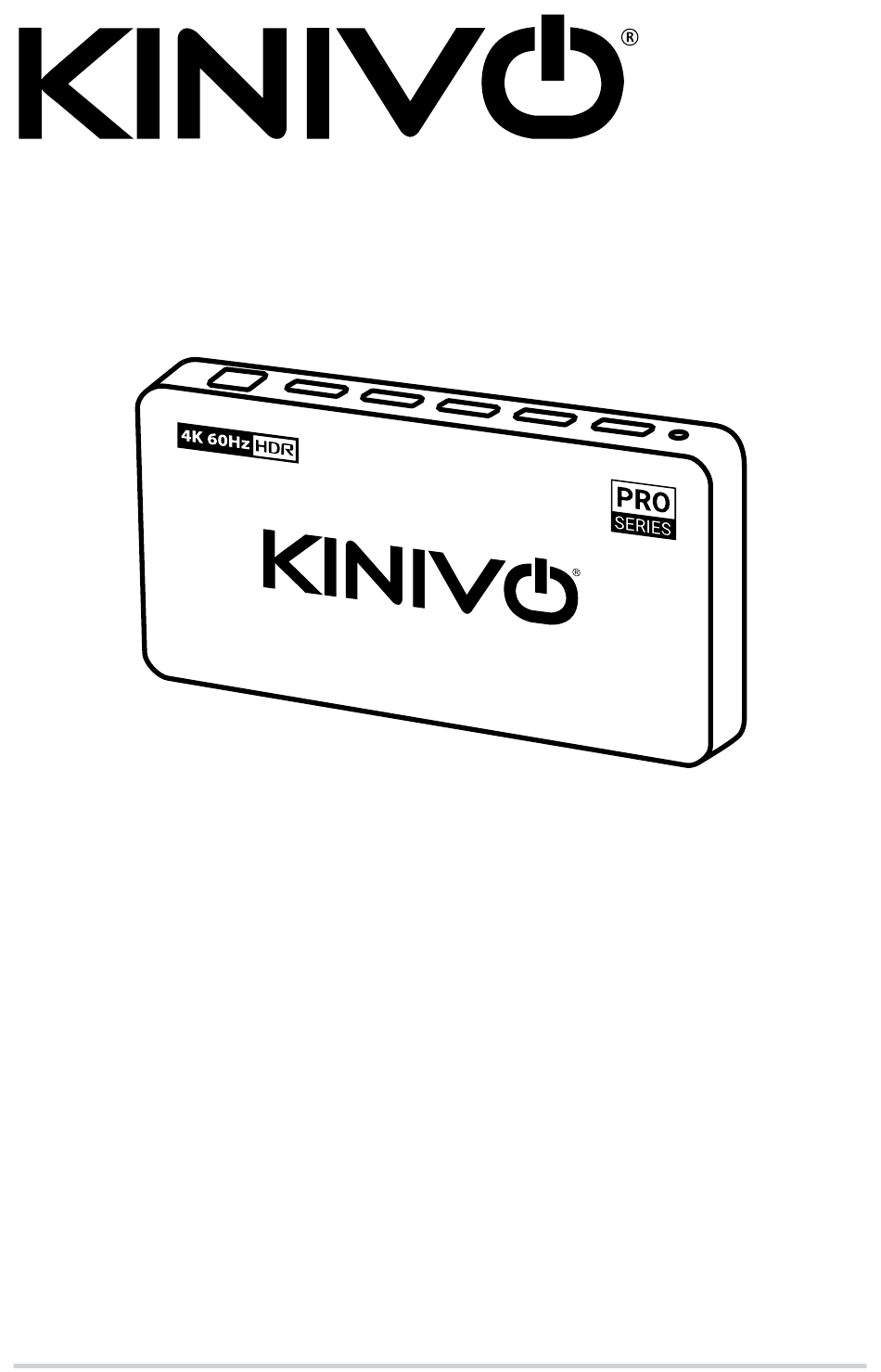

  • Page 1 3 6 0 B N T © 2021 Kinivo LLC. All rights reserved. Kinivo is a trademark of Kinivo LLC. HDMI word mark and the HDMI logo are registered trademarks of HDMI Consortium. All other trade names are registered trademarks of respective manufacturers.
  • Page 2 Sprachen verfügbar Español: Gracias por elegir Kinivo. Nuestros manuales de usuario están disponibles en varios idiomas en http:// downloads.kinivo.com Italiano: La ringraziamo per aver scelto Kinivo. I nostri manuali utente sono disponibili presso http://downloads. kinivo.com...
  • Page 3: Table Of Contents

    Table of Contents Thank You .............4 Introduction ..........4 Important Safety Instructions.....5 Installation ............7 Operation ............12 ARC ..............13 Auto Switching ..........14 Specifications ..........16 Frequently Asked Questions (FAQ) .....16 FCC Statement ..........18 Warranty ............19 Online Support / Contact Us ......21...
  • Page 4: Thank You

    Thank You Dear Customer, Thank you for choosing Kinivo. Our company’s goal is to provide high-quality products and attentive customer service to valued customers like you. We hope to meet and exceed your expectations! Our development team continues to work hard producing high quality, innovative products that will help you stay on the leading edge.
  • Page 5: Important Safety Instructions

    Do not install near any heat sources such as radiators, stoves, heat registers etc. Unplug during lightning storms or when unused for a long period of time. Protect power cord from being pinched, particularly Kinivo 360BNT HDMI Switch with Toslink...
  • Page 6 Only use attachments/accessories specified by the manufacturer. Warning Kinivo 360BNT HDMI Switch with Toslink...
  • Page 7: Installation

    2 Switch & Auto Switch Button 5 Out/ARC LED Indicator 3 ARC Button 6 HDMI Input LED Indicators Back Panel Connectors Input 3 Input 2 Input 1 Output HDMI Input Ports HDMI Output Port Kinivo 360BNT HDMI Switch with Toslink...
  • Page 8 Left Side Panel + DC 5V DC 5V input port Right Side Panel STEREO SPDIF 3.5mm audio output port SPDIF optical output port Kinivo 360BNT HDMI Switch with Toslink...
  • Page 9 Pressing the “ARC” button turns the ARC “on” or “off”. Pressing the “Memory” button makes sure the desired input is automatically selected. Note: The remote control uses infrared light signal and Kinivo 360BNT HDMI Switch with Toslink...
  • Page 10 Connect a Toslink cable to the Toslink Port of HDMI Switch and the other end to the Sound System. Plug the included power adapter to the HDMI Switch and connect it to a AC power outlet. Kinivo 360BNT HDMI Switch with Toslink...
  • Page 11 Connection Diagram HDMI SWITCH 3x1 360BNT Output Input 3 Input 2 Input 1 3.5mm Audio SPDIF Headphone Optical HDMI Output Port HDMI Input Ports Output Output Port Blu-ray/DVD Xbox PS4 Pro HDTV Player One S Kinivo 360BNT HDMI Switch with Toslink...
  • Page 12: Operation

    *N/A: Not Applicable Operation HDMI Input Indicators The 360BNT Switch has three HDMI Input indicator lights on its front panel. When the Switch senses audio/ video transmission on one of its HDMI Input ports, the corresponding HDMI Input Indicator is illuminated in...
  • Page 13: Arc

    (Buttons 1, 2 & 3). Pressing each button selects the corresponding HDMI Input port, no matter whether the port has an active input signal or not. Enable or Disable ARC To enable or disable ARC, press the “ARC/Auto Switching” Kinivo 360BNT HDMI Switch with Toslink...
  • Page 14: Auto Switching

    TV, the HDMI Switch will automatically switch to the cable TV. Turn the currently selected device off and the 360BNT Switch automatically selects the next higher numbered input that has an active signal (1 › 2 › 3...) While Auto Switching is a convenient feature, it will...
  • Page 15 3-5 seconds. The “Power” LED will turn Red. When enabling the Auto Switching function, press and hold the “Switch” button on the front panel of the switch for approximately 3-5 seconds. The “Power” LED will turn Blue. Kinivo 360BNT HDMI Switch with Toslink...
  • Page 16: Specifications

    1. What do I do if I have a HDCP error? HDCP errors are usually caused by syncing/ handshake issues. Simply unplug all your devices from the Switch. Unplug the Switch from the power source. Kinivo 360BNT HDMI Switch with Toslink...
  • Page 17 “Auto Switching” section resolve the issue then please contact customer service using the information provided at the end of this user manual in the “Online Support/Contact Us” section on page. Kinivo 360BNT HDMI Switch with Toslink...
  • Page 18: Fcc Statement

    Plug the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/ television technician for additional suggestions. You are cautioned that any change or modifications Kinivo 360BNT HDMI Switch with Toslink...
  • Page 19: Warranty

    1 year after the date of purchase. The product has been tested to meet the highest quality standards in each testing category. In the unlikely event that the product proves to be defective, Kinivo will repair Kinivo 360BNT HDMI Switch with Toslink...
  • Page 20 If replacement is required and if Kinivo then no longer carries the same product, then Kinivo reserves the right to substitute the product with a replacement product of like quality and size, suitable for the intended use.
  • Page 21: Online Support / Contact Us

    Online Support / Contact Us Please visit us at support.kinivo.com or www.kinivo.com for support information, downloads and how-to’s. You may also reach us via email or live chat (details below). Kinivo Product Support US Toll Free Number: 1-855-454-6486 Email : support@kinivo.com Live chat : http://support.kinivo.com...
  • Page 22 Kinivo Product Support Designed in USA. US Toll Free Number: 1-855-454-6486 Assembled in China. Online : http://support.kinivo.com Email : support@kinivo.com...
