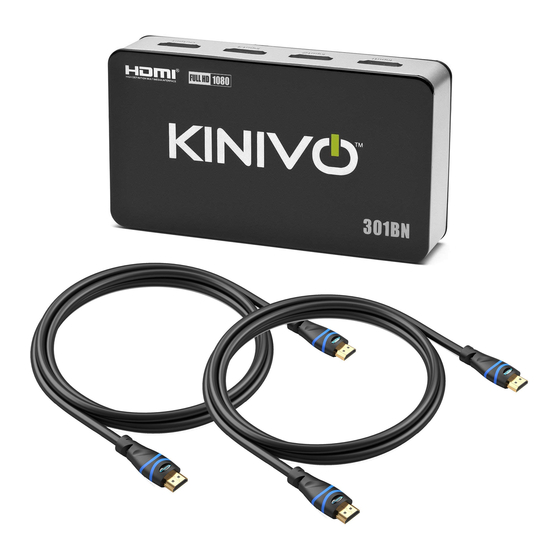

Kinivo 301BN 4K 30Hz HDMI Switch
User Manual
© 2018 Kinivo, Inc. All rights reserved.
Kinivo is a trademark of Kinivo, Inc. HDMI word mark and the
HDMI logo are registered trademarks of HDMI Consortium.
All other trade names are registered trademarks of respective
manufacturers. This manual may not be copied in any media
or form without the written consent of Kinivo, Inc.
Kinivo Product Support
Online : http://support.kinivo.com
Email : support@kinivo.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 301BN and is the answer not in the manual?

Questions and answers

Summary of Contents for Kinivo 301BN

  • Page 1 Kinivo 301BN 4K 30Hz HDMI Switch User Manual © 2018 Kinivo, Inc. All rights reserved. Kinivo is a trademark of Kinivo, Inc. HDMI word mark and the HDMI logo are registered trademarks of HDMI Consortium. All other trade names are registered trademarks of respective manufacturers.
  • Page 2 Sprachen verfügbar Español: Gracias por elegir Kinivo. Nuestros manuales de usuario están disponibles en varios idiomas en http:// downloads.kinivo.com Italiano: La ringraziamo per aver scelto Kinivo. I nostri manuali utente sono disponibili presso http://downloads. kinivo.com...
  • Page 3: Table Of Contents

    Table of Contents Introduction ..........4 Important Safety Instructions..... 5 Installation ............ 6 Operation ............11 Auto Switching ..........13 Specifications ..........14 Frequently Asked Questions (FAQ) ..... 15 FCC Statement ..........16 Warranty ............18 Online Support / Contact Us ......20...
  • Page 4: Introduction

    Thank You Dear Customer, Thank you for choosing Kinivo. Our company’s goal is to provide high-quality products and attentive customer service to valued customers like you. We hope to meet and exceed your expectations! Our development team continues to work hard producing high-quality, innovative products that will help you stay on the leading edge.
  • Page 5: Important Safety Instructions

    Do not install near any heat sources such as radiators, stoves, heat registers etc. Unplug during lightning storms or when unused for a long period of time. Protect power cord from being pinched, particularly near plug points. Kinivo 301BN 4K 30Hz HDMI Switch...
  • Page 6: Installation

    Warning Installation Front and Side Panel Controls SWITCH Output Input 1 Input 2 Input 3 Power 1 Power Indicator 3 HDMI Output Indicator 2 IR Remote Sensor 4 to 6 HDMI Input Indicator Kinivo 301BN 4K 30Hz HDMI Switch...
  • Page 7 Back and Side Panel Connectors Output Input 3 Input 2 Input 1 HDMI Output HDMI Input 3 HDMI Input 2 HDMI Input 1 + DC 5V DC Power Input Kinivo 301BN 4K 30Hz HDMI Switch...
  • Page 8 HDMI Input 1 HDMI Input 2 HDMI Input 3 Screw Select a specific HDMI Input by choosing 1, 2, or 3 Press ‘Up’ or ‘Down’ buttons to select the previous or next input source. Kinivo 301BN 4K 30Hz HDMI Switch...
  • Page 9 Connect Devices (Game Console, DVD Player, Streaming Media Player, etc) to the input ports on the HDMI Switch. Plug the included power adapter to the HDMI Switch and connect it to a AC power outlet. Kinivo 301BN 4K 30Hz HDMI Switch...
  • Page 10 Connection Diagram HDMI In HDMI Cable HDTV Input 2 Input 1 Output Input 3 HDMI Cables Game Console Apple TV DVD Player Kinivo 301BN 4K 30Hz HDMI Switch...
  • Page 11: Operation

    *N/A: Not Applicable Operation HDMI Input Indicators The 301BN Switch has three HDMI Input indicator lights on its front panel. When the Switch senses audio/ video transmission on one of its HDMI Input ports, the corresponding HDMI Input Indicator is illuminated in Red color.
  • Page 12 Input. Pressing the ‘Down’ button will move to the next connected HDMI Input. There are also direct input selection buttons on the remote control (Buttons 1, 2, and 3). Pressing each button selects the corresponding HDMI Input port, no matter Kinivo 301BN 4K 30Hz HDMI Switch...
  • Page 13: Auto Switching

    Auto Switching Automatic Input Selection When the 301BN Switch is powered on for the first time, it senses input ports automatically and switches to the input port source automatically in the sequence 1 › 2 ›...
  • Page 14: Specifications

    8 seconds. The HDMI Output LED will flash 4 times and turn Blue. Note: Auto Switching is enabled by default. Specifications Supported Resolutions 4K 30Hz / 1080p HDMI Version Kinivo 301BN 4K 30Hz HDMI Switch...
  • Page 15: Frequently Asked Questions (Faq)

    HDCP errors are usually caused by syncing/ handshake issues. Simply unplug all your devices from the Switch. Unplug the Switch from the power source. Replug all your devices and restart the entire set up Kinivo 301BN 4K 30Hz HDMI Switch...
  • Page 16: Fcc Statement

    3. What do I do if Auto Switching is not working as advertised? Refer to “Auto Switching” section. FCC Statement This equipment has been tested and found to comply with limits for a Class B digital device, pursuant to Part Kinivo 301BN 4K 30Hz HDMI Switch...
  • Page 17 You are cautioned that any change or modifications to the equipment not expressly approved by the party responsible for compliance could void your authority to operate such equipment. This device complies with Part 15 of the FCC Rules. Kinivo 301BN 4K 30Hz HDMI Switch...
  • Page 18: Warranty

    In the unlikely event that the product proves to be defective, Kinivo will repair or replace the product free of charge. If replacement is required and if Kinivo then no longer carries the same...
  • Page 19 Kinivo’s control. The warranty does not cover or provide for the reimbursement or payment of incidental or consequential damage resulting from breach of the limited warranty described above.
  • Page 20: Online Support / Contact Us

    Online Support / Contact Us Please visit us at support.kinivo.com or www.kinivo.com for support information, downloads and how-to’s. You may also reach us via email or live chat (details below). Kinivo Product Support US Toll Free Number: 1-855-454-6486 Email : support@kinivo.com Live chat : http://support.kinivo.com...
  • Page 21 This page intentionally left blank...
  • Page 22 Designed in USA. Kinivo Product Support Assembled in China. Online : http://support.kinivo.com Email : support@kinivo.com...
